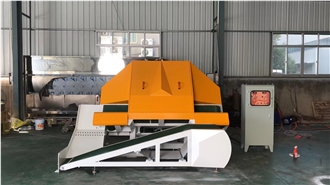

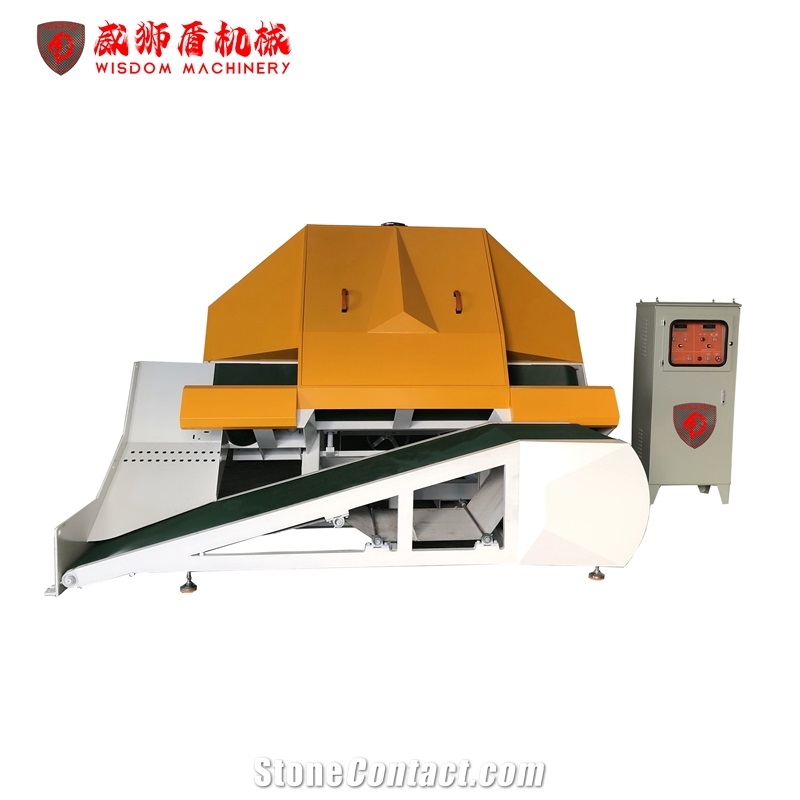

Natural Thin Stone Special-Shaped Stone Veneer Saw
FOB Price:$15000-20000
Type:
Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
15~20days
Warranty:24 Months
Install and Guarantee:Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Jan 20,2021
Main Product:
Bridge Saw, Stone Cutting Machine, Block Cutting Machine, Wire Saw Machine, Stone Splitter, Stone Polishing Machine|
Machinery Function Features
-Powerful 60HP motor
-Easily cuts split-face or natural finished stone, brick and other hard stones
-Motor Inverter
-Belt Motor Inverter
-Belt Automatic Amp Control
-Thin Stone Veneer Saw is an integral structure, easy to install and transport.
Technical Data
Parameters |
Unit |
Veneer Saw |
Blade size |
mm |
1000-1200 |
Motor forward backward stroke |
mm |
0-170 |
Conveyor width |
mm |
350 |
Motor up down stroke |
mm |
0-200 |
Max cutting size |
mm |
350*358*500 |
Conveyor load capacity |
kgs |
400 |
Weight |
kgs |
5000 |
Main motor power |
60 Hp (45KW) |
|

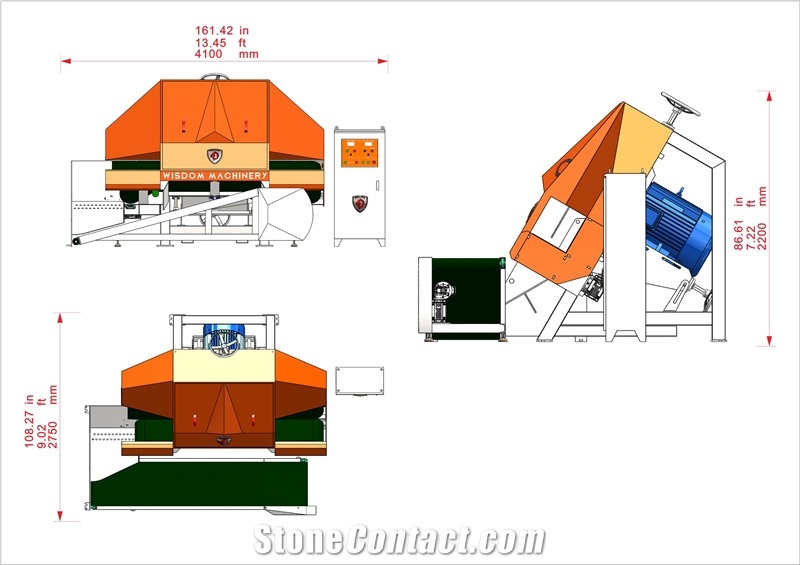

Dimension |
mm |
4000*2800*2200 |
Return conveyor load capacity |
kgs |
300 |
Return conveyor width |
mm |
700 |
Conveyor speed |
mm/M |
0-2200 |

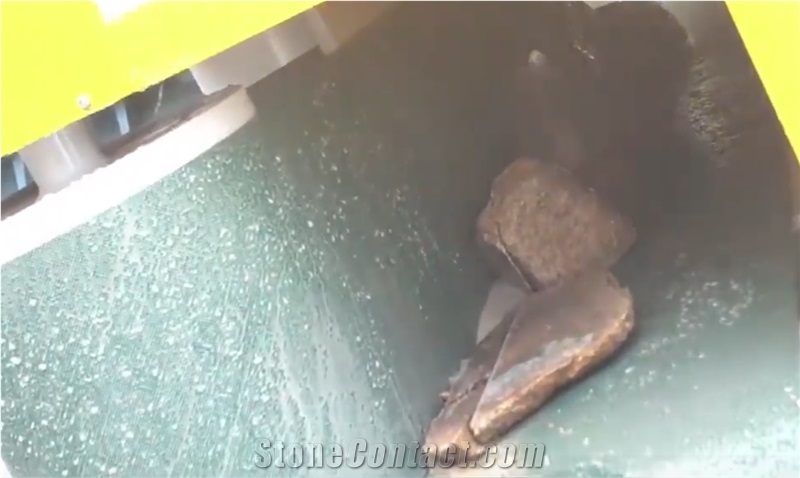

Work Example
The main control components are international brand components, cutting the main motor and cutting conveyor belt are stepless speed regulation.
The working mode of this machine adopts the continuous cutting mode of assembly line, which is mainly used for cutting the plane of irregular elliptical stones such as cobblestone and raw stone.

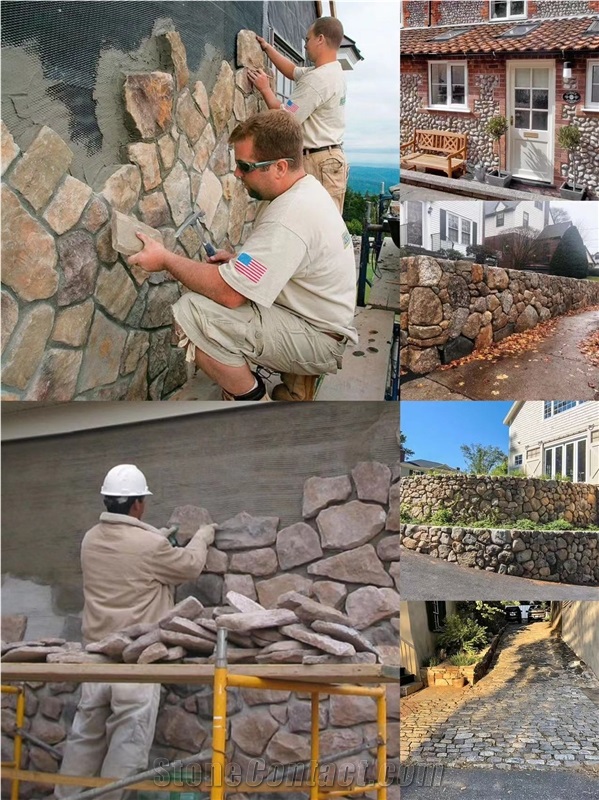

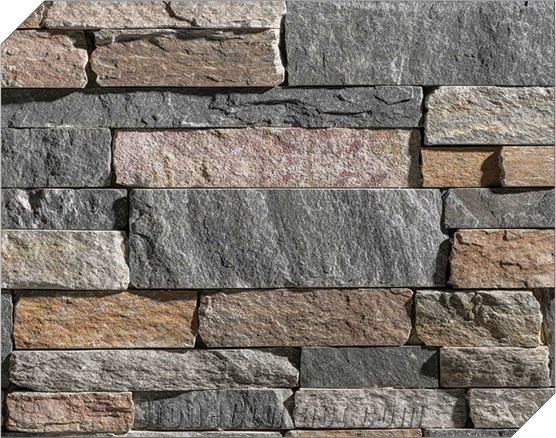

Processed Stone Photos
Components
Consumables
Customer Case
