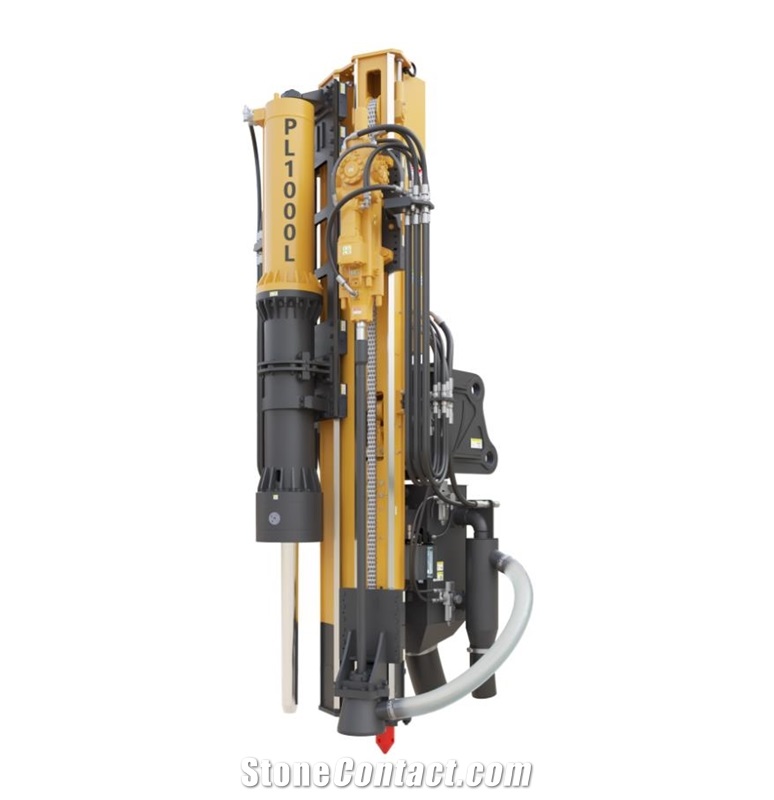

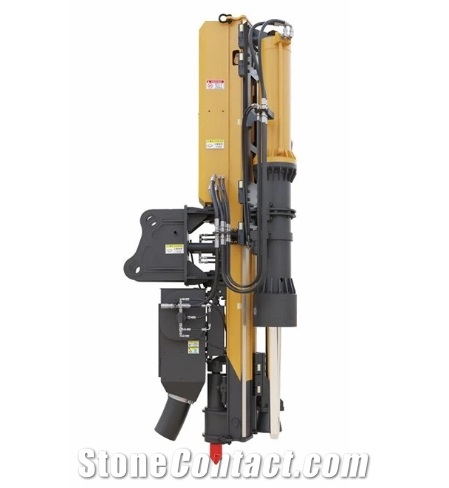

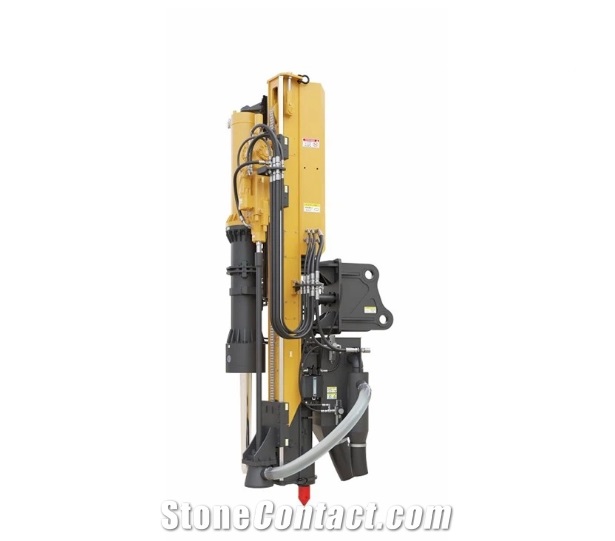

Lieyankeji PL1000L Integrated Hydraulic Rock Drill & Splitter

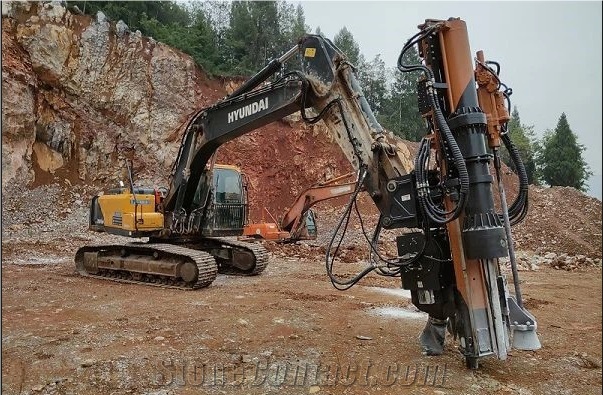

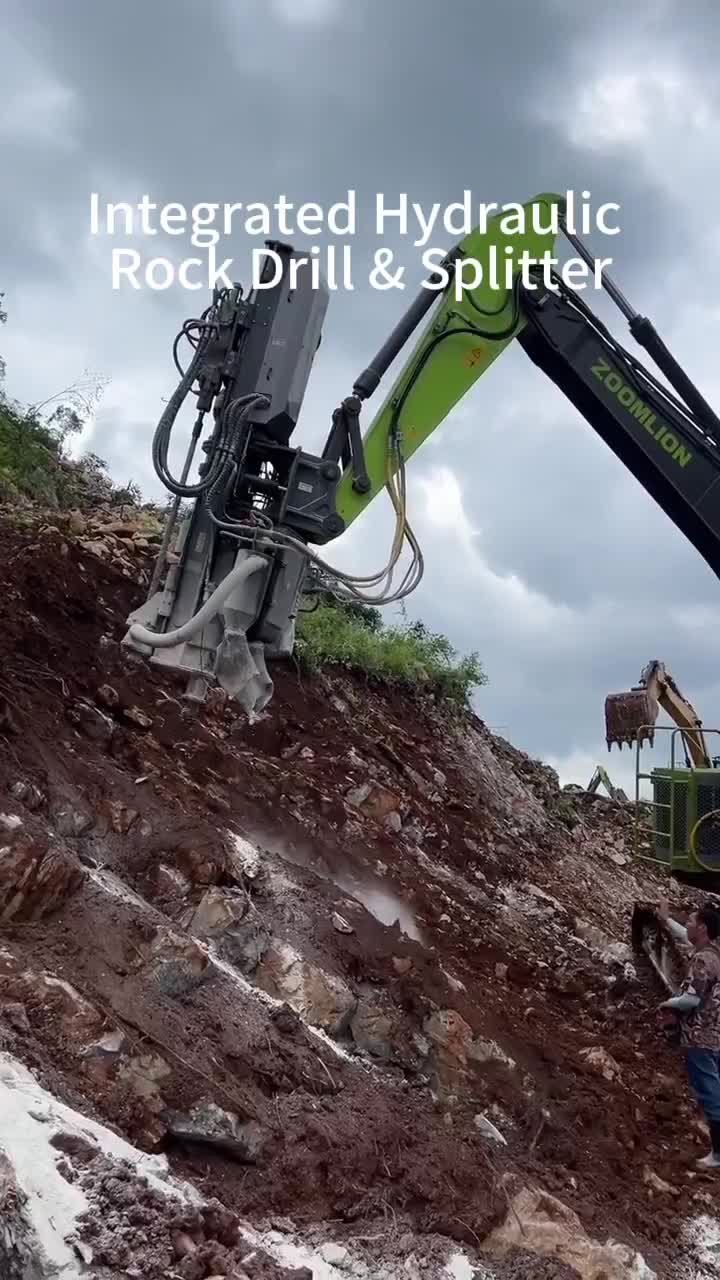

Description: LIEYANKEJI Machinery adopting a mechanical fuel injection engine that meets the national emission standards, it has strong power, energy conservation, environmental protection, high reliability, and excellent performance. Key hydraulic components adopt the latest technological achievements, with low energy consumption and fast response. Product Introduction: PL1000L Rock Drilling and Splitting Machine is mounted on (24T-36T) excavators for use in a variety of hard rock square mining projects, to solve the hard rock efficient and environmentally friendly mining program. Make full use of its power and super mobility, can be applied to a variety of outdoor complex working conditions, unique L-type triangular swing articulation structure, stable and durable structure, can be adapted to various angles of construction, easy to disassemble and easy to transport, back mounted circuit and hydraulic system for easy maintenance and other features. The equipment is operated by a multi-channel and highly reliable wireless remote control. Utilizing the 22KW hydraulic rock drill, the rock drilling is carried out first, and then the P240 two-stage pressurized super splitter is used to enter the hole to split, so as to achieve the effect of high-efficiency rock static blasting. Its high-efficiency hydraulic rock drill fully embodies the high economic drilling costs, hydraulic drive air compressor using excavator hydraulic drive, than the traditional (diesel-driven independent air compressor) more stable, lower maintenance costs, better economy. Splitting blocks are made of imported alloy forging material through advanced heat treatment process to make them more durable. Rock drilling and splitting machine efficiency Drilling approx. 2 minutes, splitting approx. 40 secs. Side swinging and positioning about 50 seconds minutes. Output per hole (theoretical) 2.5m (horizontal spacing) x 1.2m (vertical spacing) x 1m (splitting depth) = 3m³. Daily output (8 hours) 3m³(per hole) x 137 holes/day = 411m³ Product Parameters Rock Drill Parameters Power (output) 22kW Borehole diameter Φ89-127mm Drilling depth 1600mm Drilling speed 1m/min Operating noise In line with GB 19872-2005 Splitter parameters Splitting depth 1000mm Splitting force (two-stage pressurization) 12000T Angle of rotation 120° Air compressor/vacuum cleaner Parameters: Exhaust volume 4.5m³/min Exhaust pressure 5-8bar Number of cartridges 5P Push Beam/Side Swing Parameters Maximum thrust of rock drilling 40KN Maximum pull-out force for splitting 80KN Remote Control Parameters Side Swing Velocity 1rpm Number of digital points 30 Range of validity 50m Anti-interference capability >50dB Number of analog channels 14 Total weight 4T Machine Parameters: Total width 1500mm Overall length 4140mm Excavator requirements 24-36T Overall height 1570mm
