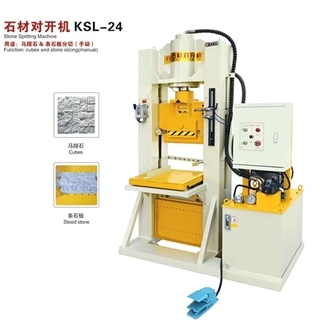

Stone Splitting Machine - KSL-24
FOB Price:$12500-15000
Type:
Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
35 day
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Remote troubleshooting, Field troubleshooting
Trade Terms
Port:
XIAMEN- China
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :
Supplier
Eatablished :Sep 10,2018
Main Product:
Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|
Machinery Function Features
This mechanical product is mainly used for the reuse of corner wastes in stone factory enterprises and mining enterprises to achieve full utilization of environmental protection and create greater value for enterprises.The products manufactured by this machine are mainly used for decoration of high-grade villas, bars and Hotels with dry hanging on the inner and outer walls, floor laying of commercial streets and garden districts, etc

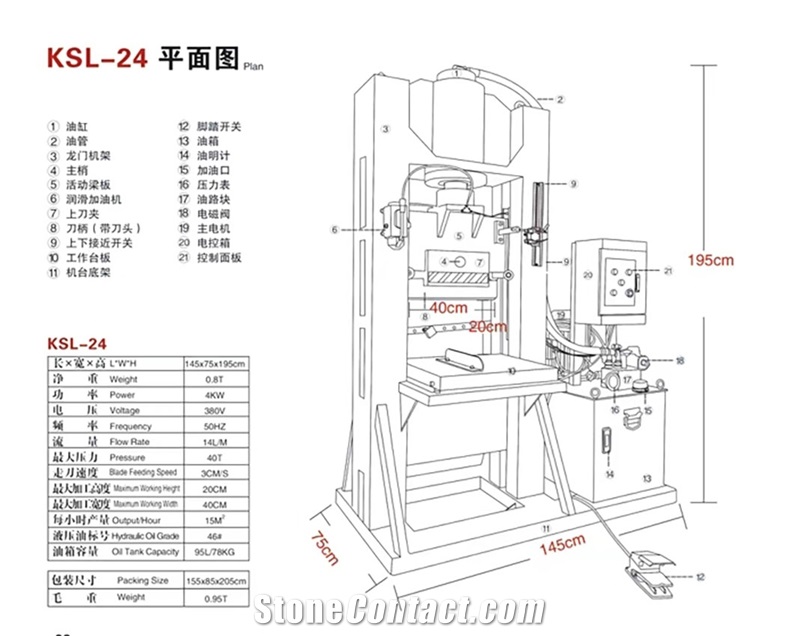

Technical Data
Parameters |
Unit |
KSL-24 |
Frequency |
Hz |
50 |
Approximate weight |
T |
0.8 |
Main Motor Power |
kw |
4 |
Max. working width |
cm |
40 |
Hydraulic oil grade |
46# |
|
Max. Pressure |
tons |
40 |
Output per Hour |
m2/h |
15 |
Oil tank capacity |
L |
95L/78KG |
Machine width (W) |
cm |
75 |
Flow rate |
L/min |
14 |
Voltage |
V |
380 |
Blade feeding speed |
cm/s |
3 |
Max. working height |
cm |
20 |
Machine length (L) |
cm |
145 |
Machine height (H) |
cm |
195 |

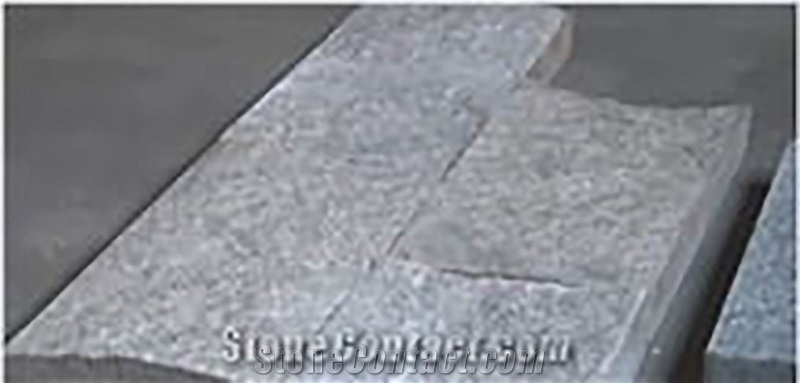

Processed Stone Photos

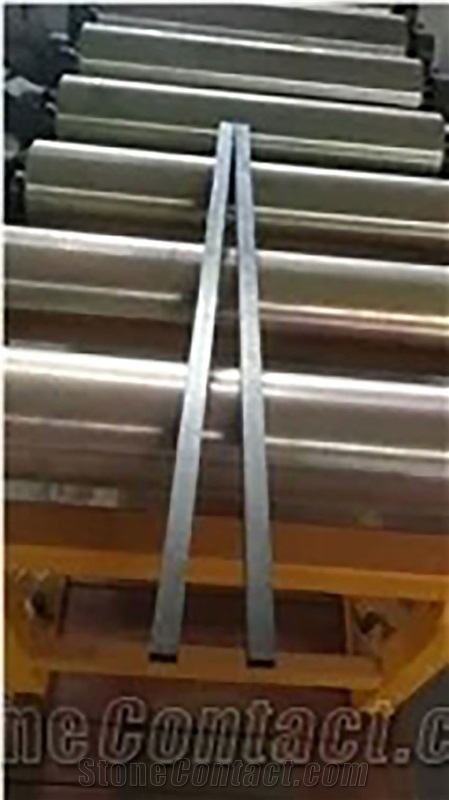

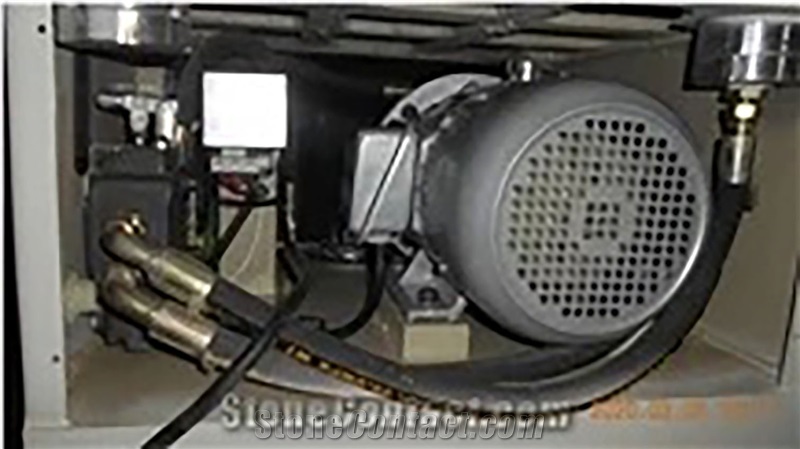

Components
Consumables
