Stone Splitting Machine - KSL-24Z
FOB Price:$12500-15000
Type:
Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
35 day
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Remote troubleshooting, Field troubleshooting
Trade Terms
Port:
XIAMEN- China
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :
Supplier
Eatablished :Sep 10,2018
Main Product:
Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|
Machinery Function Features
This mechanical product is mainly used for the reuse of corner wastes in stone factory enterprises and mining enterprises to achieve full utilization of environmental protection and create greater value for enterprises. The products manufactured by this machine are mainly used for decoration of high-grade villas, bars and Hotels with dry hanging on the inner and outer walls, floor laying of commercial streets and garden districts, etc

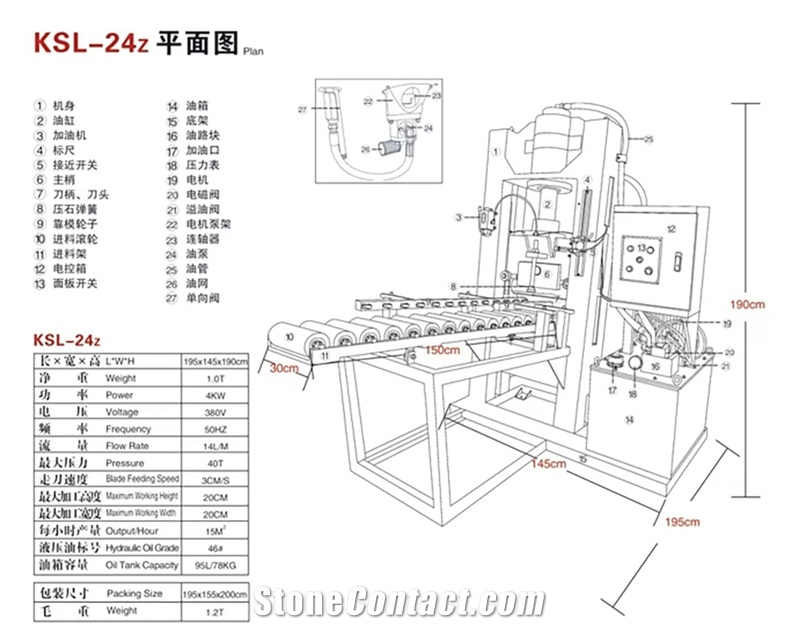

Technical Data
Parameters |
Unit |
KSL-24z |
Main Motor Power |
kw |
4 |
Machine width (W) |
cm |
145 |
Max. Pressure |
tons |
40 |
Oil tank capacity |
L |
95L/78KG |
Machine height (H) |
cm |
190 |
Output per Hour |
m2/h |
15 |
Max. working height |
cm |
20 |
Hydraulic oil grade |
46# |
|
Blade feeding speed |
cm/s |
3 |
Flow rate |
L/min |
14 |
Machine length (L) |
cm |
195 |
Voltage |
V |
380 |
Approximate weight |
T |
1 |
Frequency |
Hz |
50 |
Processed Stone Photos

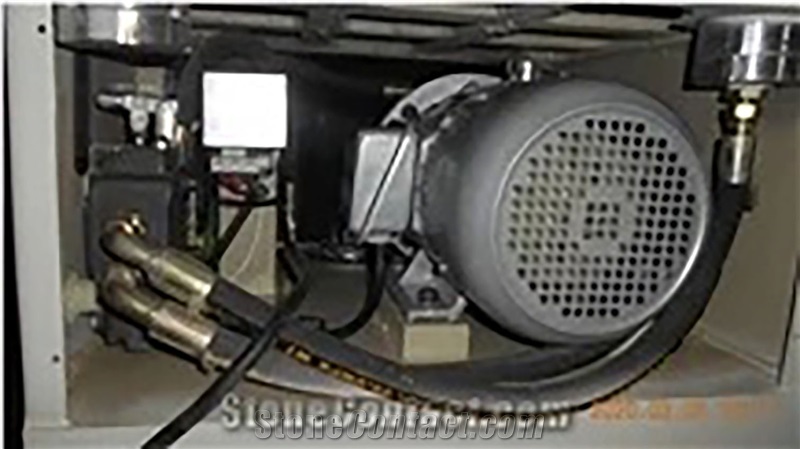

Components

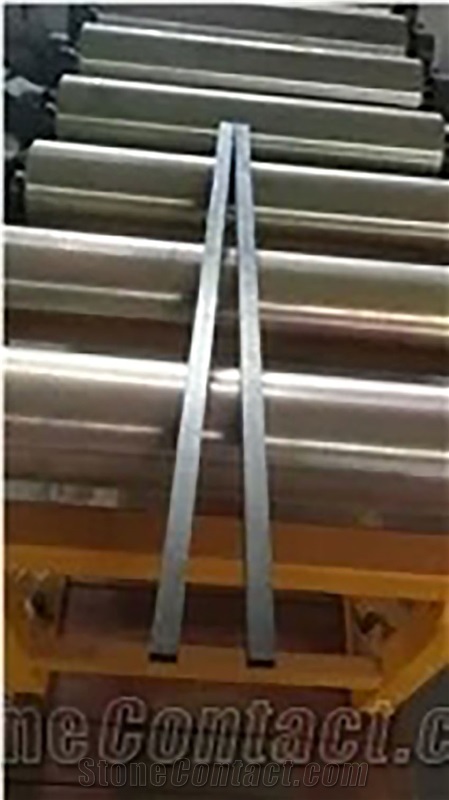

Consumables
