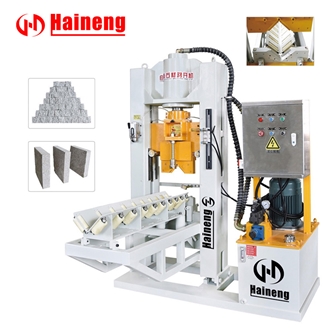

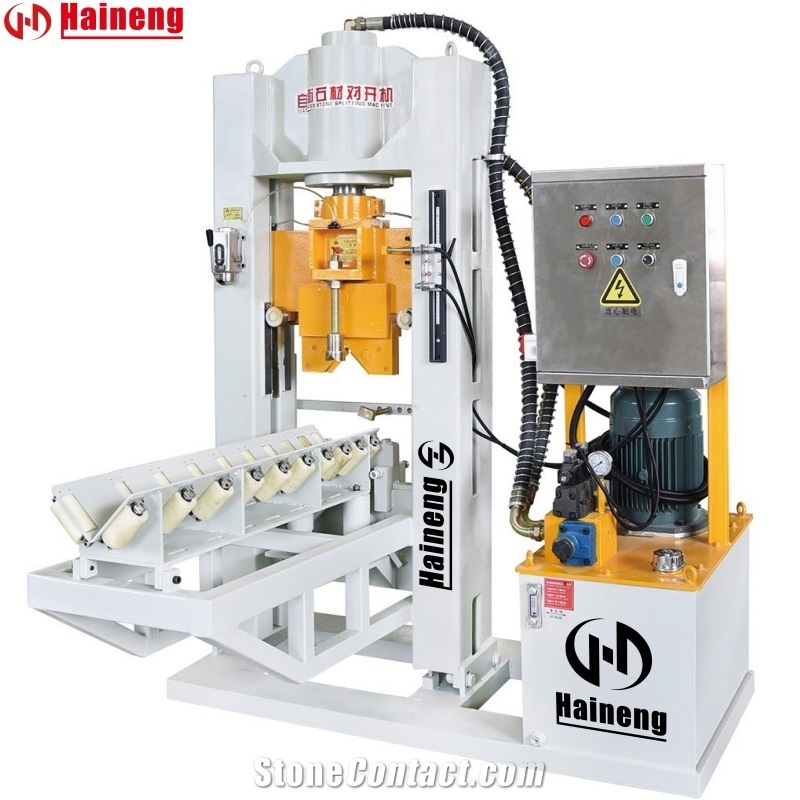

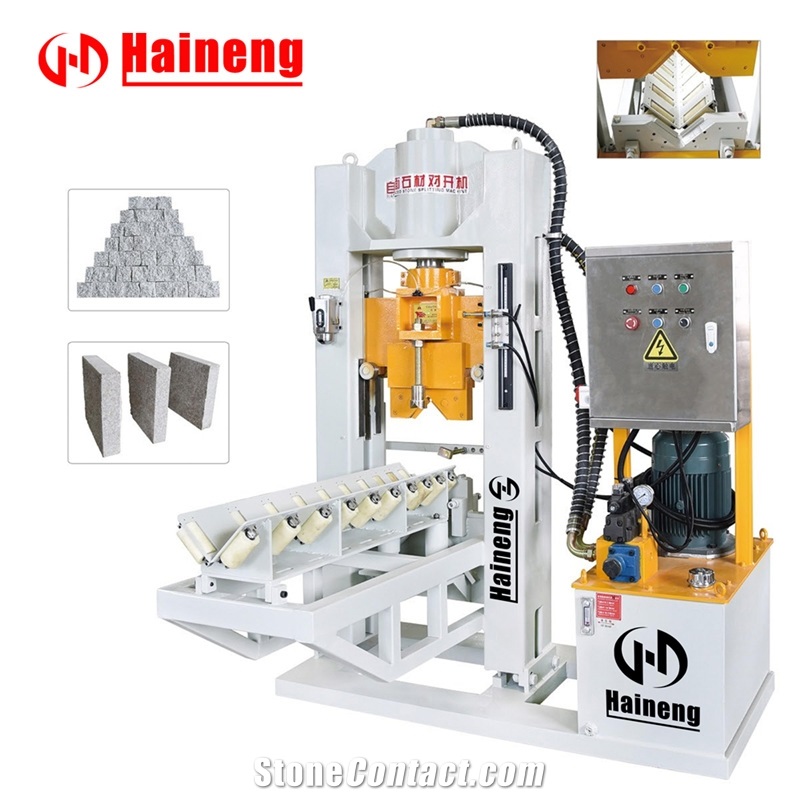

Hydraulic Cube Stone Splitting Cutting Machine
FOB Price:$9000-9500
Type:
Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
You may also like
Machinery Function Features

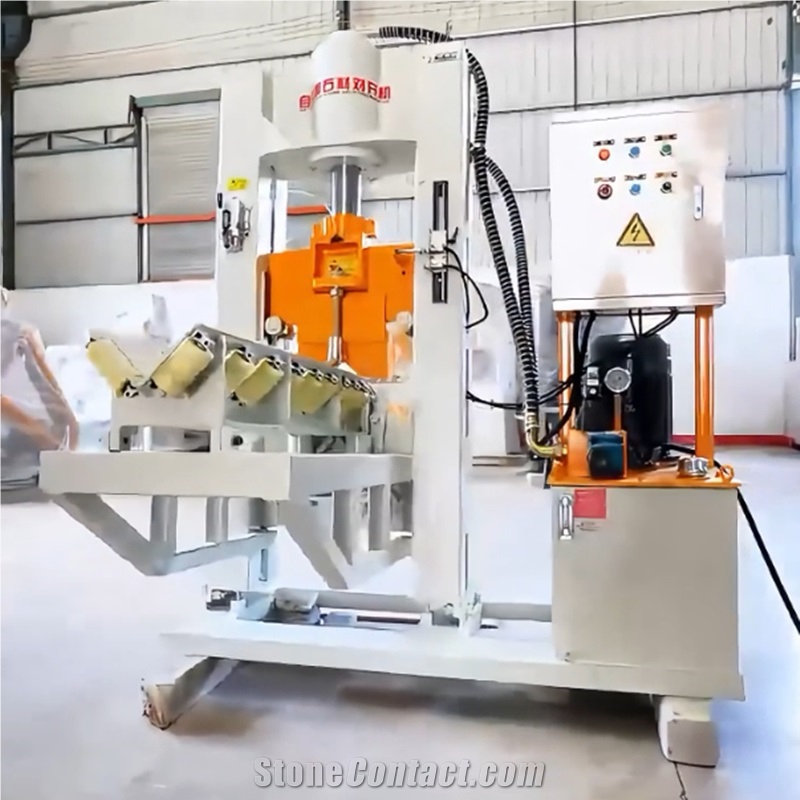

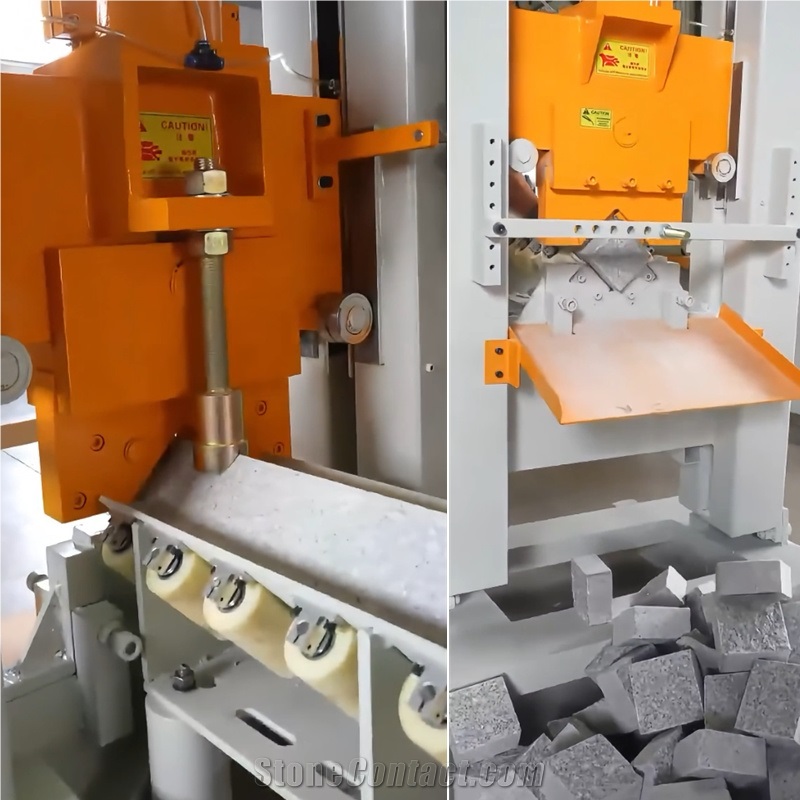

Cube stone splitting machine has an automatic conveyor mechanism, suitable for the process of processing long stone strips that have been sawn and need to be fed continuously into square blocks of stone, with an infrared sensor controlling the thickness of the split, which is easy to adjust and highly efficient.

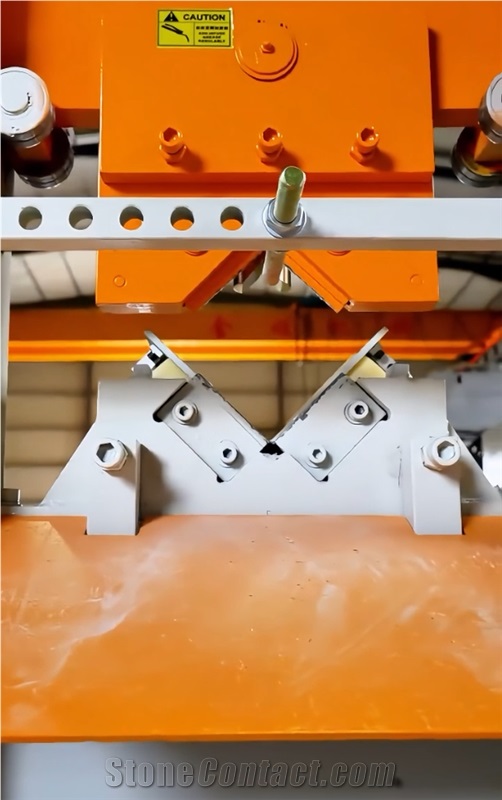

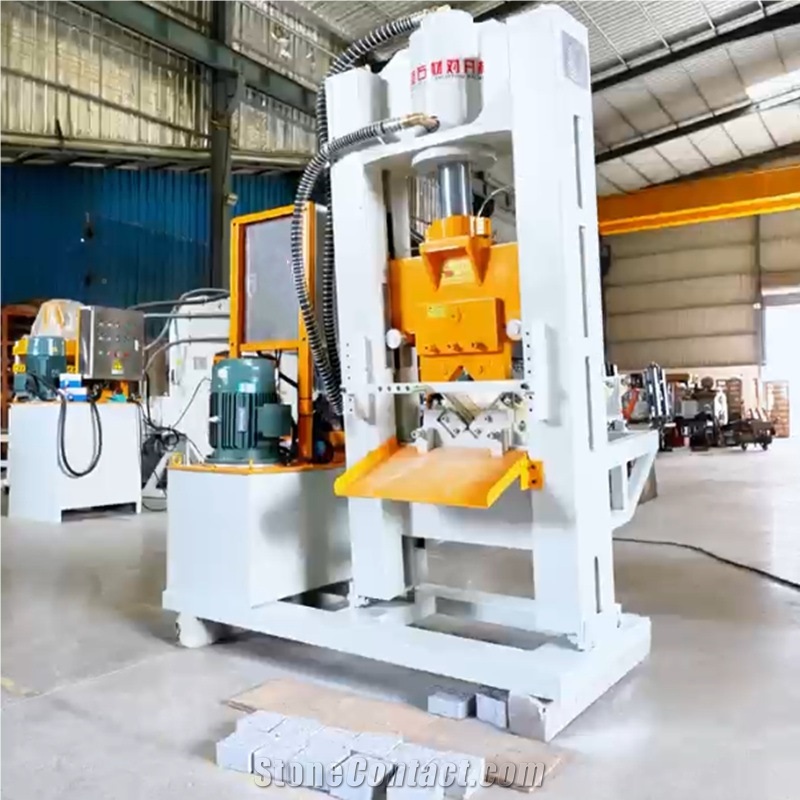

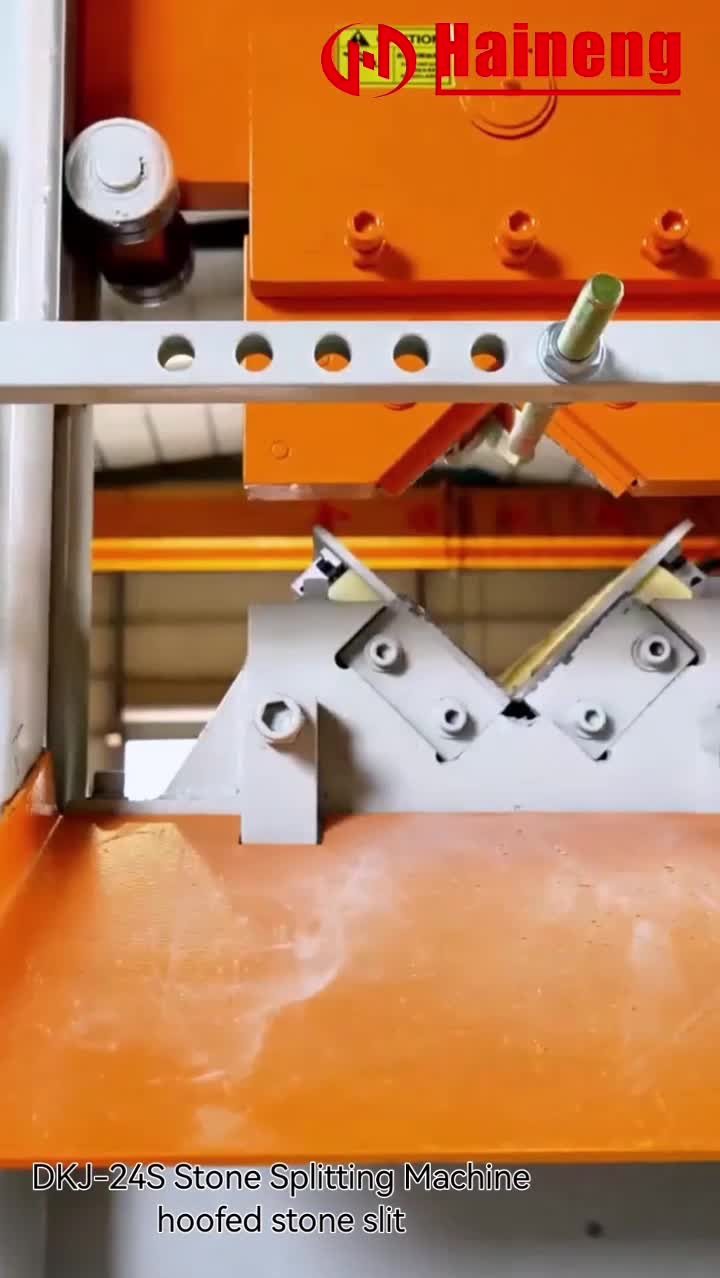

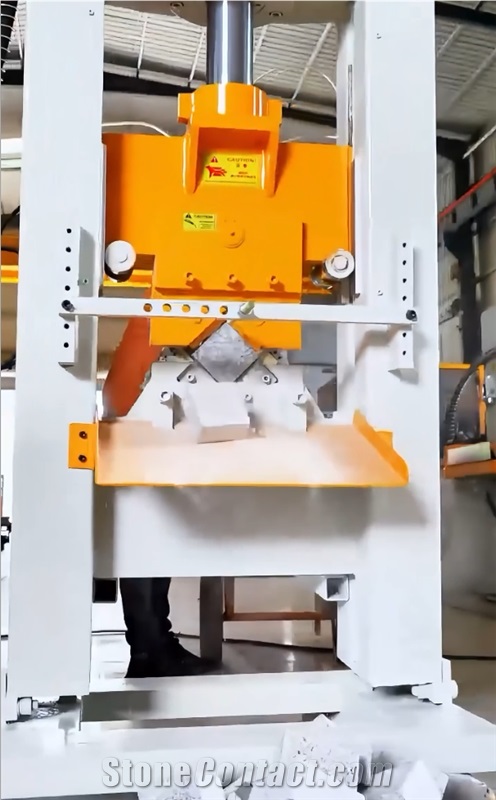

Designed with hydraulic drive, it can split square paving stones into cubes or blocks with antique appearance. Natural stone splitting machine is an efficient machine for producing cubic paving stone.
Technical Data
Parameters |
Unit |
DKJ-24S |
Max. working height |
cm |
20 |
Max. Pressure |
tons |
50 |
Blade feeding speed |
cm/s |
5 |
Main Motor Power |
kw |
5.5 |
Hydraulic oil grade |
46 |
|
Machine length (L) |
cm |
160 |
Machine height (H) |
cm |
205 |
Frequency |
Hz |
50 |
Machine width (W) |
cm |
160 |
Output per Hour |
m2/h |
18 |
Oil tank capacity |
L |
78 |
Approximate weight |
T |
1 |
Flow rate |
L/min |
32 |
Max. working width |
cm |
20 |
Processed Stone Photos
