5 Axis CNC Bridge Saw Machine
FOB Price:$30000-40000
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Quartzite
After-Sale
Lead Time:
45 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Port:
Ningbo Port- China
Delivery Details: FOB,CFR,CIF
Payment :
Supplier
Eatablished :Jan 01,1993
Main Product:
CNC Stone Cutting Machine, CNC Bridge Saw, Bridge Saw Machine, Stone Bridge Saw, 5 Axis CNC Bridge Saw, 4 Axis Bridge Saw|
Machinery Function Features

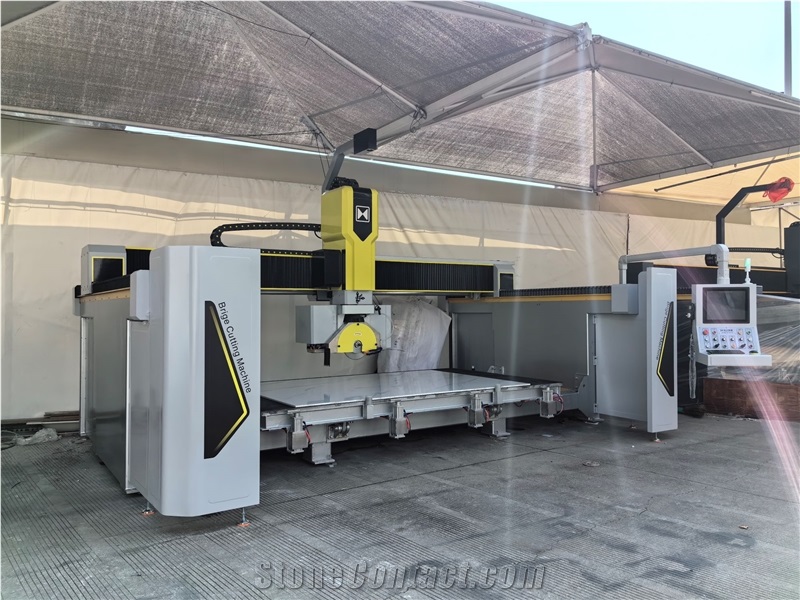

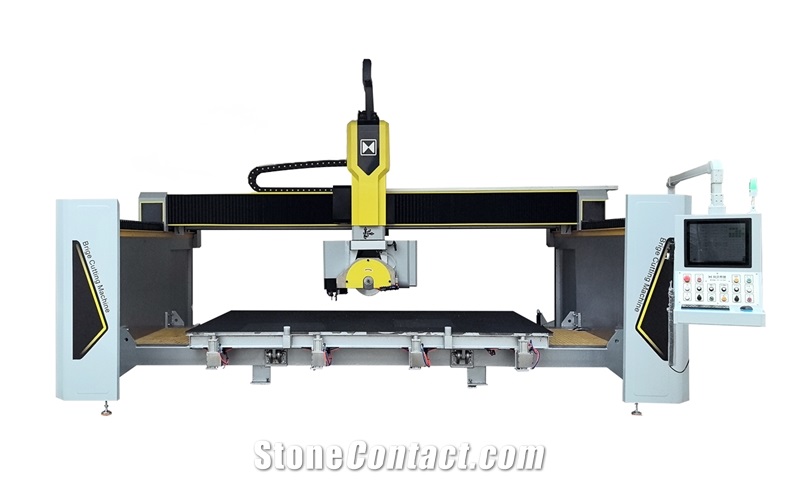

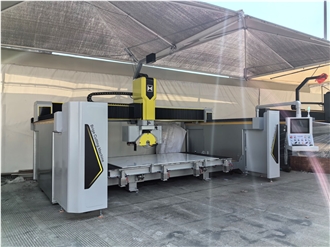

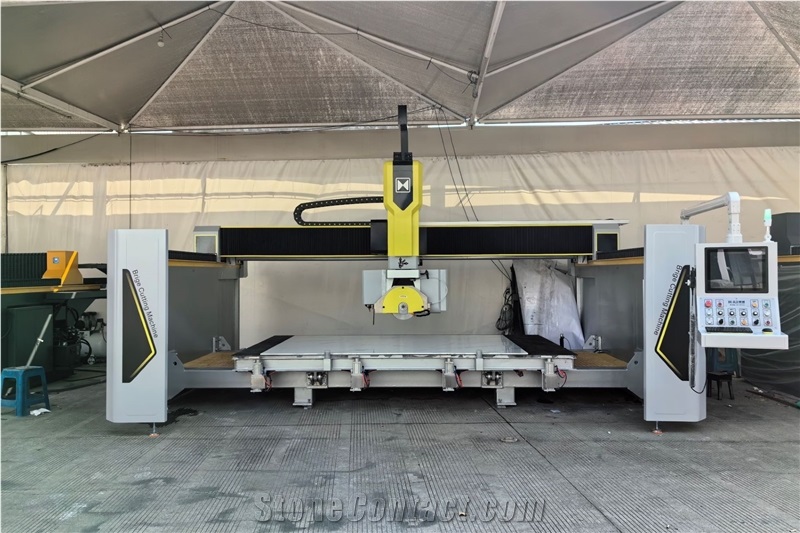

It's a 5 Axis CNC Bridge Saw Machine for processing Marble, Granite, Porcelain and Quartz stone Countertops. ( Model: Type:ZLBS-425CNC/5+1). It’s a multifunctional bridge saw with a camera, milling head, vacuum cups, and pressure plate cylinders. After taking a picture and program cutting on the machine's computer, the machine will automatically process slabs. The machine has a standard 22KW permanent magnet motor,which is 40% power savings than normal ones.It's high-end machine, can do remote control, remote programming, remote fault diagnosis., etc.
Technical Data
Parameters |
Unit |
ZLBS-425CNC/5+1 |
Machine length |
mm |
3500 |
Machine width |
mm |
4150 |
Features |

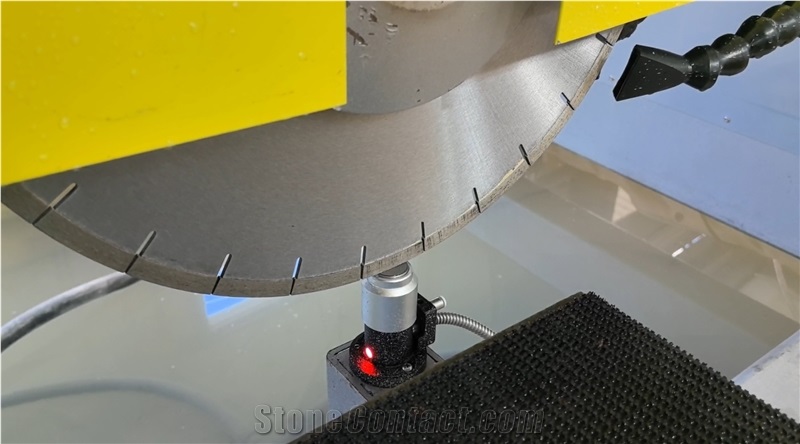

Automatic measuring probe for thickness (√) Automatic Tool Setting Gauge(√) Automatic lubrication system (√) With Electric spindle speed:24000rpm (√) With A Camera, Camera layout function(√) With an industrial computer and a 17" color touch-screen. Drawing function(√) With Suction Cups(√) Software upgrate for free (√) With A Group of Rotating Cylinders to press piecework during millingwork(√) Vein Matching(√) 22kw 5-axis special permanet magnet motor, which is 40% power saving.(√) Four-Side Chamfering Range: 3500X2000mm |
|
Worktable turn-over degree |
° |
85 |
Dimensions of the work table(L×W) |
mm |
3500X2000 |
Worktable Weight |
Kg |
5500 |
Max. liftable weight with all the vacuum cups activated |
Kg |
200 |
C axis blade rotation |
° |
360 |

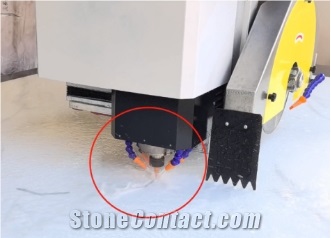

Electric Spindle for Milling Work |
* Type: electric spindle* Rotating speed: 0-24000 rpm * Power: 5.5kw |
|
Max. cutting depth |
mm |
90 |
Total power |
KW |
35 |
Tools holder head inclination(A axis blade rotation) |
° |
90 |
Machine height |
mm |
5750 |
Main motor |
Self-developed 5-axis special motor 22KW (permanet magnet motor with frequency) |
|
Disc diameter |
mm |
350~400 |
Max.length of the cut slab |
mm |
3500 |
X.Y. Z-axis Transmission |
X.Y-axis adopts "DINGFENG" #30 Linear Guide Rail + helical rack and gear + planetary reducer. Z-axis adopts "DINGFENG" #30 Linear Guide Rail+ Ball screw. |
|
Control center |
Quality Industry computer with 17" color touch-screen + CNC controller+ CNC software(Cut Cam) + YUHAI Servo Motor |
|
Max number of interpolated axes |
nr |
5 |
Max.width of the cut slab |
mm |
2000 |
Cooling water requirement(1.5 bar min. pressure) |
m3/h |
2 |

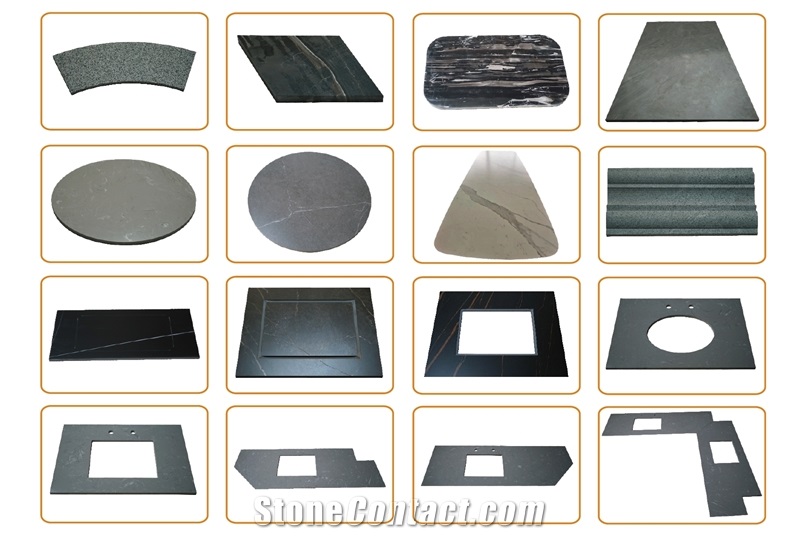

Processed Stone Photos

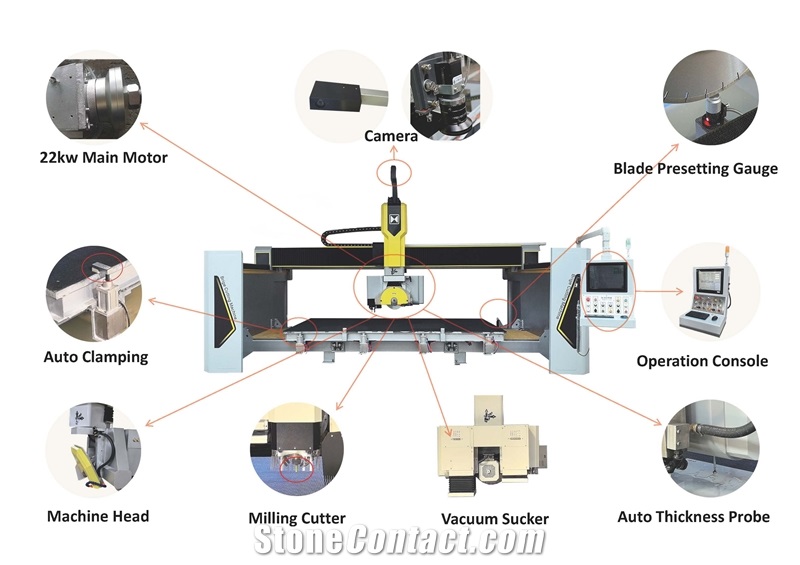

Components
Consumables
-
Saw Blade
-
Milling Tool
