5 Axis Bridge Cutting Machine - High-Precision Cutting For Stone
FOB Price:$29200-30700
Supplier
Eatablished :Dec 26,2014
Main Product:
5 Axis CNC Bridge Saw, 4+1 CNC Bridge Saw , 45° Miter Cutter, Stone CNC Engraving Machine, Cutting And Edging Work Center, Trepanning Machine|

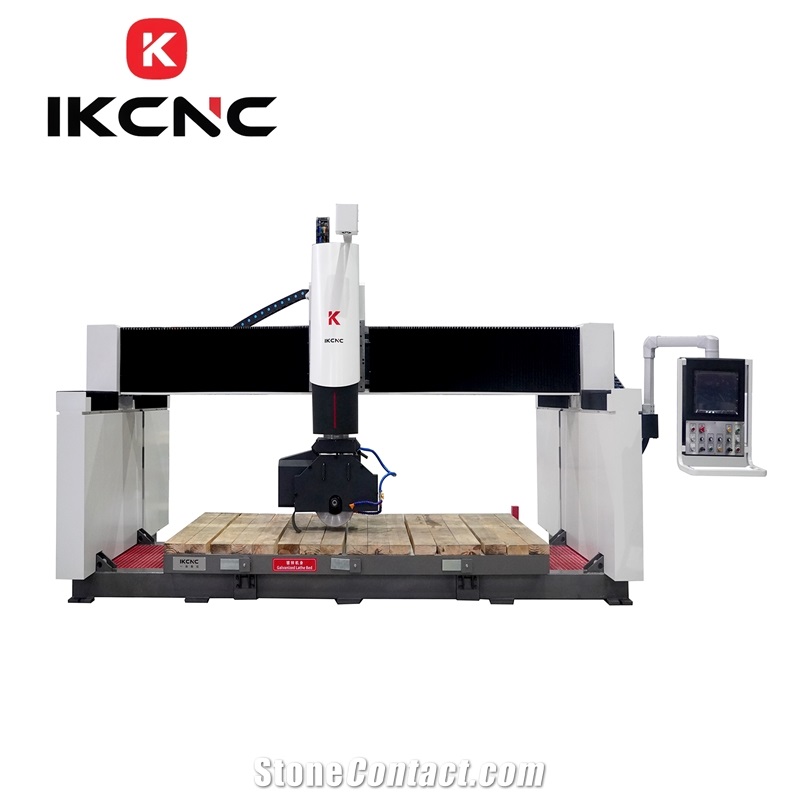

5 Axis CNC Bridge Saw

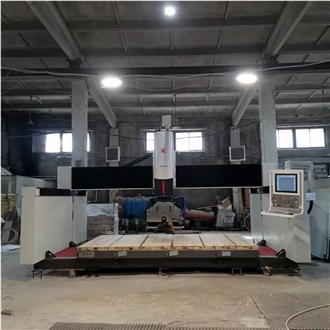

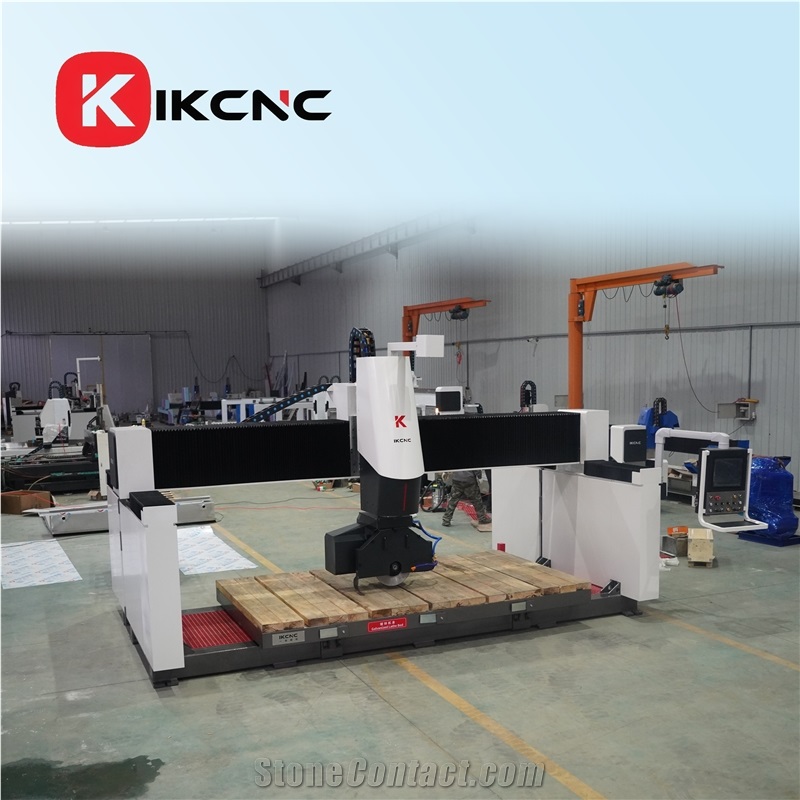

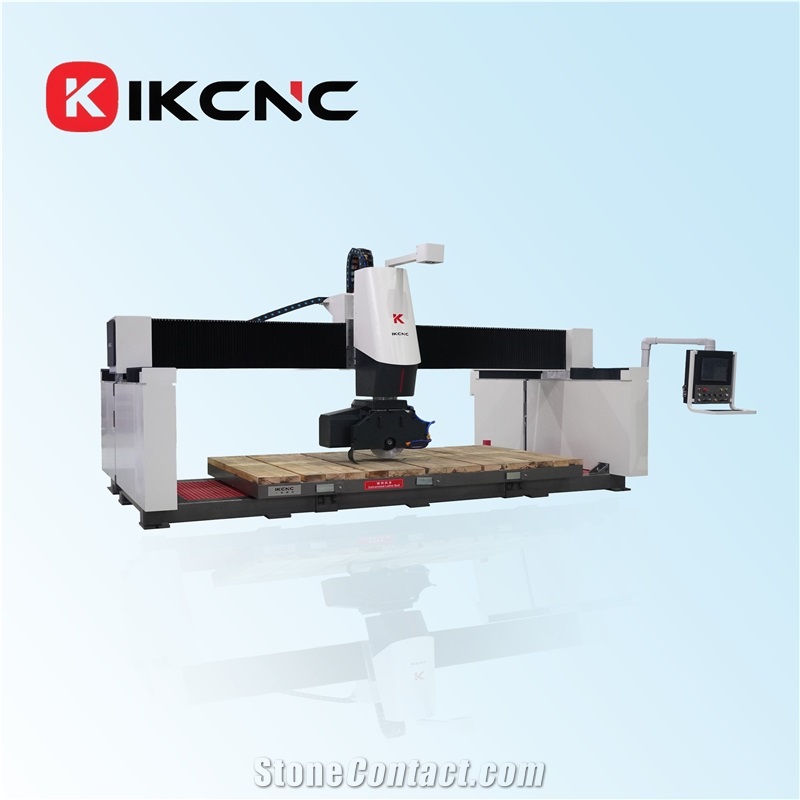

The machine is an integrated five-axis bridge cutting machine, for the different specifications of the plateand a variety of special-shaped copying processing(such as polygon, triangle, fan, countertop, oval,diamond, circle, rim of horse's belly, chamfer at anyangle, special-shaped copying and engraving). lt has the advantages of fast speed, high cutting precision, simple and intelligent operation, suitable for cutting slab, marble, granite, quartz stone, and other stone processing. lt is the first choice of project and stone processing enterprises.
Parameters |
Unit |
IKCNC-3520-700 |
C axis blade rotation |
° |
365 |
Installed electrical power |
kw |
1.5 |
Tools holder head inclination(A axis blade rotation) |
° |
0-90 |
Air consumption |
m3/h |
20 |
Worktable turn-over degree |
° |
0-90（automatic） |
Max. cutting depth |
mm |
22 |
Dimensions of the work table(L×W) |
mm |
3500*2000 |
Disc motor power |
kw |
35 |

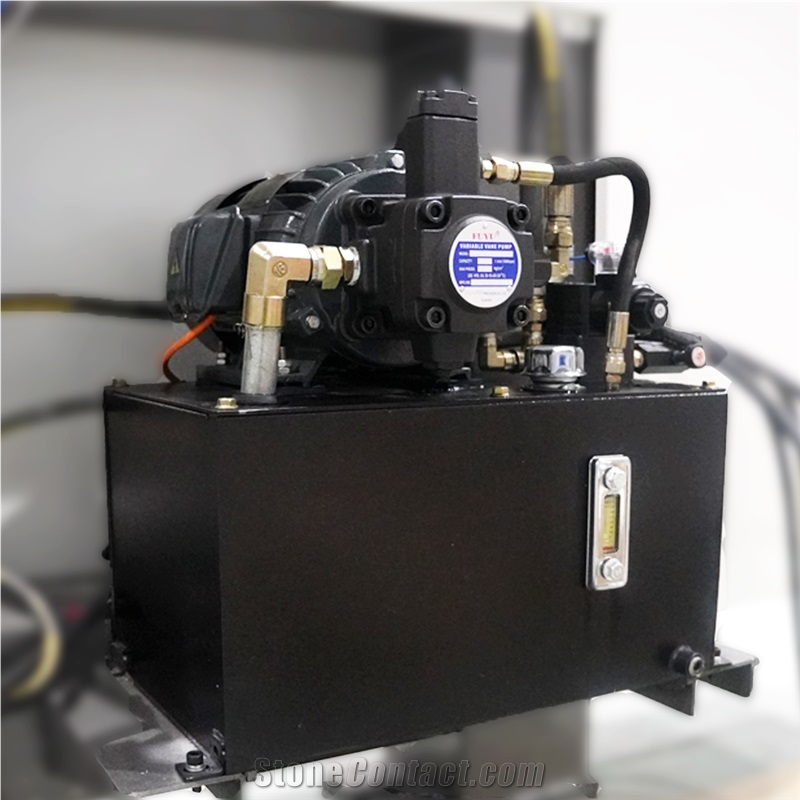

Hydraulic station motor power |
kw |
2.2 |
Number of vertical cutting spindles |
nr |
1 |
Machine width |
mm |
3100 |
Machine height |
mm |
3300 |
Crossbeam motor power |
kw |
1.5 |
Vertical cutting spindles motor power |
kw |
18.5 |
Cooling water requirement(1.5 bar min. pressure) |
m3/min |
3 |
Bridge transversal stroke(Y axis travel) |
mm |
2000 |
Machine length |
mm |
5900 |
Transversal stroke speed (Y displacement speed) |
m/min |
20 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
20 |
Max.length of the cut slab |
mm |
3500 |
Head raising/lowering stroke(Z axis travel) |
mm |
500 |
Max.width of the cut slab |
mm |
2000 |

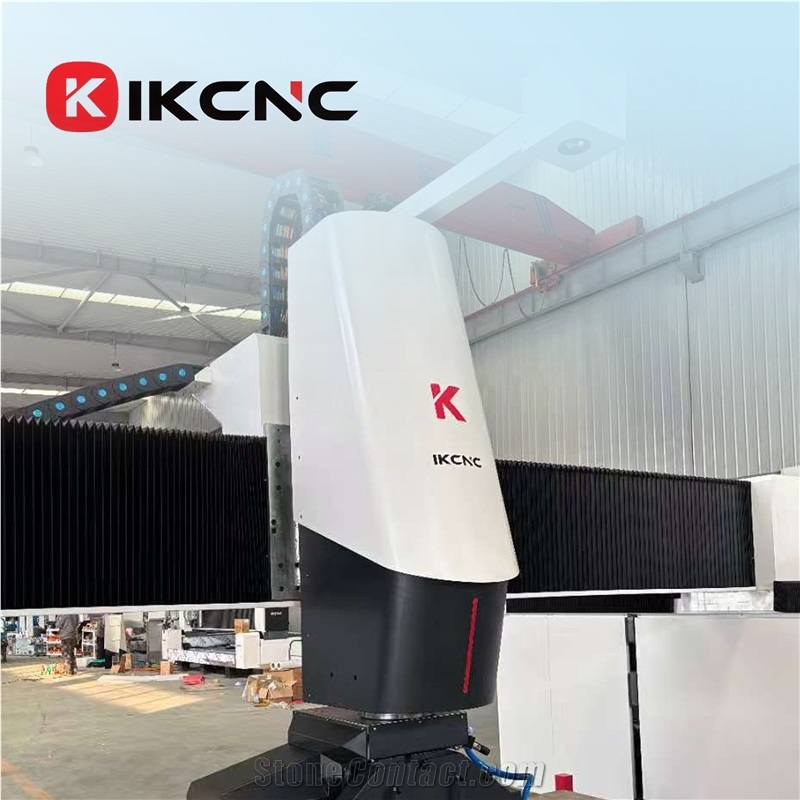

Head motor power |
kw |
18.5 |
Worktable Weight |
T |
6.2 |
Disc diameter |
mm |
200/300（optional） |
Max. revolutions of the spindle unit |
r/min |
0-4000 |

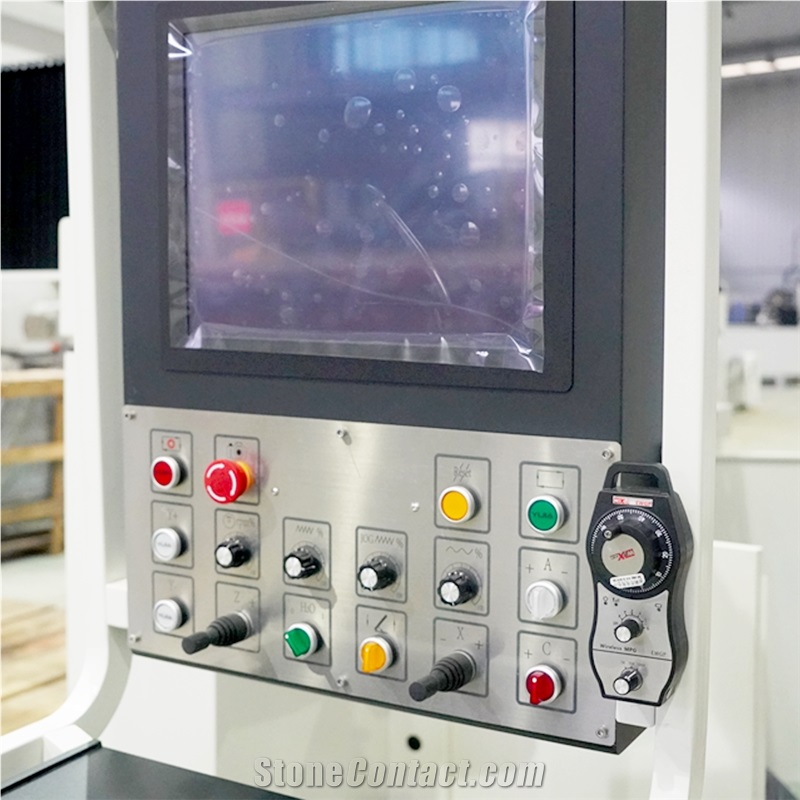

The system: CUTCAM
System function: Includes photo, intelligent layout, automatic adsorptionfunction.
Features: efficient andconvenient,save time andlabor

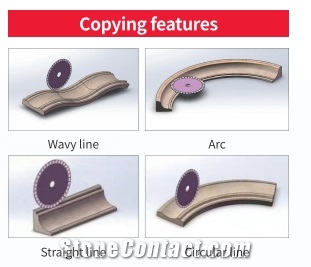

3D copying features: All kinds of lines are generated directly in the software, Simple and intuitive, no programming required
Custom function: Various sizes can be customized according to customer needs, and complex graphics can be cut by entering simple parameters. No need to import CAD drawing, simple and convenient, greatlyimprove production efficiency.
Ikcnc 5 Axis CNC Bridge Saw
The machine is an integrated five-axis bridge cutting machine, for the different specifications of the plate and variety of special-shaped copying processing(such as polygon, triangle, fan, countertop, oval, diamond, circle, rim of horse's belly, chamfer at any angle, special-shaped copying and engraving). It has the advantages of fast speed, high cutting precision, simple and intelligent operation, Suitable for cutting slab, marble, granite, quartz stone, and other stone processing. It is the first choice of project and stone processing enterprises.
