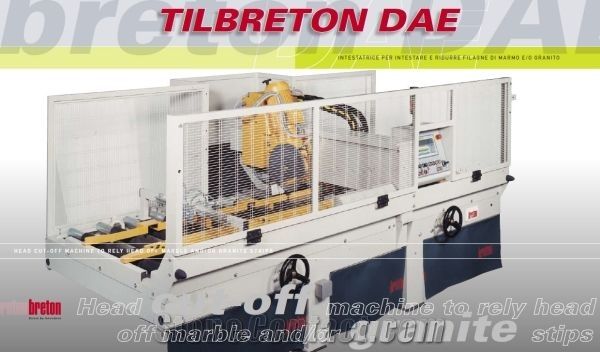

Tilbreton DAE - Automatic cutting machine

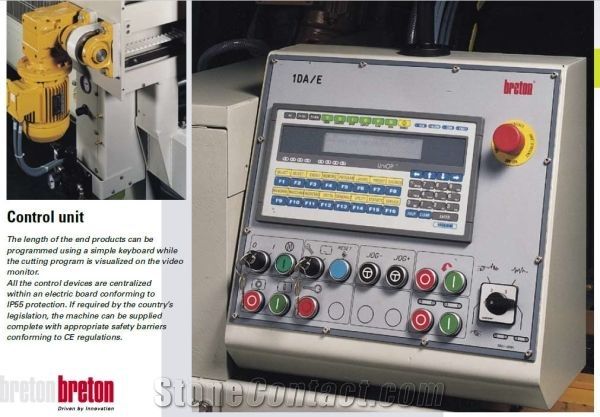

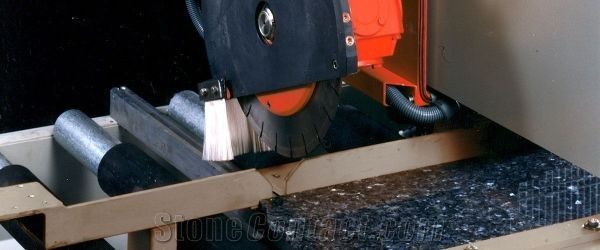

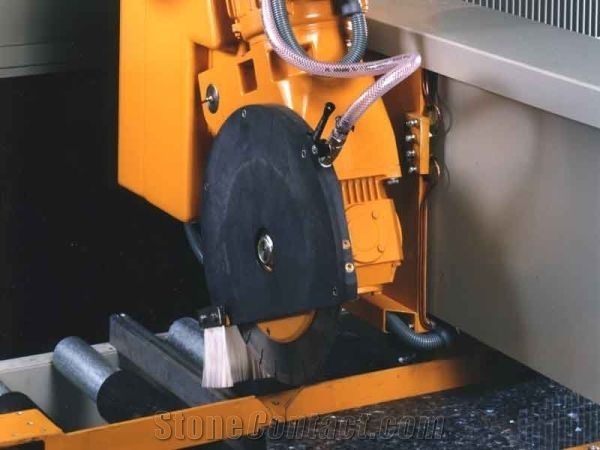

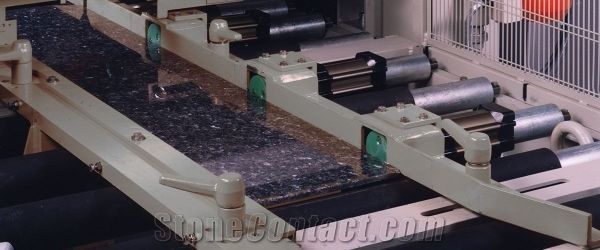

TILBRETON DAE - AUTOMATIC CUTTING MACHINE TO CUT THE LEADING/TRAILING EDGE OF STRIPS AND FOR THEIR DIMENSIONING Fully automatic, this machine eliminates the need of the operator’s constant presence. It can be easily programmed from a keyboard with monitor. A series of motorized rubberized rollers and pressers guarantee the correct advancement of the strips so as to assure the feeding of the cutting area. An encoder measuring the material feed and reading tracer points guarantee the cutting dimensions. The machine is equipped with centring strip-guides, adjustable through a handwheel. CONTROL UNIT The length of the end products can be programmed using a simple keyboard while the cutting program is visualized on the video monitor. All the control devices are centralized within an electric board conforming to IP55 protection. If required by the country’s legislation, the machine can be supplied complete with appropriate safety barriers conforming to CE regulations. SPINDLE UNIT The diamond blade-holding spindle unit is mounted on a cast-iron trolley running along the rectified guides ofthe bridge on ball-bearing slides. The movement of the spindle-holding trolley is obtained by means of a geared belt and a reduction gear unit with inverter, which makes it possible to adjust the cutting advancement according to the type and thickness of the material to be processed. The sliding system is lubricated in an oil bath and protected by stainless steel labyrinth seal covers.The spindle unit has pneumatic vertical exclusion: after cutting has been carried out, the spindle unit raises automatically before reaching the starting position, while securing the following strip positioning.
