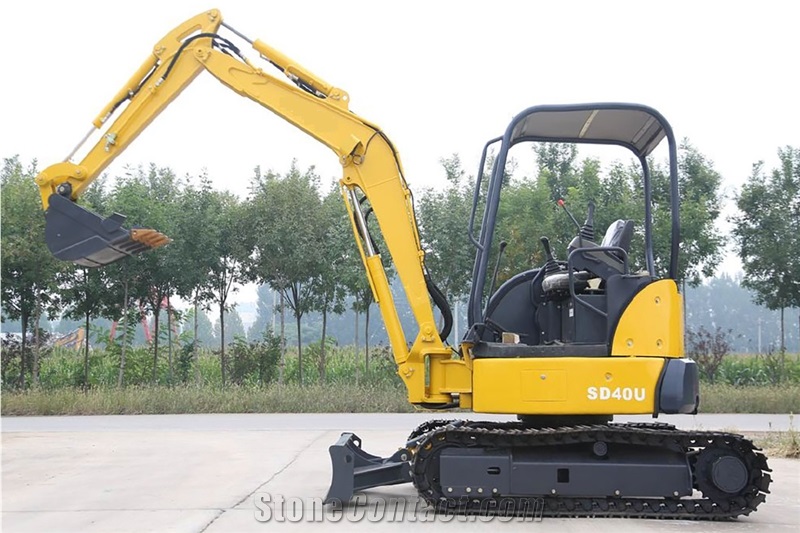

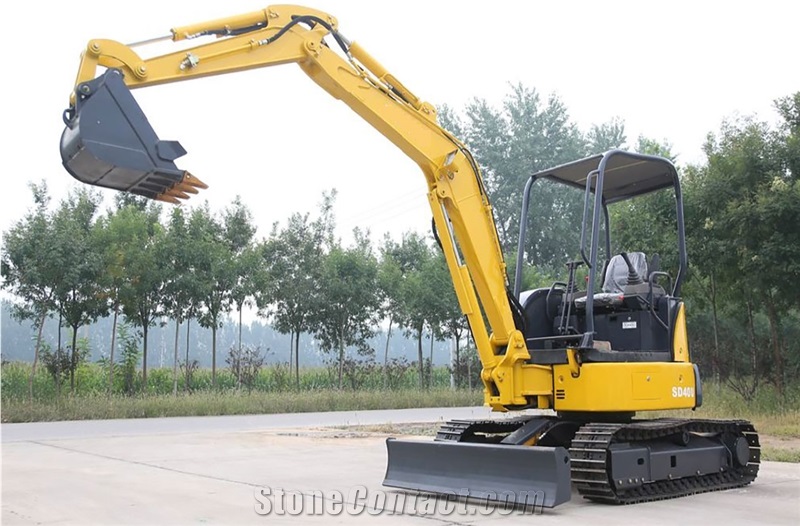

SD40U Mini Excavator

Name: SD40U Mini Excavator
Brand: XIAMEN SHUINAN MACHINE CO.,LTD.
SKU: 7325
Price: 5000 USD
Availability: InStock

FOB Price:$5000-20000

Type: Stone Quarry MachinesQuarry Heavy EquipmentsExcavator

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 35 day

Warranty:12 Months

Install and Guarantee:Customer pay for installation

Maintenance:Remote troubleshooting, Field troubleshooting

Trade Terms

Port: XIAMEN- China

Delivery Details: FOB,CFR,CIF,EXW,Express Delivery

Payment :

Supplier

XIAMEN SHUINAN MACHINE CO.,LTD.

SHUINAN MACHINE

China level 5YR

Eatablished :Sep 10,2018

Main Product:

Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|

Contact supplier

Start Order

You may also like

SD 17-9 Mini Excavator

EXCAVATOR SWING GEARBOX E320C

The Crawl Type Excavator For Quarry

SWIVEL BUCKET (TILTING)

Machinery Function Features

SD40U Mini Excavator

Technical Data

Parameters	Unit	SD40U
MaxDigging Power	kn	20.55
MaxDigging Radius	mm	5050
Rated Rotary	r/min	2400
Maximum ground level digging distance	mm	4660
Ground Pressure		26.7kpa
Engine hood height	mm	1400
Bulldozer Width	mm	1550
Arm Height	mm	2820
MinGround Clearance	mm	290
Bulldozer Height	mm	355
Platform Height Above Ground	mm	590
MaxTravel Speed		4.6/2.5Km/h
Machine weight	kg	3650
Engine Model		Yanmar3TNV88
Track center distance	mm	1250
MaxGrade	°	30
Max.Traction		20.55(15.6)KN
Max.Digging Height	mm	4840
Backend radius of gyration	mm	885
Chassis Width	mm	1500
Max.Dumping Height	mm	3050
Bucket capacity	m3	0.1
Bucket Width	mm	550
Max.Digging Depth	mm	3140
MaxPlatform Rotation Speed	min	10
Rated Power	KW	19.6
Transport Length	mm	4500
