KORT LATHE 3000 turning machine for columns,vases in stone

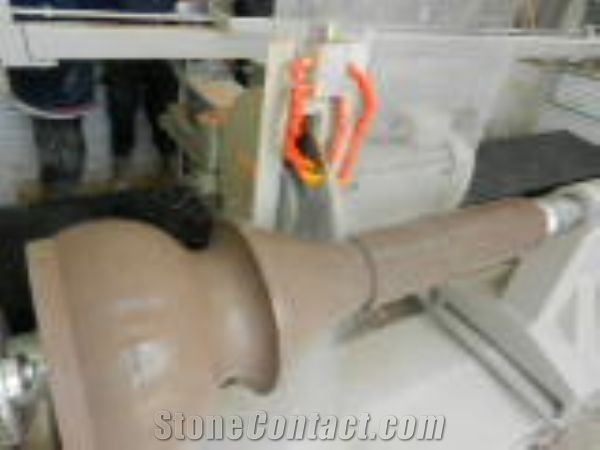

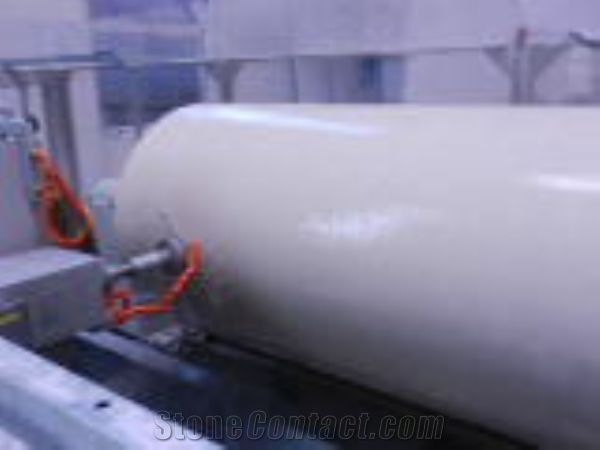

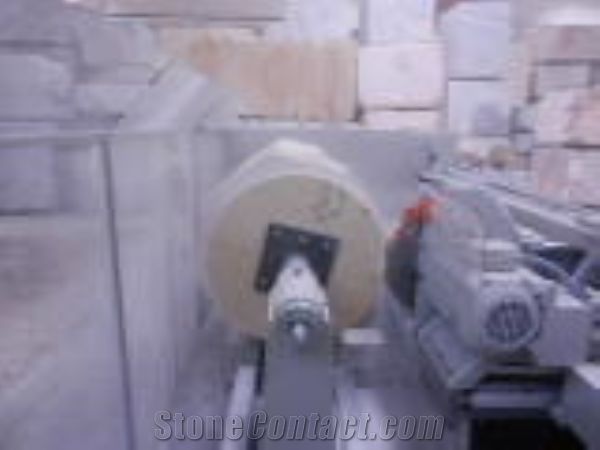

KORT LATHE 3000 is a machine for turning columns, vases in marble or granite of large dimension KORT LATHE 3000 works columns/vases in marble and granite in only 1 step, which assures you to obtain an excellent quality of the finish KORT LATHE 3000 is completely oleo-dynamic and automatic. TYPOLOGY OF WORKMANSHIPS TURNING Working dimension lathe 3000: 3200x900 Ø cm (with disk 600 mm) 3200x1000 Ø cm finish (with disk 500 mm) TECHNICAL DATA TOOL ENGINE POWER: 3 kw/ 4 Hp - 2800 rpm Tool joint ½” (standard) DISK ENGINE POWER: 12,5 kw / 15 Hp 1400 ÷ 2800 rpm Disk housing Ø 500 mm COLUMN ROTATION: 2,2 kw / 3 Hp 0 ÷ 140 rpm SELF-ADJUSTABLE COPYING VALVE KORT WORKING GROUP: structure in aluminium chromate sliding shafts FRONTAL PANEL WITH SECURITY BLOCK CE TOTAL POWER: 16 kw / 21 Hp 380 V – 50 Hz
