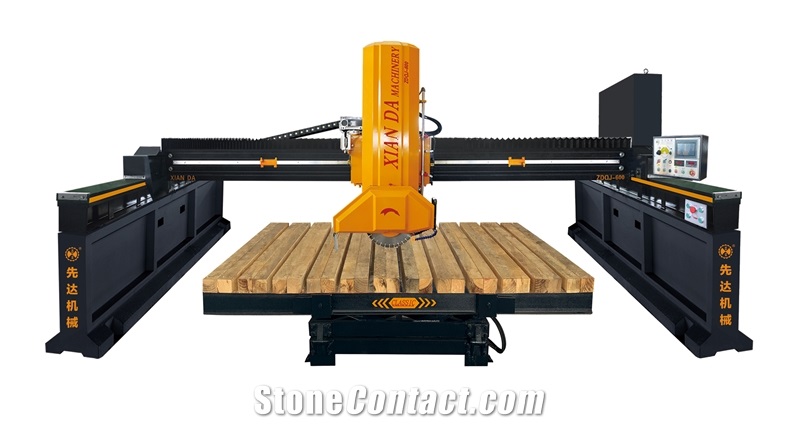

Xianda Infrared Bridge Cutting Machine
FOB Price:$20000-30000
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
in 15 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jun 26,2024
Main Product:
STONE CUTTING MACHINE, BRIDGE CUTTING MACHINE, BLOCK CUTTING MACHINE, WIRE SAW MACHINE, WIRE SAW, ENGRAVING MACHINE|
Machinery Function Features

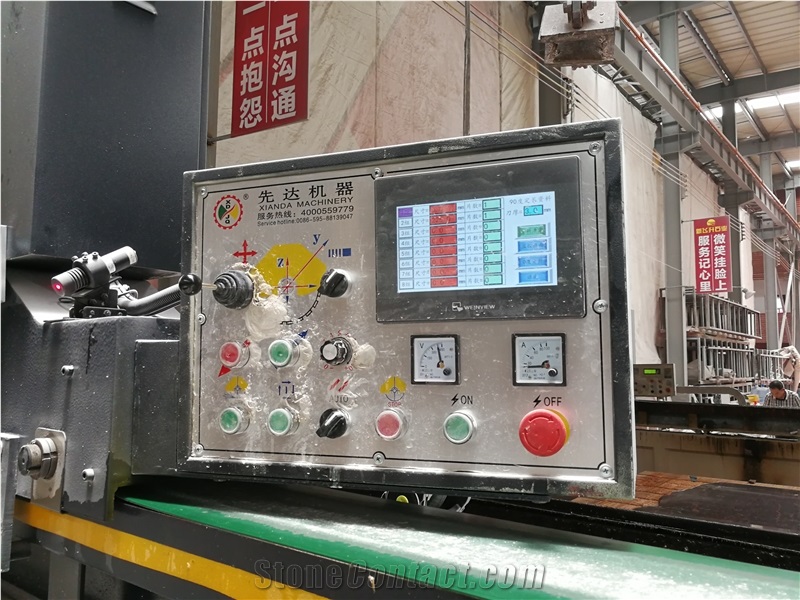

ZDQJ-450-600-700-800, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary
encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control leftright feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide
post, also this machine provide the unique side beam protection device, main spare parts adopt imported high-quality
materials. Thus the whole machine is featured with high cutting efficiency, high cutting precision, high stability, easyoperation, specially high value granite and big size marble.
Technical Data
Parameters |
Unit |
ZDQJ-450 |
ZDQJ-600 |
ZDQJ-700 |
Working table dimensions(L×W) |
mm |
3200x2000 |
3200x2000 |
3200x2000 |
Total power |
kw |
20.5 |
24 |
24 |
Machine length |
mm |
5800 |
5800 |
5800 |
Machine width |
mm |
4700 |
4700 |
4700 |

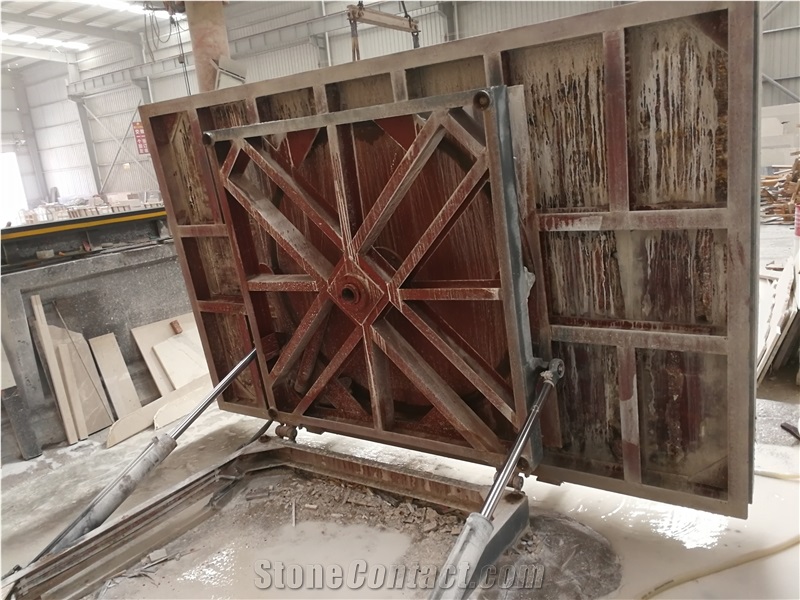

Working table tilting angle |
° |
0-85 |
0-85 |
0-85 |
Blade diameter |
mm |
300-450 |
350-600 |
350-700 |
Machine height |
mm |
2900 |
3100 |
3200 |
Approximate weight without table |
Kg |
5500 |
5750 |
6000 |
Max. working dimensions(L×W×H) |
mm |
3200x2000x100 |
3200x2000x170 |
3200x2000x220 |
Working table rotating angle |
° |
0-90(0-360 Optional) |
0-90(0-360 Optional) |
0-90(0-360 Optional) |
Main motor power |
kw |
15 |
18.5 |
18.5 |
Processed Stone Photos

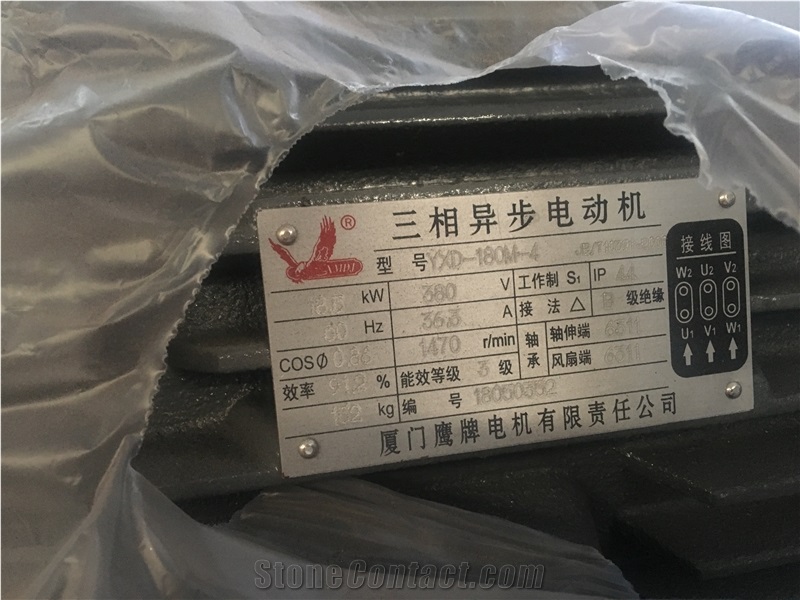

Components
Consumables
Video
Install Video

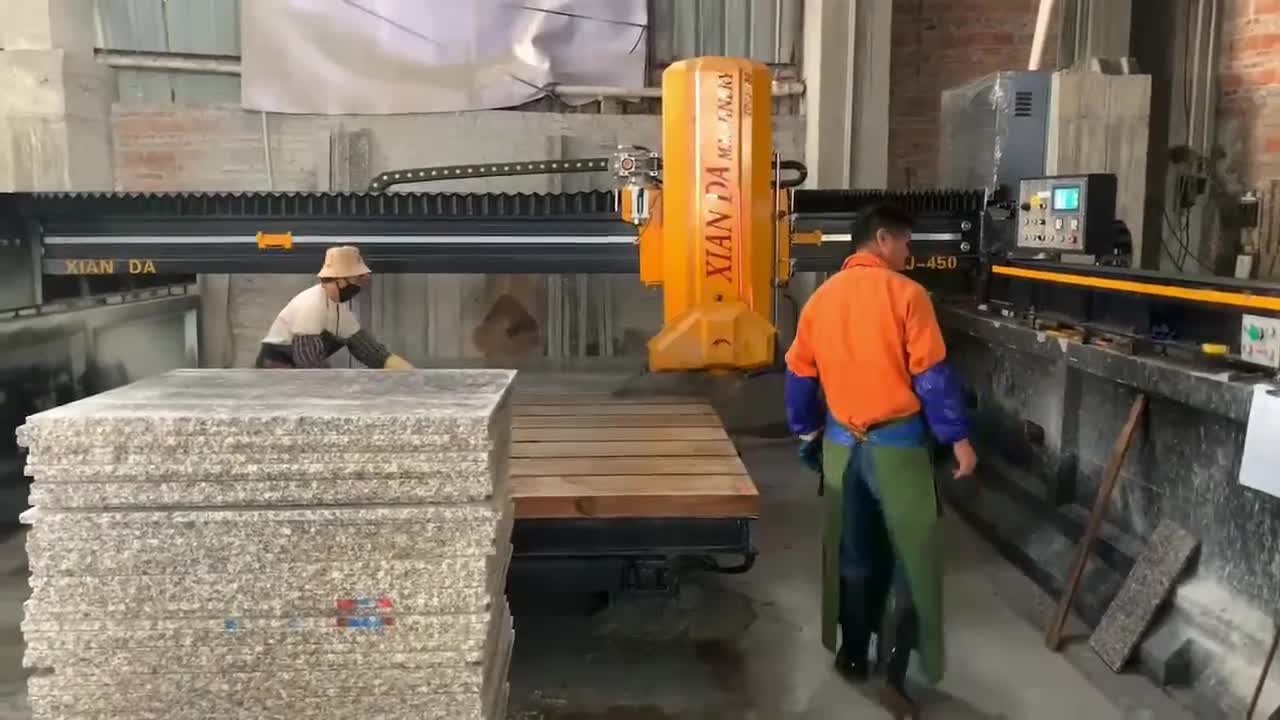

Operation Video
Screen.PrimaryScreen.Bounds.Height
