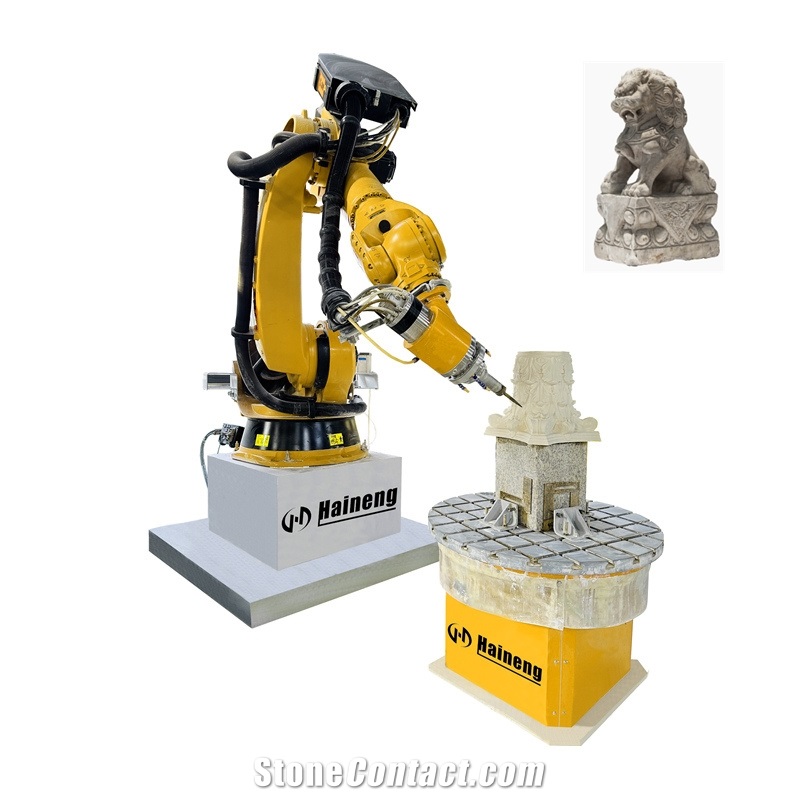

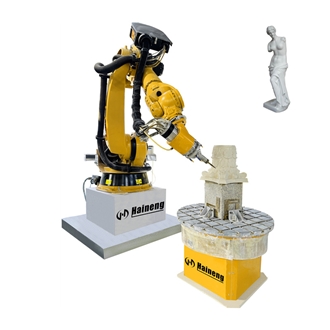

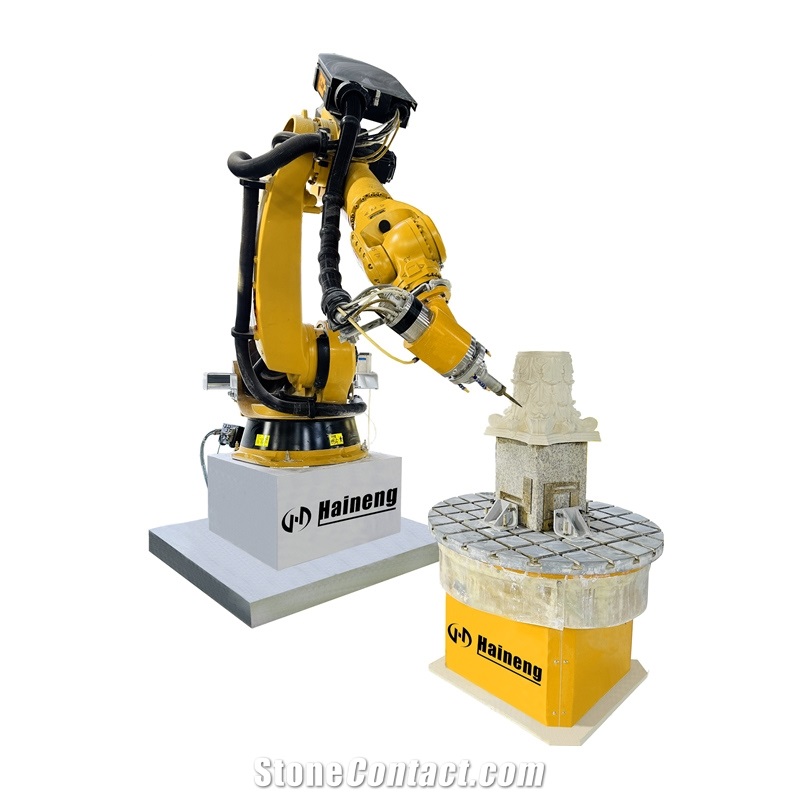

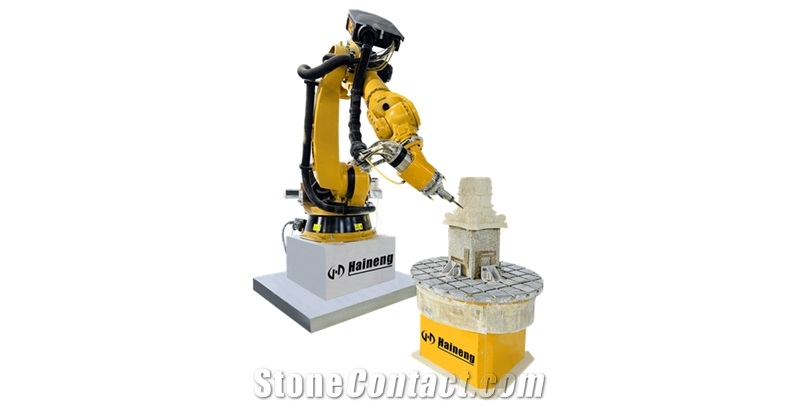

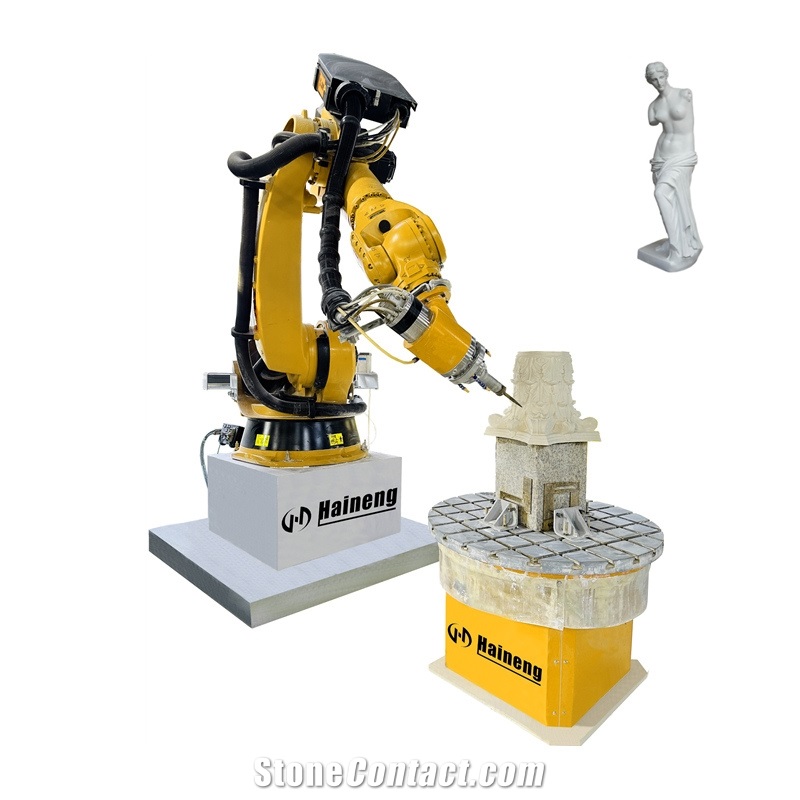

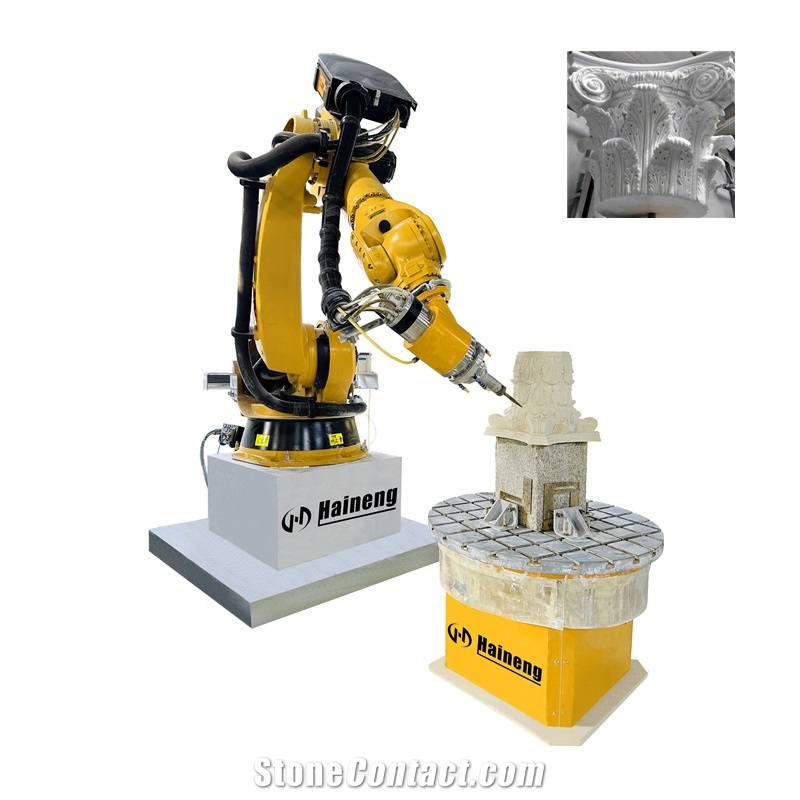

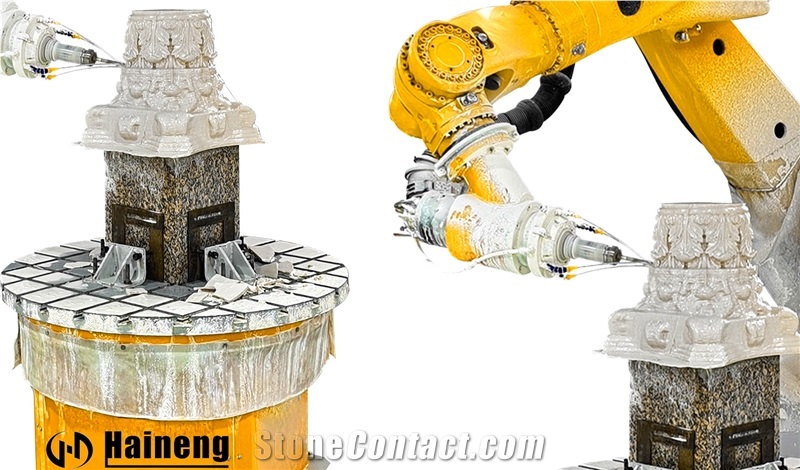

Automatic 3D 7 Axis CNC Sculpture Stone Engraving Machine Stone Carving Robot
FOB Price:$77000-80000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving Robot
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features
This stone engraving machine with Light-weight ,safe for user and other devices.
High flexibility,7 degrees of freedom ensures wide working range.
Technical Data
Parameters |
Unit |
JXS-2700 |
Payloads |
210 Kg Payload at maximum reach |
|
Maximum processing size |
mm |
2000x2500 |
Support blades |
Saw blade rough/fine engraving carving knife/end milling cutter disc/grinding disc (special needs to be customized) |
|
Protection type |
High waterproof and dustproof (standard protective raincoat for manipulator) |
|
Repeat position deviation |
＜ ±0 .06m m |
|
Axis 7 speed |
Infinite rotation 84°/s |
|
Axis 3 speed |
1 55°~ - 1 19° 84°/s |
|
Maximum spindle speed |
RPM |
18500 |
Axis 6 speed |
±350° 184°/s |
|
Rotary table |
1000mm diameter |
|
Axis 2 speed |
0°~ - 146° 84°/s |
|
Axis 1 speed |
±185° 86°/s |
|
Automatic blades |
Can support (optional) |
|
Number of axis |
7 axis Fully automatic |
|
Maximum arm span |
mm |
2700 |
Offline software |
S prut CAM latest version |
|
Axis 4 speed |
±350° 100°/s |
|
Axis 5 speed |
±1 25° 1 10°/s |
|
Spindle power |
15KW Special positioning stone spindle |

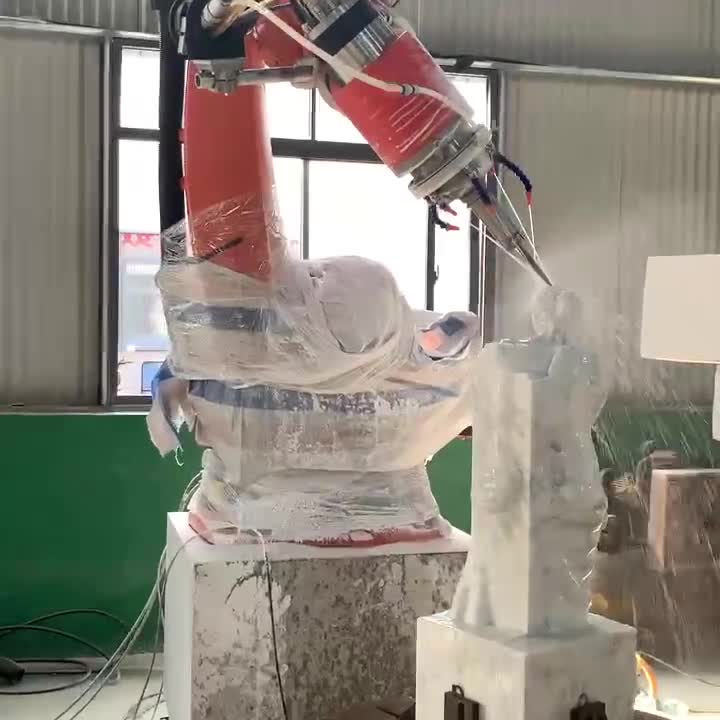

Processed Stone Photos
