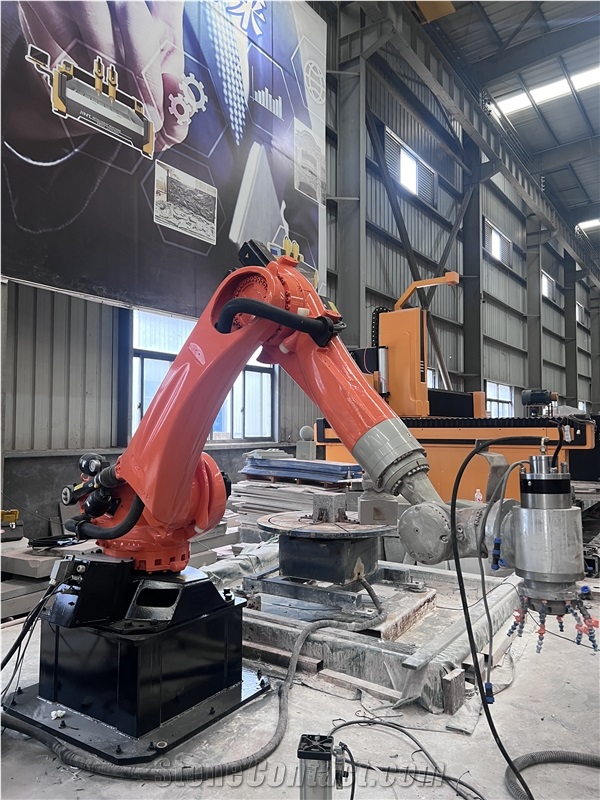

Robot Engraving - Stone Carving Robotic Machine
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving Robot
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
35 day
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Remote troubleshooting, Field troubleshooting
Trade Terms
Port:
XIAMEN- China
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :
Supplier
Eatablished :Sep 10,2018
Main Product:
Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|
You may also like
Machinery Function Features

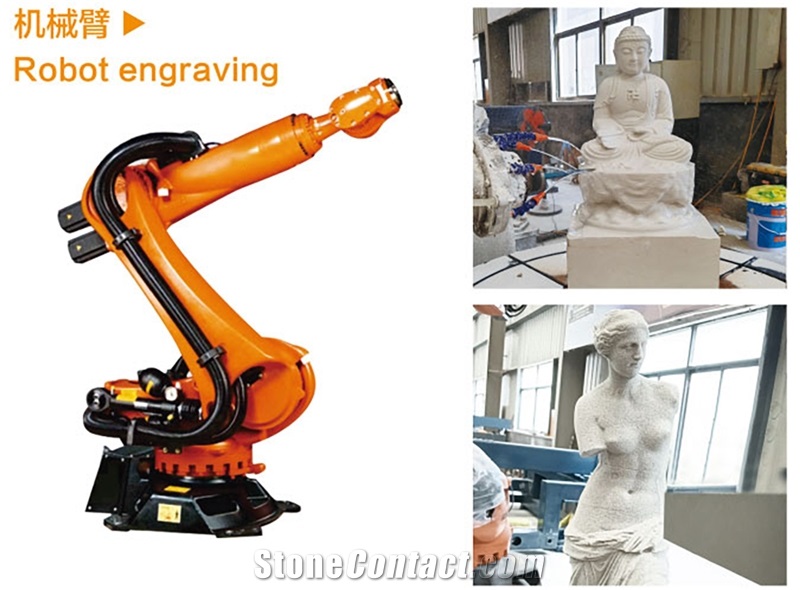

Robot engraving
Technical Data
Parameters |
Unit |
JT-KR 250 R2700 |
Maximum spindle speed |
18500 RPM |
|
Axis 6 speed |
±350°184°/s |
|
Axis 3 speed |
155°~-119° 84°/s |
|
Axis 2 speed |
0°~-146°84°/s |
|
Number of axis |
7 Axis fully automatic |
|
Axis 1 speed |
±185° 86°/s |
|
Repeat position deviation |
<±0.06mm |
|
Axis 5 speed |
±125° 110°/s |
|
Axis 7 speed |
Infinite rotation 84°/s |
|
Rotary table |
1000mm Diameter infinite rotation |
|
Axis 4 speed |
±350°100°/s |
|
Offline software |
SprutCAM latest version |
|
Maximum processingsize |
Ф2000x2500mm stone |
|
Automatic blades |
Supported (optional) |
|
Maximum arm span |
2700mm |
|
Protection type |
High waterproof and dust proof (standard protective raincoat for manipulator) |
|
Spindle power |
15KW Special positioning of the stone spindle |
|
Support blades |
Open thick / carving cutter / end cutter / grinder (special customization) |

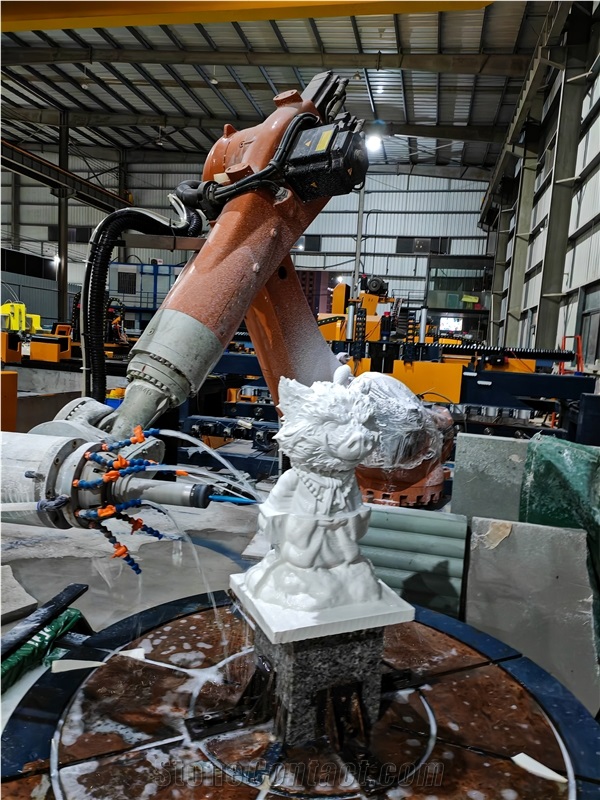

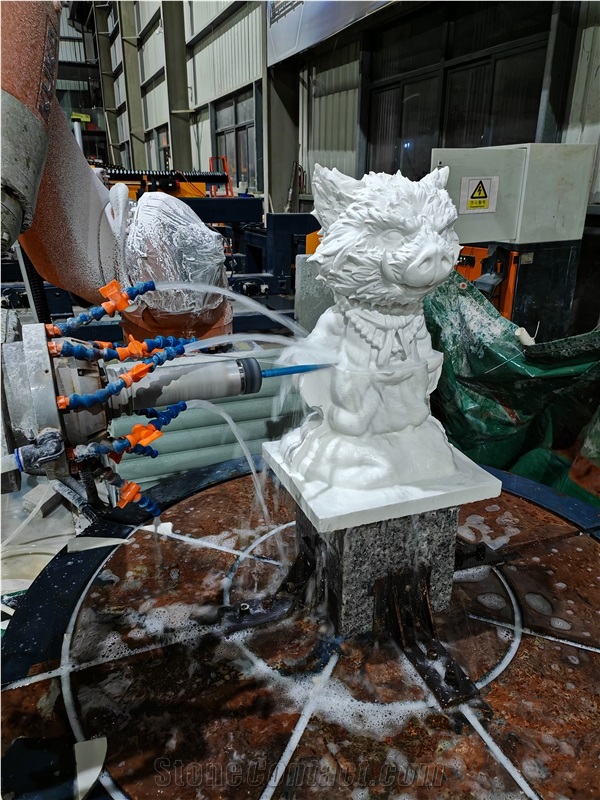

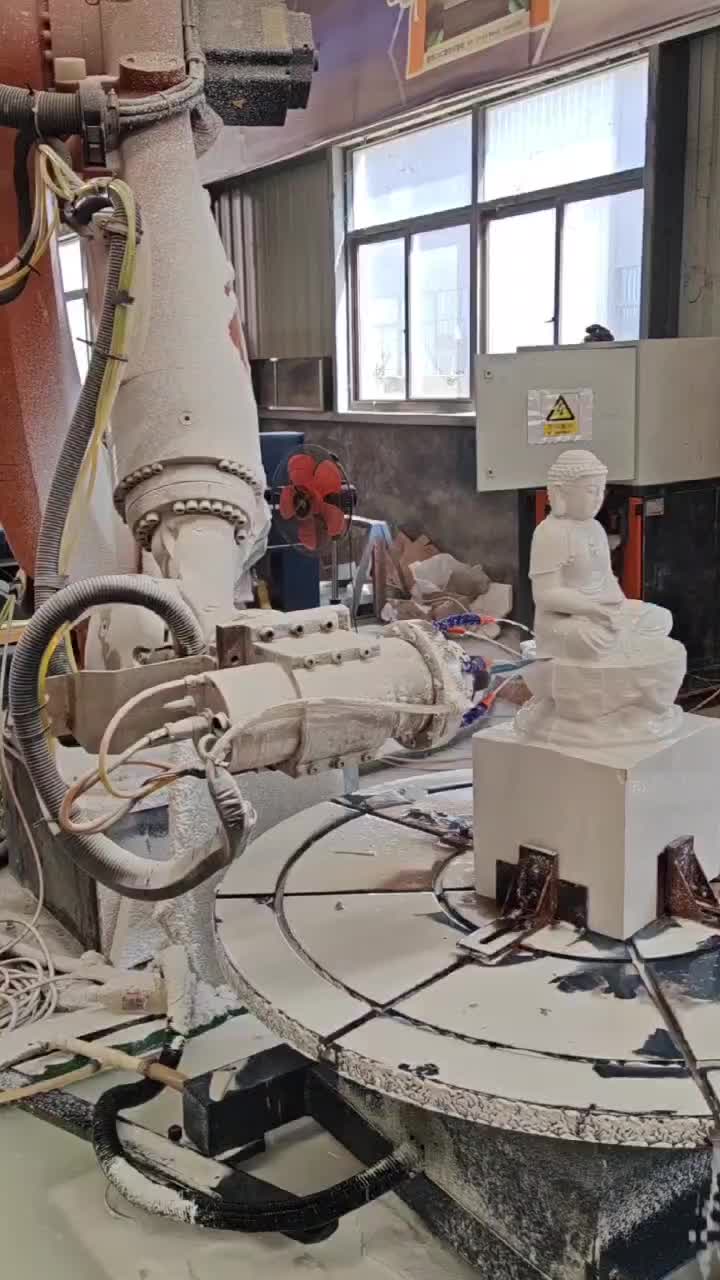

Processed Stone Photos
Components
Consumables
