Hole mining chain saw
FOB Price:
Type:
Stone Quarry MachinesStone Chain Saw MachinesTunnel Chain Saw Machines
Usage:
Granite, Marble
Supplier
Machinery Function Features

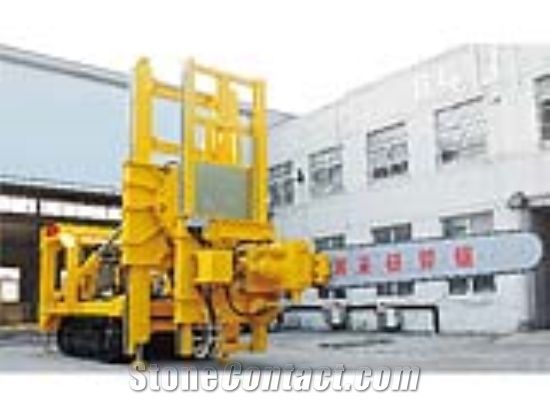

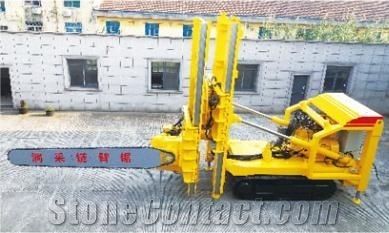

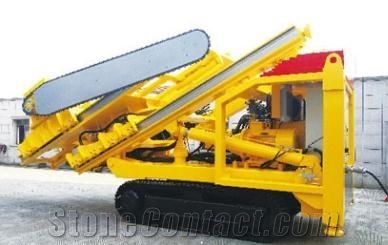

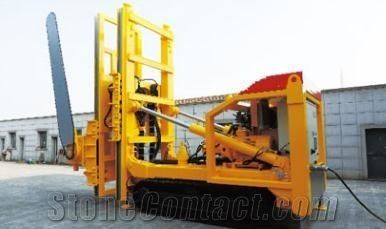

Cavern-type chain saw is special for marble hole mining, crawler walking conveniently and flexibly, its orbit can rotate 270 degrees, which has 4 kinds of working model---horizontal cutting(cutting the top of ceiling and ground),vertical cutting(cutting left side of the facade and the right side of the facade),suitable for the quarries with high steep slope and can't excavate mountain skin layer and do overburden stripping.
Technical Data
Parameters |
Unit |
DC-CS2000 |
DC-CS3000 |
Dimension LxWxH |
mm |
5800X2000X2800 |
6900X2530X3200 |
Total installed power |
kW |
55 |
75 |
Hole size |
mm |
H4000×W4000×D2000 |
H5500×W6000×D3000 |
Movement speed on tracks/Crawler speed |
km/hr |
0.6 |
0.6 |
Weight |
Kg |
25000 |
35000 |
Cutting width |
mm |
40 |
40 |
Cutting speed |
m/h |
0~4 |
0~4 |
