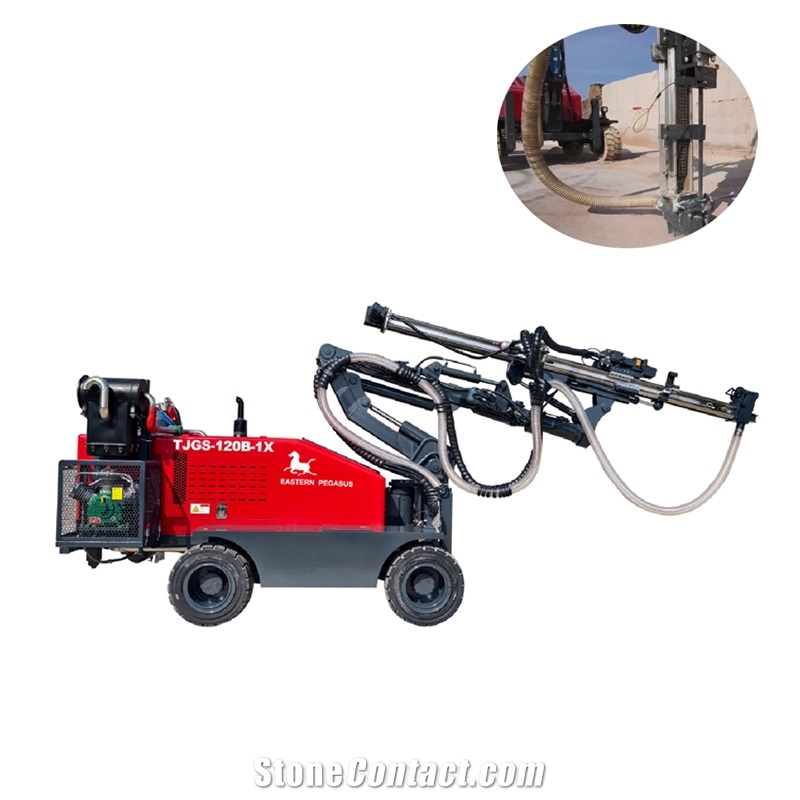

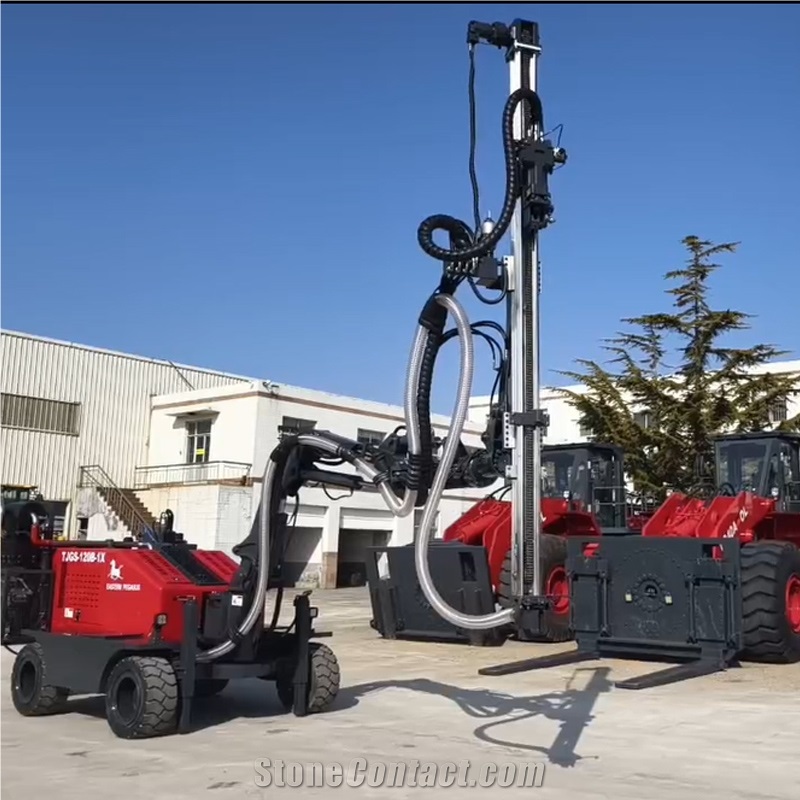

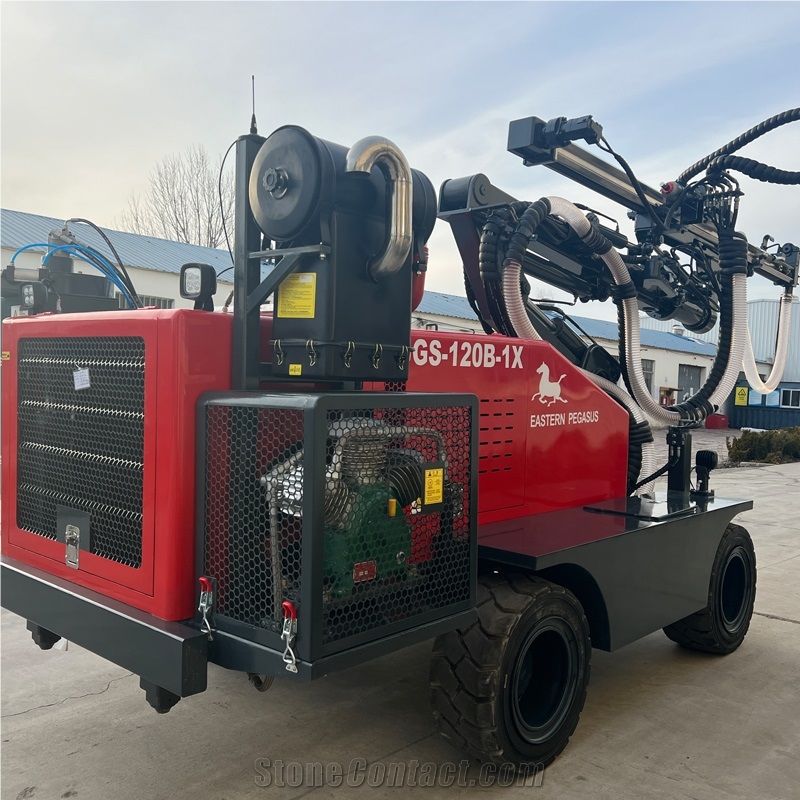

Wheel- Type Of Quarry Hydraulic Rig Drill Machine
FOB Price:$54500-56000
Type:
Stone Quarry MachinesQuarry Drilling MachineHydraulic Drill Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
30-35 working days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Port:
QINGDAO- China
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :
Supplier
Eatablished :Feb 26,2006
Main Product:
Quarry Machine;, Stone Cutting Machine, Stone Polishing Machine, Stone Crushing Machine, Other Machine, Stone Tools|
Machinery Function Features
TJGS-120B-1X Hydraulic Drill Rig is mainly used for drilling holes on rocks in stone quarries.
Technical Data
Parameters |
Unit |
TJGS-120B-1X |
Shipping dimensions (Remove the drill frame) |
mm |
≈4200*2200*2500 |
Engine power |
kW |
76 |
Impact force |
MPA |
≤18 |
Blowing air pressure |
kg/cm² |
≤ 4 |
Hydraulic pump |
50252510 |
|
Hole diameter Φ |
mm |
Ø32-Ø45 |
Rock drill |
BCY-120 |
|
Feeding stroke |
m |
3 |
Drilling speed |
mm/min |
0-2000 |
Travel speed |
km/h |
≤ 5 |
Tavel motor |
MBE260 |
|
Total weight |
Kg |
≈5000 |
Diesel engine |
4C6-88M22 Brand: Quanchai |

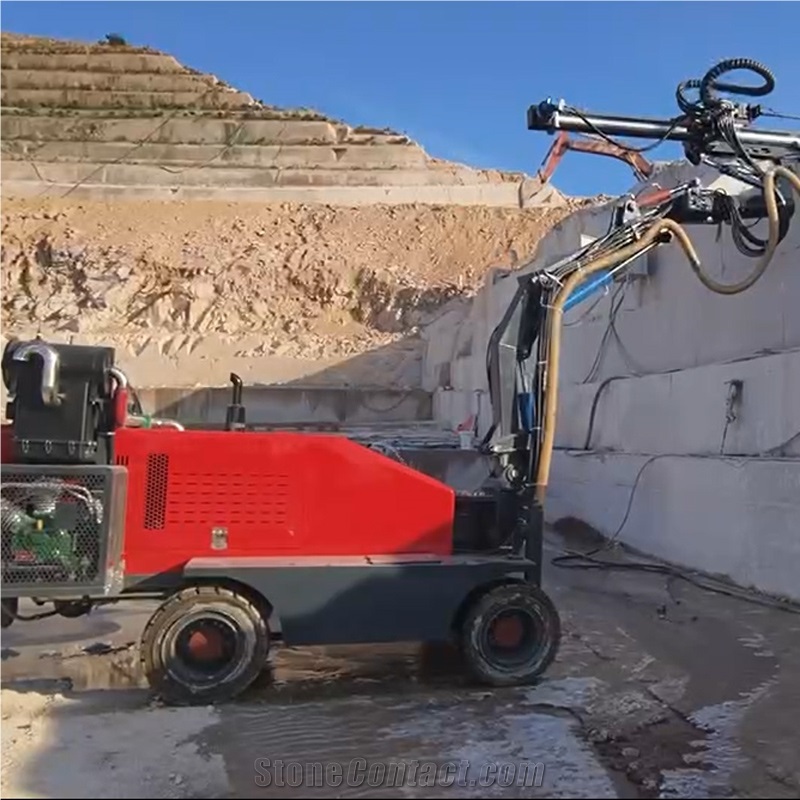

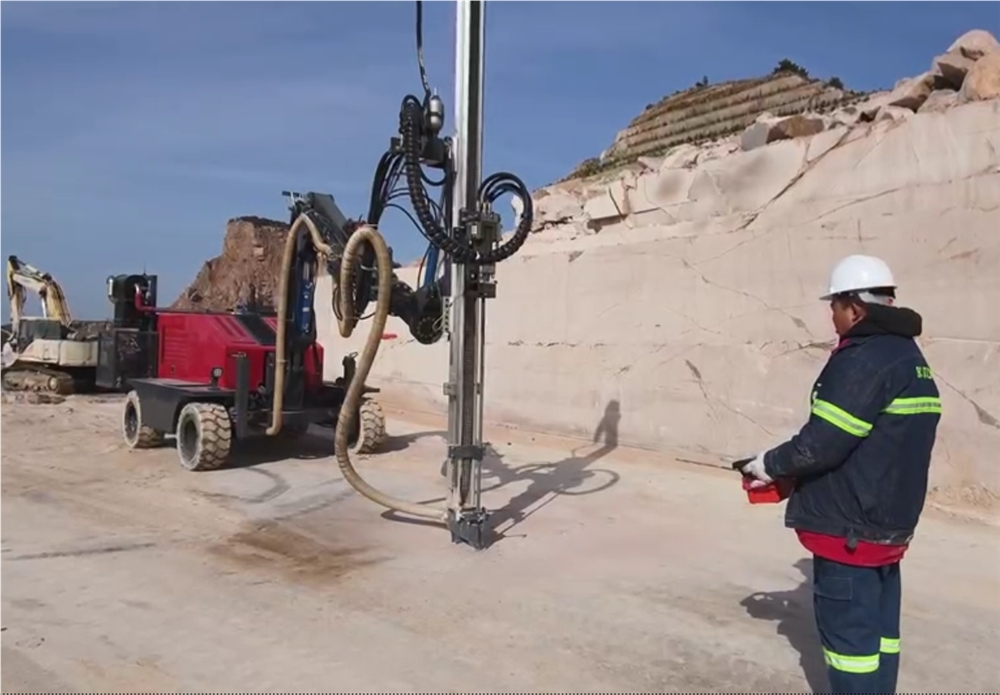

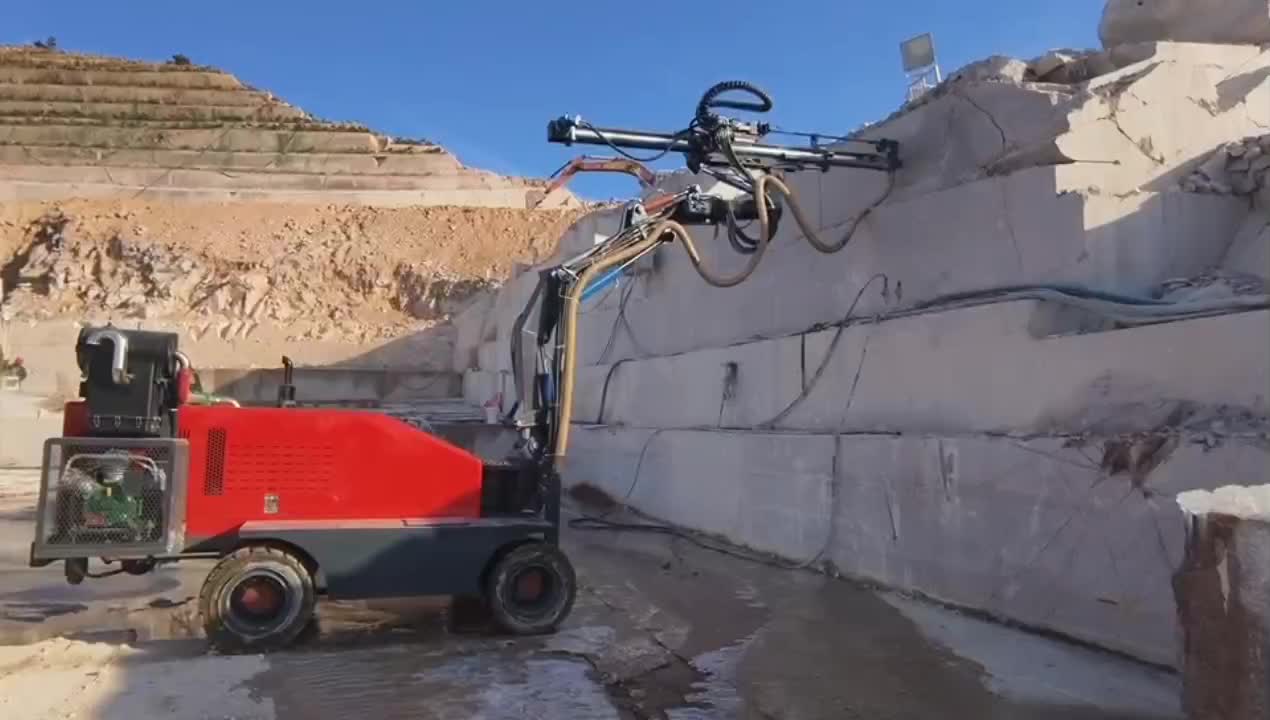

Work Example
Processed Stone Photos

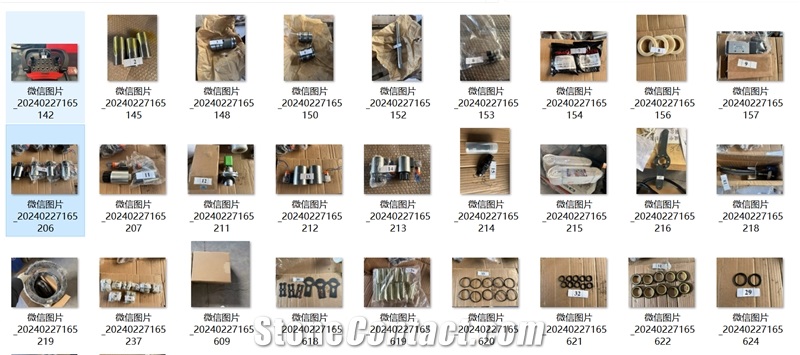

Components
Consumables
Customer Case
Video
Install Video
Operation Video
