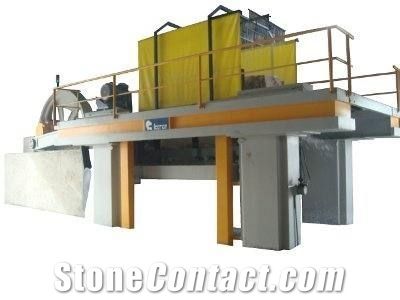

Karan K - 80X80 Gangsaw Machine for Blocks
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
Usage:
Marble, Limestone, Travertine
After-Sale
Warranty:24 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Supplier
Eatablished :Dec 31,1989
Main Product:
Stone Machinery|
Machinery Function Features
Teknik Özellikler Technical Data K-80 x 80
Kesme Lama Sayısı Max. Number Of Blades Adet / Pcs 80
Dakikadaki Strok Sayısı Stroke Per Minute 80
Lama Kursu Blade Stroke mm 800
Lama Ebatı Baldes Dinemsion mm 4200 x 180
Ana Motor Gücü Main Motor Power Kw / Hp 90 / 125
Seri Kaldırma İndirme Motor Gücü Engine Power Series Lifting Downloads Kw / Hp 7,5 / 11
Yavaş Kaldırma İndirme Motor Gücü Kw / Hp 4 / 6
Maksimum Blok Ebatları(En x Boy x Yükseklik) Maximum Block Size (Width x Depth x Height) mm 2000 x 3250 x 2000
Makine Ebatları(Boy x En x Yükseklik) Machine Dimensions (Length x Width x Height) mm 12000 x 4500 x 5150
Toplam Elektrik Gücü Kw / Hp 101,5 / 140
Toplam Makine Ağırlığı Total Machine Weight Kg 50,000
Technical Data
Parameters |
Unit |
K-80X80 |
Machine/Frame Height |
mm |
5150 |
Useful Cutting Width |
mm |
2000 |
Length of blades |
mm |
800 |
Installed Power |
kW |
101.5 |
Overall Length |
mm |
12000 |
Useful Cutting Length |
mm |
3250 |
Max. Number of Blades |
No |
80 |
Main Motor Power |
kW |
90 |
Oil Pump Motor Power |
kW |
4 |
Cycles per minute/Flywheel speed |
r/min |
80 |
Overall Width |
mm |
4500 |
Useful Cutting Height |
mm |
2000 |
Approx. Weight |
Kg |
50000 |
Fast Lowering Rapide Motor Power |
kW |
7.5 |
