middle Bridge cutter for granite marble
FOB Price:$18000-19000
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Quartzite
After-Sale
Lead Time:
20-25days
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade
Supplier
Eatablished :Dec 24,2010
Main Product:
Bridge Cutting Machine , Profiling Stone Line Machine , Wire Saw Machine , Edge Cutting Machine|
Machinery Function Features

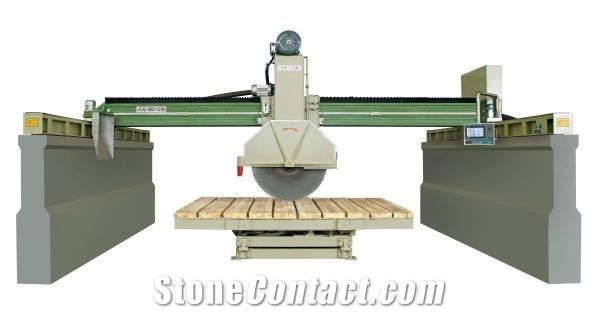

JCQ-900/1200 bridge auto cutting machine
This machine is the best equipment for processing high value stone , mosaic block, roadside stone .
Technical Data
Parameters |
Unit |
JCQ-900/1200 |
Working table tilting angle |
° |
0-85 |
Total power |
kW |
20/23.5 |
Working table dimensions(L×W) |
mm |
3200X2000 |
Blade diameter |
mm |
900-1200 |
Worktable Weight |
kg |
2000 |
Approximate weight without table |
kg |
4800 |
Max. thickness cutting capacity |
mm |
475 |
Machine width |
mm |
4500 |
Max. working dimensions(L×W×H) |
mm |
3200X2000X475 |
Working table rotating angle |
° |
0-360 |
Machine height |
mm |
3800 |
Main motor power |
kW |
18.5/22 |
Head motor power |
kW |
18.5/22 |
Machine length |
mm |
6800 |

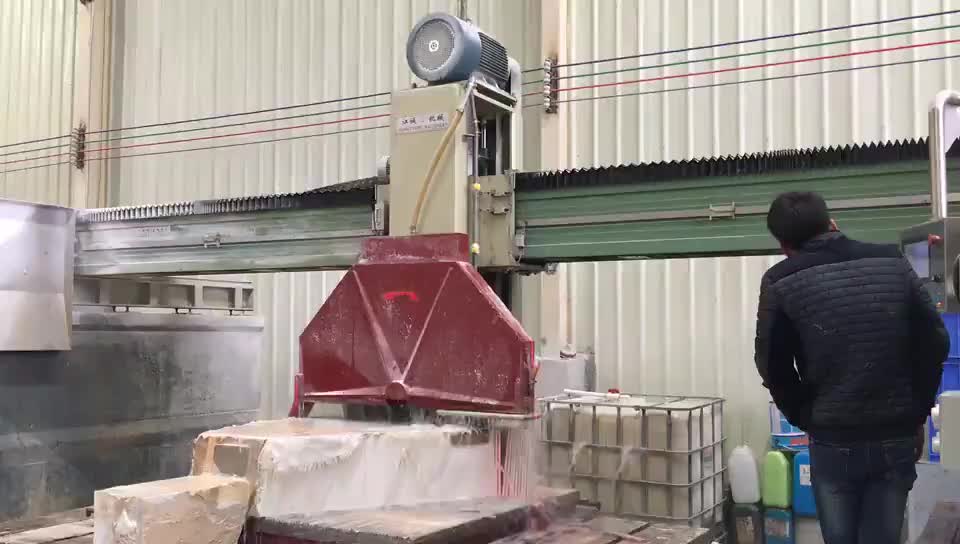

Processed Stone Photos

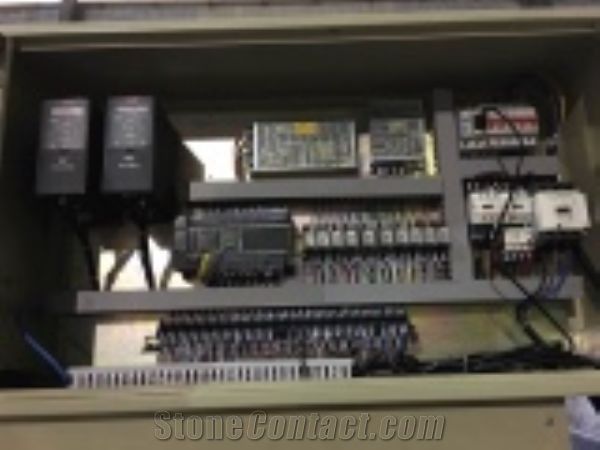

Components
-
Hitachi Omron

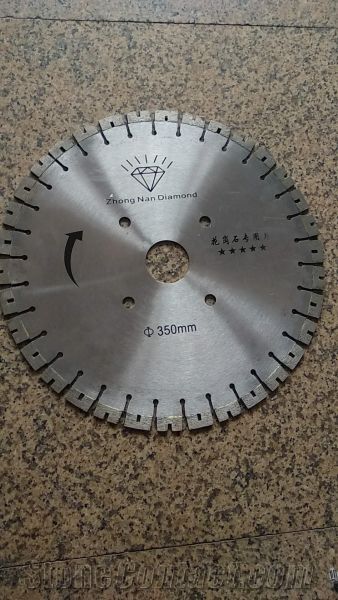

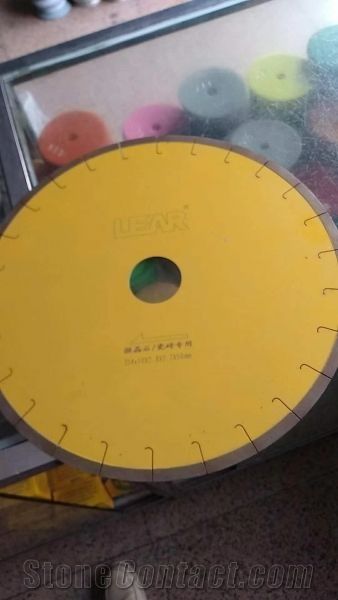

Consumables
