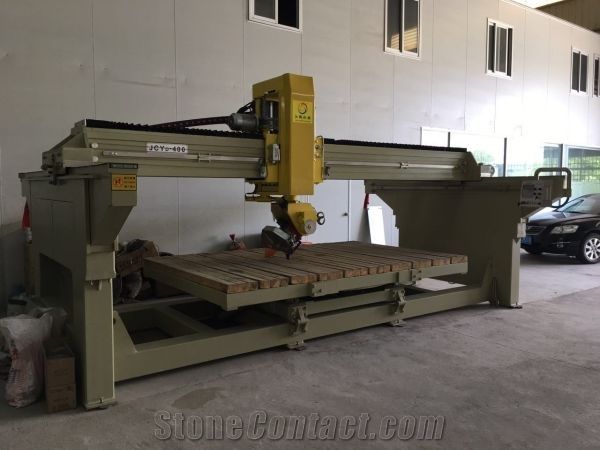

Bridge saw for miter countertop
FOB Price:$23000-24000
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Quartzite
After-Sale
Lead Time:
20-25days
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade
Supplier
Eatablished :Dec 24,2010
Main Product:
Bridge Cutting Machine , Profiling Stone Line Machine , Wire Saw Machine , Edge Cutting Machine|
Machinery Function Features
The head of this machine can rotate 0°and 90°,it can tilt 0-45°, the worktable can be rotate 0°~360°（45°、90°、180°、270°、360°), and the table overturn 0°~ 85°, the main motor is water-cool spindle motor, and with inverter for change machine speed, let good effected in cutting. It easy to install, move and operate.
Technical Data
Parameters |
Unit |
JCYD-400 |
Working table rotating angle |
° |
0-360 |
Cutter rotating angle |
° |
0 90 |
Working table tilting angle |
° |
0-85 |
Blade diameter |
mm |
350-400 |
Worktable Weight |
kg |
1500 |
Main motor power |
kW |
11 |
Working table dimensions(L×W) |
mm |
3200X2000 |
Approximate weight without table |
kg |
4000 |
Machine width |
mm |
3400 |
Blade tilting angle |
° |
0-45 |
Max. working dimensions(L×W×H) |
mm |
3200X2000X100 |
Head motor power |
kW |
11 |
Machine height |
mm |
2300 |
Max. thickness cutting capacity |
mm |
100 |
Machine length |
mm |
5800 |
Total power |
kW |
18.5 |
Processed Stone Photos

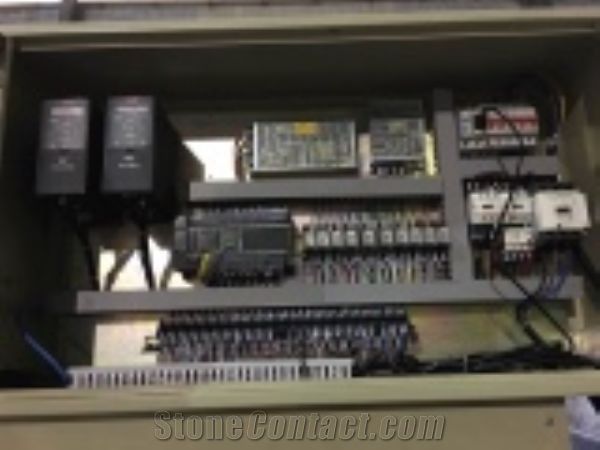

Components
-
Hitachi

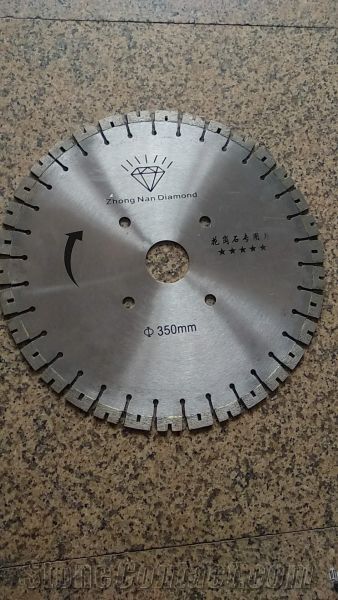

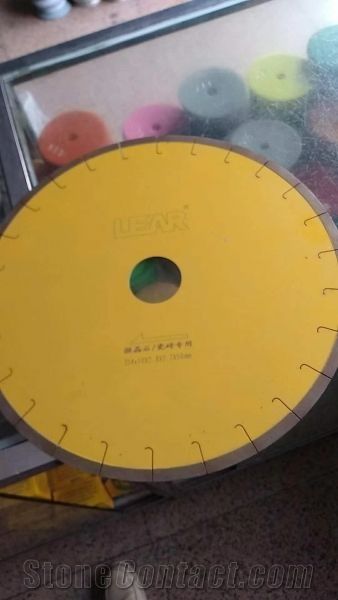

Consumables
