Titlable Bridge Saw Stone Cutting Machine For Marble And Granite
FOB Price:$22000-25000
Parameters |
Unit |
SQC700X |
Max. thickness cutting capacity |
mm |
230 |
Cutter rotating angle |
° |
0~50 |
Working table tilting angle |
° |
85 |
Machine width |
mm |
5600 |
Working table rotating angle |
° |
0~90,0~360 |
Machine length |
mm |
6000 |
Blade tilting angle |
° |
0~50 |
Blade diameter |
mm |
700 |
Working table dimensions(L×W) |
mm |
3200x2000 |
Worktable Weight |
Kg |
1500 |

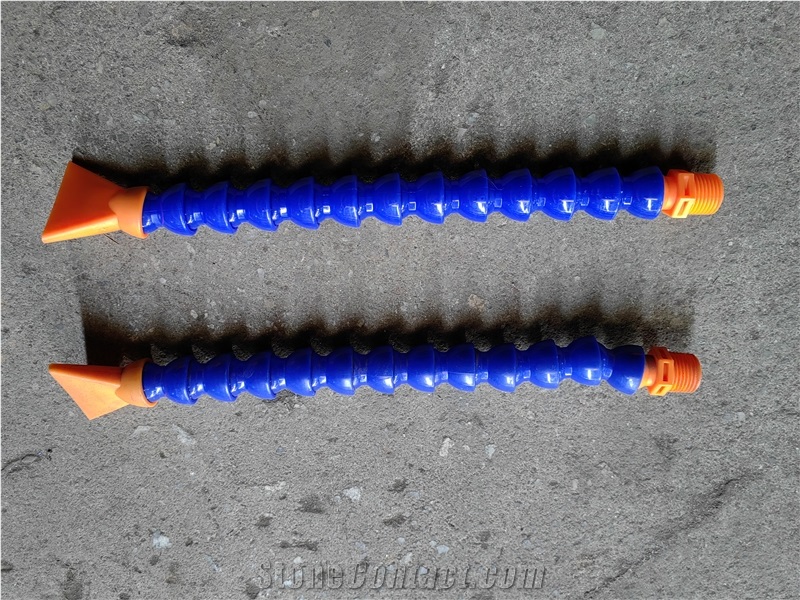

Cooling water requirement(1.5 bar min. pressure) |
L/min |
3 |
Z Axis Stroke |
mm |
470 |
Approximate weight without table |
Kg |
5000 |
Machine height |
mm |
3600 |
Total power |
kw |
29 |
Main motor power |
kw |
22 |
Max. working dimensions(L×W×H) |
mm |
3200x2000x230 |
Output |
m2/day(24Hrs) |
150~200 |
PLC computer operating system, LCD touch screen(7 inches) using Chinese, English, Russian, Arabic operation interface,

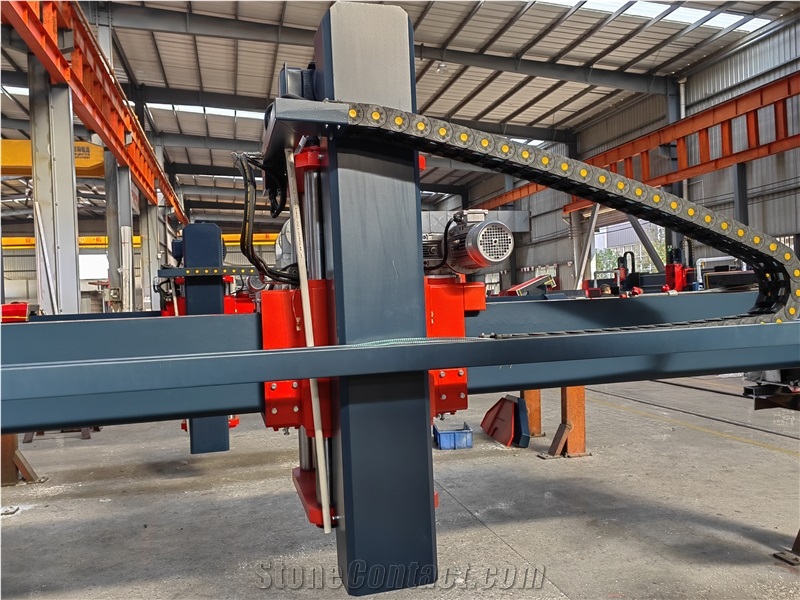

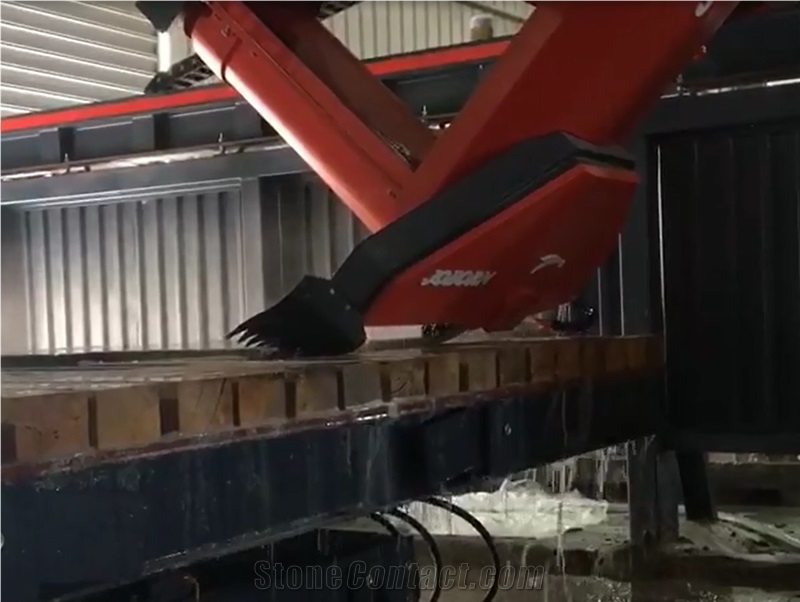

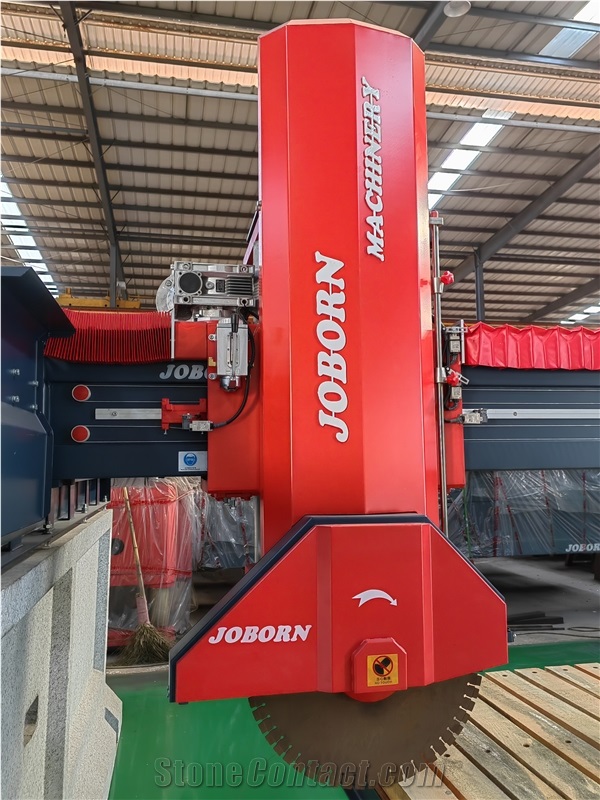

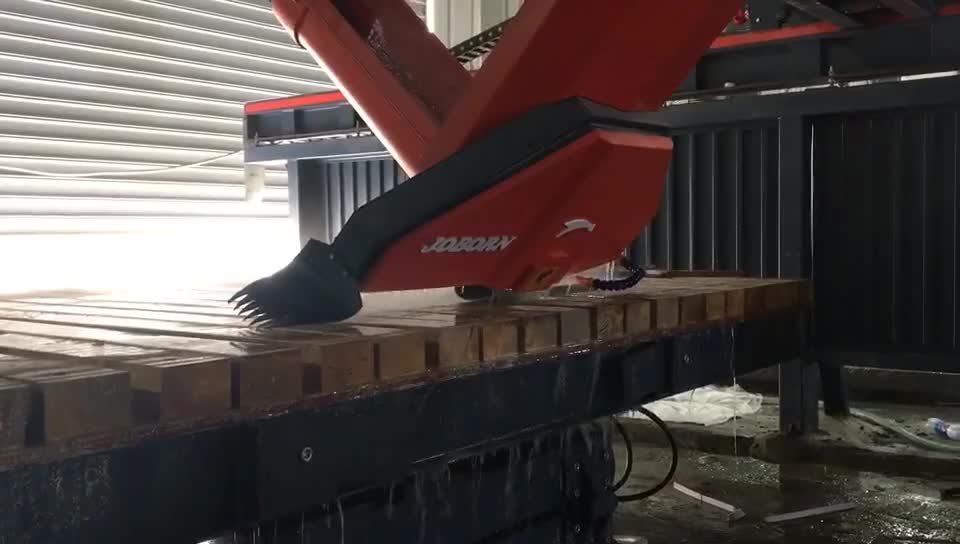

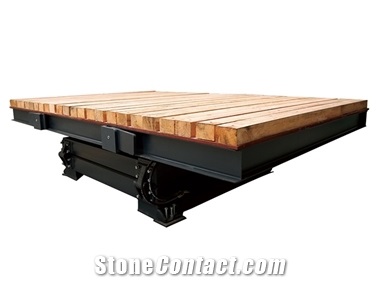

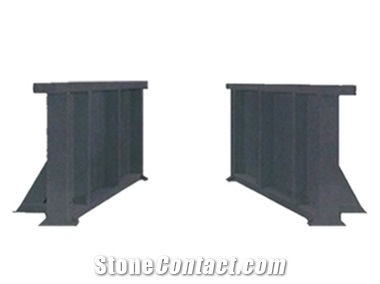

Mechanical part: The main engine is a sliding slide lift, the main engine head can be tilted(maximum Angle 50 degrees), the upper and lower link plates are cast as a whole, the self-moving hydraulic rotating table 3200*2000mm(reversible), the platform frame of the table is made of 150mm H-beam steel, the middle frame and the bottom frame are made of 140mm channel steel. The table is supported by 6 rollers, and the bearing in the main shaft box is arranged in the structure of front 2+ back 2;

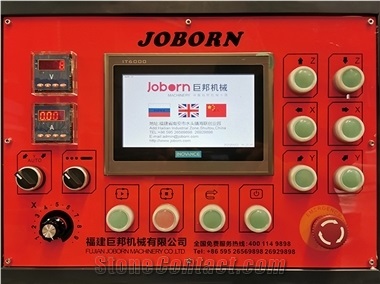

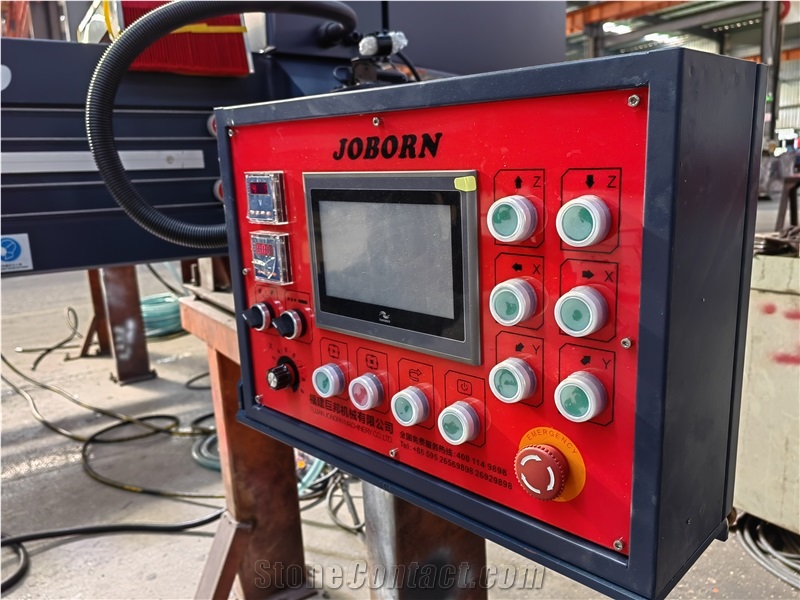

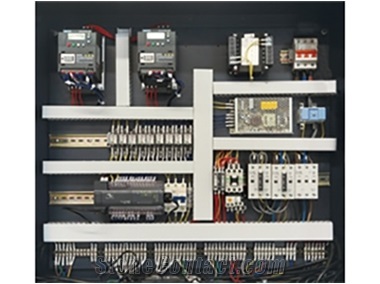

Electrical part: PLC computer operating system, LCD touch screen(7 inches) using Chinese, English, Russian, Arabic operation interface, the main motor is 22kW-4P;

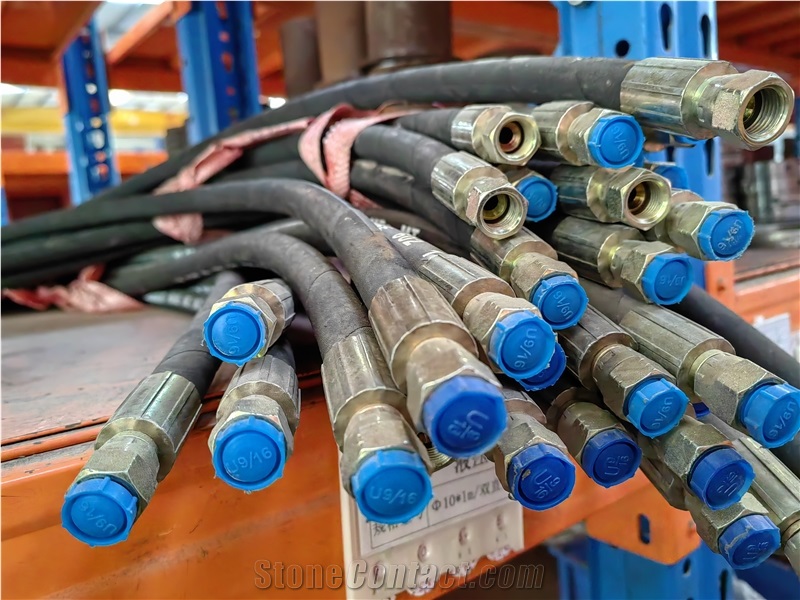

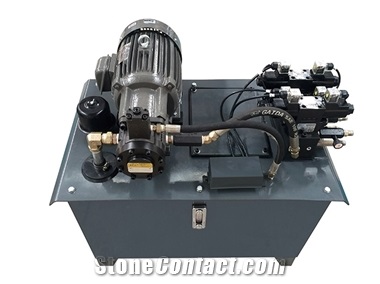

Hydraulic part: host double hydraulic lifting, 90 degree table rotation for hydraulic cylinder drive, 360 degree table rotation for hydraulic motor drive, table flip are double hydraulic cylinder drive, Taiwan first-line brand solenoid valve, double thickened high-pressure tubing;
