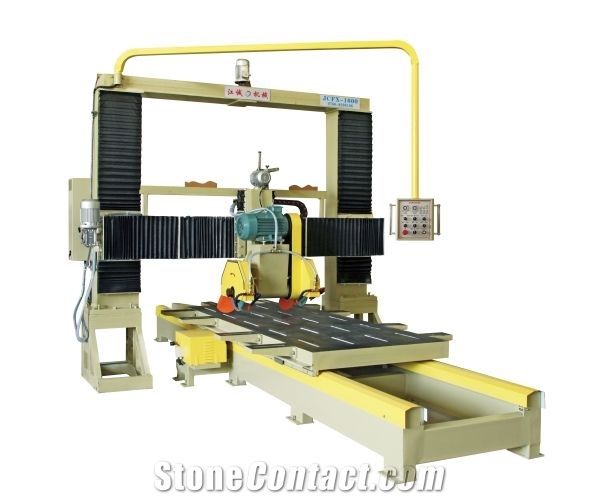

stone line making machine gantry
FOB Price:$11000-11500
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Profiling Line Machine
Usage:
Granite, Marble, Quartzite
After-Sale
Lead Time:
20days
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade
Supplier
Eatablished :Dec 24,2010
Main Product:
Bridge Cutting Machine , Profiling Stone Line Machine , Wire Saw Machine , Edge Cutting Machine|
Machinery Function Features
This machine use stable and durable total machine structure, advance PLC automatic control. Photosensitive tracing track location. Double blade cutting. Fit for big stone line , big arc slab, and big small size cutting. It have new structure, operate sample, high efficiency, good quality , low cost and so on.
Technical Data
Parameters |
Unit |
JCFX-1600 |
Control system |
plc |
|
Approx. Weight |
Kg |
4300 |
Machine overall height |
mm |
2800 |
Machine overall width |
mm |
3300 |
Max. processing thickness |
mm |
700 |
Max. processing length |
mm |
3000 |
Main motor power |
kW |
15 |
Max. loading weight |
kg |
1000 |
Polishing wheel diameter |
mm |
50/200 |
Turnover angle of cutter |
° |
45° |
Max. Processing Width |
mm |
1600 |
Machine overall length |
mm |
5500 |
Total power |
kW |
18.5 |
Blade diameter |
mm |
350-500 |
Processed Stone Photos
Components
-
Schneider Omron

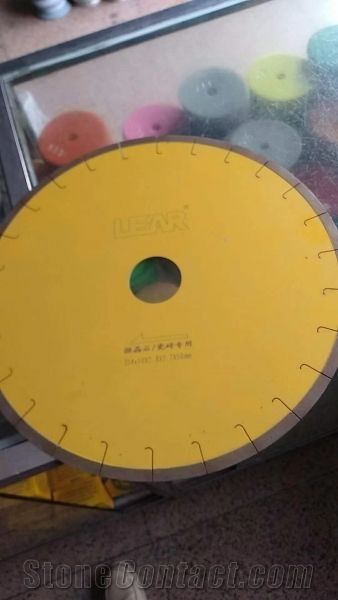

Consumables
