Automatic Stone Profiling Molding Shaping Process Disc Cutting Machine

PLC computer operating system, optical fiber probe detection, text display screen; Can modify with CNC system, which removes from the trouble of making the templates, with high automation and high cutting precision.

PLC computer operating system, optical fiber probe detection, text display screen, main motor is 15kW-4P;

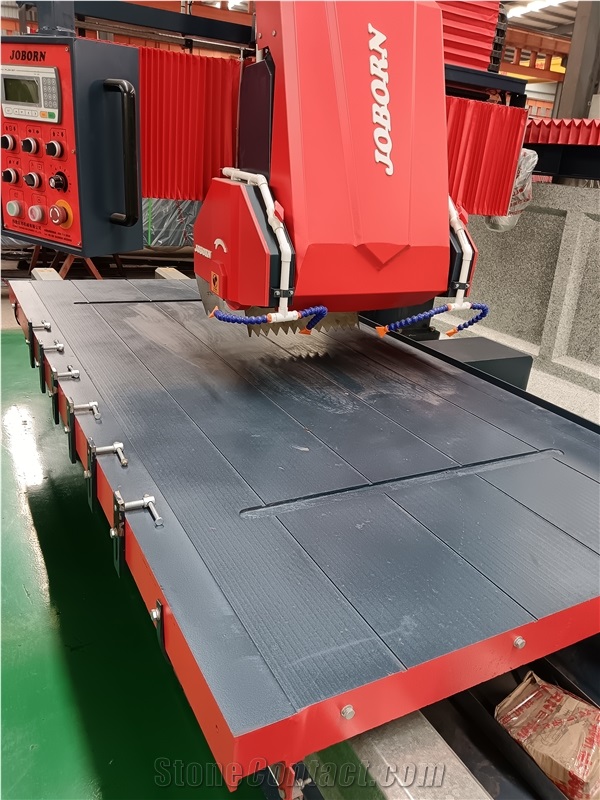

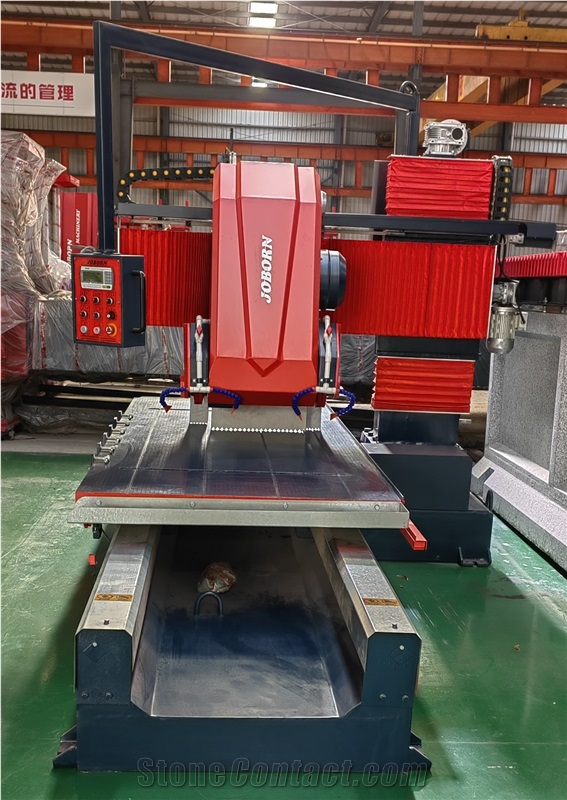

SQ/PC-1300/1500 automatic profiling cutting machine. This series machine automatically track model of curve (straight) line through the fiber optic probe, automatically profiling through diamond circular saws to cut stone with curve (straight) line and craft products, uses inverter to control left-right feeding, adjusts the speed according to the stone material. If choosing rotating worktable, the processing of arc-shaped lines can be done.

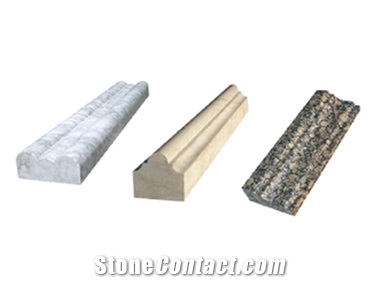

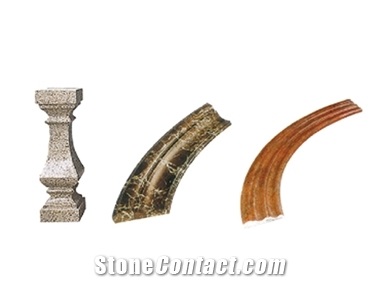

This machine adopts microcomputer control system, high degree of automation, high precision cutting; using double-blades designing, with high cutting efficiency, high stability, easy-operation to suit for lines, arc-shaped lines, Roman column, etc.

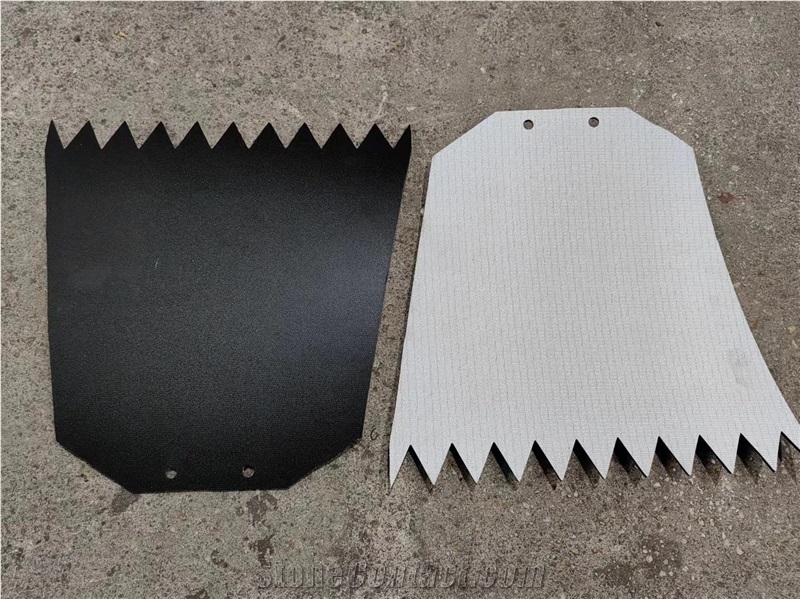

Note: can modify with CNC system, which removes from the trouble of making the templates, with high automation and high cutting precision.

Standard instructions:

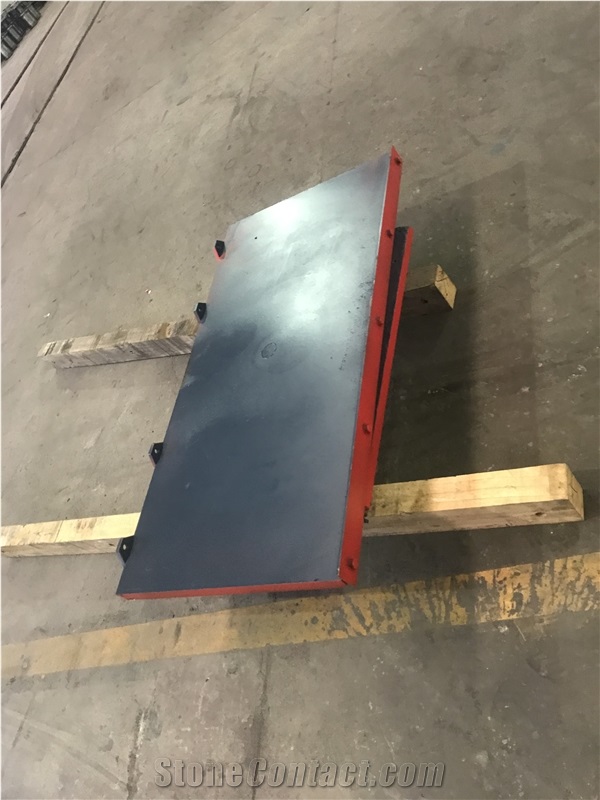

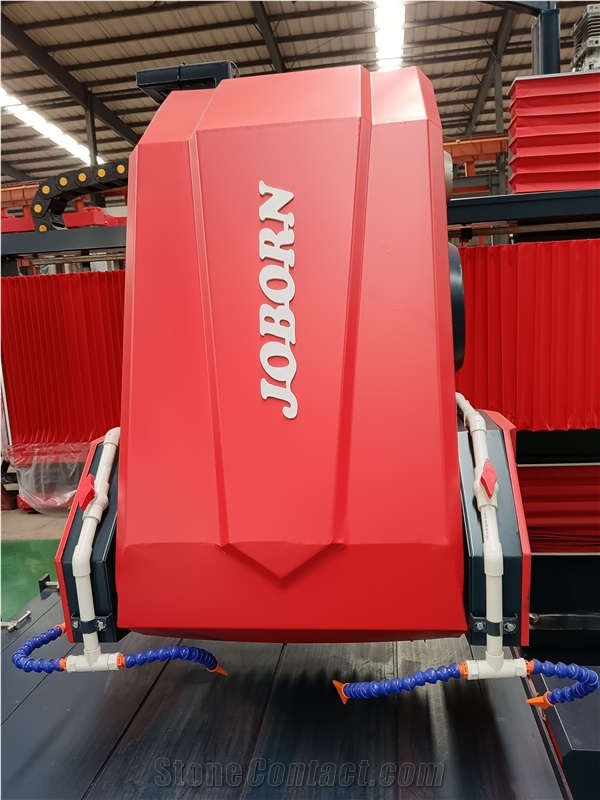

Mechanical part: The main machine adopts screw nut structure to move up and down and left and right, its maximum stroke is 600 and 1350mm (standard), the workbench 3000*1300mm (standard) is cast as a whole, the workbench adopts pinion and rack structure to move back and forth, its maximum stroke is 3400mm. The maximum saw blade diameter of the main machine is 600mm, using double tool copying;

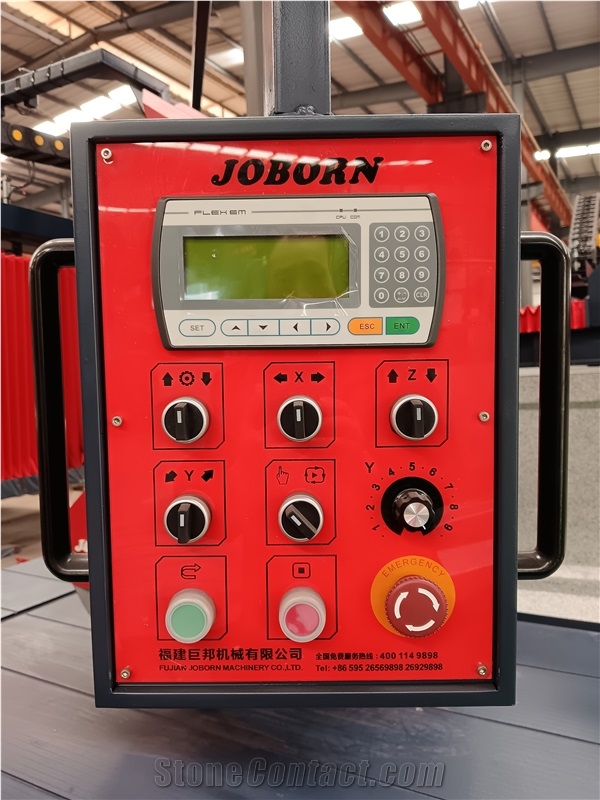

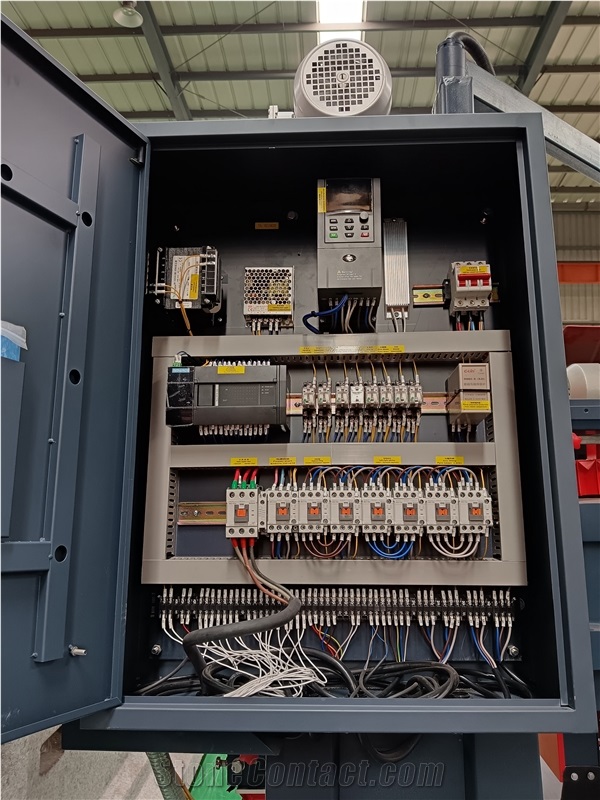

Electrical part: PLC computer operating system, optical fiber probe detection, text display screen, main motor is 15kW-4P;
