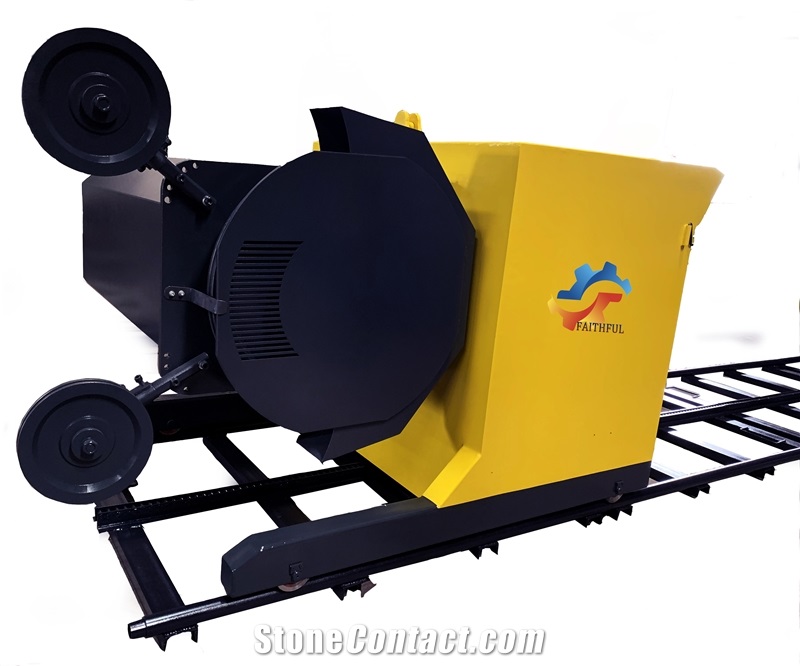

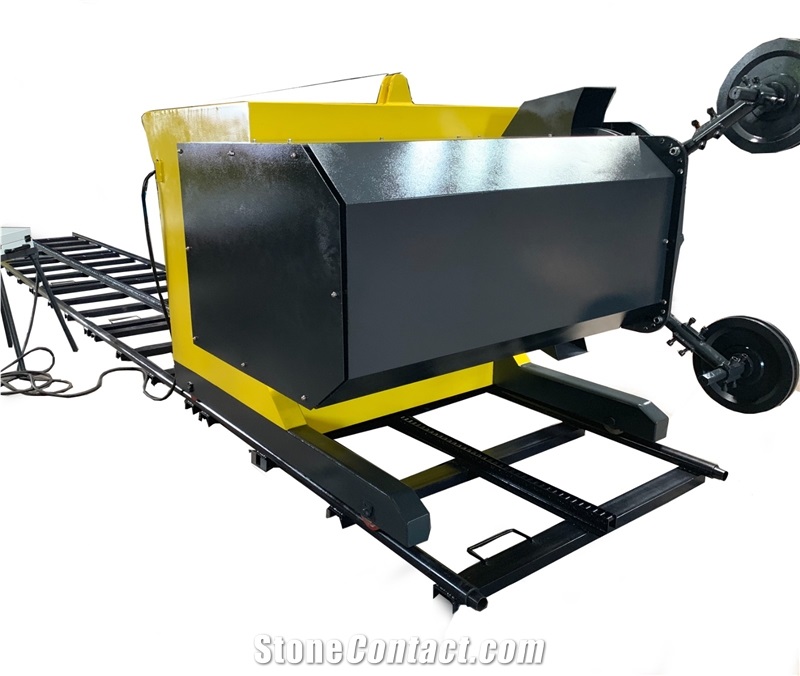

HQSJ-55A Quarry Wire Saw Machine

Name: HQSJ-55A Quarry Wire Saw Machine
Brand: Quanzhou Faithful Machinery Co.,Ltd
SKU: 7944
Price: 13000 USD
Availability: InStock

FOB Price:$13000-17000

Type: Stone Quarry MachinesQuarry Wire Saw Machine

Usage: Granite, Marble, Limestone, Quartzite, Sandstone

After-Sale

Lead Time: 3 weeks

Warranty:12 Months

Install and Guarantee:Remote guidance installation

Maintenance:Remote troubleshooting

Trade Terms

Port: XIAMEN- China

Delivery Details: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery

Payment :

Supplier

Quanzhou Faithful Machinery Co.,Ltd

Faithful Machinery

China

Eatablished :Dec 11,2020

Main Product:

Quanzhou Faithful Machinery, Stone Quarry Machine, Stone Processing Machine, Concrete Cutting Machine, Diamond Wire Saw, Diamond Tools|

Contact supplier

Start Order

You may also like

Quarry Wire Saw Machine For Marble Granite Squaring Quarrying

SJ-37A Diamond Wire Saw Machine - Quarry Wire Saw Machine

TSY Skystone Quarry Wire Saw Machine

quarry stone marble granite cutting crusher machine

Automatic 18.5Kw/22Kw Portable Trimming Wire Stone Saw Machine

Product Detail
Company Profile

Overview
Components
Video
Trade Terms

Machinery Function Features

HQSJ-55A Wire Saw Machine is available for cutting in any direction: horizontal, vertical and acclivitous, is suitable for quarry to mine large specification and regular blocks, such as marble, granite, quartzite, basalt, etc. also good for bridge, reinforced concrete and other construction cutting.

Technical Data

Parameters	Unit	HQSJ-55A Quarry Wire Saw Machine
Wire Saw Speed	m/s	0-40
Max. Wire Length	m	20-120
Total Weight	Kg	2900
Dimension LxWxH	cm	200140170
Guide Pulley Diameter	mm	380
Main Motor Power	kw	55
Motor Flywheel Unit Rotation	°	360

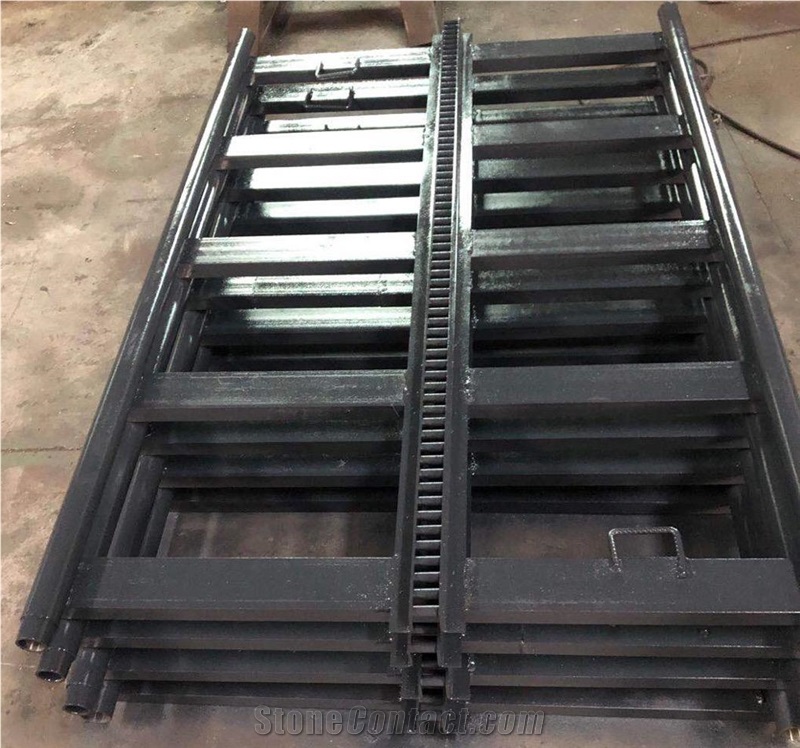

Length of rails	m	8
Main Flywheel Diameter	mm	800
Power Supply	V/Hz	380V/50Hz

Software

The lateral movement and the rotation angle of the cutting head are controlled and driven by electric motor. There is photoelectric proximity
switch installed on the cutting head for position limitation protection. This function enable the machine to work normally under harsh
circumstance with moisture and dust.

The real-time parameters are displayed on the control platform, such as the set current of the main motor, the current and the rotation speed of the
main motor,etc. It makes the operation and adjustment of the machine more convenient.

The machine has the following protection functions: wire broken protection,over-loading protection, open-phase protection, terminal limit,and so on.

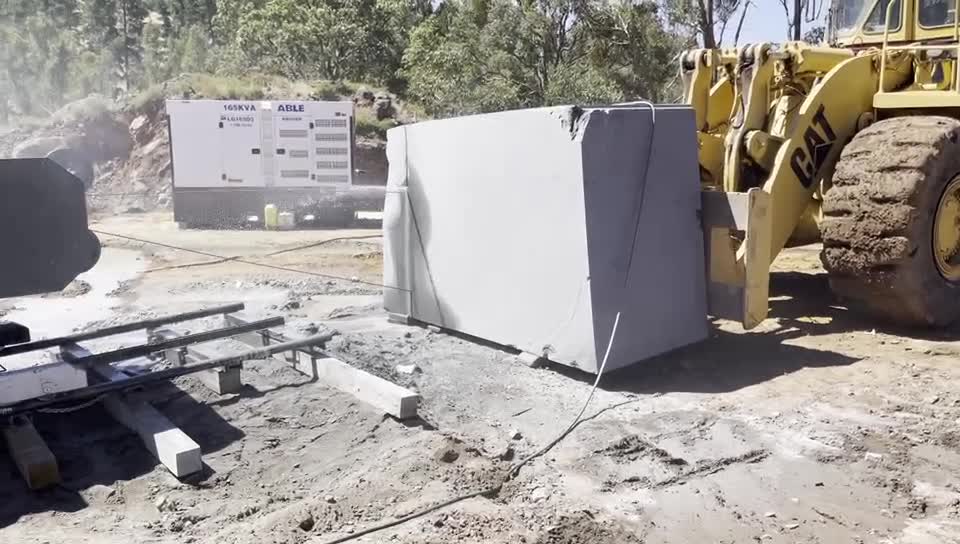

Work Example

1.360°rotation of the mail pulley allows the wire saw to cut in any direction.

2.Being controlled by two sets of inverters and applying the constant tension control principle, the moving speed of the machine can be adjusted automatically according to the changes in the cutting force to make sure the diamond wire saw be in the best cutting condition all the time.

3.Control panel is intelligent, easy to read and operate, can be positioned up to 15 meters from working area. Safe for the operator.

4.Automatic control systems for the machine's movement,start from zero velocity to high cutting speed step by step, which is endurable for power motor.

5.Cooling fans can blow out the heat in time.

6.Water flow inspecting (the machine will alarm and reduce its speed and finally stop automatically when cooling water running out or become deficient).

7.Wire-broken protection. This system would break out warnings within 6 seconds and then reduce forward velocity till cease in case of broken of diamond wire.

8.Multi-protection against over loading, empty loading, over electric current, over voltage, defective voltage.

Processed Stone Photos
