HQSJ-37A Quarry Wire Saw Machine
FOB Price:$11998-12298
Type:
Stone Quarry MachinesQuarry Wire Saw Machine
Usage:
Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
3 weeks
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance
Trade Terms
Port:
XIAMEN- China
Delivery Details: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery
Payment :
Supplier
Eatablished :Dec 11,2020
Main Product:
Quanzhou Faithful Machinery, Stone Quarry Machine, Stone Processing Machine, Concrete Cutting Machine, Diamond Wire Saw, Diamond Tools|
Machinery Function Features
HQSJ-37A Wire Saw Machine is available for cutting in any direction: horizontal, vertical and acclivitous, is suitable for quarry to mine large specification and regular blocks, such as marble, granite, quartzite, basalt, etc. also good for bridge, reinforced concrete and other construction cutting.
Technical Data
Parameters |
Unit |
HQSJ-37A Wire Saw Machine |
Power Supply |
V/Hz |
380V/50Hz |
Wire Saw Speed |
m/s |
0-40 |
Dimension LxWxH |
cm |
200*130*170 |
Motor Flywheel Unit Rotation |
° |
360 |
Main Motor Power |
kw |
37 |
Max. Wire Length |
m |
20-80 |
Main Flywheel Diameter |
mm |
800 |
Length of rails |
m |
6 |
Total Weight |
Kg |
2500 |
Guide Pulley Diameter |
mm |
380 |

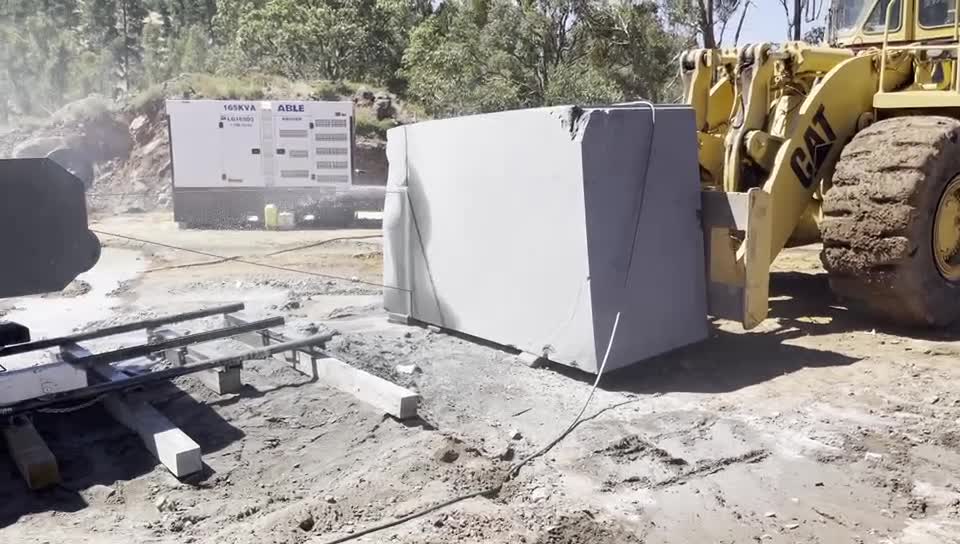

Processed Stone Photos
Components
-

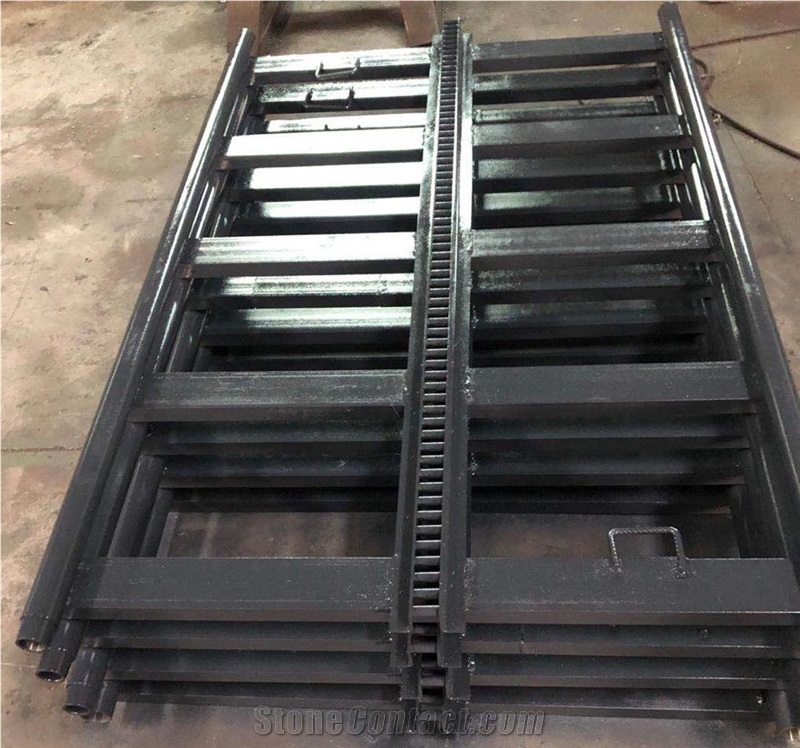

Rails
-

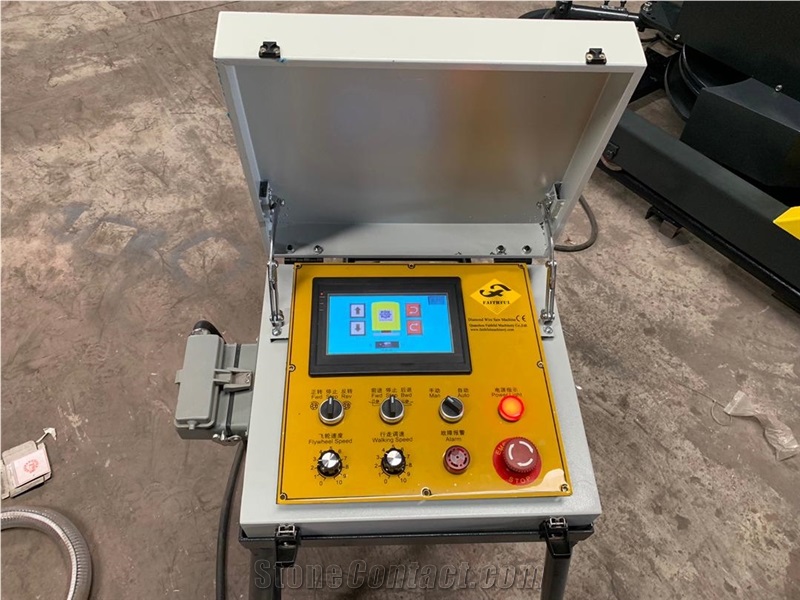

Control Panel
-
Flywheel
-

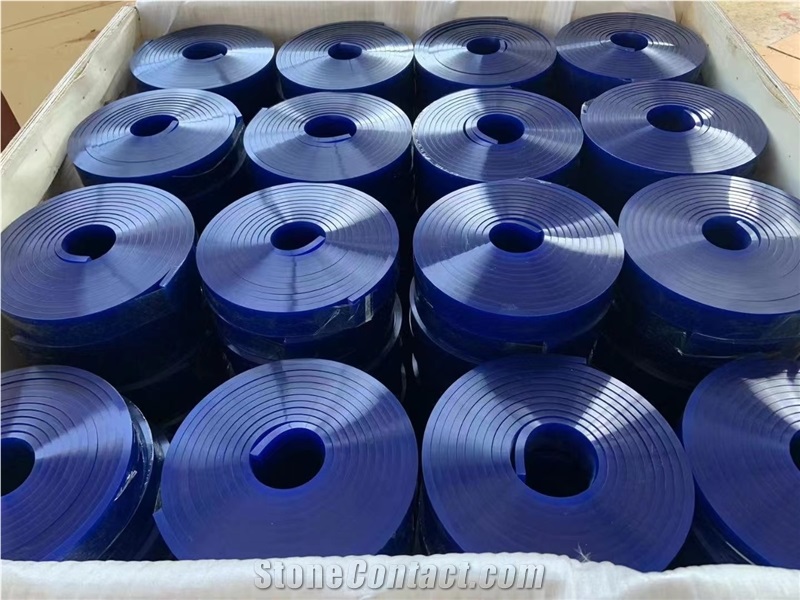

Rubber Belt
Consumables
-

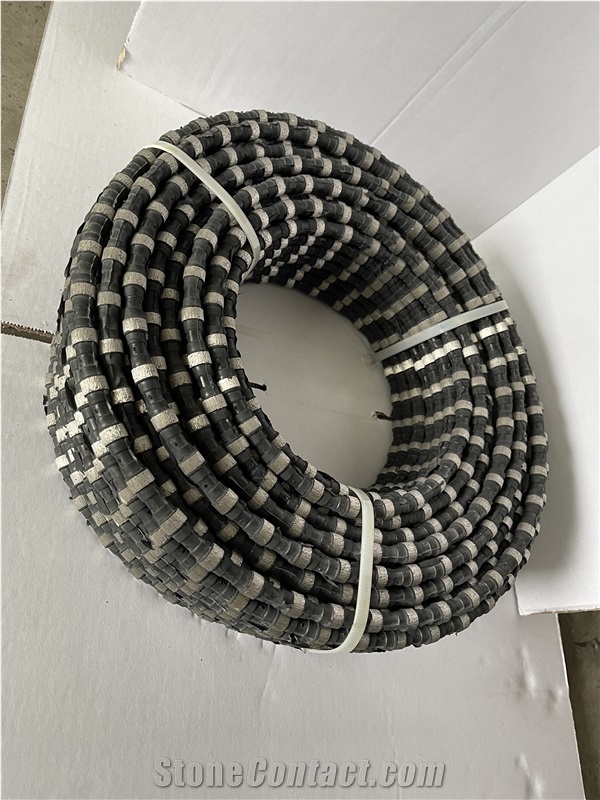

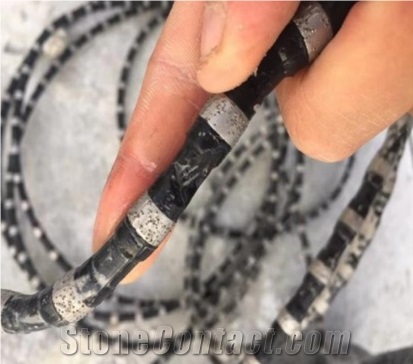

Diamond wire saw
For granite，marble，sandstone...
-
Diamond wire saw
Video
Install Video
Operation Video
