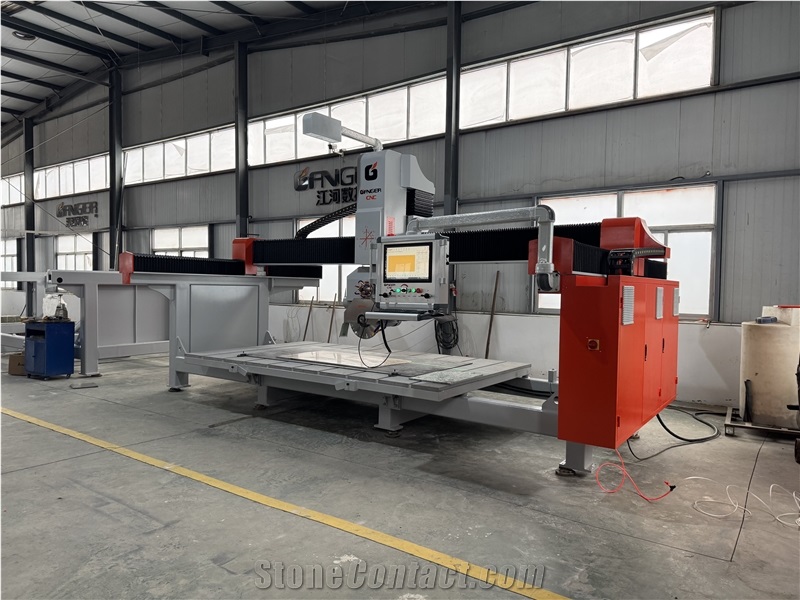

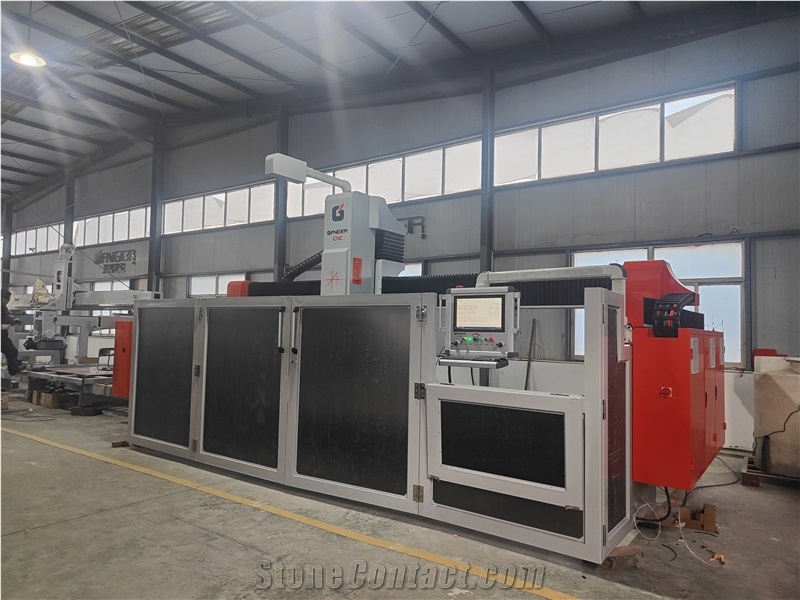

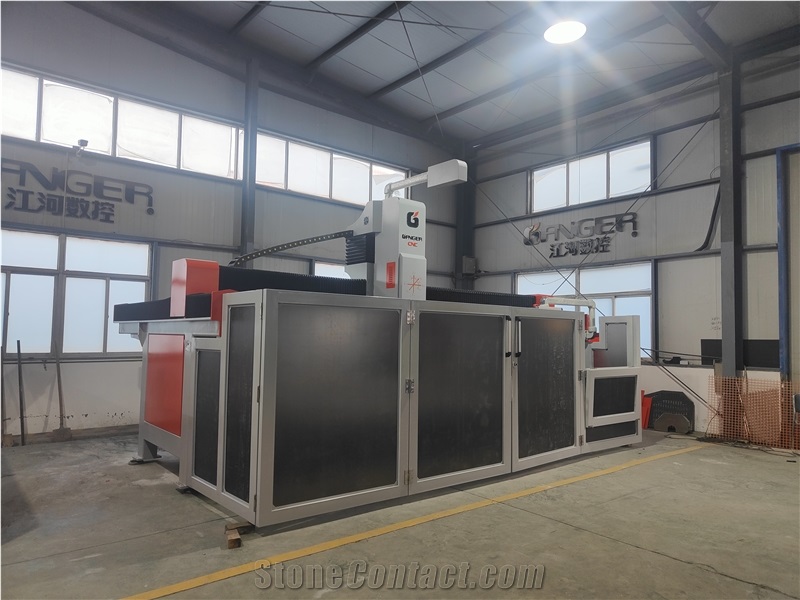

New Design 5 Axis Slabs Cutting Machine 5+1 ATC Bridge Sawing Machine

Name: New Design 5 Axis Slabs Cutting Machine 5+1 ATC Bridge Sawing Machine
Brand: Ganger CNC Co., Ltd
SKU: 7961
Price: 29999 USD
Availability: InStock

FOB Price:$29999-49999

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 25 days

Warranty:12 Months

Install and Guarantee:Remote guidance installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Ganger CNC Co., Ltd

Ganger CNC

China

Eatablished :May 16,2005

Main Product:

Bridge Saw Machine, Countertop CNC Machining Center, 5 Axis Stone Cutting Machine, 4 Axis Stone Cutting Machine, Bridge Cnc Saw/Cutting Machine, Stone Engraving Machine|

Contact supplier

Start Order

You may also like

K600 EXTREME XL with Manipulator Bridge Saw Machine

Star 4 - Entry Level Bridge Saw

4+1 CNC Bridge Saw Machine

CNC Bridge Cutter Machine For Cutting Granite DFQ-Z1200

CNC 4 Axis Bridge Cutting Machine Expand 450 / 450 MC

Product Detail
Company Profile

Overview

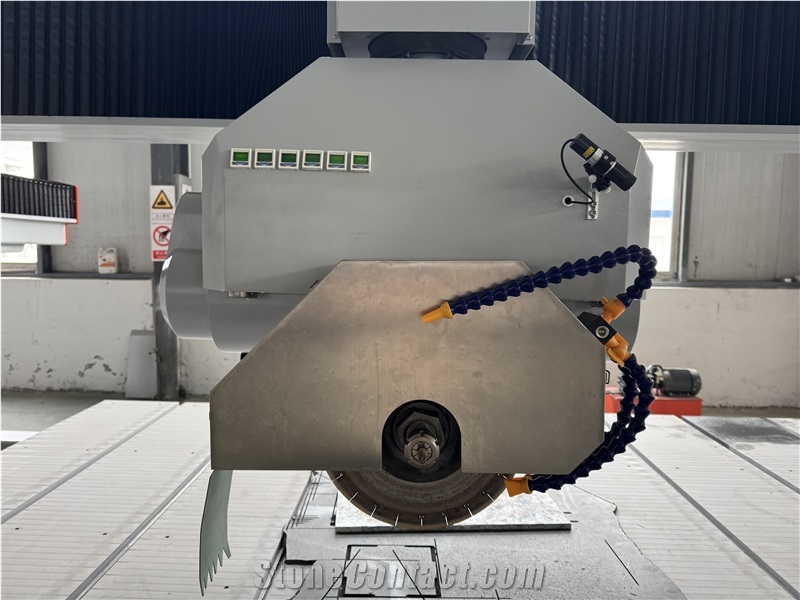

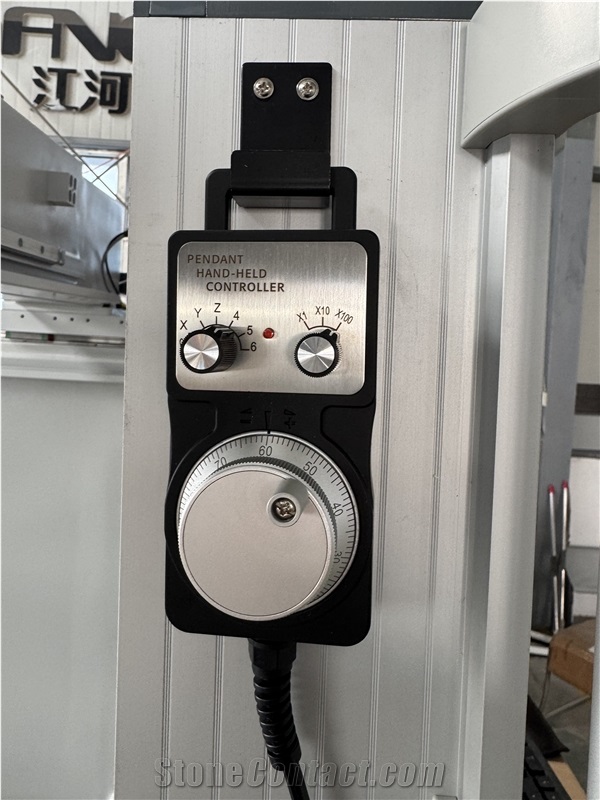

Components
Video

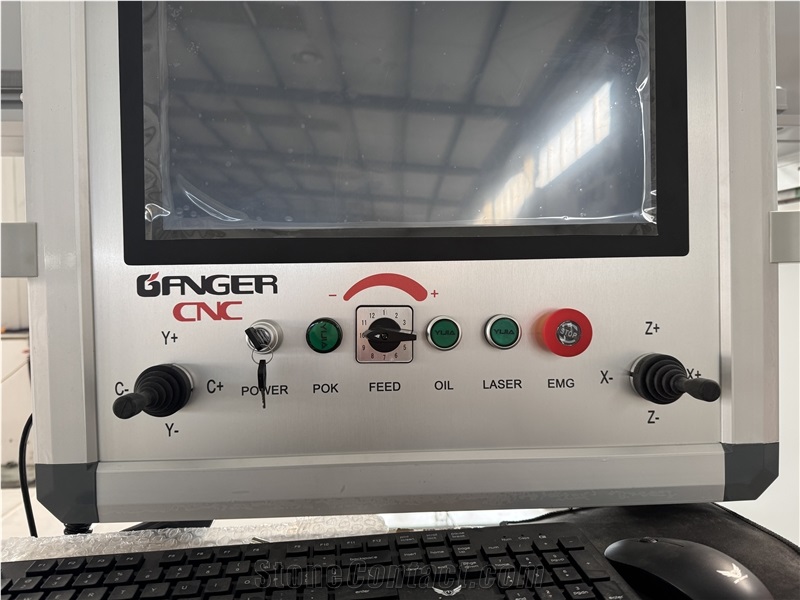

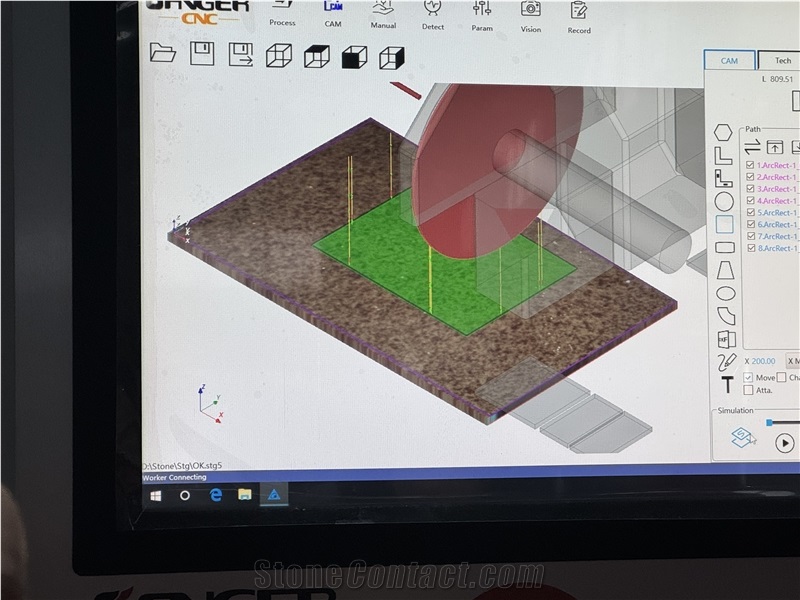

Machinery Function Features

1.One key return to HOME 2.One key flip table 3.Quick blade setting, with fast keys in each interface 4.Support for automatic continuous miter 45 cut in Y-axis direction has been added. 5.Miter 45 cut supports automatic elevation of the saw blade after beveling back 6.Support compensation function for X and Y cutting 7.Diagonal cutting supports any angle(1-135 degree) 8.Straight cutting supports layered cutting 9.Cutting a flush edge function 10.Automatic water supply by system control pump 11.More upgrades for system security operations

Technical Data

Parameters	Unit	GQ-3220DST
Worktable turn-over degree	°	85
Hydraulic station motor power	kw	2
Machine length	mm	3900
Vertical cutting spindles motor power	kw	2
Max. workable thickness	mm	200
Bridge transversal stroke(Y axis travel)	mm	3200
Transversal stroke speed (Y displacement speed)	m/min	2000
Max. dimensions of the piece for “rodding” application	mm	200
Tools holder head inclination(A axis blade rotation)	°	360
Cooling water requirement(1.5 bar min. pressure)	L/min	20
Average level of equivalent sound pressure	dB	50
Max. dimensions of the liftable piece	mm	2000
Dimensions of the work table(L×W)	mm	3200*2000
Head motor power	kw	15
Head raising/lowering stroke(Z axis travel)	mm	500
Horizontal stroke speed(X axis displacement speed)	m/min	3200
Max number of interpolated axes	nr	2
Min.dimensions of the liftable piece	mm	10
Air consumption	m3/h	50
Center-to-center distance 5-axis head/vertical cutting spindles	mm	30
Max.width of the cut slab	mm	2000
Machine height	mm	2300
Installed electrical power	kw	29
Center-to-center distance vertical cutting spindles	mm	30
Max.length of the cut slab	mm	3200
Machine width	mm	2800
Crossbeam motor power	kw	1.5
Vertical stroke speed (Z displacement speed)	m/min	500
Max. revolutions of the spindle unit	r/min	2
Approximate weight without table	Kg	3500
Worktable Weight	Kg	2000
Disc motor power	kw	7.5
C axis blade rotation	°	90
Z-axis working travel vertical cutting spindles	mm	500
Disc diameter	mm	500
Max. cutting depth	mm	200
Horizontal stroke(X axis travel)	mm	2000
Max. liftable weight with all the vacuum cups activated	Kg	2000
Number of vertical cutting spindles	nr	2
