5-Axis CNC Sawjet Combined Bridge Saw & Waterjet Stone Cutting Machine

Name: 5-Axis CNC Sawjet Combined Bridge Saw & Waterjet Stone Cutting Machine
Brand: Fujian Province Hualong Machinery Co.,Ltd
SKU: 7971
Price: 85000 USD
Availability: InStock

FOB Price:$85000-115000

Type: Stone Factory MachinesStone Slab Cutting MachinesCombined 5 Axis Saw & Waterjet Cutting

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 25-45 days

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Trade Terms

Port: Fuzhou Port- China

Delivery Details: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,Express Delivery

Payment :

Supplier

Fujian Province Hualong Machinery Co.,Ltd

Hualong

China level 3YR

Eatablished :Apr 17,1997

Main Product:

Stone Quarry Machine, Block Cutting Machine, Stone Polishing Machine, Slab Cutting Machine , Stone Engraving Machine, Stone Cnc Machine|

Contact supplier

Start Order

You may also like

Italian CNC Cut & Jet Sawjet 5 Axis Stone Bridge Saw Machine

5 Axis Cnc Stone Bridge Cutting Saw

5 Axis CNC Precision Accurate High Pressure Stone Slab Waterjet Cutter

CNC 5 Axis Waterjet Cutting Machine

CNC 3-Axes Water Jet Machine

Product Detail
Company Profile

Overview
Components
Trade Terms

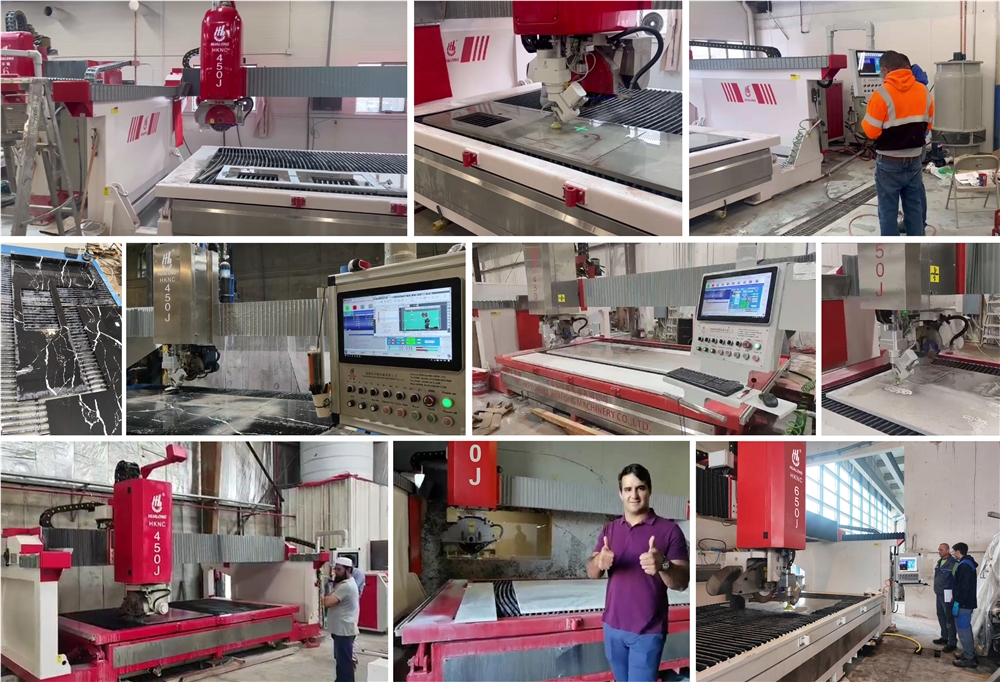

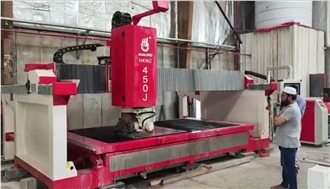

Customer Case

Machinery Function Features

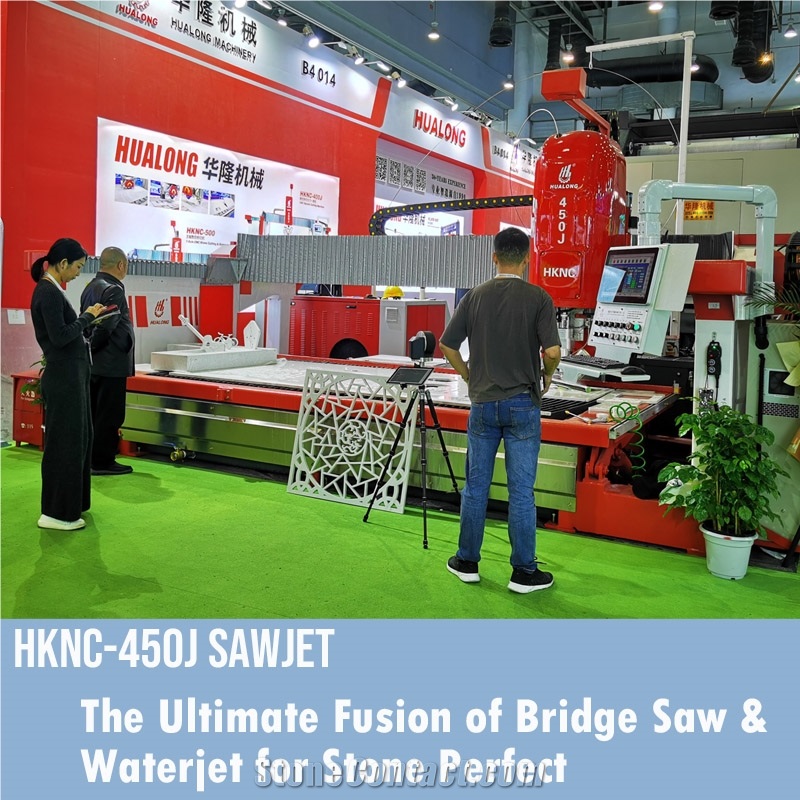

THE PERFECT MARRIAGE Combined 5 axis - bridge saw + Waterjet for ceramic, stone, marble and granite

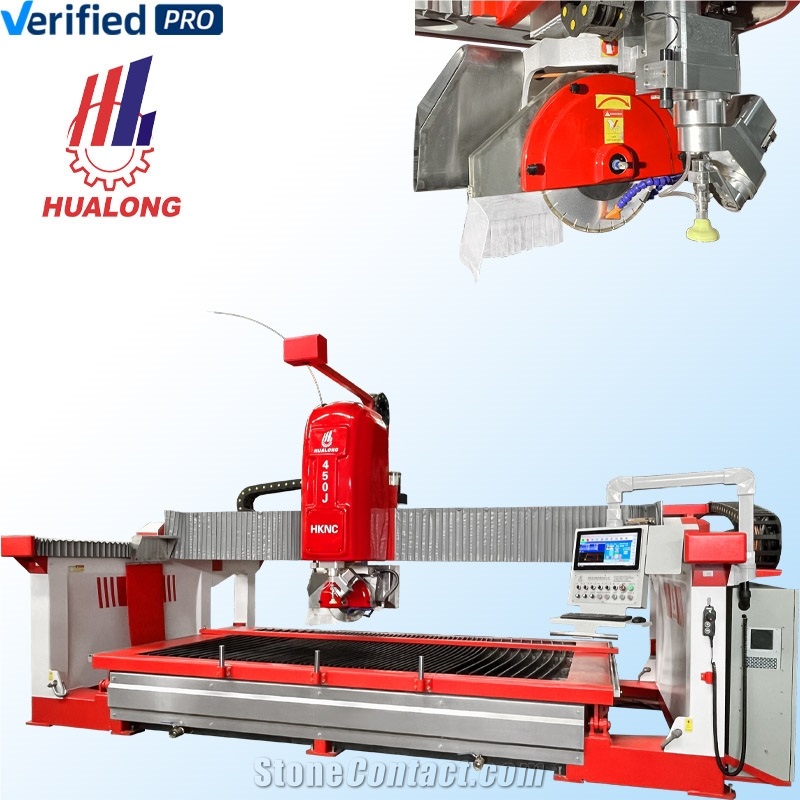

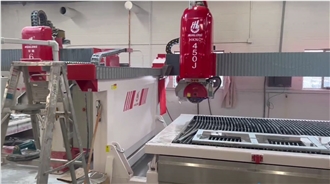

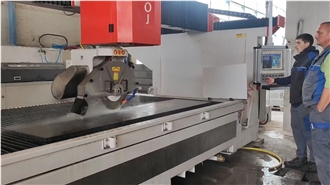

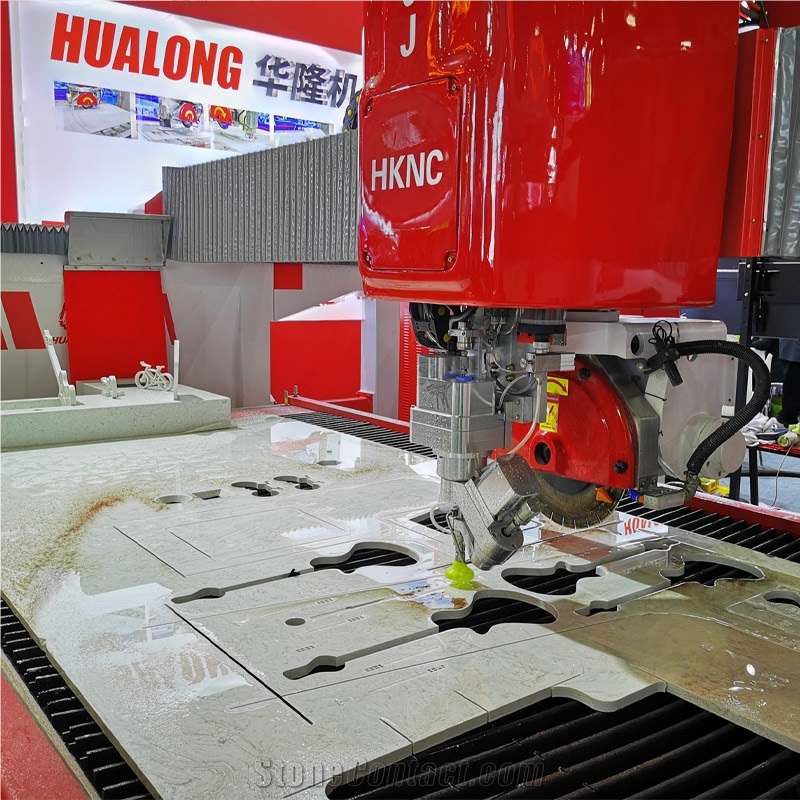

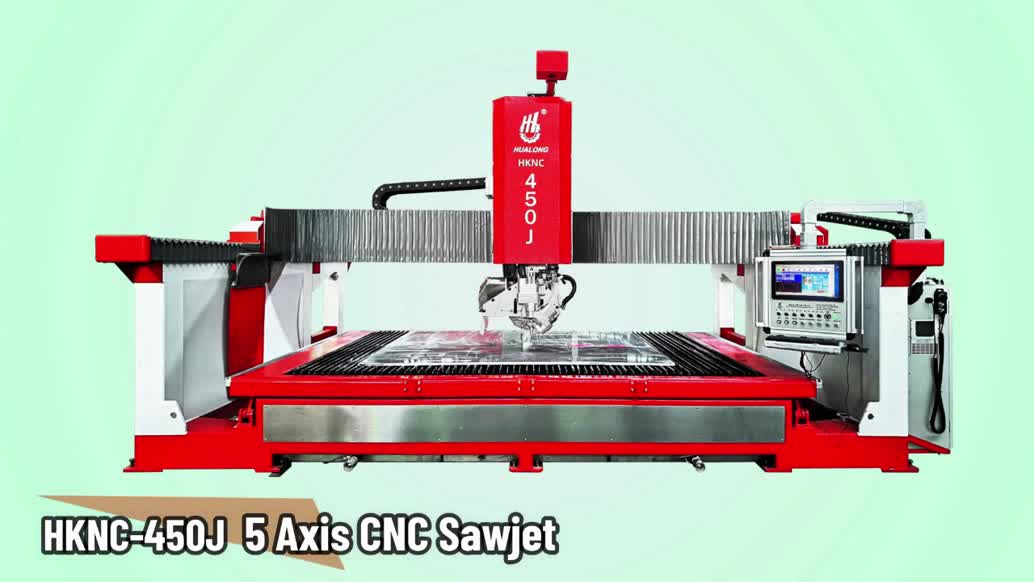

HKNC-450J Sawjet is a 5 axis cnc cutting center with cutting-edge technology that combines the power of waterjets and the precision of diamond saws, which results in a high efficient cutting method that not only enhances accuracy but also significantly reduces material waste.

It's extremely veratile and suitable for processing a wide variety of items made of marble, granite, quartzite , ceramic , other natural and composite stone.

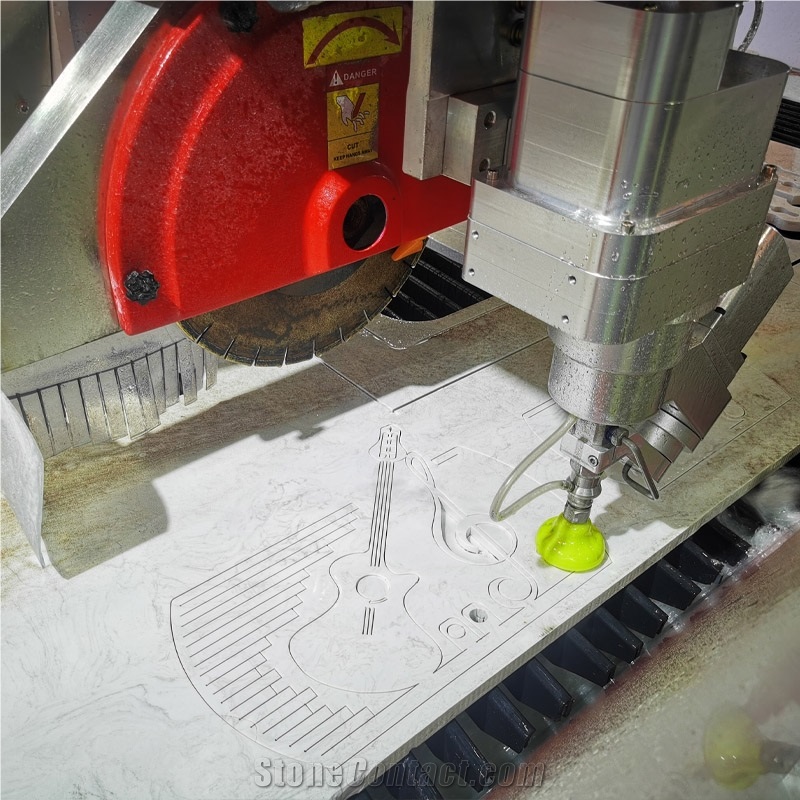

Two Technologies Together

It's a cnc machine optimises cutting operations with:

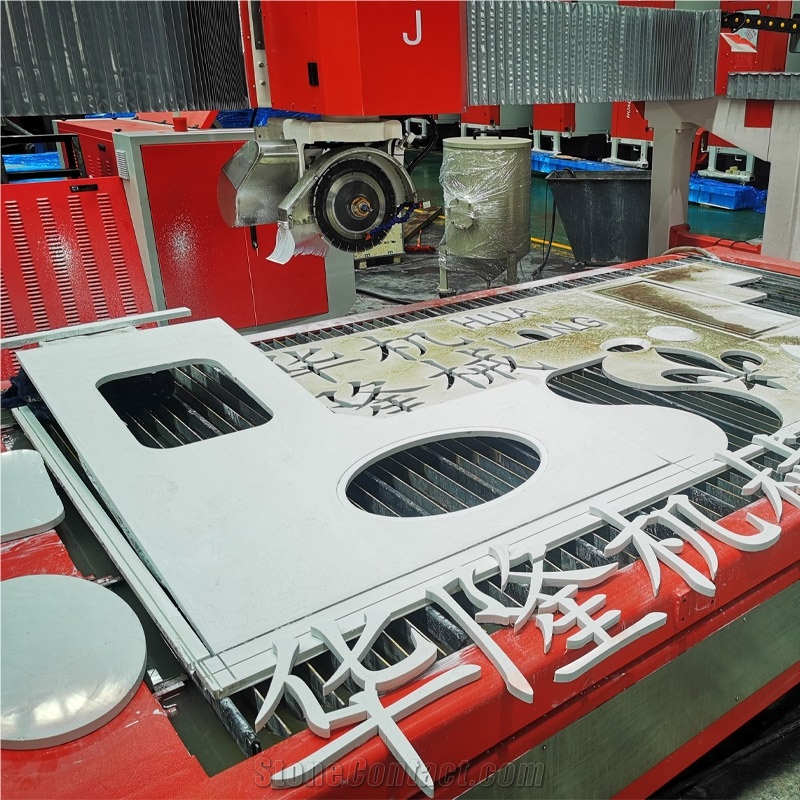

Saw blade cut smoothly speedly for straight, big arcs, chamfering and notch on slab surface.

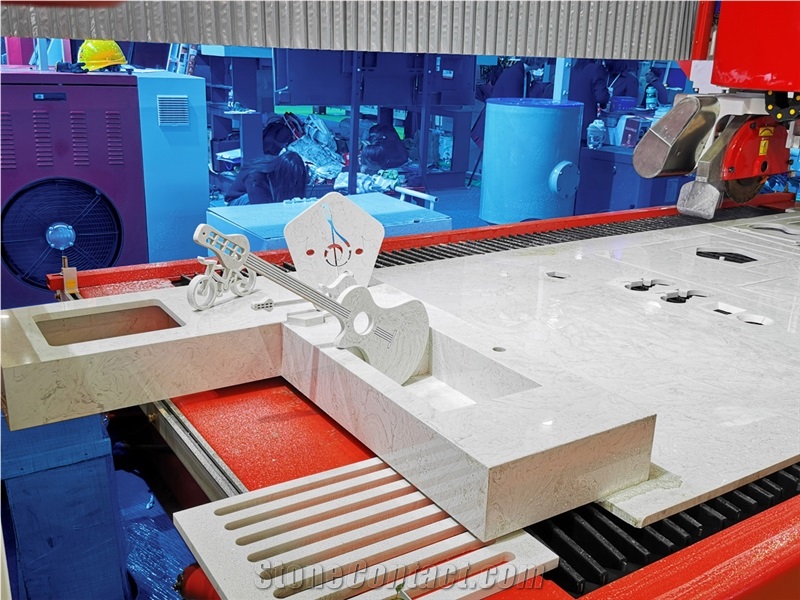

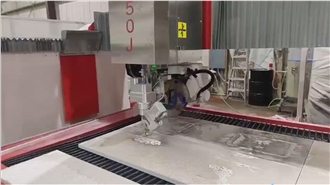

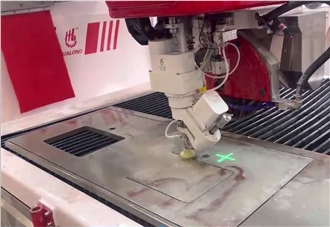

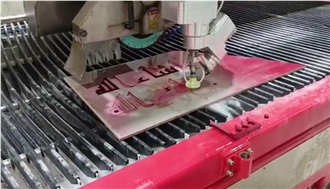

water jet cut flexibly internal angles, curve and intricate shape.

The machine can also perform milling operations thanks to the tool installed on the main motor shaft.

HKNC-450J sawjet, modular designed, is a five-axis beast tailored to your unique needs, maximizing productivity, and pushing the envelope of what's possilble.

Equipment Details:

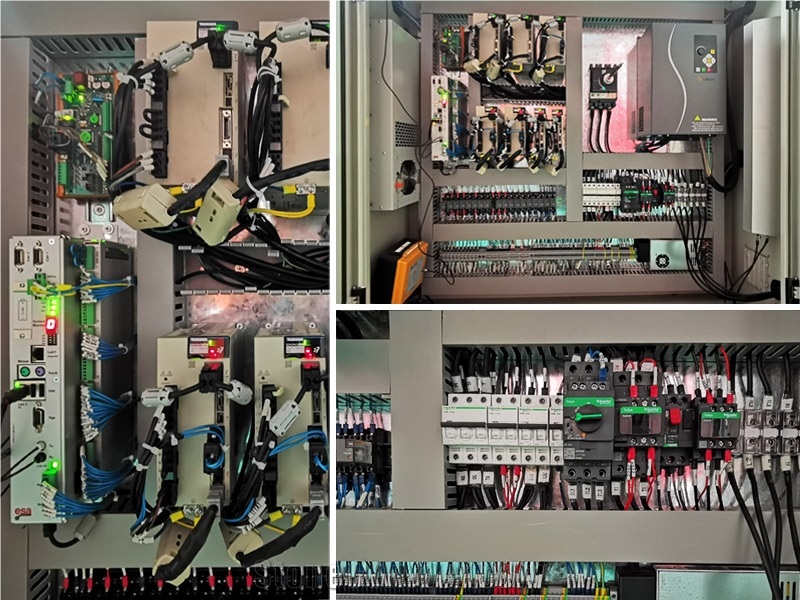

1) Italian Esa CNC system and Pegasus software
2) 5 axis brdige saw + 5 axis water jet

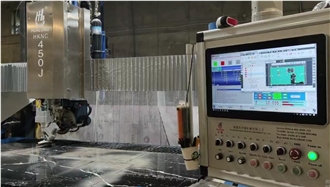

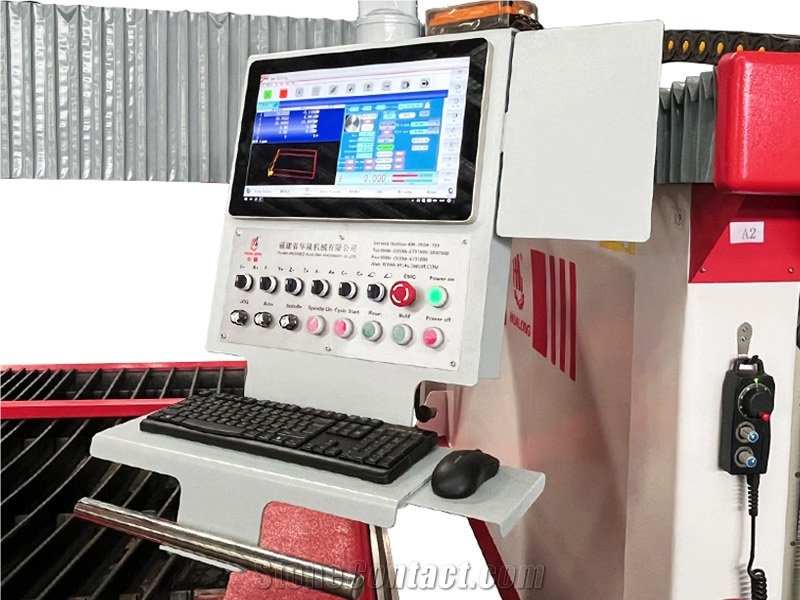

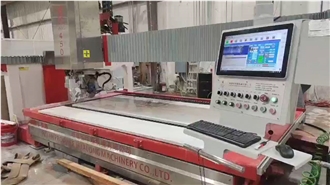

3) Easy to use interface with 21.5" large color touch-screen.

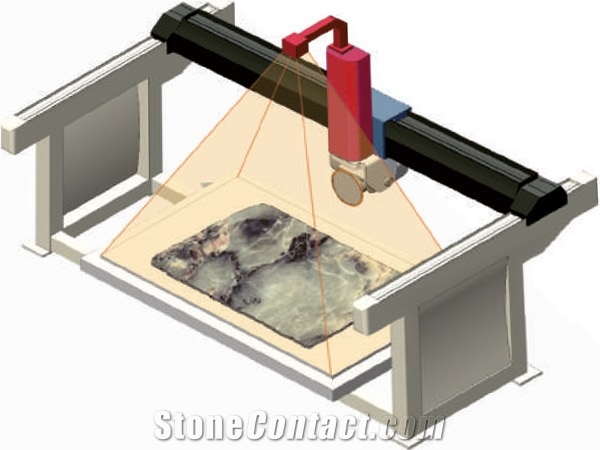

4) Camera on board for nesting and bypassing slab defects
5) 1/2 inch connector with internal water supply for finger bits cooling
6) Auto lubrication system

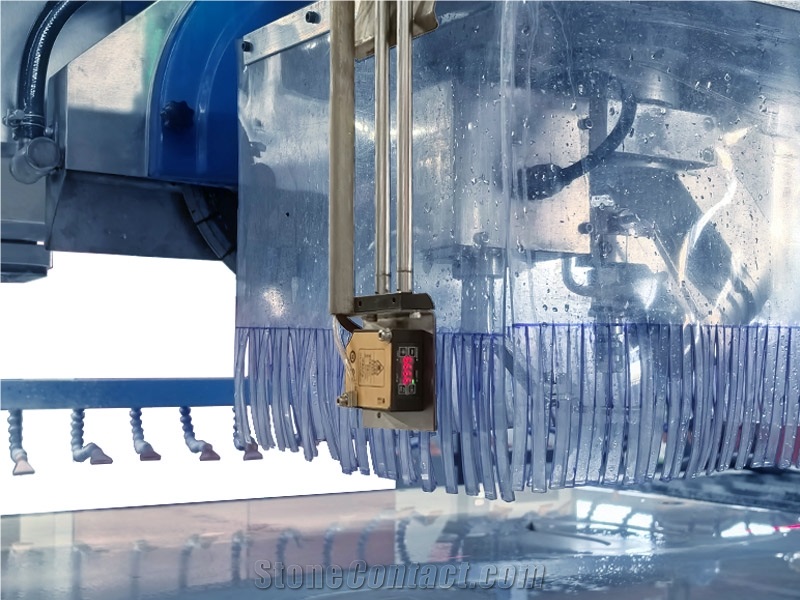

7) Auto-height system for waterjet cutting a constant distance

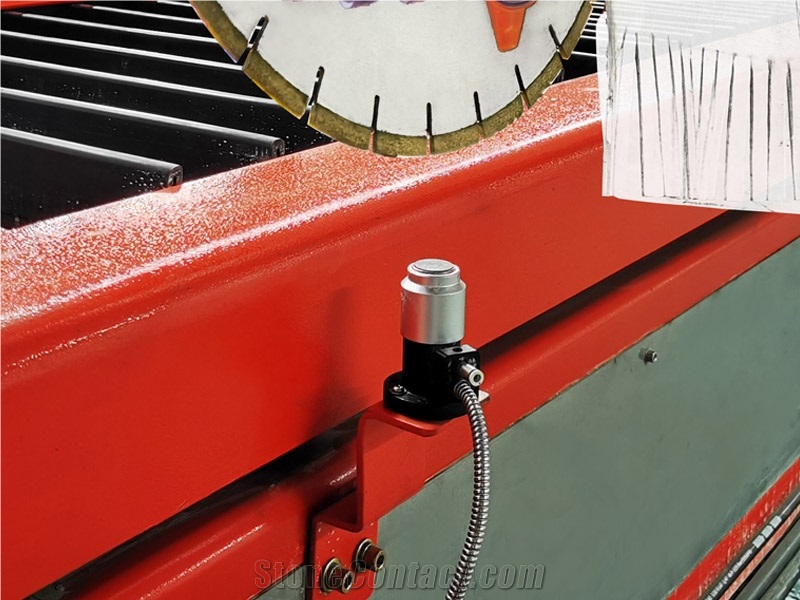

8) Optional - stone thickness probe & disc measuring station for more accurately machining
9) Optional – auti-collision system for preventing damage to the waterjet nozzle
10) Optional - vacuum manipulator with a lifting capacity of 200 kg.
11) Optional - slab washing device for cleaning wokpieces before vacuum manipulation.

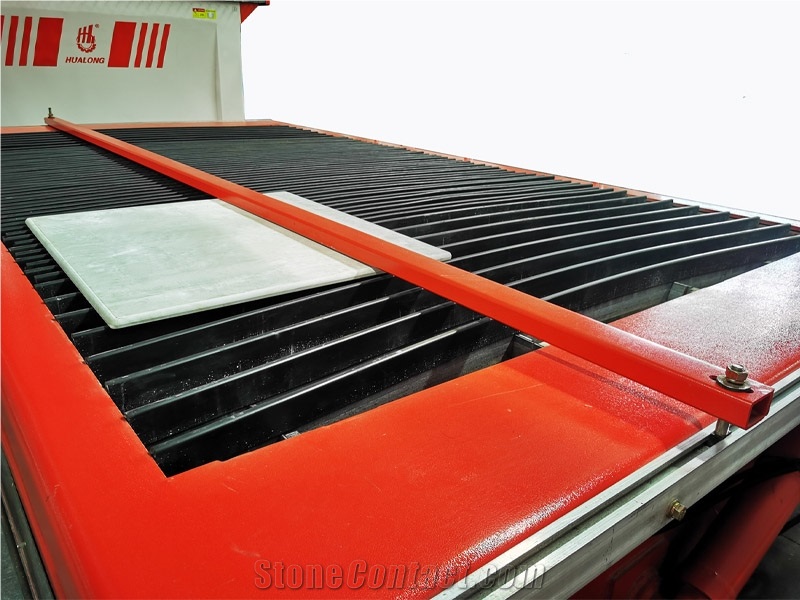

12) Optional - fixing bar to keep workpieces from moving during machining.

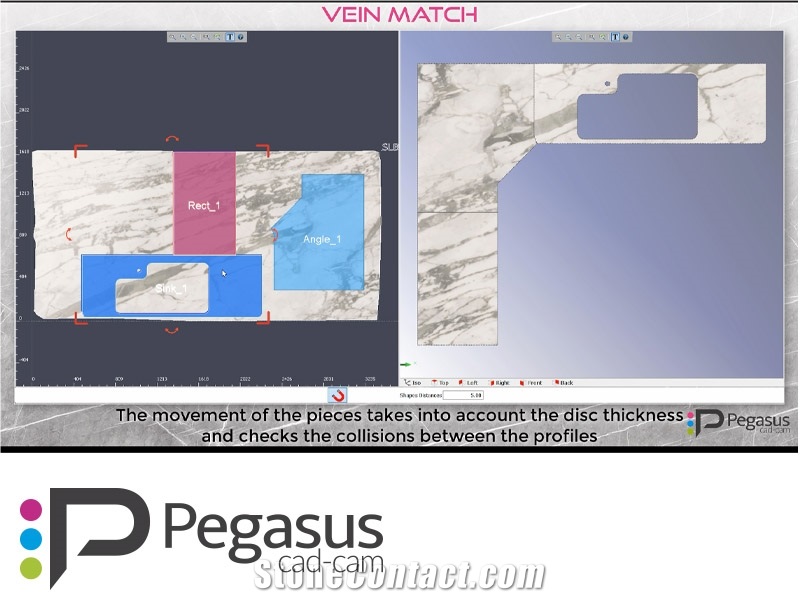

13) Optional - vein match for easily matching up perfectly each vein,color at the seam of your project.
14) Optional - quick opening housing or safeguard light curtain
15) Optional - hot galvanised frame and tank for corrosion resistanc

Benefit:

* Easy to use interface and software
* Almoste limitless cut out by combination head - Saw Blade plus Waterjet
* Less waste by accurate programming and optimises cutting
* Increased material yield by 10-20%
* Hight reliability and minimal maintenance
* Small footprint

Technical Data

Parameters	Unit	HKNC-450J
Waterjet pump power	kw	37
Max. width of the cut slab	mm	2000
A-axis rotation of water jet	°	60

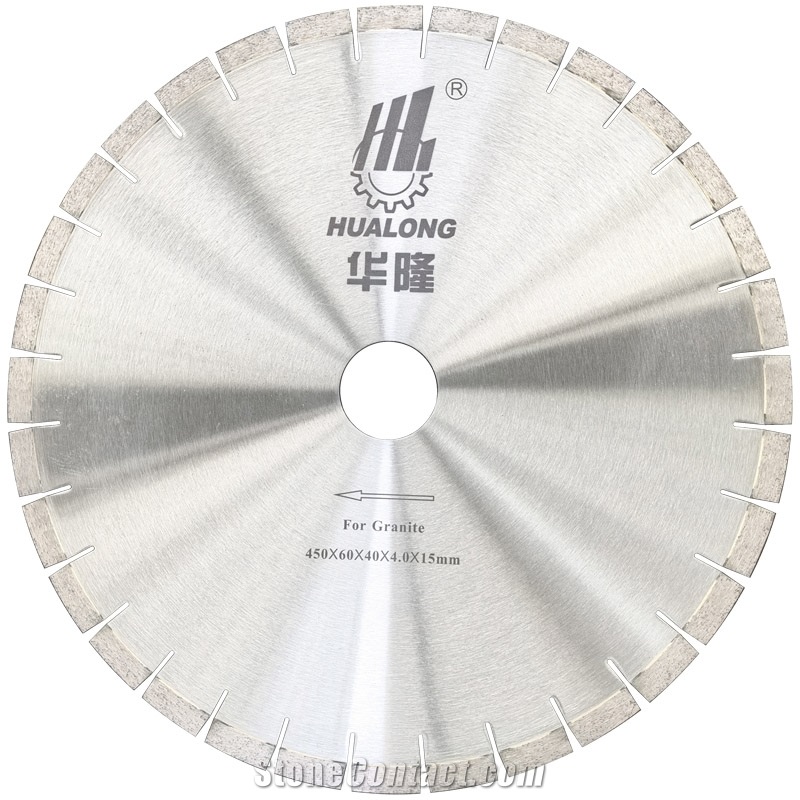

Diameter of the blades that can be applied	mm	350-450
C-axis rotation	°	360
Waterjet max. pressure	bar	4500
Overall machine height	mm	3200
A-axis rotation of saw blade	°	90
Sawing motor power	kw	18.5
Max. workable thickness with blade or waterjet	mm	100
Max. length of the cut slab	mm	3500
Z-axis travel	mm	300

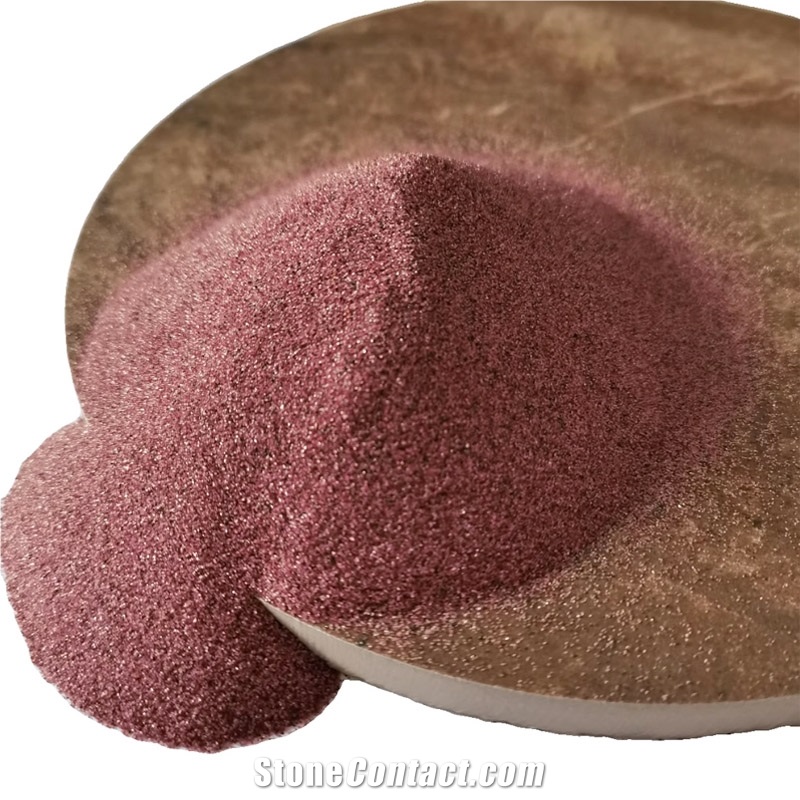

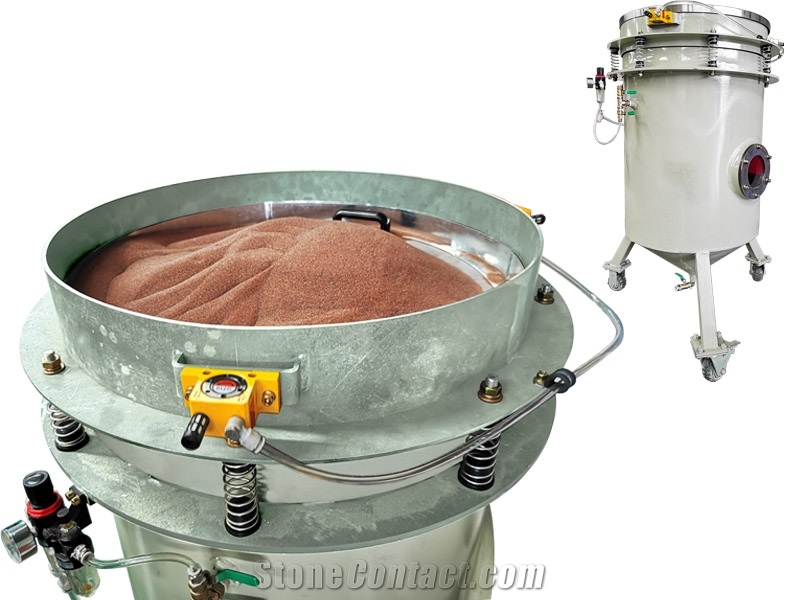

Capacity of the external tank for abrasive	L	160
Overall machine width	mm	3820
Max. workable thickness with blade(Φ400) and waterjet	mm	75
Overall machine length	mm	6000

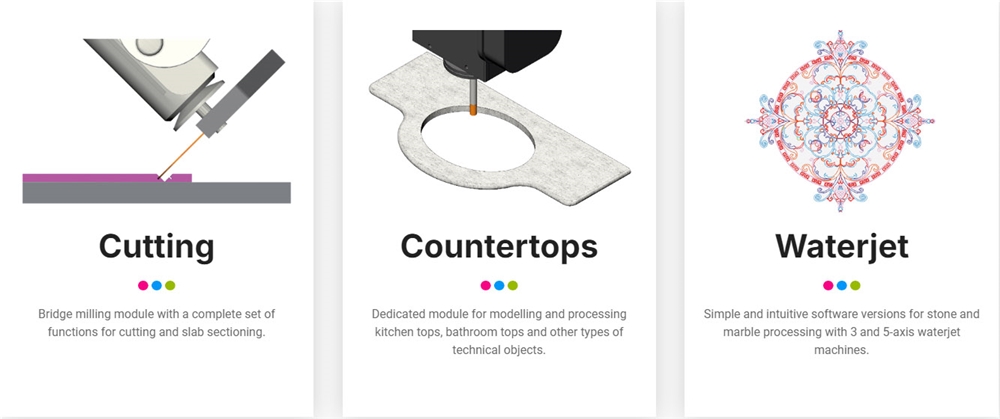

Software

The versatile capabilities of Pegasus cad-cam software solutions allow their use in multiple contexts, ranging from small workshops to large stone and marble processing companies.

Cutting Version:

Slab cutting handling
2D CAD tools
Import 2D CAD files in DXF, DWG formats, etc.
Geometric macros
Automatic or manual nesting of shapes on slab
Disk table management
Calculation of optimized trajectories for the disk cutting
Automatic rest machining to complete the cuts using a cut-drill/mill tool or a waterjet tool
Movement of the slab pieces through the suction cups manipulator
Acquisition and correction of the slab image through a camera
Solid simulation with material removal and collisions control
Management of processing reports

Countertops Version:

2D CAD tools
Import 2D CAD files in DXF, DWG formats, etc.
Geometric macros
Perimeter definition bathroom/kitchen surface
Geometrical division of parts (joint management)
Insertion of accessories (sink holes, cooktops, etc.)
Tool table management, tool holders, angular gearboxes, etc.
Complete handling of countertops machining process: design, cutting, finishing and workbench positioning
Automatic or manual handling of the machining process
Optimized handling and arrangement of materials
2.5D free machinings
Wireframe simulation with rendering of applied machining results
Management of processing reports
