High Speed Version Process Drilling Machine
FOB Price:$9500-9500
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Drilling, Slot Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
You may also like
Machinery Function Features
This machine mainly used for quartz stone, rock plate, marble, granite and other materials, such as countertop,washbasin,special shaped lines, grinding and cutting processing.Supports laser dust-free measurement of height and edges.
Technical Data
Parameters |
Unit |
KKJ-3T |
Drilling Depth |
mm |
60 |
Rotation speed |
r/min |
6000-24000 |
Spindle motor power |
kw |
5.5-7.5 |
Machine overall height |
mm |
3400 |
Workpiece fixed way |
Cast aluminum profile work surface+pneumatic positioning system |
|
Max. working length |
mm |
3000 |
Number of drilling units |
nr |
3 |
Machine overall width |
mm |
2700 |
Cutting tool cooling |
Circulating water |
|
Maximum running speed(XY) |
m/min |
20 |
Max. working width |
mm |
1000 |
Maximum running speed (Z ) |
m/min |
10 |
Total motor power |
kw |
15 |
Electric Voltage |
V |
380 |
Drilling Diameter |
mm |
3.175/4/6/8/10/12.7 |
Control system |
Independent development |

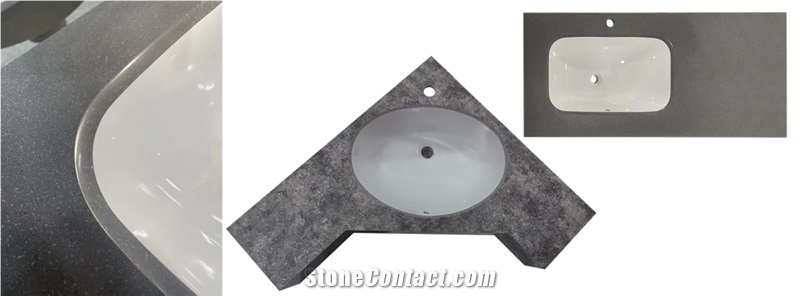

Processed Stone Photos
