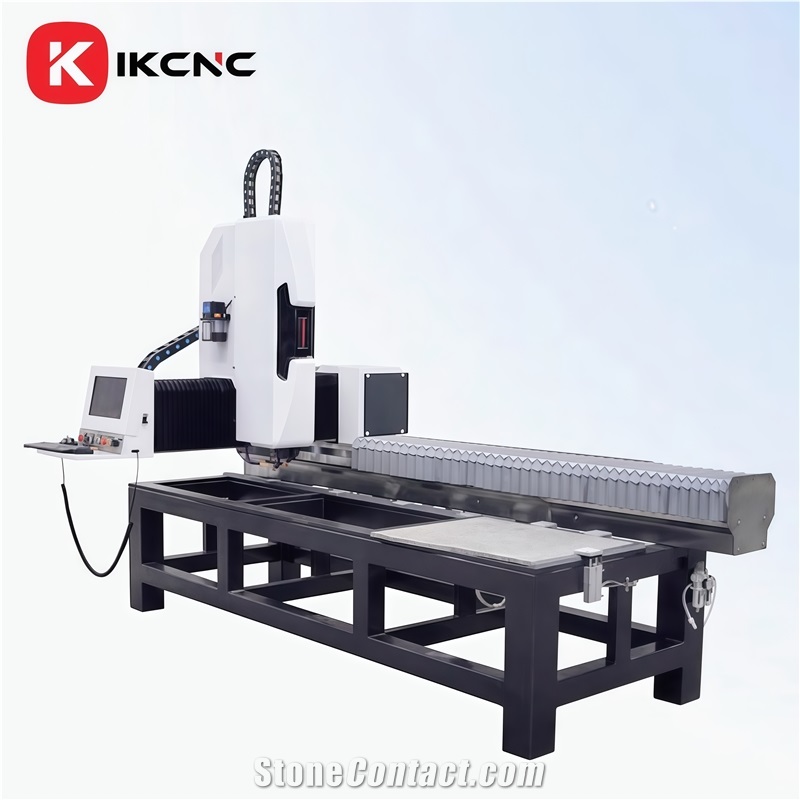

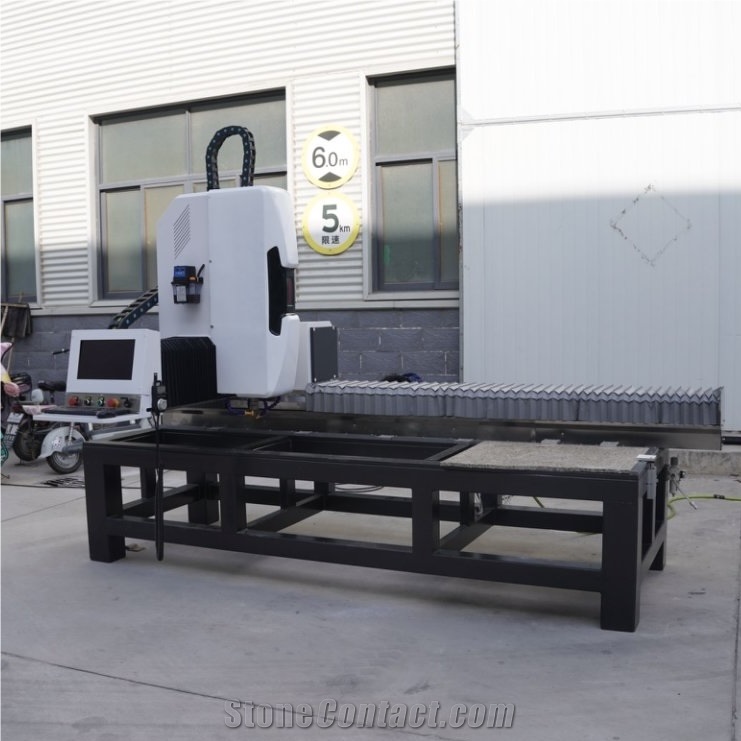

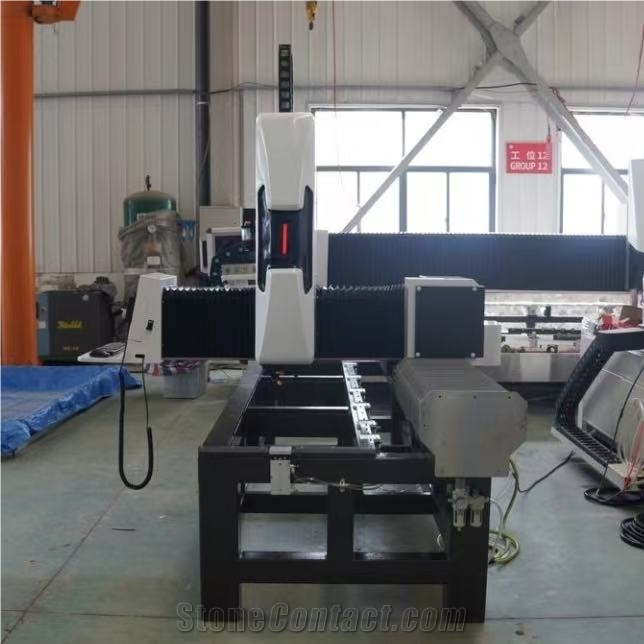

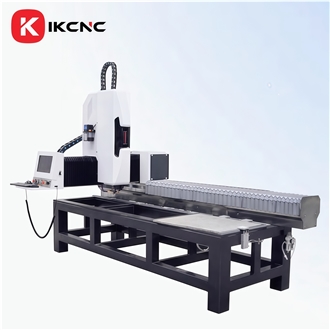

Precision Marble & Granite Stone Hole Drilling Machine

Name: Precision Marble & Granite Stone Hole Drilling Machine
Brand: JINAN IKCNC TECHNOLOGY CO.,LTD
SKU: 8357
Price: 7200 USD
Availability: InStock

FOB Price:$7200-7500

Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Drilling, Slot Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 7 days after 100% payment

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Trade Terms

Delivery Details: FOB,CFR,CIF,FAS,CIP,FCA,CPT,DDP,Express Delivery

Payment :

Supplier

JINAN IKCNC TECHNOLOGY CO.,LTD

IKCNC

China level 1YR

Eatablished :Dec 26,2014

Main Product:

5 Axis CNC Bridge Saw, 4+1 CNC Bridge Saw , 45° Miter Cutter, Stone CNC Engraving Machine, Cutting And Edging Work Center, Trepanning Machine|

Contact supplier

Start Order

You may also like

Automatic Dry Hanging Slotting Machine

High Speed Version Process Drilling Machine

DRM-300 Vertical Stone Drilling Machine For Granite And Marble

TJMY-300 Stone Drilling Machine, Slot Machine

Drilling Machine For Tactile Stone

Product Detail
Company Profile

Overview

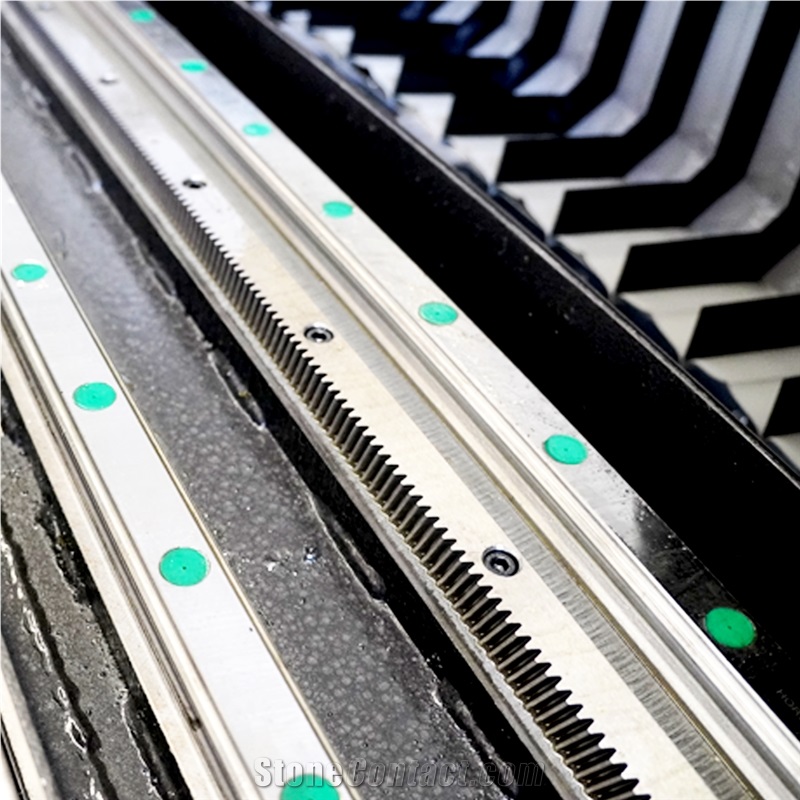

Components
Video
Trade Terms

Machinery Function Features

A stone hole drilling machine is a specialized device designed for hole processing in hard materials. Its key information can be summarized as follows.

Technical Data

Parameters	Unit	IK-
Machine overall length	mm	3000
Approx. Weight	Kg	1000
Max. Processing Width	4	630
Main motor power	7	7.5
Spindle motor spped	rpm	24000
Max. processing length	4	2000
Machine overall width	mm	2100
Air consumption	30	8
Machine overall height	mm	2200
Total power	7	12

Software

SHANLONG 3S CNC SYSTEM

SHANLONG 3S CNC System – Working Principle (Short Version)
The SHANLONG 3S CNC system is a professional motion controller used in CNC machines for stone, wood, and metal processing.

✅ How It Works:
Program Input
G-code is loaded via USB or network. Operators set parameters like speed and cutting depth.

Command Processing
The system interprets the code into movement instructions for X, Y, Z (and A) axes.

Path Control
Built-in interpolation algorithms generate precise motion paths for smooth cutting.

Motor Control
Sends pulse or analog signals to stepper/servo drivers to move the machine with high accuracy.

I/O & Feedback
Controls external devices (spindle, vacuum, coolant), supports encoder feedback for stable performance.

🌟 Key Features:
Supports multi-axis motion

User-friendly interface (English/Chinese)

Fast, accurate, and stable control

Widely used in cutting, drilling, engraving, and carving machines

Work Example

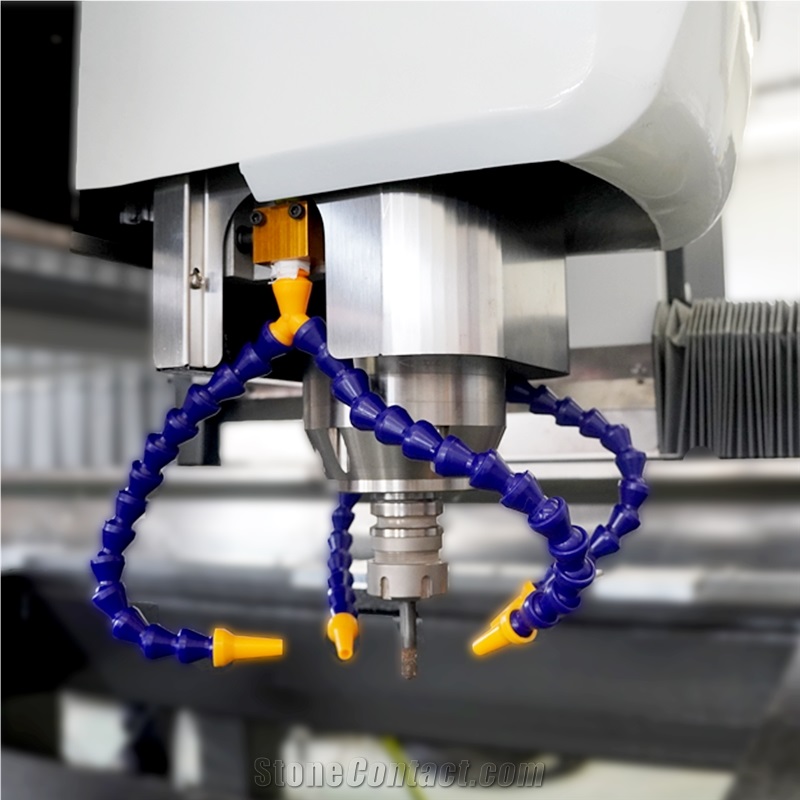

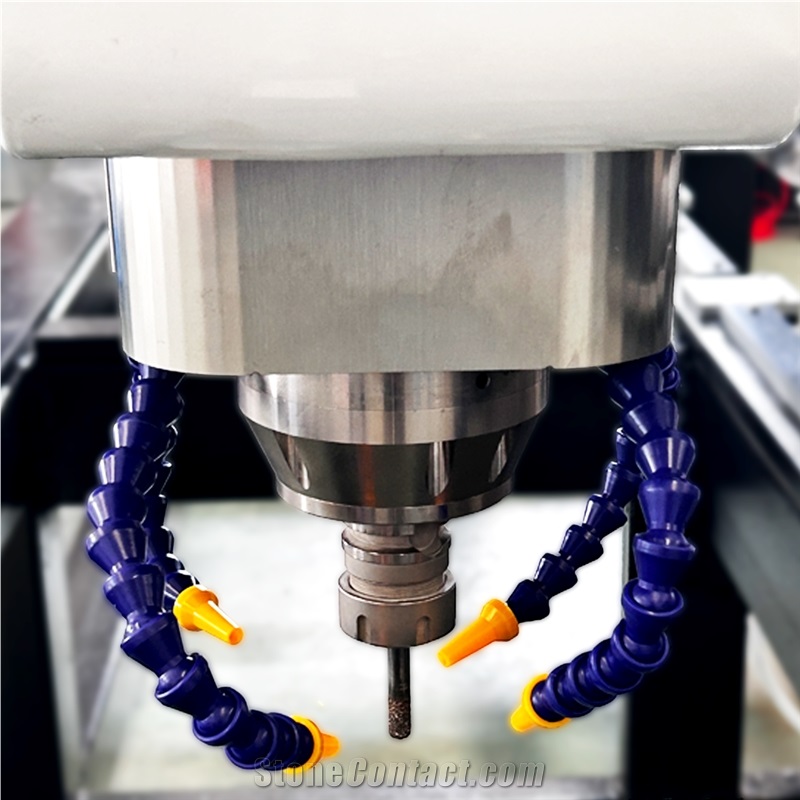

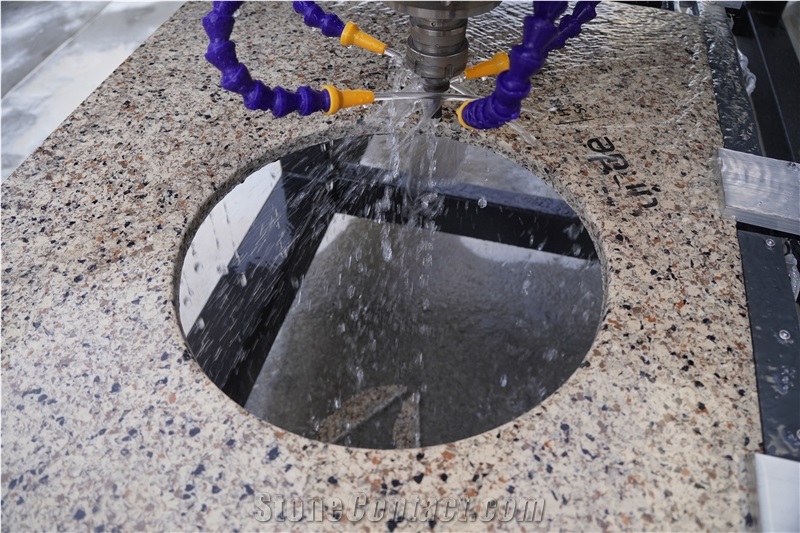

A high-speed rotating diamond drill bit grinds the material surface, while vertical feeding pressure peels off particles to form holes. The cooling system injects coolant simultaneously to cool the tool and expel debris. Finally, the depth is controlled by a limiting device or CNC system to complete the process.

Combined, these features highlight the machine’s "strong targeting, functional adaptability, and efficient processing," making it an essential tool in stone processing, architectural decoration, and related fields.

Processed Stone Photos
