MODULO 3 BELLANI FOR BRETON Edge Polishing, Profiling

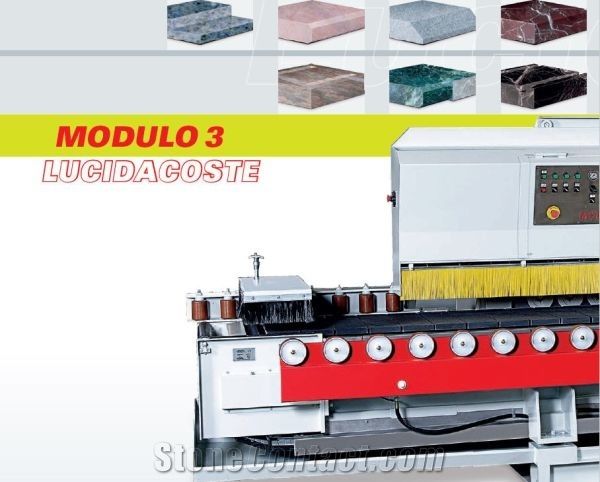

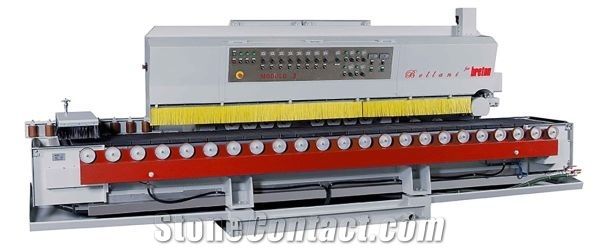

MODULO 3 - MACHINE TO POLISH STRAIGHT EDGES AND SHAPE NATURAL AND COMPOUND STONE PIECES "Modulo 3" is an automatic edge polisher with rubberized slats for the continuous polishing of flat and linear profiles, shaping of special profiles, calibration, execution of bilateral bevelled edges, drip grooves and slots on horizontally placed, natural and engineered stone workpieces. "Modulo 3" is an all-round machine, suitable to be produced in different configurations that may include up to 12 heads for polishing the vertical edge (with an option to make them oscillate). Besides having the possibility of holding from 8 to 12 vertical edge polishing spindles, "Modulo 3" can be equipped with: • 1 manually positionable calibrating/grinding spindle driven by electric motor, to be fitted with the diamond tool suitable to execute one of the following operations (one operation excludes the others): a) thickness calibration on the lower stripe b) execution of slots on the edge, mounting a disk on the calibrating tool c) edge profiling with a diamond shaped wheel mounted on the calibrating tool (the working height is manually adjusted through a hand-wheel) • 2 or 4 or even 6 chamfering spindles • 1 spindle for the drip groove execution
