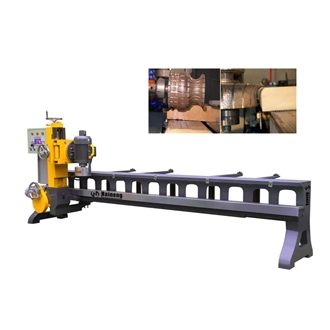

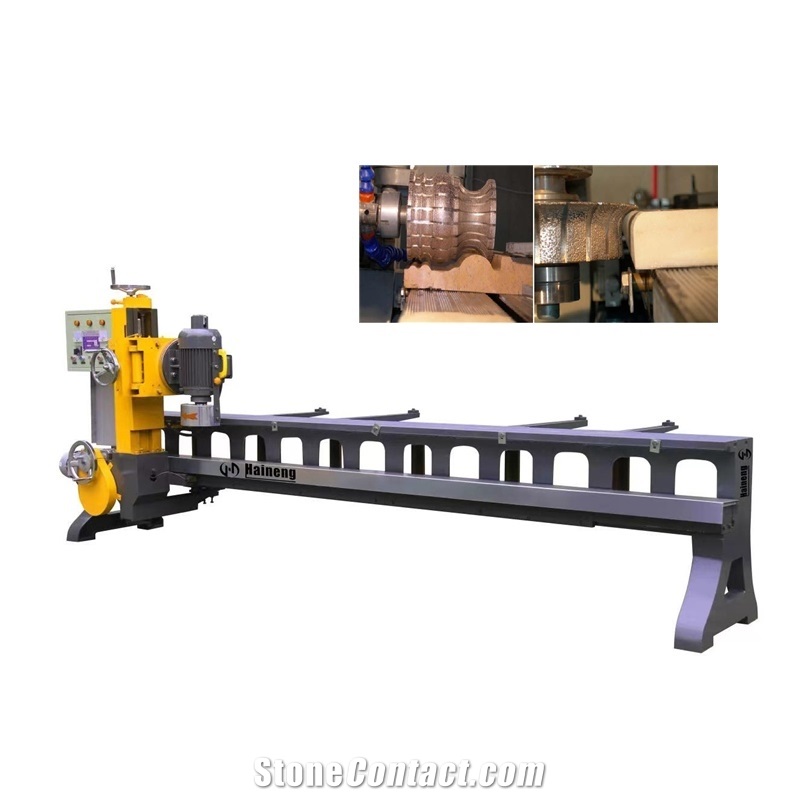

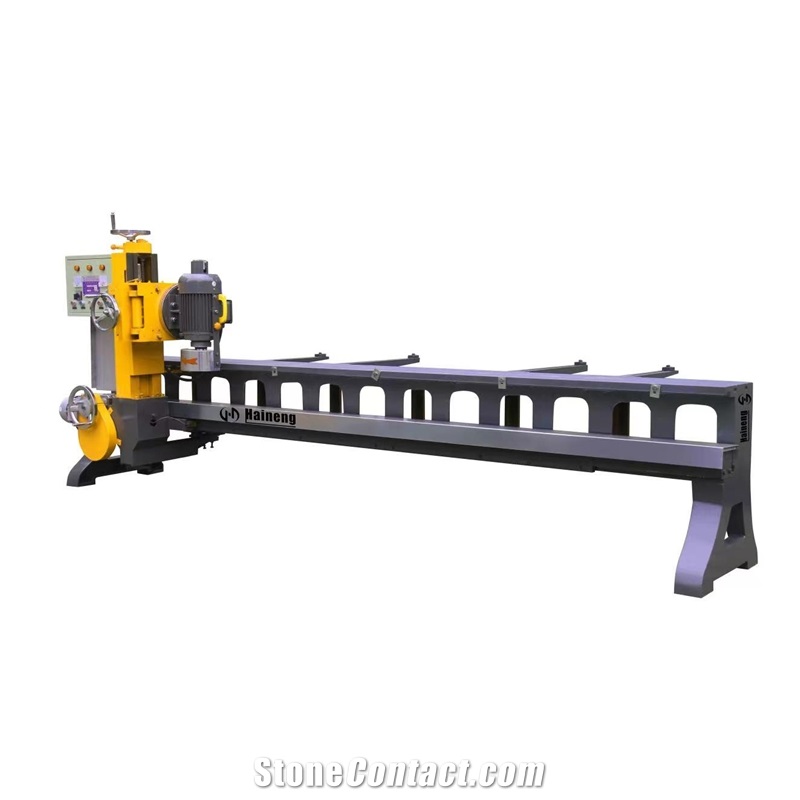

QZM3000-1 Multi-Performance Edge Profiling Machine
FOB Price:$2000-2200
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
60 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
You may also like
Machinery Function Features
This machine with hermetically oil-sealed composite track. It is glued with the wheels of non-polishing material, which extend the service life greatly. It can process each kind of linear-shaped and outside curved-shaped and inner hole edge function. The head of grinder 360°free rotating, pack up saw blade can groove and cut. Moving automatically, semi-automatically and manually. It is high in machining precision, and greatly enhanced the working efficiency.
Technical Data
Parameters |
Unit |
QZM3000-1 |
Blade diameter |
mm |
160-180 |
Main motor power |
kw |
5.5 |
Max cutting thickness |
mm |
150 |
Overall dimension(L×W×H) |
mm |
3860(4310)×2250×2300 |
Gross weight |
kg |
1000 |
Max cutting length |
mm |
3000(3500) |
Gross power |
kw |
5.75 |
Grinding disk diameter |
mm |
140-160 |
Exhausted water |
m³/h |
1.5 |

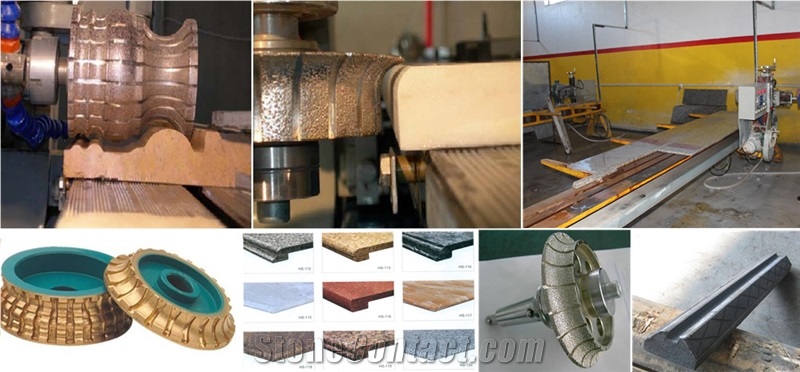

Processed Stone Photos

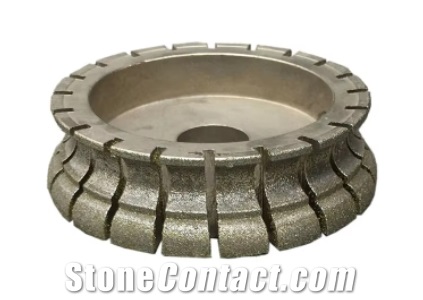

Components
-
Dust cover
¥Payment Required
Consumables
Video
Install Video

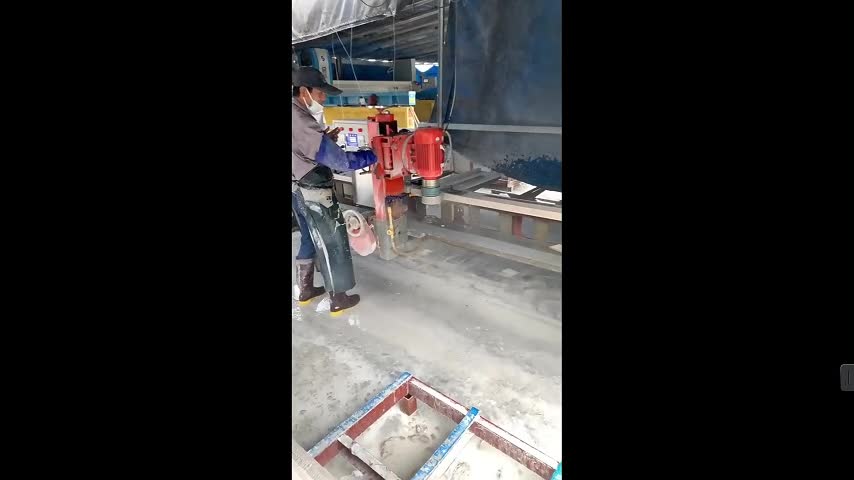

Operation Video
Screen.PrimaryScreen.Bounds.Height
