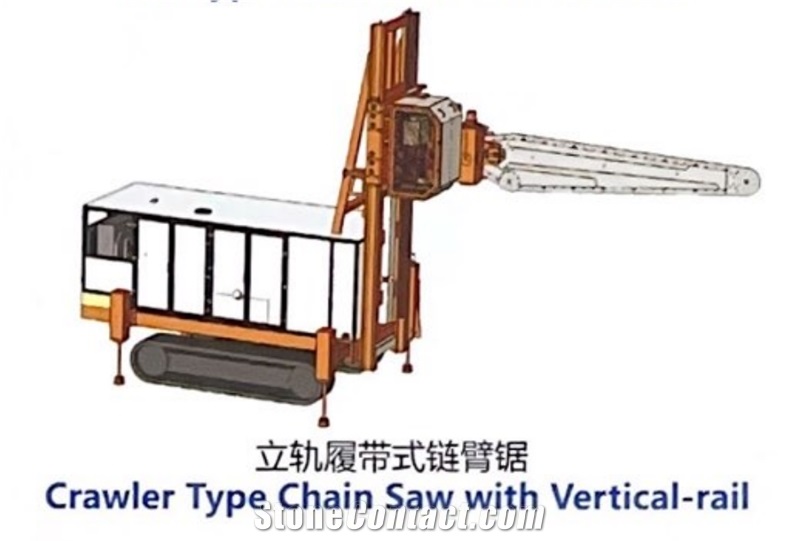

Crawler Type Chain Saw With Vertical-Rail

Name: Crawler Type Chain Saw With Vertical-Rail
Brand: XIAMEN SHUINAN MACHINE CO.,LTD.
SKU: 8154
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Quarry MachinesStone Chain Saw MachinesSquaring Chain Saw Machines

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 35 days

Warranty:12 Months

Install and Guarantee:Customer pay for installation

Maintenance:Remote troubleshooting, Field troubleshooting

Trade Terms

Port: XIAMEN- China

Delivery Details: FOB,CFR,CIF,EXW,Express Delivery

Payment :

Supplier

XIAMEN SHUINAN MACHINE CO.,LTD.

SHUINAN MACHINE

China level 5YR

Eatablished :Sep 10,2018

Main Product:

Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|

Contact supplier

Start Order

You may also like

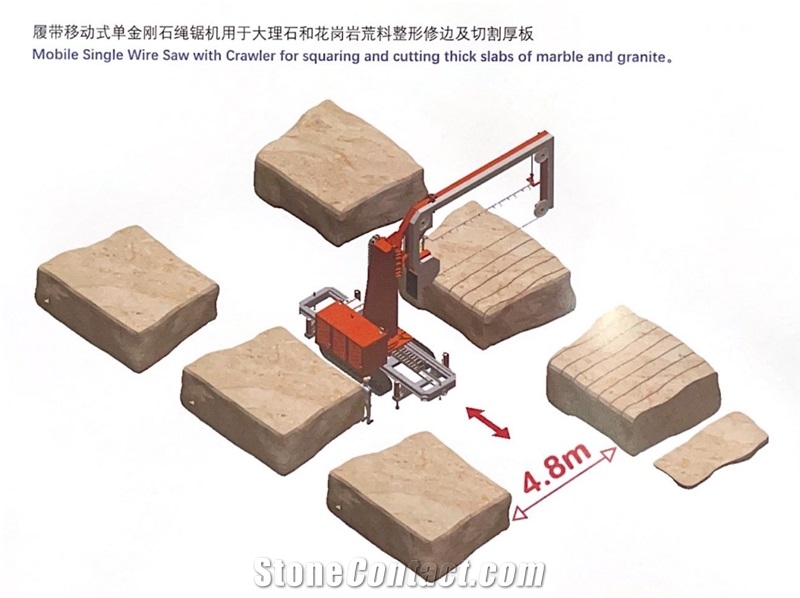

Mobile Single Wire Saw With Crawler

Mobile Chain Saw for Squaring Blocks Mod. 70 BUC

Crawler type chain saw

Product Detail
Company Profile

Overview
Components
Trade Terms

Machinery Function Features

Crawler-type chain saw is the enhanced one of orbital-type chain saw, the biggest characteristic of the machine is equipped with a pedrail walking itself, moving conveniently and flexibly. The machine host and pedrail move alternately in working , which don't need to cooperate with other hoisting machinery moving track, suitable for outdoor use in mines. Each machine can be designed to have two kinds of working model--- vertical and horizontal cutting.

Technical Data

Parameters	Unit	LD-CS3600-L	LD-CS5000-L
Cut Kerf Width	mm	40	40
Total Weight	kg	16000	19000
Total Power	kw	65	75
Vertical stroke of the Blade Arm	m	4.0	5.0
Horizontal Stroke of the Blade Arm	mm	200	200
Max Cut Height	m	8.0	10.0
Max Cut Depth	m	3.6	5.0
