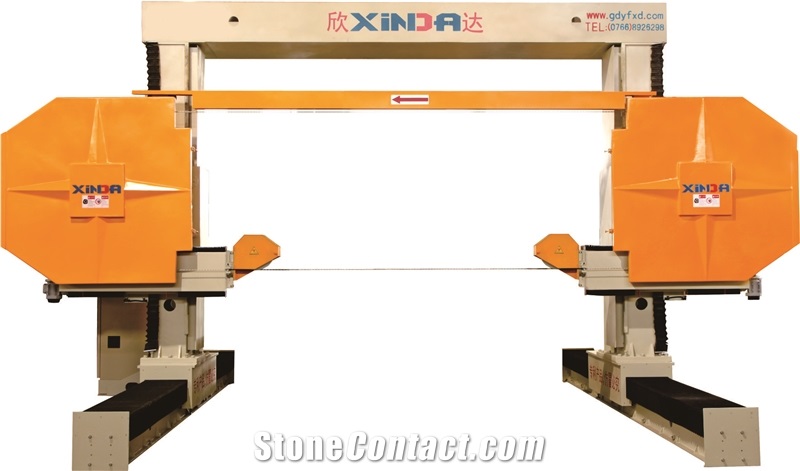

KXJ-LY-1500 Gantry Mono Wire Saw Machine
FOB Price:$40000-45000
Supplier
Eatablished :Jan 10,2011
Main Product:
Wire Saw Machine, Bridge Saw, Sink Hole Machine, Polishing Machine, Quartz Machine, Stone Tools|
The machine is designed to cutting slabs and dressing block. can do vertical cut and horizontal cut both
Parameters |
Unit |
KXJ-LY-1500 |
Machine height (H) |
mm |
4650 |
Block max. cutting width |
mm |
3500 |
Machine Width (W) |
mm |
6300 |
Main motor power |
kw |
11 |
Approximative Weight |
Kg |
11000 |
Cooling water requirements |
L/min |
30 |
Maximum diamond wire tension |
Kg |
350 |
Diamond wire length |
mm |
17300 |
Machine length (L) |
mm |
8200 |
Diamond wire linear speed |
m/min |
0-40 |
Block max. cutting height |
mm |
1500 |
Installed/Fast lowering unit power |
kw |
18.54 |
-

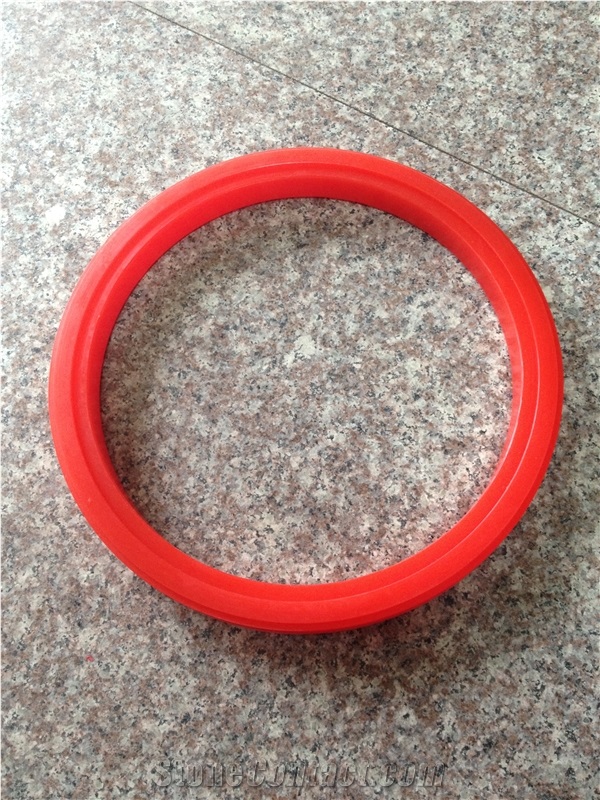

rubber of guide wheel
-
rubber of flywheel
-
diamond wire
