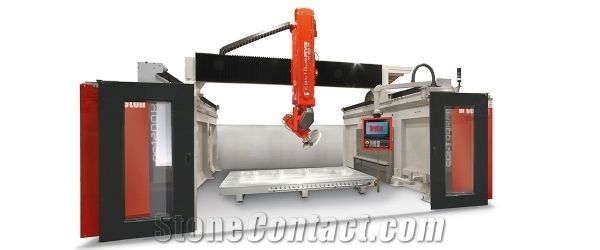

Breton Contourfive NC-5 Axis CNC Stone Working Center

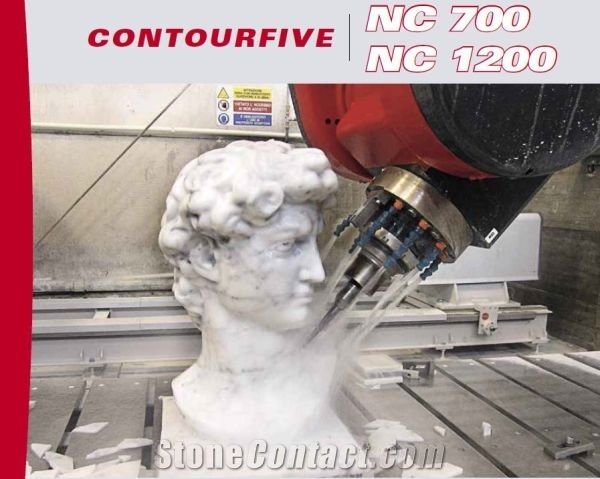

CONTOURFIVE NC 700/1200 - SHAPING, CONTOURING, SAWING AND TURNING CNC CENTRE WITH 5 AXIS If you produce architectural or funerary art components, we have the machine that will facilitate and streamline your work. Contourfive is a numerical control machining centre with five interpolated axes for machining pieces made from marble, granite, sandstone, limestone, compound stone and stone in general. Thanks to its vertical travel of 700/1200 mm, Contourfive is the ideal machine for architectural and funerary art as well as for those processing which require a deep dishing out; it therefore offers the users the possibility of performing different and complex machining operations which would otherwise require several machines: • shaping utilising the saw blade to get large pieces with complex shape. • shaping and dishing out utilising millers. • contouring utilising shaping tools. • sawing utilising the saw blade. • turning of columns with shaped profiles or machining of columns to create a twisted effect all along the surface (provided the lathe accessory is purchased). CONTOURFIVE STANDS OUT FOR PERFORMANCES • short beam ensuring maximum rigidity; • “rapid” displacements of up to 40 metres per minute; • powerful high-frequency spindle of 20 kW; • max. diameter of the cutting saw blade: 500 mm; • “C” axis rotation: ± 200°; • “A” axis rotation: from 0° to +115°; • “X” axis travel: 3.700 mm; • “Y” axis travel: 2.800 mm; • “Z” axis travel: 700/1200 mm; • possibility of using various saw blades, shaped tools, drills, millers, etc.; • automatic tool-store with 27 positions + (optional) position for the saw blade. CONTOURFIVE STANDS OUT FOR ITS STRUCTURAL FEATURES • High-speed, 16 kW electrospindle featuring a rotation speed of up to 14.500 rpm; it is provided with thermal stability and long-life grease lubrication of the bearings. The tool coolant flows inside the spindle. • Birotary head for interpolated 5-axis machining. The head has a symmetrical structure and consists of two main structural elements, the first (“C” axis) is fitted for ± 200° rotation around its own vertical axis and the second element (“A” axis) rotating from 0° to +115° and housing the high-frequency spindle. Rotation transmission are provided by brushless-type motors. • Iron casting spindle-holding carriage running on roller slides (“X” axis) and actuated by a precision pinion-andrack system, which is motorized by a digital brushless motor. The spindle-holding steel ram (“Z” axis) is vertically housed in the carriage; the ram moves through a ball bearing screw/preloaded lead nut/ digital brushless motor system. The position monitoring is performed by the motor encoder. • Steel work-table secured to the ground, with aluminium top with recesses for mounting fixtures to secure the work piece in place, with vacuum plant and manifold. • Beam with movement along the shoulders (“Y” axis) on ground guides; is through a pinion-and-rack system and precision reducers with backlash adjustment, driven by digital brushless motor. • Mobile 27-cell carrousel tool-store for tool-holders, to automatically change tools other than the saw blade. • Store for saw blade with a max. diameter of 500 mm, secured to the side shoulders (optional accessory). • Lathe for producing columns and twisted effect details with workable sizes: ø 960 x 3.200 mm (optional accessory). • Frontal protection barrier consisting of a series of sliding doors with manual opening; doors are made from structure and are provided with wide inspection ports. • Siemens Sinumerik 840D SL: the latest digitallycontrolled computer numerical control system, with PC architecture and a PC unit utilising Windows as operating system, with Windows user-friendly interface and fully-developed software for work program management. • Control console mounted on a mobile pendant structure and equipped with a 15-inch touch-screen colour monitor, a joystick to easily move the motorized working axes movement and a USB port for data transfer. • Portable mini console, wired to the main control console, to duplicate the major controls (axes management + hand-wheel, emergency shut-down, etc.); this portable mini console allows the operator to be close to the piece to be machined thus controlling directly some delicate machining operations. • Electrics and utilities are housed in two cabinets with IP54 grade of protection and cooled by an air conditioning unit specially designed for a maximum external temperature of +45°C. The capabilities of a 5-axis CNC machining centre such as the Breton Contourfive The Breton Contourfive NC700 and NC1200 are both machining centres with 5 interpolated axes designed for fabricators that make large size architectural components and funerary art with complex 3D shapes. Guaranteed gains with the 5-axes machining centre Breton CONTOURFIVE + lathe The Breton Contourfive is a machining centre with 5 interpolated axes specifically designed for workshops producing pieces made from natural and engineered stone. It is ideal for restauration work. Breton CONTOURFIVE machining centre for marble and granite with bas-relief Breton CONTOURFIVE machining centre proves to be the ideal machine for those who produce architectural components, make restoration works and work marble and granite in the funerary art field.
