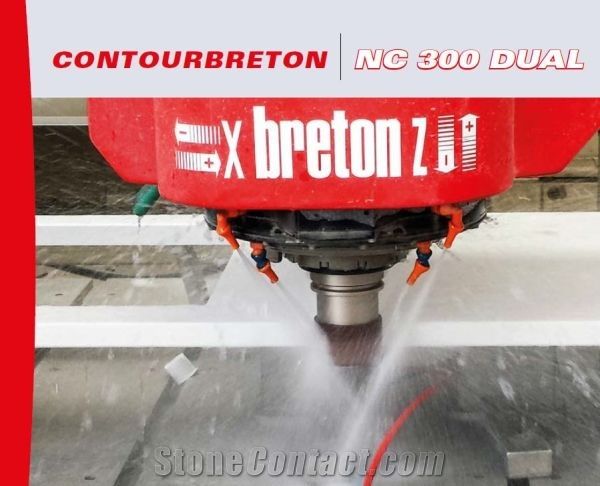

Contourbreton NC 300 DUAL Double table CNC Stone Router
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Usage:
Granite, Marble, Artificial Stone
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Trade Terms
Delivery Details: FOB
Payment :

Supplier

Breton S.p.A.
Italy
Eatablished :Dec 31,1962
Main Product:
Stone Machines, Cutting Machine, Polising Machine, Wire Saw, Cnc Machines|
Machinery Function Features

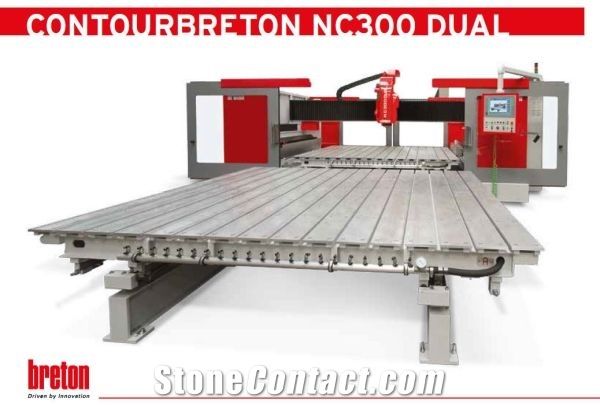

Heavy duty double table CNC Stone Router equipped for ease of use and maximum productivity.

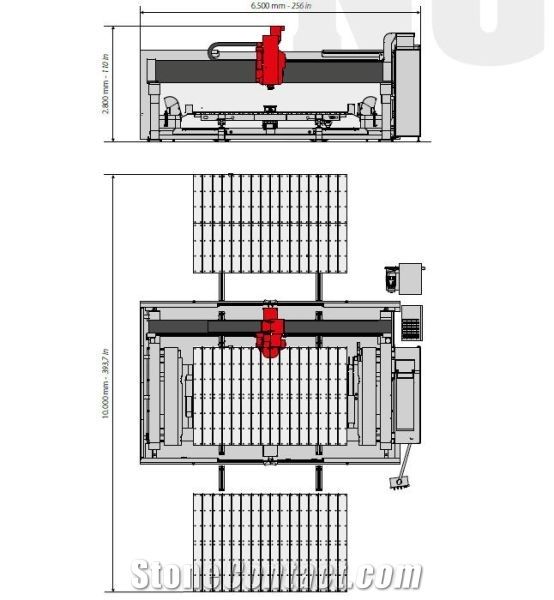

The Contourbreton NC 300 DUAL works stone in the fastest, most precise and economical way today offered by the technology,thanks to its peculiar characteristics and extensive travel of the axes (X=137,8in, Y=88,6in, Z=11,8in).
The support structure of the Contourbreton NC 300 DUAL is a robust welded, normalised steel single-piece chassis which ensures the rigidity required to consistently obtain the desired precision at all times, even during heavy machining stress.
The Contourbreton NC 300 DUAL fully complies with the CE industrial accident prevention standards.
The machine is equipped with wide sliding doors which can be opened manually and have large plexiglas inspection windows; the doors provide safety and also help deaden sound. Two sliding doors are positioned behind the machine.
Technical Data
Parameters |
Unit |
NC300 DUAL |
NC300 DUAL EVO |
Tool cooling |
int./ext. |
int./ext. |
|
Shaping Tool max. length |
mm |
240 |
240 |
Shaping Tool max. diameter |
mm |
125 / 140 |
125 / 140 |
Shaping Tool max. weight |
Kg |
15 |
15 |
Y axis stroke |
mm |
2250 |
2250 |
Machine overall height |
mm |
2 800 |
2 800 |
Z axis stroke |
mm |
300 |
300 |
Approx. Weight |
Kg |
7500 |
10 000 |
Sound pressure level |
dbA |
75 |
75 |
Water requirement |
l/min |
20/40 |
20/40 |
X axis stroke |
mm |
3500 |
3500 |
Tool-holder spindle motor power |
kW |
16 |
15 |
Linear tool-store capacity |
nr |
17+17 tools |
13+13 tools |
Machine overall width |
mm |
6 500 |
6 500 |
Z axis rapid speed |
m/min |
0 ÷ 20 |
0 ÷ 20 |
Dimensions of the work table (length x width) |
mm |
3500x2250 |
3500x2250 |
Tool-holder spindle rotation speed |
rpm |
0 ÷ 14 500 |
0 ÷ 12 000 |
Machine overall length |
mm |
10 000 |
10 000 |
Y axis rapid speed |
m/min |
0 ÷ 50 |
0 ÷ 50 |
X axis rapid speed |
m/min |
0 ÷ 50 |
0 ÷ 50 |
