Giant Disc Block Cutting Machine, Multi Blade Block Cutting Machine
FOB Price:$30000-45000
Supplier
Eatablished :Aug 03,2009
Main Product:
Diamond Wire, Diamond Segment, Diamond Saw Blade, Polishing Abrasives, Wire Saw Machine, Block Cutting Machine, Drill Bit Drill Rod Dth Hammer|
HQC2200/HQC2500/HQC2800 uses inverter to control left-right feeding adjusts the speed according to the stone material.It uses hydraulic lifting system(screw lifting system optional),forward-backward slicing uses high-precision screw nut driving,automatic slicing,main spare parts adopt imported good-quality materials;The block can be placed in the ground directly to save worktable and its maintenance costs;Thus the whole machine is featured as high cutting efficiency,high slicing precision,flatness of plate after cutting,high stability,easy-operating to suit specially cutting granite and marble block with high wave.
Parameters |
Unit |
HQC2200-4D |
HQC2500-4D |
HQC2800-4D |
Max. processing width |
mm |
2200 |
2200 |
2200 |
Cooling water (1.5 bar pressure) |
m3/h |
15 |
15 |
15 |
Approximate Weight |
Kg |
14000 |
14500 |
15000 |
Dimension(LxWxH)) |
mm |
8000x4400x3700 |
8000x4400x3700 |
8000x4400x3700 |
Total power |
kw |
56 |
66 |
76 |
Max.lifting stroke |
mm |
1350 |
1350 |
1350 |
Power of main motor |
kw |
45 |
55 |
65 |
Max. processing length |
mm |
3800 |
3500 |
3200 |
-

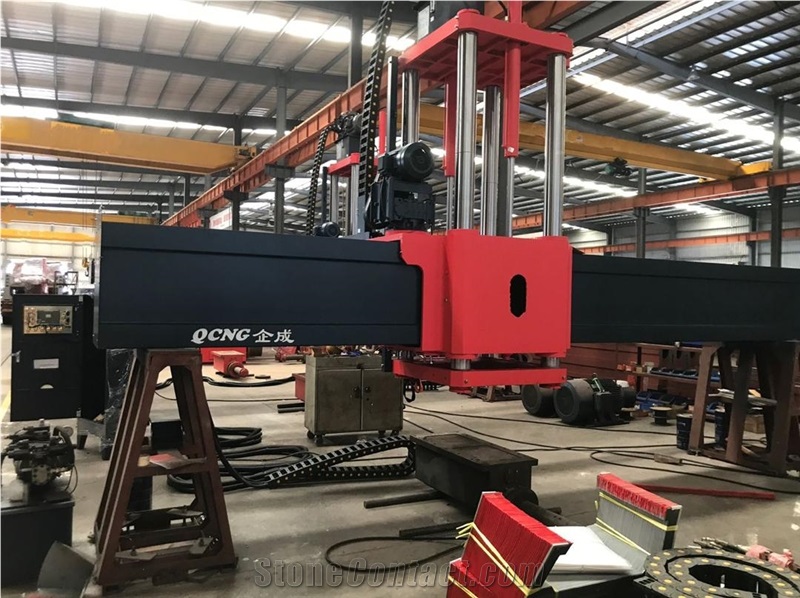

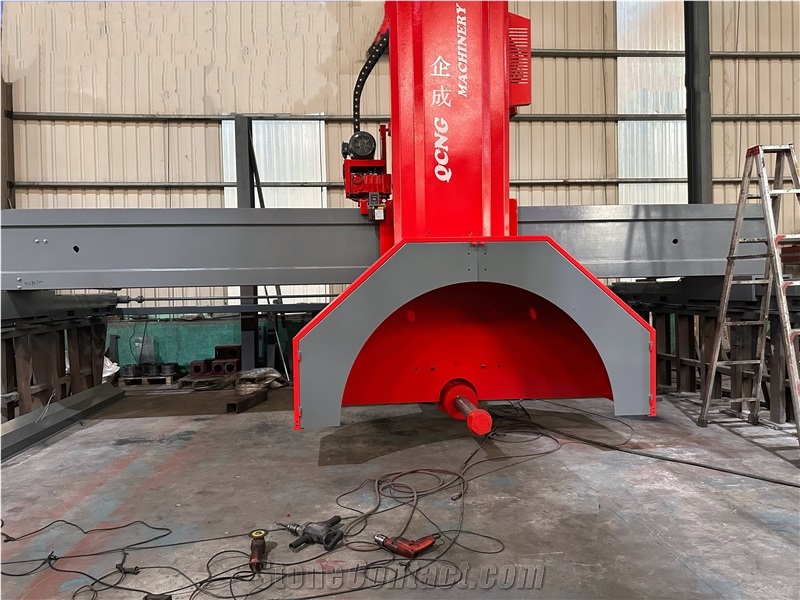

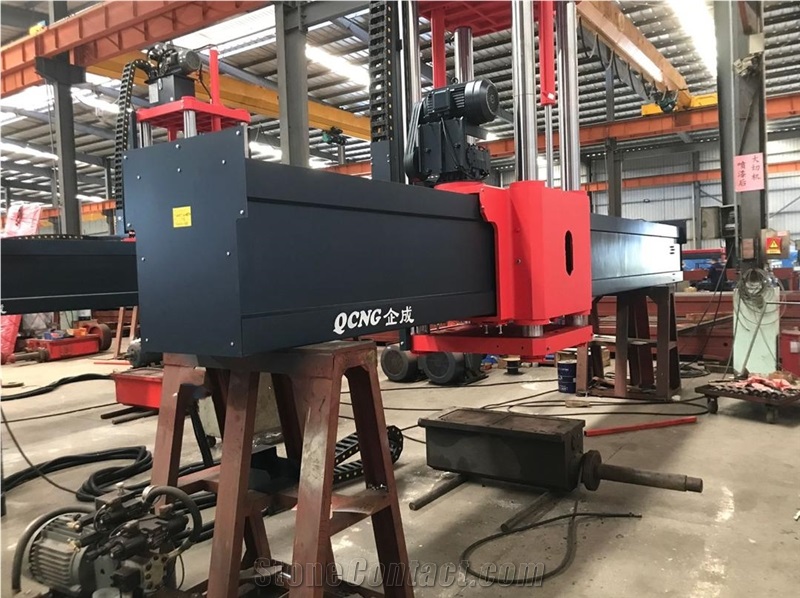

main part
-

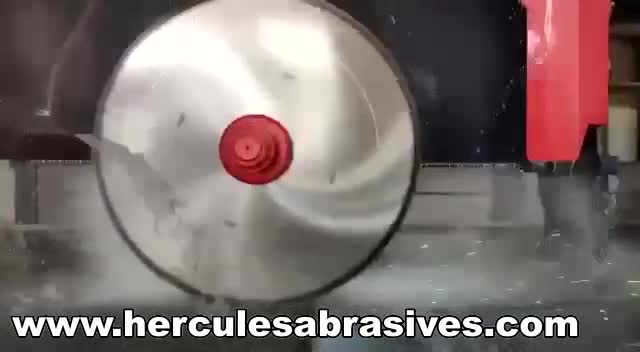

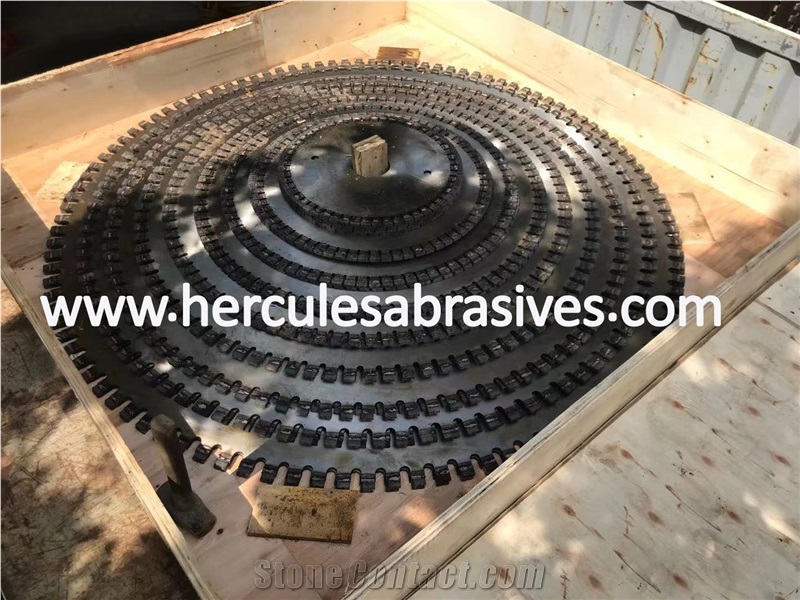

multi-saw blade
for cutting stone
-

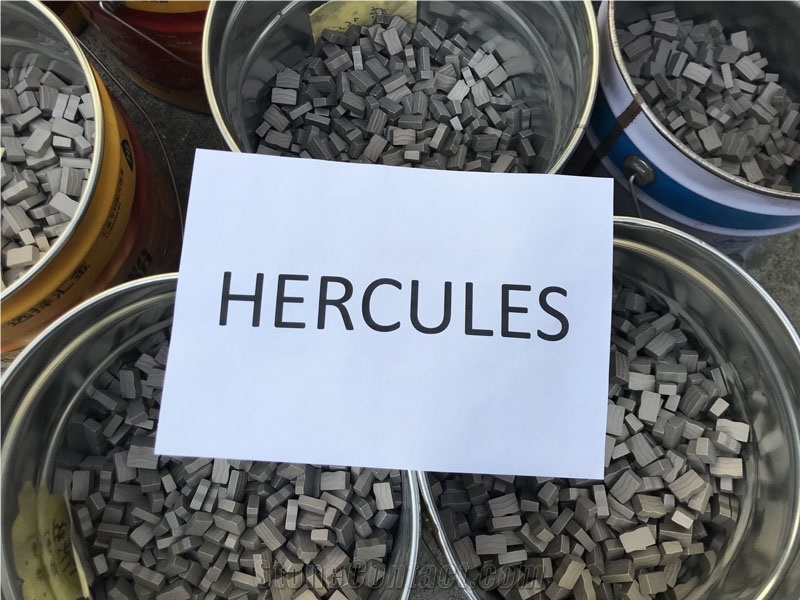

diamond segment
for cutting stone
