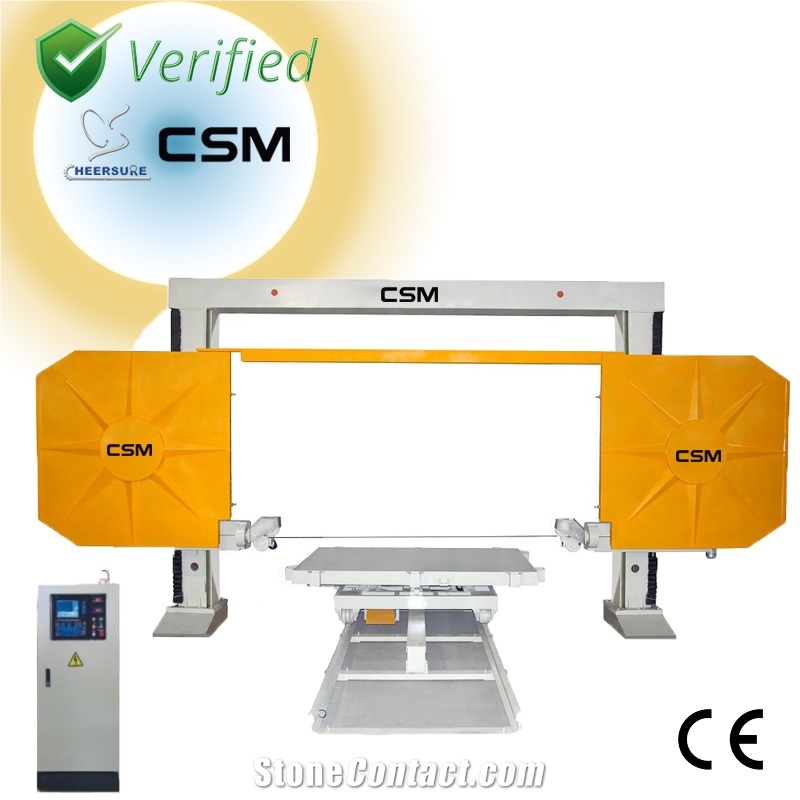

CHEEERSURE 5 Axis CNC Mono Wire Saw Machine
FOB Price:$40000-50000
Supplier
Eatablished :Aug 20,2008
Main Product:
CNC 5 AXIS BRIDGE SAW, EDGE POLISHING LINE, CNC ROUNTER, SMART AUTOMATIC LINE, CNC 5 AXIS WATER JET, 4 AXIS MONO WIRE|

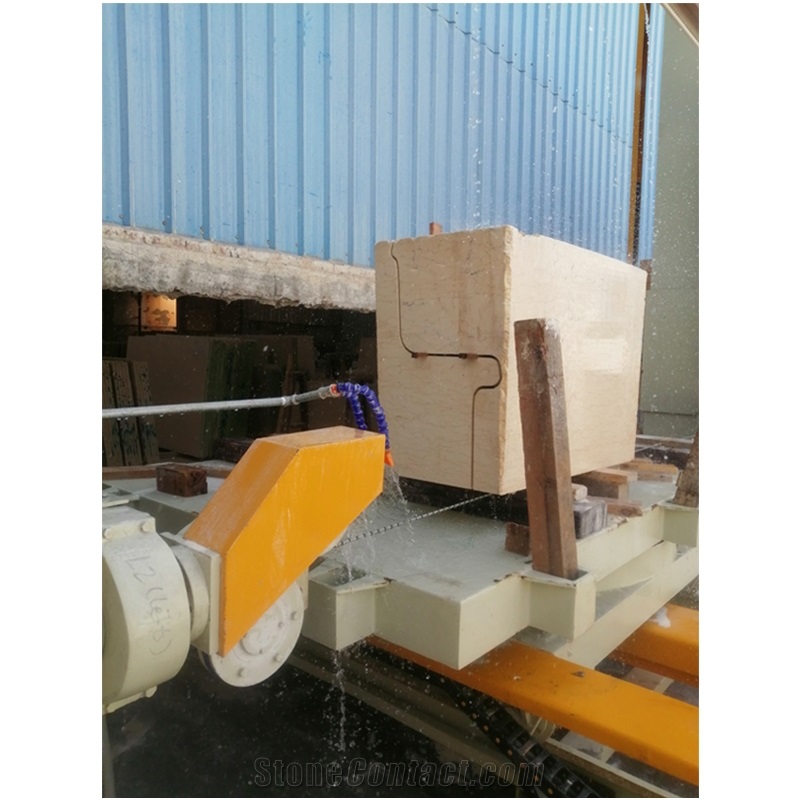

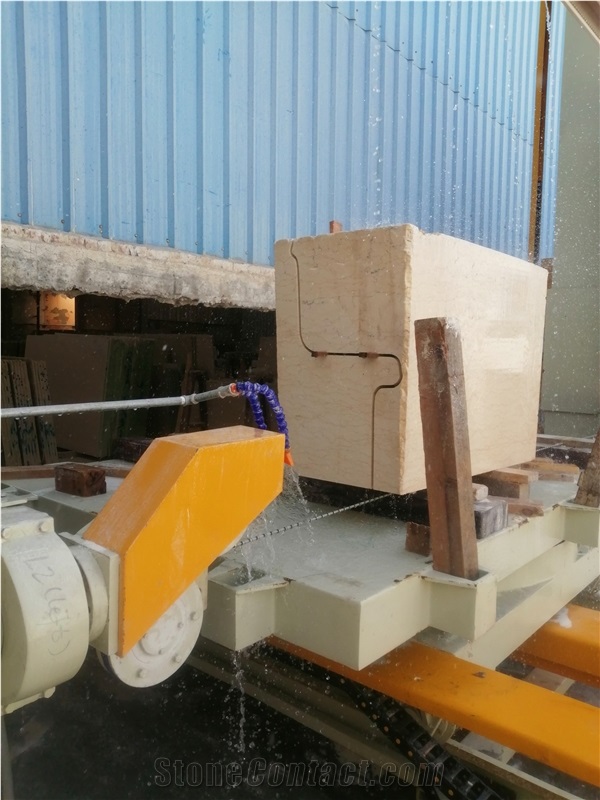

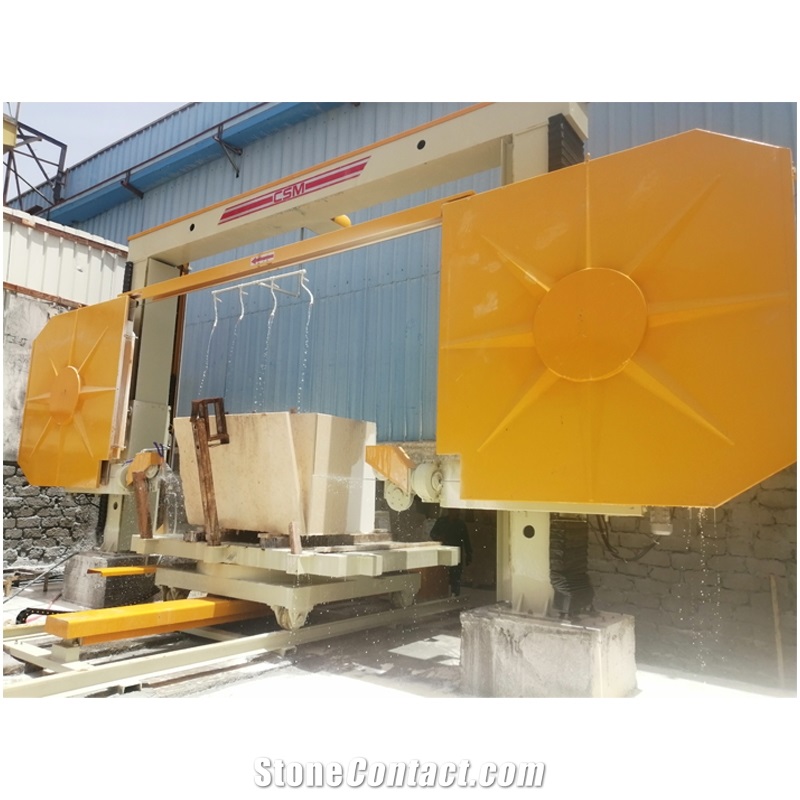

The single-wire saw block square machine is specially designed for different stone trimming and thicker slab cutting, it adopts computer digital control, four-axis linkage, stable cutting, and has the automatic cycle function of moving vertical movement to cut and process slabs, automatic cutting board by board, it is an ideal equipment for mining, automatic cutting and squaring stone.
Parameters |
Unit |
CS2200-5 |
Worktable Size(LxW) |
mm |
3000x2000 |
Machine Width (W) |
mm |
6800 |
Speed of Wire |
m/s |
0-40 |
Main motor power |
kw |
15 |
Range of Cutter Movement |
mm |
2200 |
Worktable can rotate angle |
° |
360°（driven by a servo motor） |
Production Efficiency |
m2/h |
1-3㎡/h（marble） 0.5-2㎡/h（granite） |
Diameter of Guide Wheel |
mm |
250 |
Machine length (L) |
mm |
9800 |
Max Cutting Size(L×W×H) |
mm |
3600×2000×2100 |
Diameter of Wire |
mm |
8-11 |
Water Consumption |
m3/h |
3 |
Total Weight |
T |
12 |
Length of Wire |
mm |
21350 |
Machine height (H) |
mm |
5400 |
Worktable load capacity |
T |
50 |
