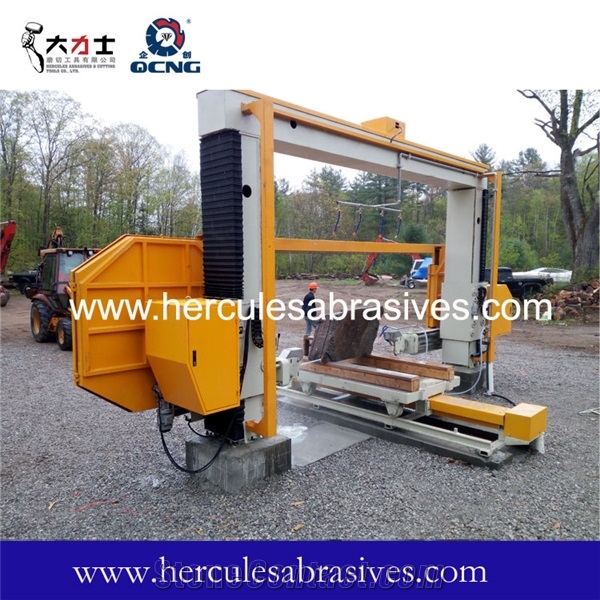

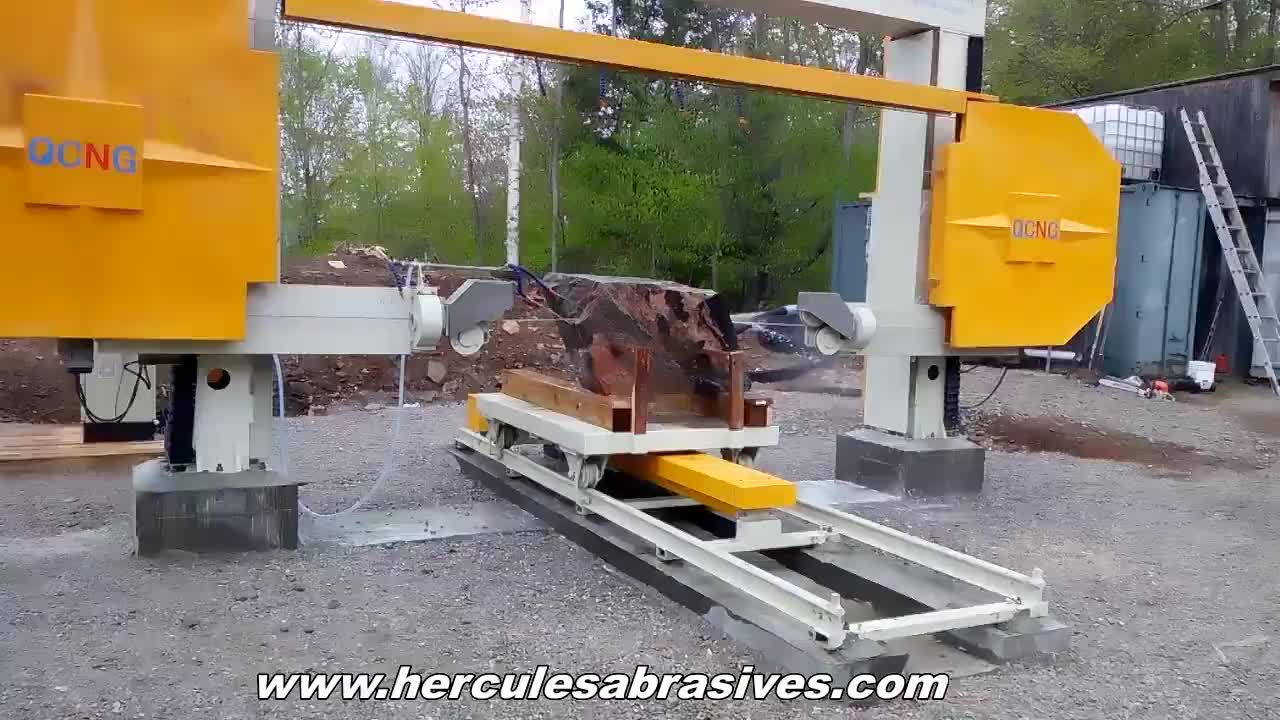

Block squaring wire saw machine
FOB Price:$27000-45000
Type:
Stone Factory MachinesStone Block Cutting MachinesSingle Wire Block Squaring Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
3 weeks
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW
Payment :
Supplier
Eatablished :Aug 03,2009
Main Product:
Diamond Wire, Diamond Segment, Diamond Saw Blade, Polishing Abrasives, Wire Saw Machine, Block Cutting Machine, Drill Bit Drill Rod Dth Hammer|
Machinery Function Features
This machine major in fixing the side of the blocks and cutting the slabs
Technical Data
Parameters |
Unit |
QCKE-1500 |
QCKE-1800 |
QCKE-2200 |
Installed/Fast lowering unit power |
kW |
19.38 |
19.38 |
24.03 |
Block max. cutting height |
mm |
1500 |
1800 |
2100 |
Approximative Weight |
kg |
7000 |
10500 |
14000 |
Machine height (H) |
mm |
3800 |
4800 |
5200 |
Length of rail coupling for trolley |
mm |
2300 |
3500 |
3500 |
Diamond wire length |
mm |
18100 |
19300 |
21250 |
Dimensions of turning trolley |
mm |
1360x2000 |
1800x2000 |
3000x2000 |
Available space for the transit of the block |
mm |
2000 |
2000 |
2000 |
Main motor power |
kW |
11 |
11 |
15 |
Min. water pressure required |
bar |
25 |
25 |
25 |
Machine Width (W) |
mm |
6000 |
6800 |
7000 |
Block max. cutting width |
mm |
3200 |
3500 |
3500 |
Worktable load capacity |
t |
20000 |
30000 |
50000 |
Cooling water requirements |
l/min |
50 |
50 |
50 |
Diamond bead maximum diameter |
mm |
11.0 |
11.0 |
11.0 |
Machine length (L) |
mm |
7500 |
8800 |
9800 |

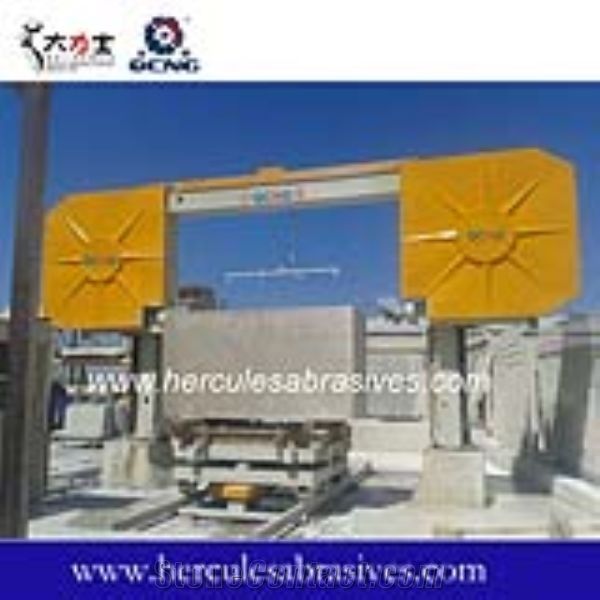

Processed Stone Photos
-
squaring
-
slabs cutting
Components
-

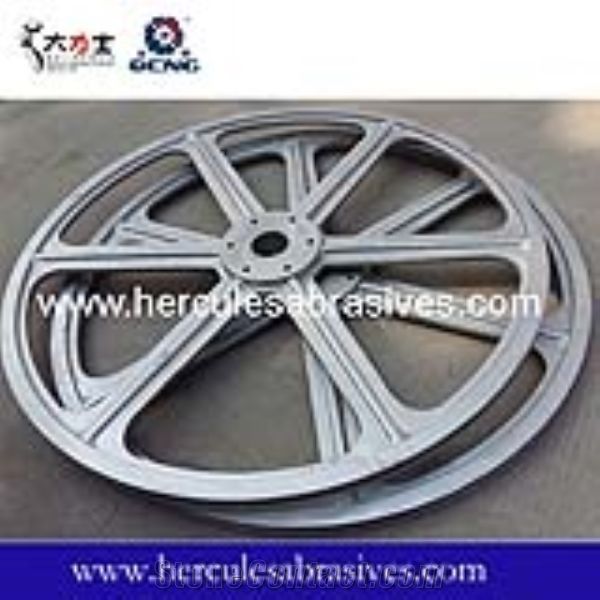

flywheel
¥Payment Required -
trolley
¥Payment Required -
main machine part
¥Payment Required
Consumables
-

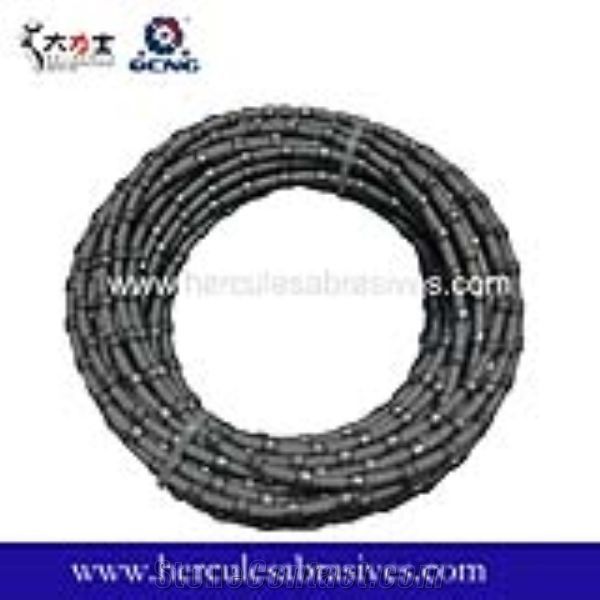

diamond wire saw
8.5/8.8/10.5/11.0
-

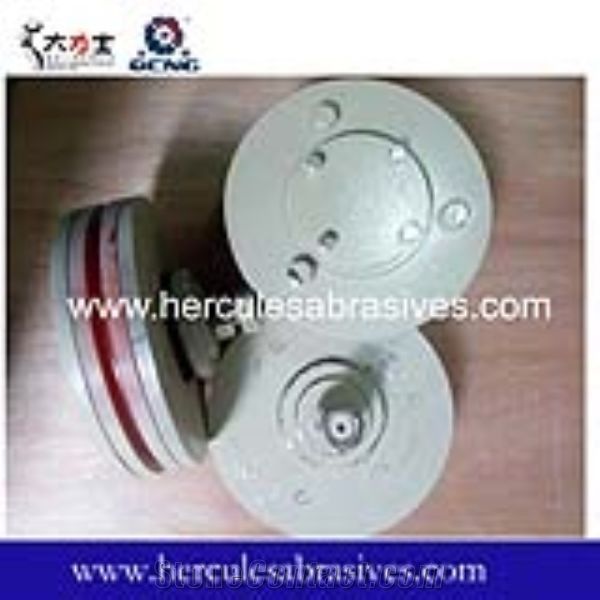

pulley
-

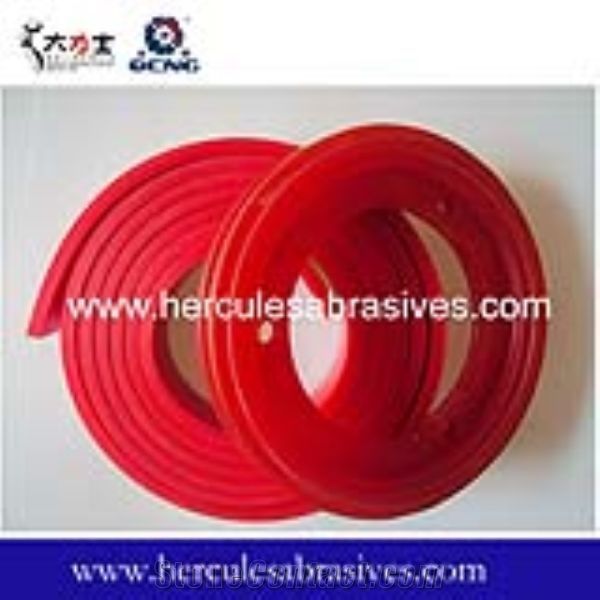

rubber belt/ ring
