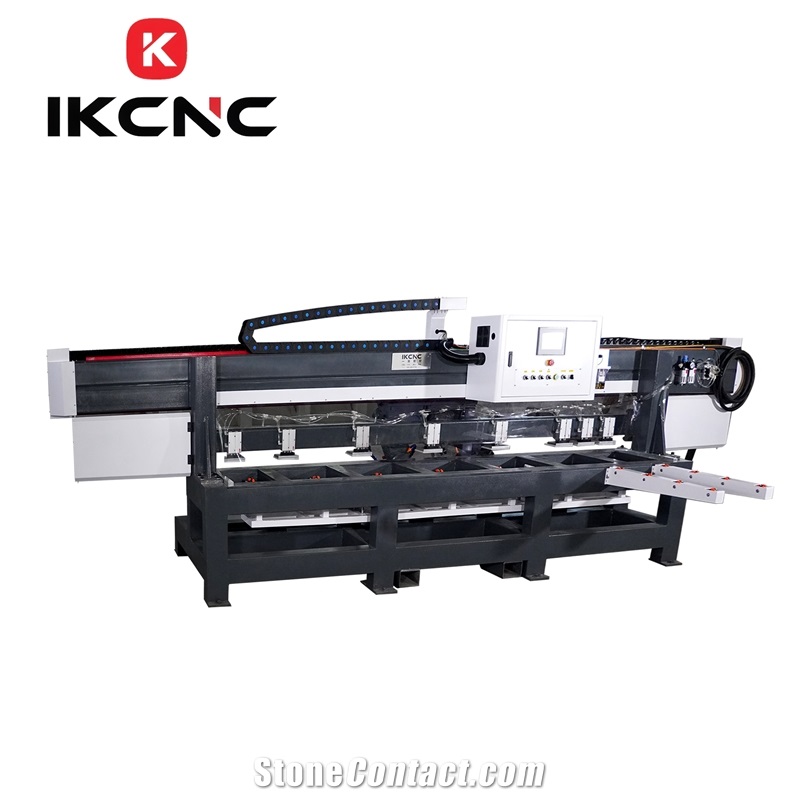

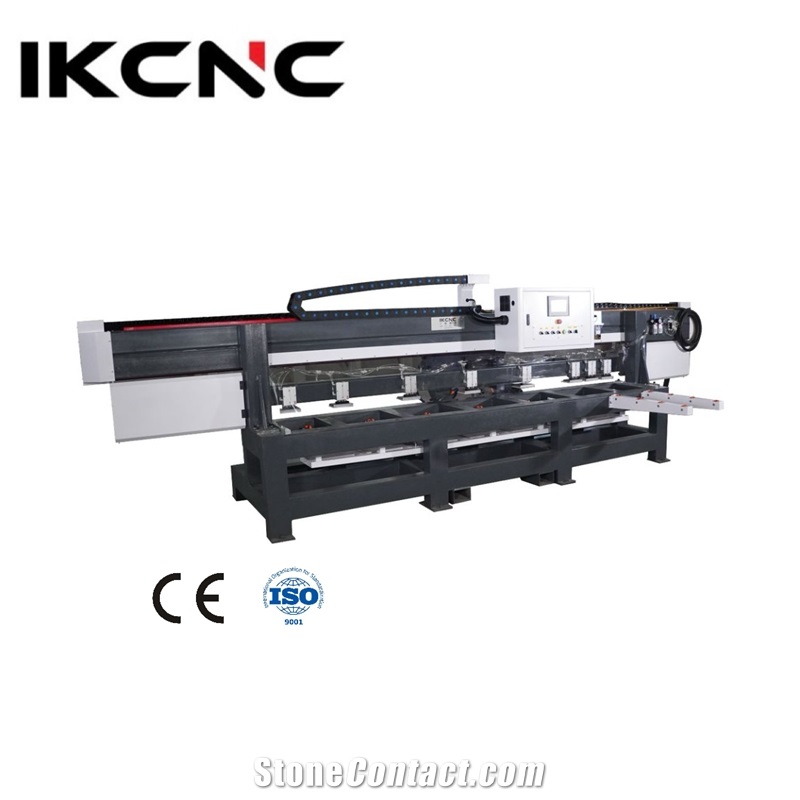

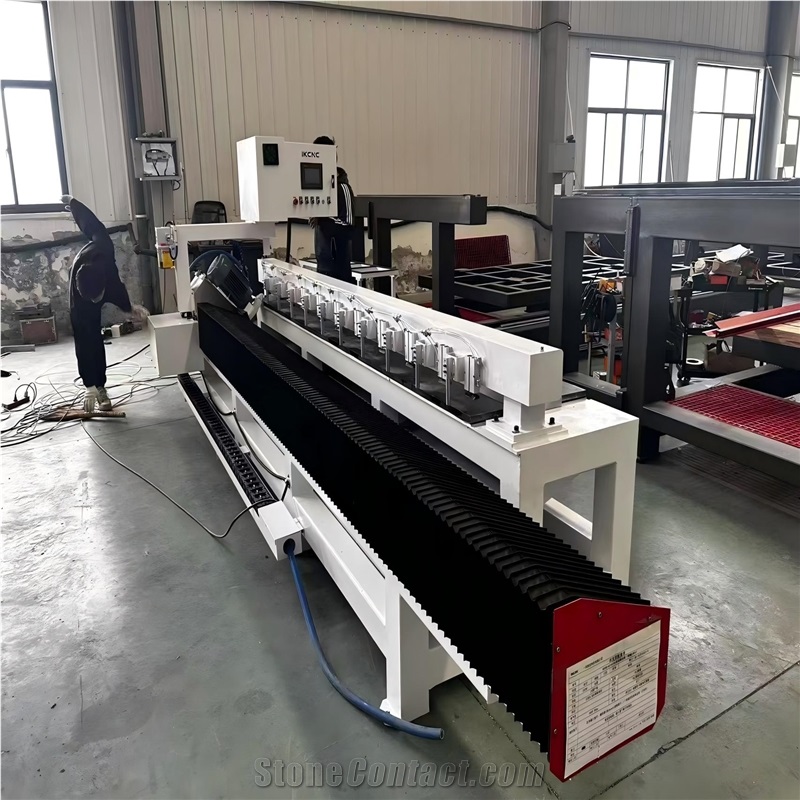

Single-Head Stone Chamfering Machine 45° Miter Cutter

Name: Single-Head Stone Chamfering Machine 45° Miter Cutter
Brand: JINAN IKCNC TECHNOLOGY CO.,LTD
SKU: 8346
Price: 6200 USD
Availability: InStock

FOB Price:$6200-7200

Type: Stone Factory MachinesStone Finishing, Profiling MachinesChamfering,Beveling Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 30 days

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting

Trade Terms

Port: Qingdao port- China

Delivery Details: FOB,CFR,CIF,FAS,CIP,FCA,CPT,DDP,Express Delivery

Payment :

Supplier

JINAN IKCNC TECHNOLOGY CO.,LTD

IKCNC

China level 1YR

Eatablished :Dec 26,2014

Main Product:

5 Axis CNC Bridge Saw, 4+1 CNC Bridge Saw , 45° Miter Cutter, Stone CNC Engraving Machine, Cutting And Edging Work Center, Trepanning Machine|

Contact supplier

Start Order

You may also like

CNC Multifunctional Tile Chamfering Cutting Machine

TMYX2 PORCELAIN EDGE CHAMFER CUTTING MACHINE(CONVEYOR BELT)

Triple-Head 45° Mitre Cutting Machine

MB11A Multifunctional Straight Edge Up And Down Chamfering Machine

Stone Slab Chamfering Machine

Product Detail
Company Profile

Overview
Components
Trade Terms

Machinery Function Features

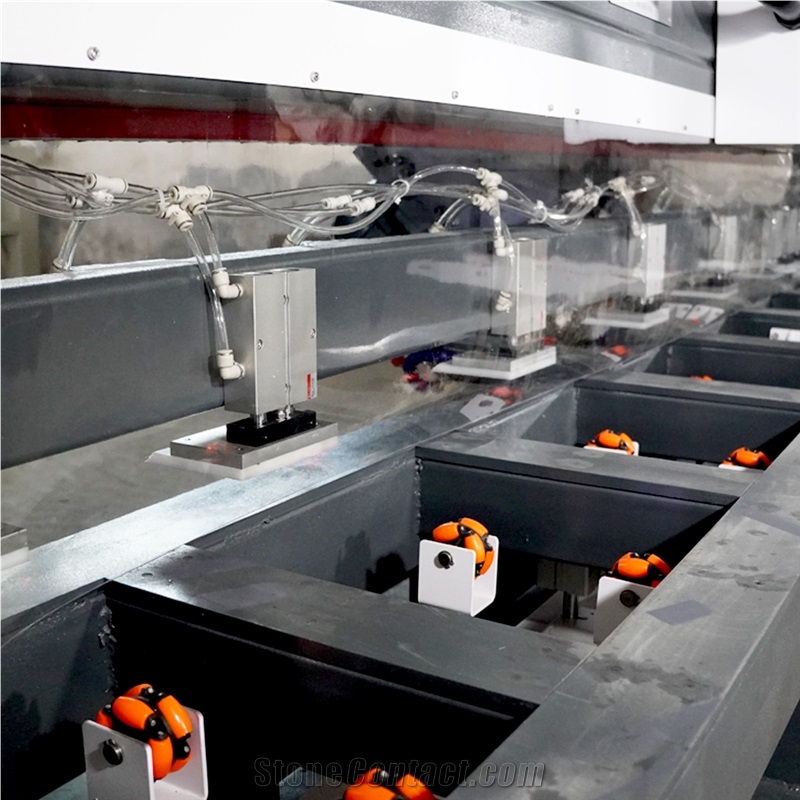

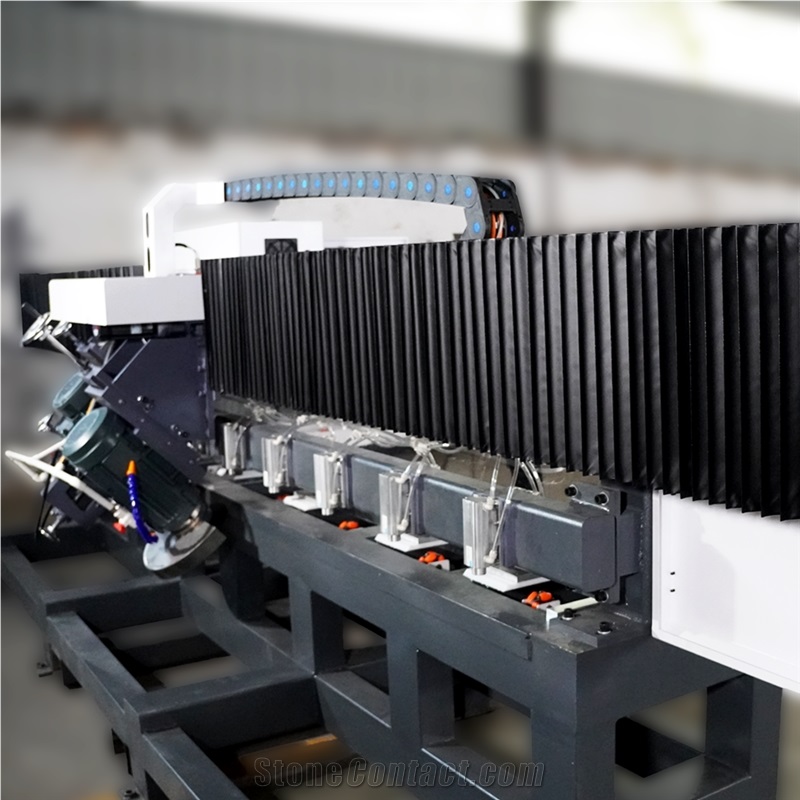

The whole frame adopts imported five-sided milling machine for precision milling, drilling. it is high precision,small deformation, head movement when processing, cylinder press plate fixed material, effectively avoid the size of the head.

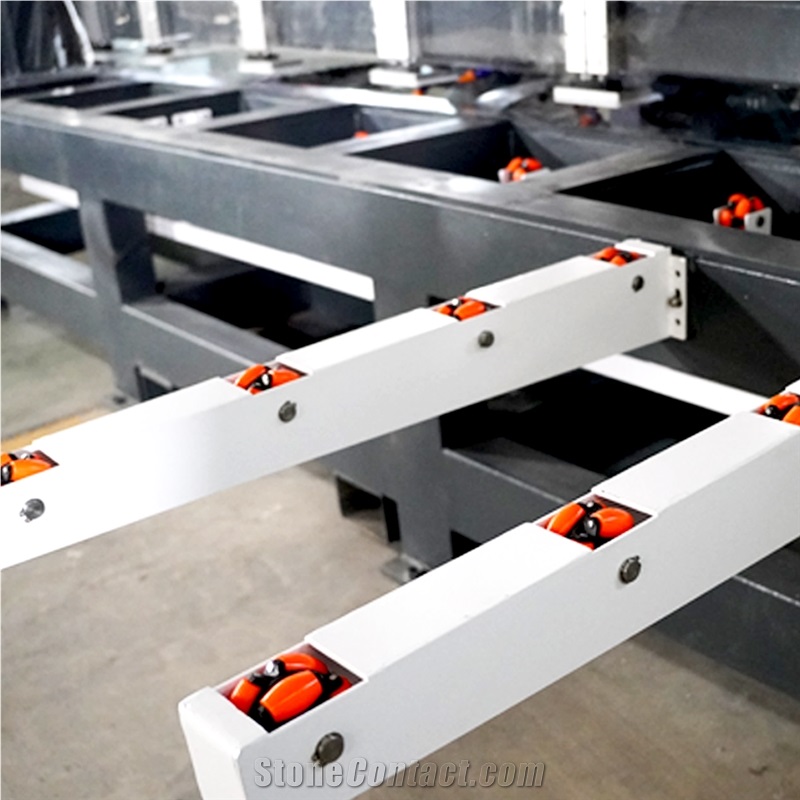

Pneumatic universal wheel lifting platform design, easy access to the plate, save labor, accurate positioningwhile solving the problem of water suction plate.

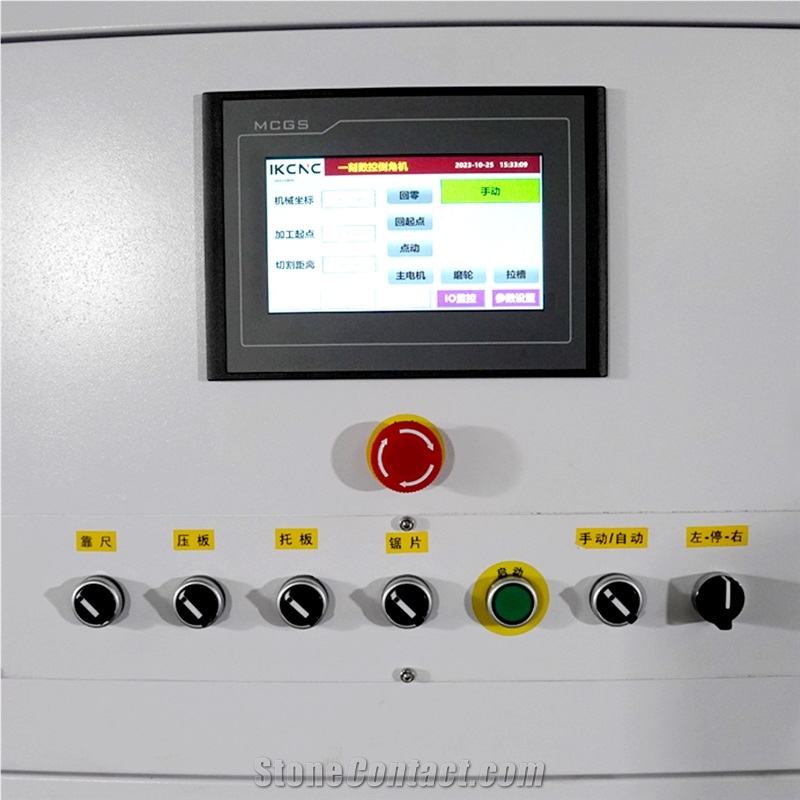

CNC PLC automatic control, touch screen, can freely set the cutting speed, length automatic reserve, can be tangent and reversed.

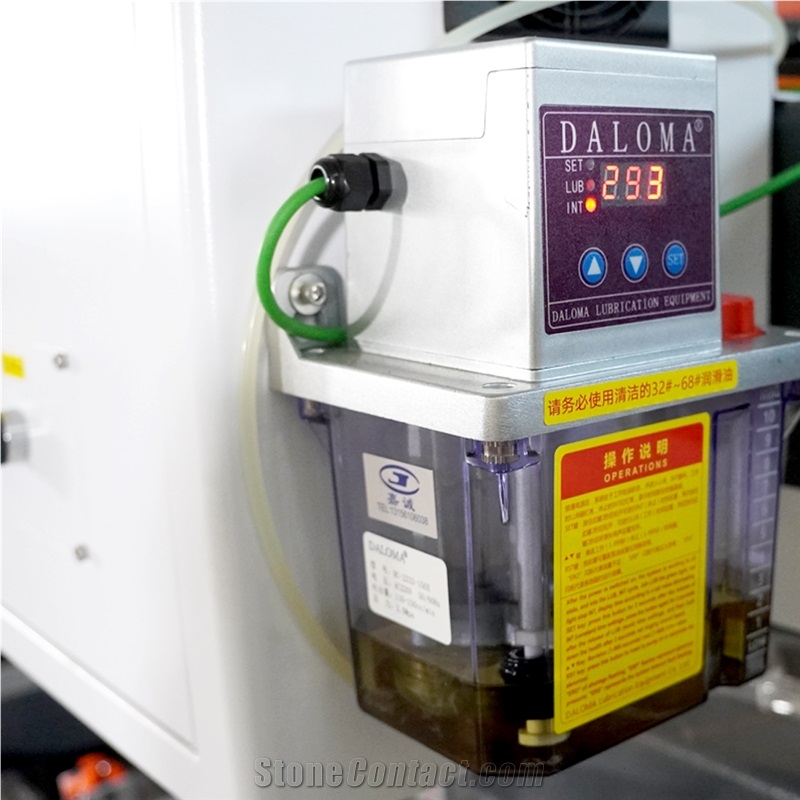

The structure is bridge rail hanging, better waterproof effect, avoid water corrosion, automatic oil injectionsystem,more convenient maintenance.

Technical Data

Parameters	Unit	Single Head 45 degree Miter Cutter
Number of spindle	nr	1
Max. working width	mm	2200
Max. working thickness	mm	20
Machine overall length	mm	5700
Machine overall height	mm	1700
Machine overall width	mm	2200
Approx. Weight	T	1.7
Spindle motor power	kw	15
Max. working length	mm	3200

Software

The PLC (Programmable Logic Controller) works through cyclic scanning:

Input Sampling: Reads signals from sensors, buttons, etc., via input modules, converting physical data into digital signals stored in memory.
Program Execution: The CPU runs pre-written logic (e.g., ladder diagrams) using the stored input data, calculating output commands.
Output Refresh: Sends the CPU’s results through output modules to control motors, valves, or alarms, completing the cycle.

This loop repeats continuously (milliseconds per cycle), enabling real-time, flexible industrial automation.

Work Example

The whole frame adopts imported five-sided miling machine for precision milling, drilling. it is high precisionsmall deformation, head movement when processing, cylinder press plate fixed material, effectively avoid the size
of the head.

Pneumatic universal wheel lifting platform design, easy access to the plate, save labor, accurate positioningwhile solving the problem of water suction plate.

CNC PLC automatic control, touch screen, can freely set the cutting, speed, length automatic reserve, can betangent and reversed.

The structure is bridge rail hanging, better waterproof effect, avoid water corrosion, automatic oil injectionsystem, more convenient maintenance.

Processed Stone Photos
