Nengbo AC 5Axis Waterjet Cutting Machine

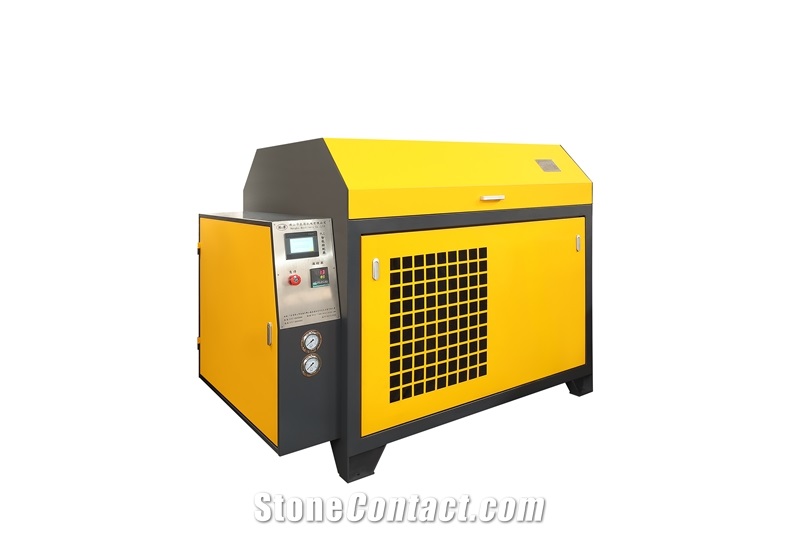

1.High Efficiency & Energy saving Intensifier Unit:

Exclusive patented Energy-saving  &High efficiency Intensifier assembly(Patent No. : ZL 2017 2 1116875. 3) ;

Power: 22KW,220V/380V/415V/480V,50Hz/60Hz;     Max Pressure : 450MPa, Working Pressure :≤340MPa;   Max Water flow:3.7L/MIN

Dual Cooling mode: Air Cooling & Water Cooling;         Oil Pressurized ratio: 1:27;

German Schneider electrical components

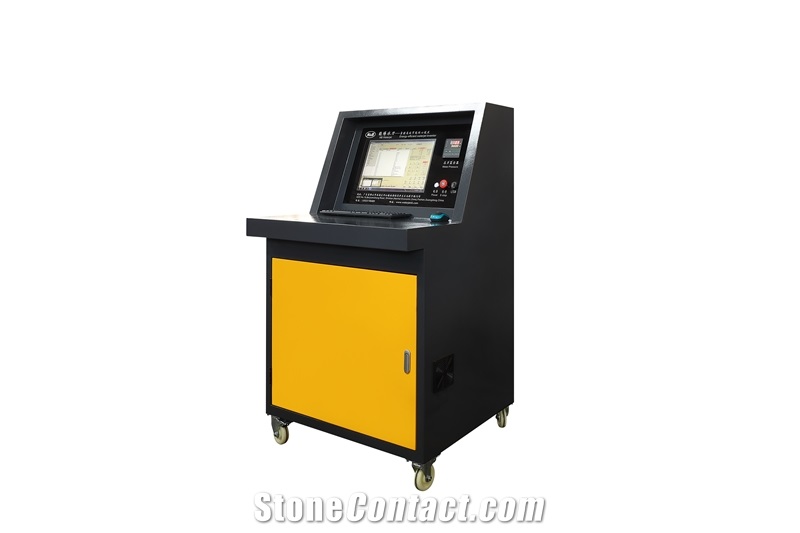

2.CNC Controller System:

Industrial PC ,with 19-inch industrial display,Industrial controller, Windows 10 operation system  ;

Shanghai Weihong professional waterjet CNC Control system

Shanghai Weihong special waterjet cutting software,the listed company product, advanced and reliable, easy to lear

3.CNC Cuting Table:

Gantry Structure, the water tank adopts 16mm plate and double- layer keel structure

X Axis Cutting stroke:3000mm/ 4000mm ;Y Axis Cutting stroke: 2000mm;  Z Axis Cutting stroke: 100mm

Repeat positioning accuracy: ±0. 01mm;  Cutting accuracy: ± 0.1mm;Rapid Position Speed: 10m/min

X, Y  and Z Axis  control mode：Shanghai CNC (Weihong) bus servo control system

Vertical and Horizontal beams are welded with H-shaped structure steel and reinforcement bars structure;

oil - immersed guide wire rod with dust protection structure;  Imported TBI brand ball screw and guide rail

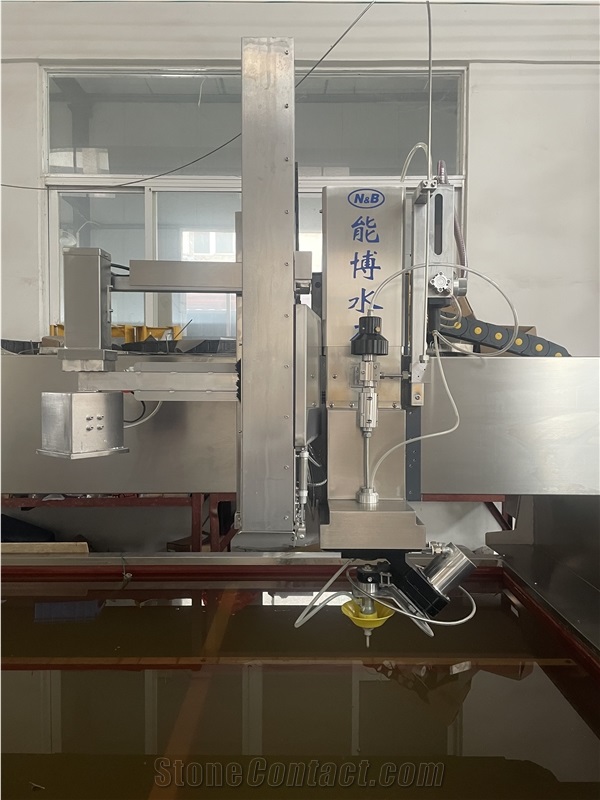

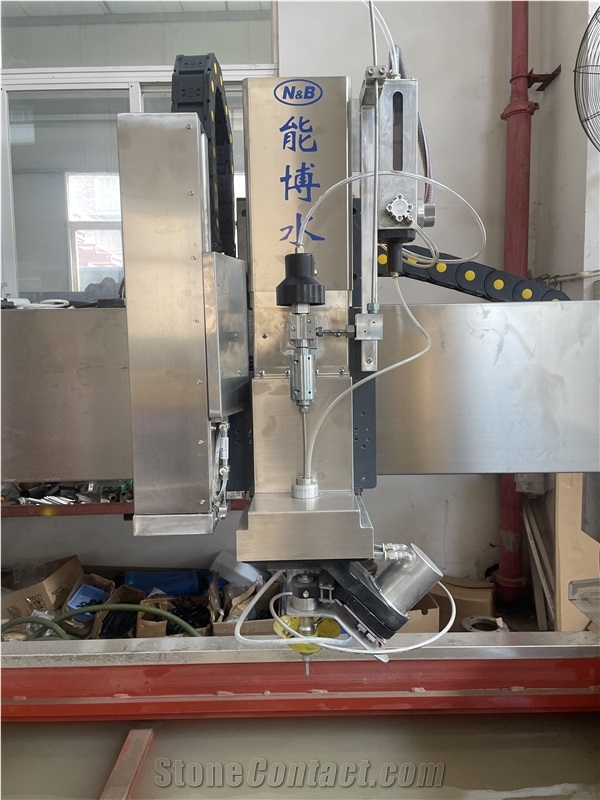

4.AC 5Axis Cutting Head:

Equipped with Weihong laser measured height device

Probe system and Carema system are optional,which can generate the basin cutting path automatically .

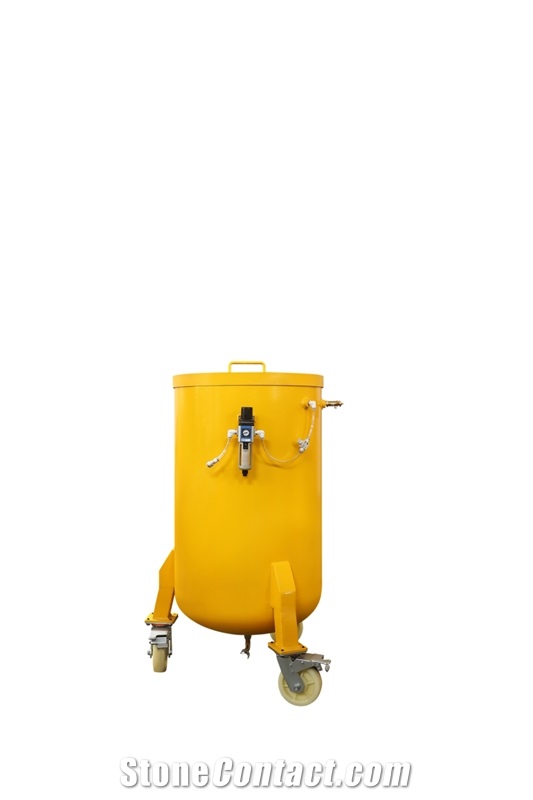

5. Auto Sand Supply System

550IBS capacity ,can supply sand for 10hours continuous working

Air compressor of 0. 2MPa is required，power is not less than 3kw.
