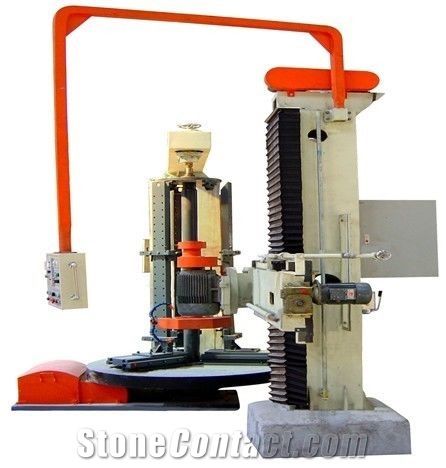

YMJ-2000(I//II)Automatic Column-cutting&Polishing Machine
FOB Price:$14500-15000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesColumn, Arc Slab Cutting Machine
Usage:
Granite, Marble
After-Sale
Lead Time:
25days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade
Supplier
Eatablished :Dec 24,2010
Main Product:
Bridge Cutting Machine , Profiling Stone Line Machine , Wire Saw Machine , Edge Cutting Machine|
Machinery Function Features
Main Technical Parameters
Diameter of Blade：Φ600mm
Process arc slab size：（Φ400-Φ2000 mm）×1500mm(H)
Overall Dimensions: 4500mm(length)×3000mm(width)×3500mm(height)
Total Power: 12.75kw
Total Weight: 4.8t

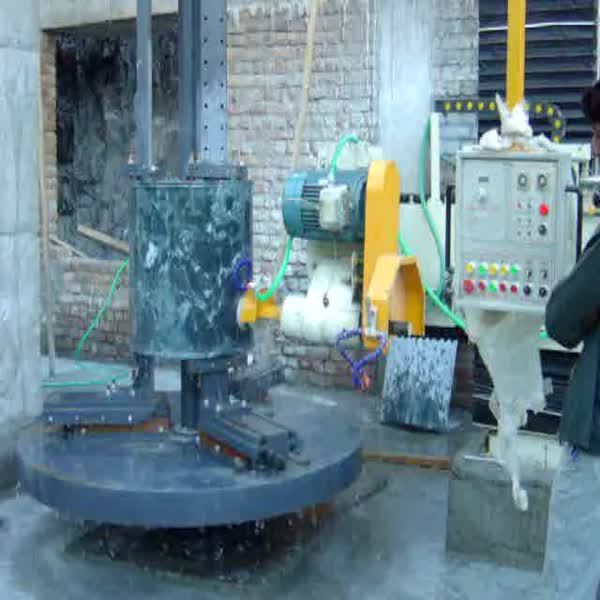

Function： The machine is used for processing column base&cup，cutting and polishing arc slab& solid column. Also can trim up-down edge of arc slab.
Technical Data
Parameters |
Unit |
YMJ-2000 |
Blade diameter |
mm |
600 |
Total power |
kW |
12.75 |
Max. processing length |
mm |
1500 |
Max. loading weight |
kg |
10000 |
Machine overall height |
mm |
3500 |
Min. Processing diameter |
mm |
400 |
Approx. Weight |
Kg |
4800 |
Main motor power |
kW |
7.5 |
Max. processing width |
mm |
2000 |
Max. processing arc slab height |
mm |
1500 |
Control system |
PLC |
|
Machine overall width |
mm |
3000 |
Machine overall length |
mm |
4500 |
Max. Processing diameter |
mm |
2000 |
Processed Stone Photos

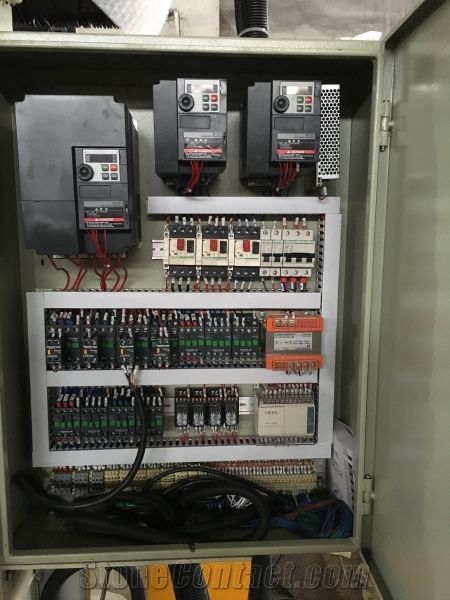

Components

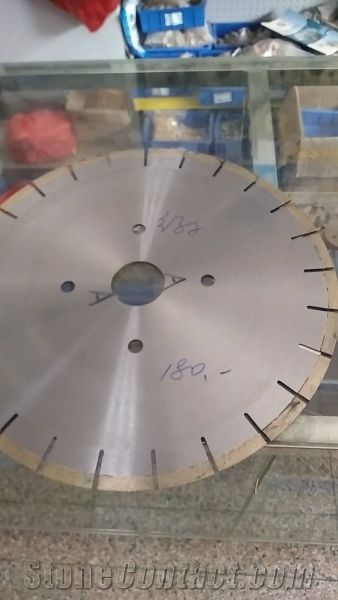

Consumables
