SX-5 multi-spindle cutting centre
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesMulti Blade Automatic Slab Cutting Line
Usage:
Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
You may also like
Machinery Function Features

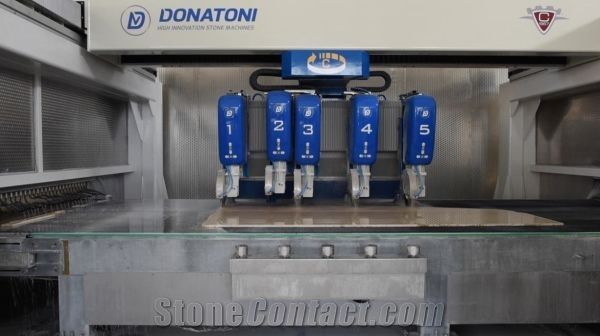

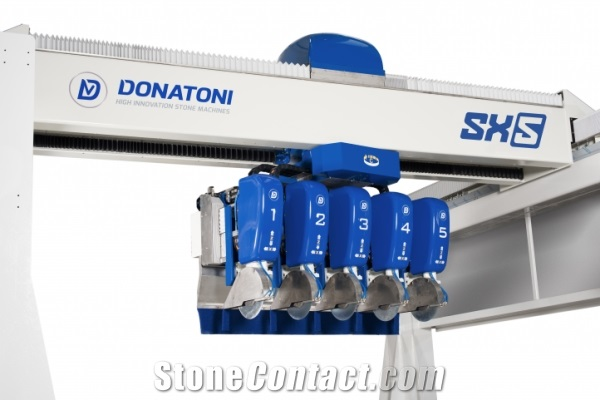

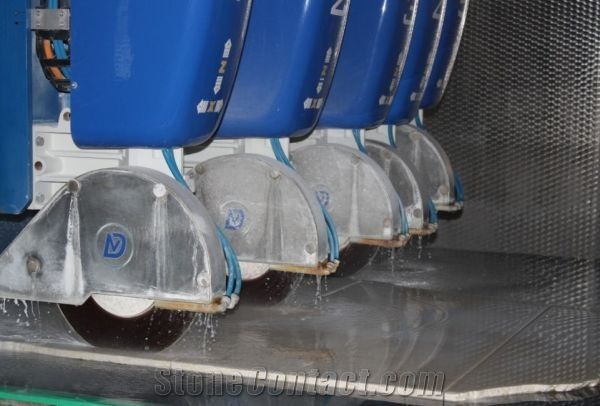

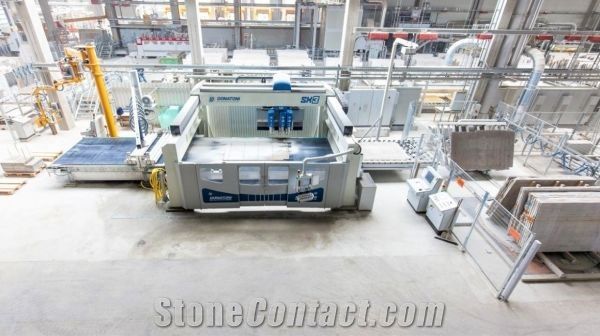

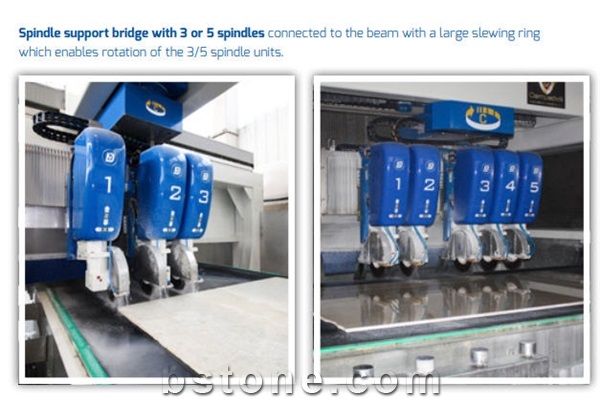

SX-3 and SX-5 are innovative numerical control multi-spindle cutting centre with five cutting units with interpolated axes, designed and patented by Donatoni Macchine to satisfy those needing a compact system for large-scale production line of marble, granite and agglomerate flooring and wall coverings of various types with different sizes and thickness.
Donatoni Macchine were the first to introduce a multi-spindle machine with patented rotating bridge to the market and, rich in the experience they have built up over the years, they can guarantee their customers a very high level of productivity and at the same time complete optimisation of the slabs.
Technical Data
Parameters |
Unit |
SX-3 |
SX-5 |
Rotation of head support bridge-C Axis |
degrees |
-182° / +182° |
-182° / +182° |
Air consumption |
l/min |
20 |
20 |
Max./Min. blade diameter |
mm |
400 /350 |
400 /350 |
Bridge stroke-Y axis |
mm |
2800 |
2800 |
Voltage |
Volt |
400 |
400 |
Load capacity |
Kg |
600 |
600 |
Max. distance between the blades |
mm |
1620 |
2050 |
Water requirements for each spindle |
l/min |
100 |
100 |
Max. Speed - X/Y Axis |
m/min |
35 |
35 |
Overall machine height |
mm |
3650 |
3650 |
Number of interpolated axes |
nr |
6 |
8 |
Max. number of spindle units |
mm |
6 |
8 |
Spindle unit motor power (marble/granite) |
kW |
17 / S6 |
17 / S6 |
Min. distance between the blades |
mm |
80 |
290 |
Bridge crane stroke - X axis |
mm |
3600 |
3800 |
Number of axes controlled |
nr |
12 |
14 |
Overall machine length |
mm |
6150+6620+4100 |
6150+6620+4100 |
Cutting belt dimensions |
mm |
2400 x 7620 |
2400 x 7620 |
Overall machine width |
mm |
9450 |
9450 |
Machine weight |
kg |
19.500 |
20.000 |
Shaft diameter of spindle motor |
nr |
40 |
40 |
Max. speed - Z Axis |
m/min |
8 |
8 |
Max. speed - X Axis |
m/min |
40 |
40 |
Min/max. belt advancement speed |
m/min |
20 |
20 |
Dimensions of offloading belt |
mm |
2400 x 4000 |
2400 x 4000 |
Max. speed - Y Axis |
m/min |
35 |
35 |
Stroke-Z axis |
mm |
200 |
200 |
Maximum depth of cutting |
mm |
90 |
90 |
Total power |
kW |
60 / S6 |
100 / S6 |
