Donatoni - Sx-5 Innovative Numerical Control Multi-Spindle Cutting Centre

FOB Price:

Type: Stone Factory MachinesStone Slab Cutting MachinesMulti Blade Automatic Slab Cutting Line
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: WITHIN 30 DAYS AFTER RECEIVING THE DEPOSITS
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Eatablished :Dec 30,1958

Main Product:

Stone Machines, Bridge Cutting Machine, Carving Machine|

Contact supplier

Start Order

  • Overview
Machinery Function Features

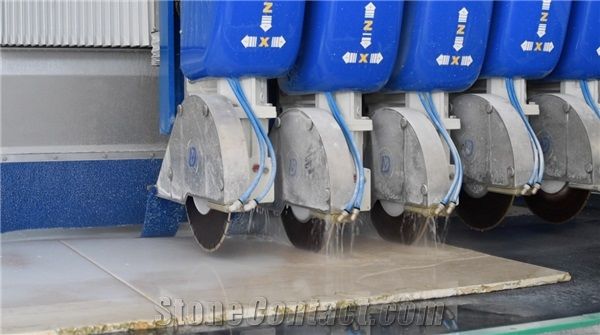

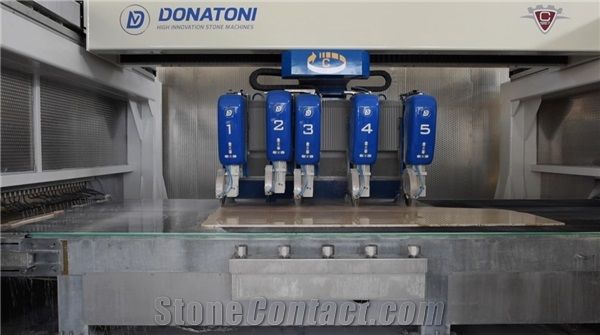

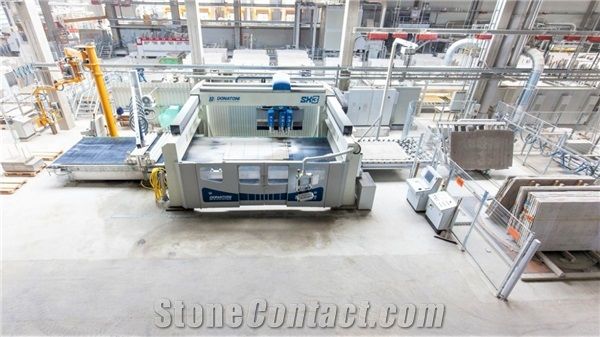

SX-5 is an innovative numerical control multi-spindle cutting centre with five cutting units with interpolated axes, designed and patented by Donatoni Macchine to satisfy those needing a compact system for large-scale production line of marble, granite and agglomerate flooring and wall coverings of various types with different sizes and thickness. Donatoni Macchine were the first to introduce a multi-spindle machine with patented rotating bridge to the market and, rich in the experience they have built up over the years, they can guarantee their customers a very high level of productivity and at the same time complete optimisation of the slabs.
Technical Data
Parameters
Unit
Sx-5
Load capacity
Kg
600
Number of interpolated axes
nr
8
Rotation of head support bridge-C Axis
°
-182° / +182°
Machine weight
Kg
20.000
Spindle unit motor power (marble/granite)
kw
17 / S6
Dimensions of offloading belt
mm
2400 x 4000
Max./Min. blade diameter
mm
525 / 350
Stroke-Z axis
mm
300
Max. number of spindle units
nr
6
Cutting belt dimensions
mm
2400 x 7620
Number of axes controlled
nr
14
