SX-3 multi-spindle cutting centre

Name: SX-3 multi-spindle cutting centre
Brand: Donatoni Macchine Srl
SKU: 1282
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Slab Cutting MachinesMulti Blade Automatic Slab Cutting Line

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 20 days

Warranty:3 Months

Install and Guarantee:Customer pay for installation

Maintenance:Online software upgrade, Regular guidance & maintenance

Supplier

Donatoni Macchine Srl

Donatoni

Italy

Eatablished :Dec 30,1958

Main Product:

Stone Machines, Bridge Cutting Machine, Carving Machine|

Contact supplier

Start Order

You may also like

Multi Blade Stone Cutting Machine For Marble Granite

Bridge Granite Multi Blade Stone Block Cutting Machine

MARBLE GRANITE PAIRS OF CUTAWAY MACHINE

Automatic Cross-Longitudinal Cutting Line

Slicing Machine For Kerbstone With Two Worktables

Product Detail
Company Profile

Overview
Components

Machinery Function Features

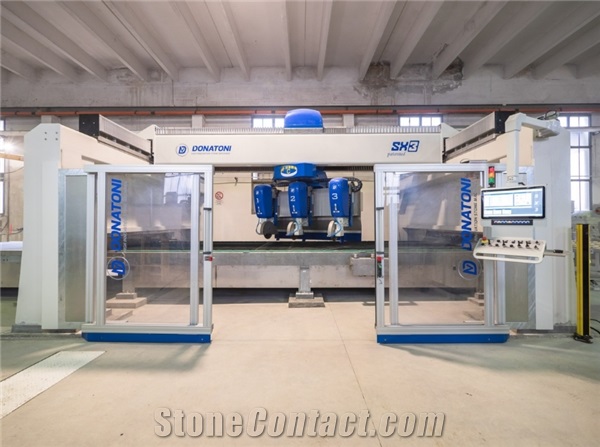

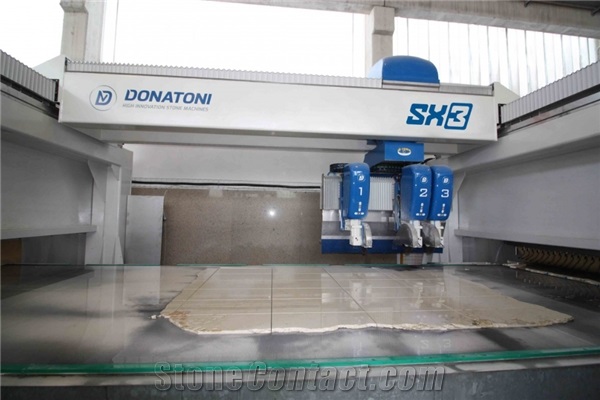

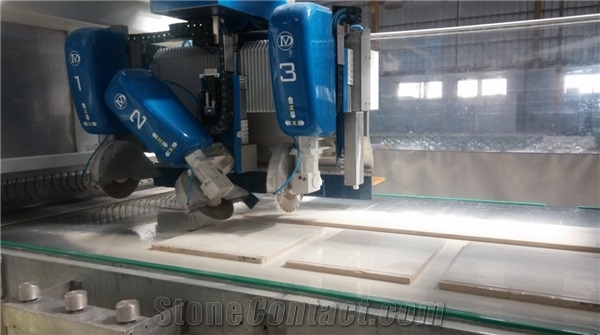

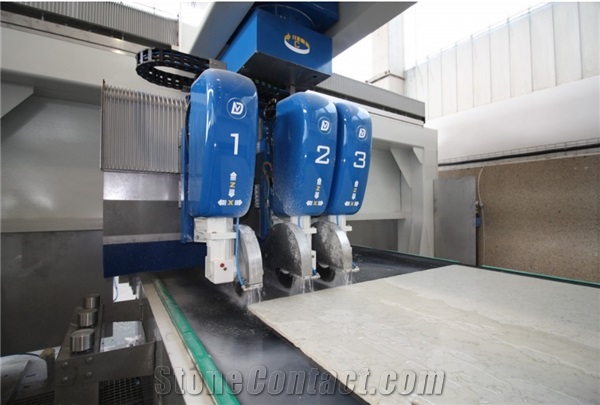

SX-3 is an innovative numerical control multi-spindle cutting centre with three cutting units with interpolated axes, designed and patented by Donatoni Macchine to satisfy those needing a compact system for large-scale production line of marble, granite and agglomerate flooring and wall coverings of various types with different sizes and thickness. Donatoni Macchine were the first to introduce a multi-spindle machine with patented rotating bridge to the market and, rich in the experience they have built up over the years, they can guarantee their customers a very high level of productivity and at the same time complete optimisation of the slabs.

Technical Data

Parameters	Unit	SX-3
Max. number of spindle units	nr	6
Max./Min. blade diameter	mm	525 / 350
Stroke-Z axis	mm	300
Load capacity	Kg	600
Number of interpolated axes	nr	12
Dimensions of offloading belt	mm	2400 x 4000
Rotation of head support bridge-C Axis	°	-182° / +182°
Machine weight	Kg	19500
Cutting belt dimensions	mm	2400 x 7620
Maximum depth of cutting	mm	150 / 65
Spindle unit motor power (marble/granite)	kw	17 / S6

Software

Parametrix is the simple and intuitive Software developed by Donatoni Macchine and designed to optimise the management of cuts of variously-shaped pieces on a slab. It enables work processes involving cuts with discs, milling cutters and drills, the insertion of straight and curved forms and shapes that have been pre-set or imported from DXF files, and the optimisation of processing times and slab surfaces.

Photoslab

It allows you to measure the surface of slabs placed on the workbench using a camera located on top of the machine and the acquisition software integrated with Parametrix.

SCAN-CNC is a measuring system consisting of a laser pointer mounted at the head of the machine and a software integrated with Parametrix that allows you to measure bi-dimensional shapes with a linear or curved form and create the drawing in real time (DXF file) on the monitor.

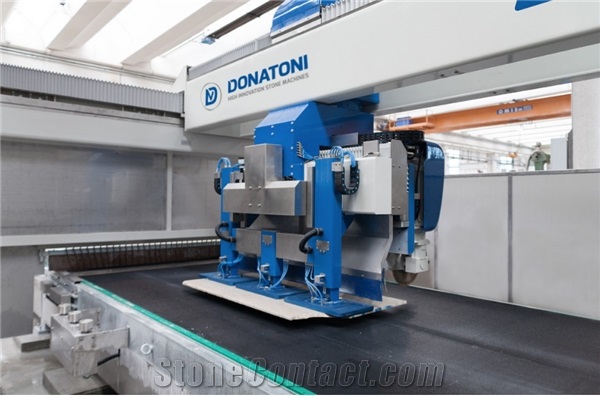

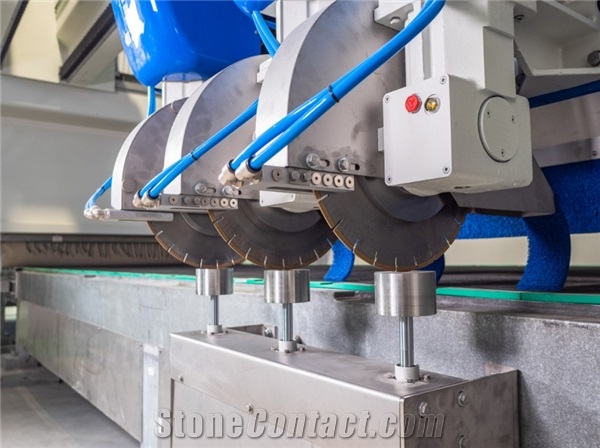

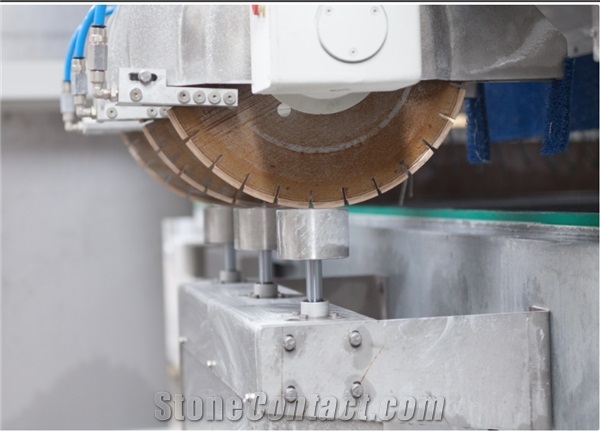

Components
