3+12 Head Automatic Polishing Machine
FOB Price:
Type:
Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine
Usage:
Marble, Limestone, Onyx, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Supplier
Eatablished :Jan 20,2001
Main Product:
Marble Polishing Machines, Marble Cutting Machines, Block Cutting Machines|
Machinery Function Features

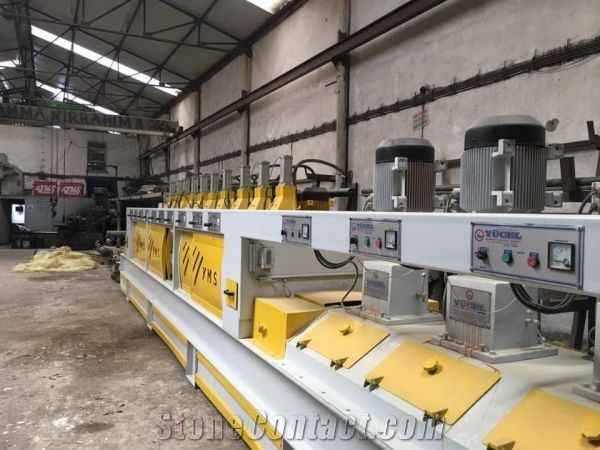

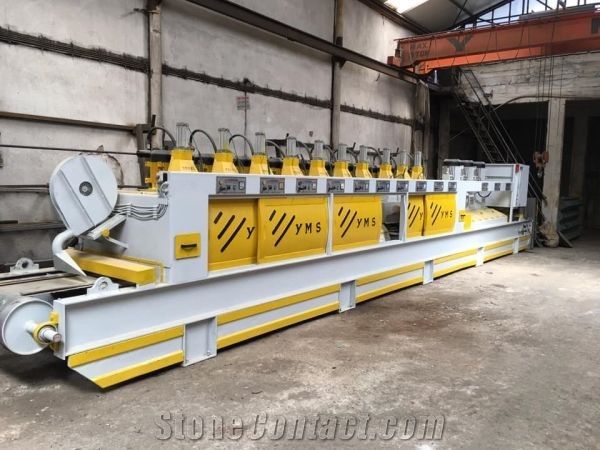

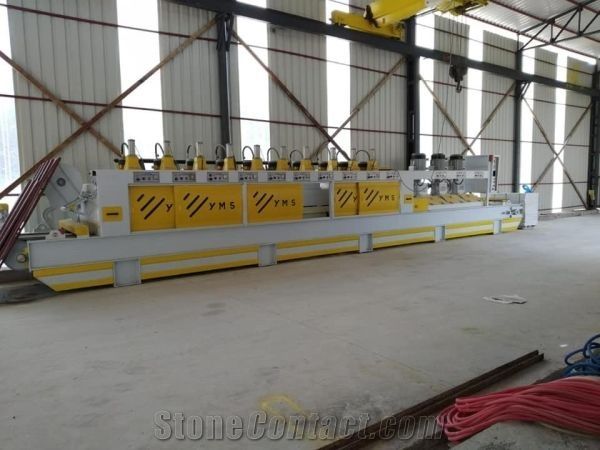

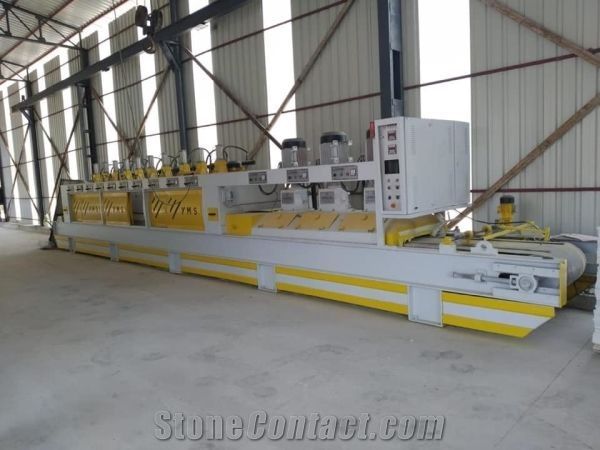

3+12 Head Automatic Polishing Machine

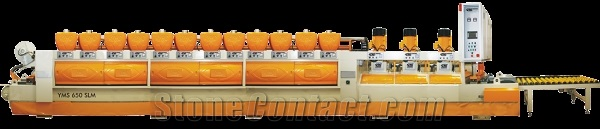

Model No: YMS 650 SLM
YMS Brand 3 Caliber + 10 Polishing System Automatic Polishing Machine
Best Marble Polishing Machine in Turkey
YMS Yücel Makine San. ve Tic. Ltd. Şti.
Tatlıcak Mah. Umurlu Sk. No:30 Karatay/KONYA
Phone: +90.332 202 00 20
Fax: +90.332 202 00 90
Mobile:+90 533 012 29 64
[email protected]
http://ymsyucelmakine.com/
Technical Data
Parameters |
Unit |
YMS 650 SLM 2+5 |
YMS 650 SLM 2+6 |
YMS 650 SLM 2+8 |
YMS 650 SLM 2+10 |
YMS 650 SLM 3+12 |
Number of Dressing spindles |
nr |
2 |
2 |
2 |
2 |
3 |
Polishing plates diameter |
mm |
530 |
510 |
510 |
510 |
510 |
Machine overall height |
mm |
1250 |
1450 |
1450 |
1450 |
1450 |
Slabs max. processable width |
mm |
650 |
650 |
650 |
650 |
650 |
Polishing heads/honing units motor power |
kW |
7.5/22 |
7.5/22 |
7.5/22 |
7.5/22 |
7.5/22 |
Total installed electrical power |
kW |
85 |
93 |
110 |
130 |
160 |
Machine overall length |
mm |
6500 |
7500 |
9500 |
11500 |
12500 |
Diameter of abrasive-holding plates |
mm |
530 |
720 |
720 |
720 |
720 |
Slabs max. processable thickness |
mm |
70 |
70 |
70 |
70 |
70 |
Slabs min. processable thickness |
mm |
8 |
8 |
8 |
8 |
8 |
Conveyor belt width |
mm |
750 |
750 |
750 |
750 |
750 |
Approx. Weight |
Kg |
7500 |
8250 |
9000 |
11250 |
14200 |
Machine overall width |
mm |
2300 |
2300 |
2300 |
2300 |
2300 |
Number of polishing heads/honing units |
nr |
5 |
6 |
8 |
10 |
12 |
