CNC 5-Axis Bridge Cutter - Eagle 400/500/600

FOB Price:$28000-33000

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 3 weeks
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Eatablished :Aug 15,2007

Main Product:

Bridge Cutter, Multi Head Polishing Line, Mitre Saw, Block Cutter, CNC Working Center, Waterjet Cutter|

Contact supplier

Start Order

  • Overview
  • Components
Machinery Function Features

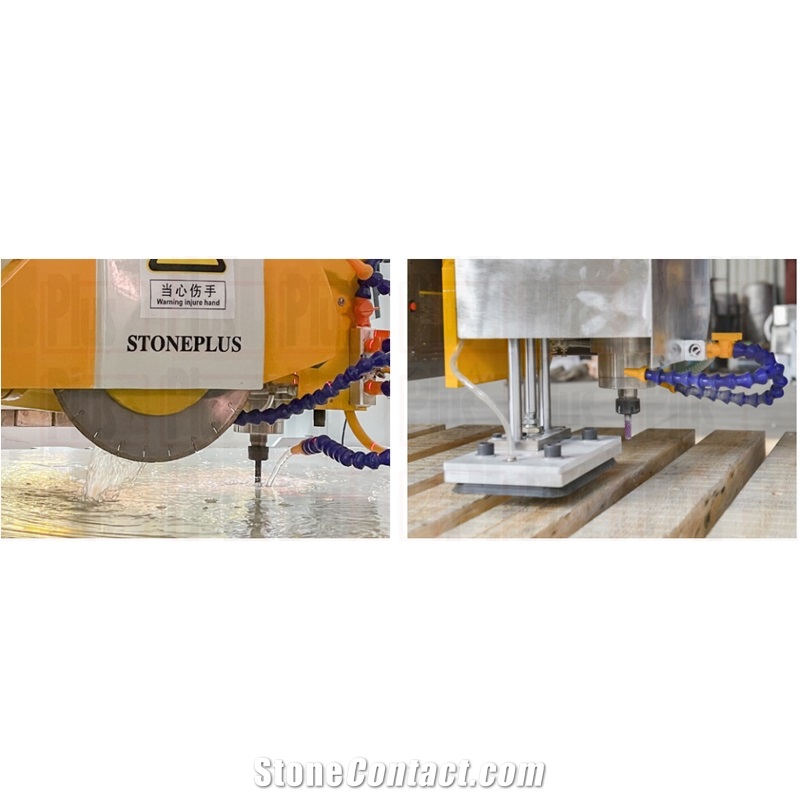

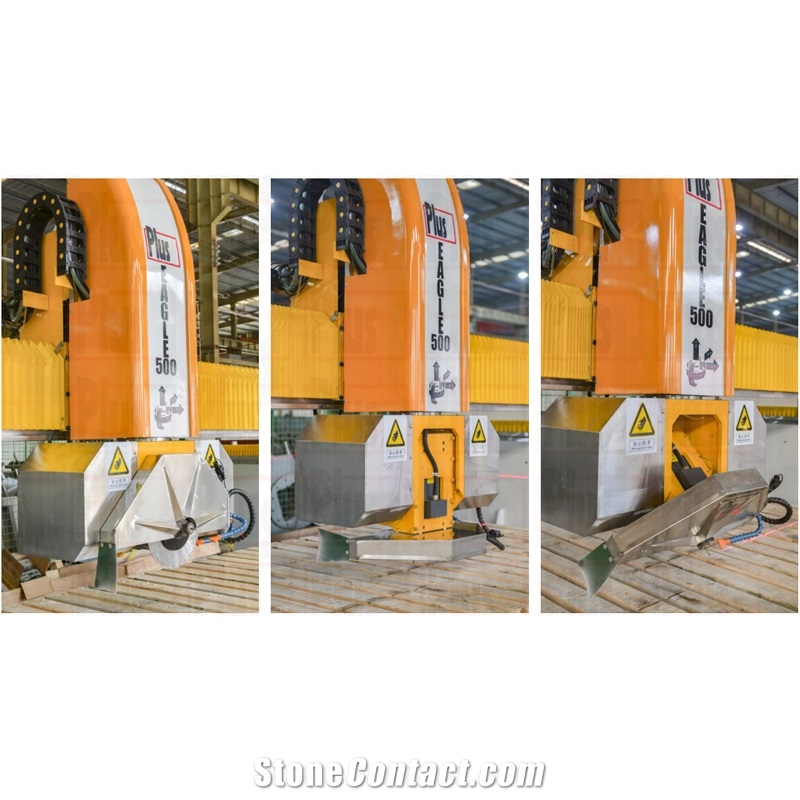

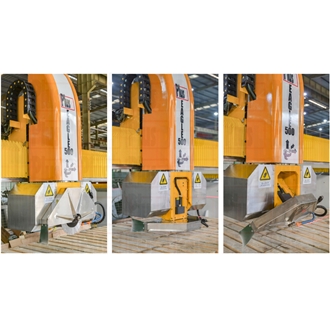

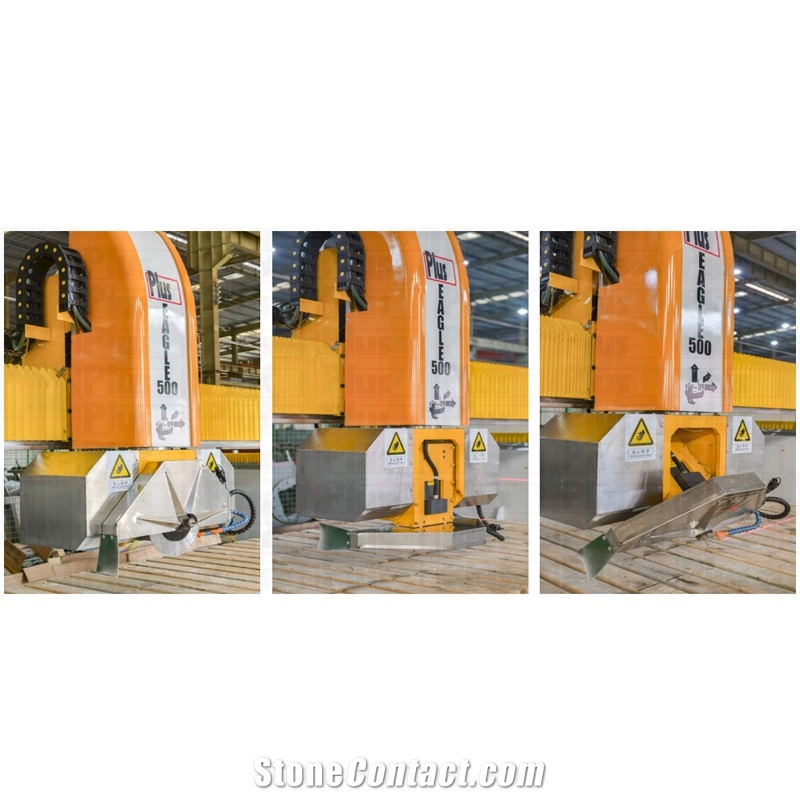

Countertops. Vanities & Islands. Cut to size. 45° Miter cuts. Sink cut-out. Polygon and Circle. Profles. Quartz. Porcelain. Granite. Marble. The Eagle 500 Smart easily cuts sinks, miters, straight lines, curves, polygons, profiles, circular pieces, etc. Capable of cutting any shape and any size. It can also cut out a sink by using a milling tool.It is a fully interpolated 5-axis bridge saw. The head rotates 0°-361° interpolate with the blade tilting 0° to 90°. With powerful functions, the Eagle500 Smart can work almost all the jobs of a countertops factory. It has all the advanced technologies that can help you, such as the onboard camera, tools probe, etc. Cutting with high speed and accuracy. With more efficiency, save labor and the working cost. High-quality accessories and electric parts are used to secure long service life and low cost.

Technical Data
Parameters
Unit
Eagle 400
Weight of machine
KG
4500
Water consumption
m³h
2.0
Max cutting thickness
mm
60
Electric power required
3Phs 380V 50Hz
Total power
KW
22.0
Blade diameter
mm
350-400
Dimensions of Machine
mm
5800/3500/2600
Max cutting width (Y-axis)
mm
2000
Blade turning eagle
°
0°-361°
Main motor power, with inverter
KW
15.0
Diameter of the milling bit
mm
10-12
Table tilting by hydraulic
°
0°-85°
Motor r.p.m. with inverter
rpm
0-6000
Dimensions of the table
mm
3200×2000
Max cutting length (X-axis)
mm
3400(3600 on request)
Blade tilting eagle
°
0°-90°
Processed Stone Photos
  • Processed Stone Photos

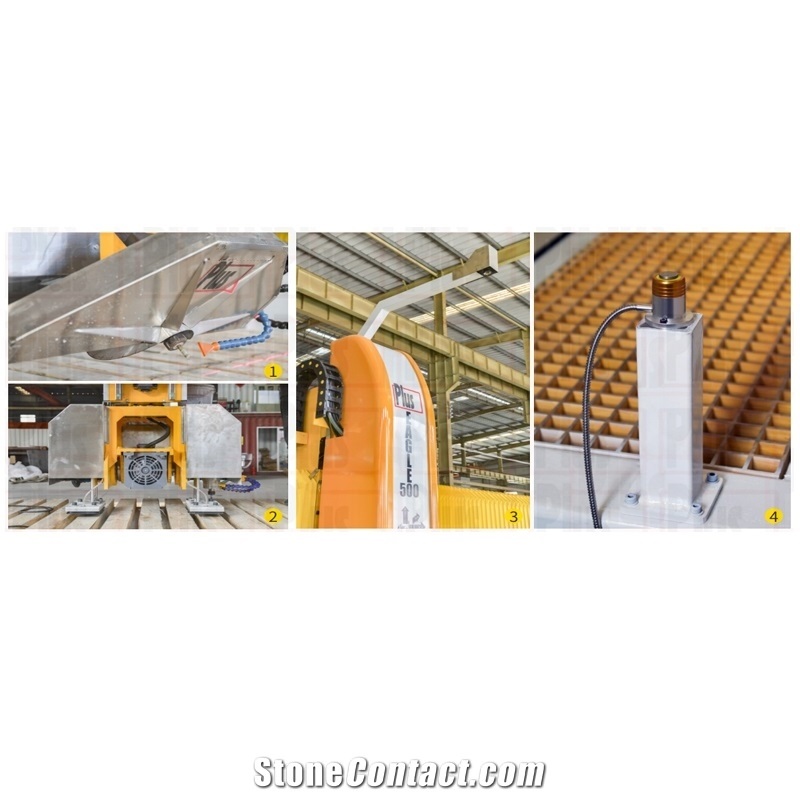

Components
