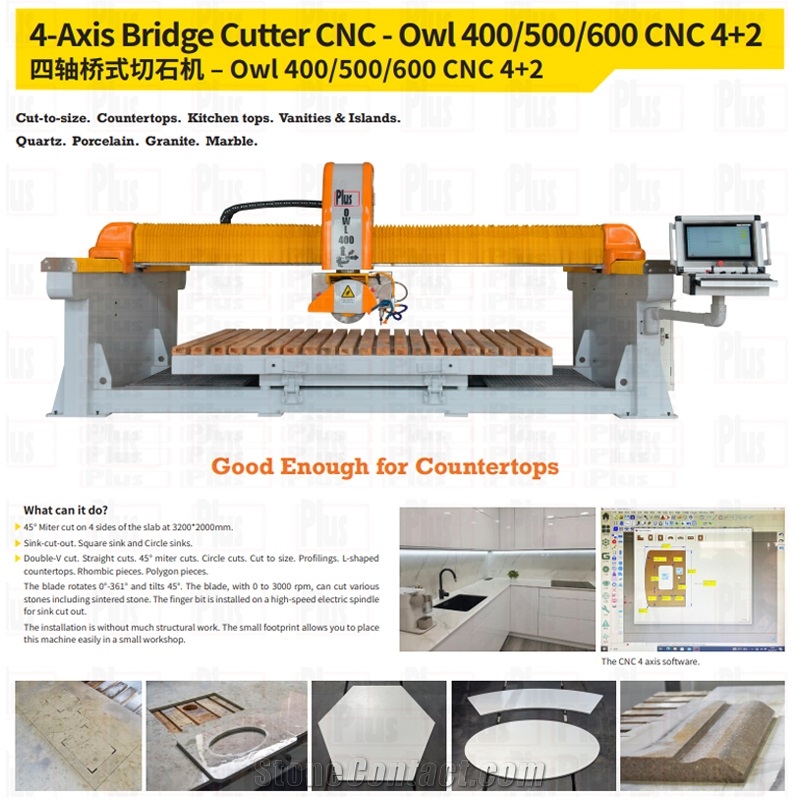

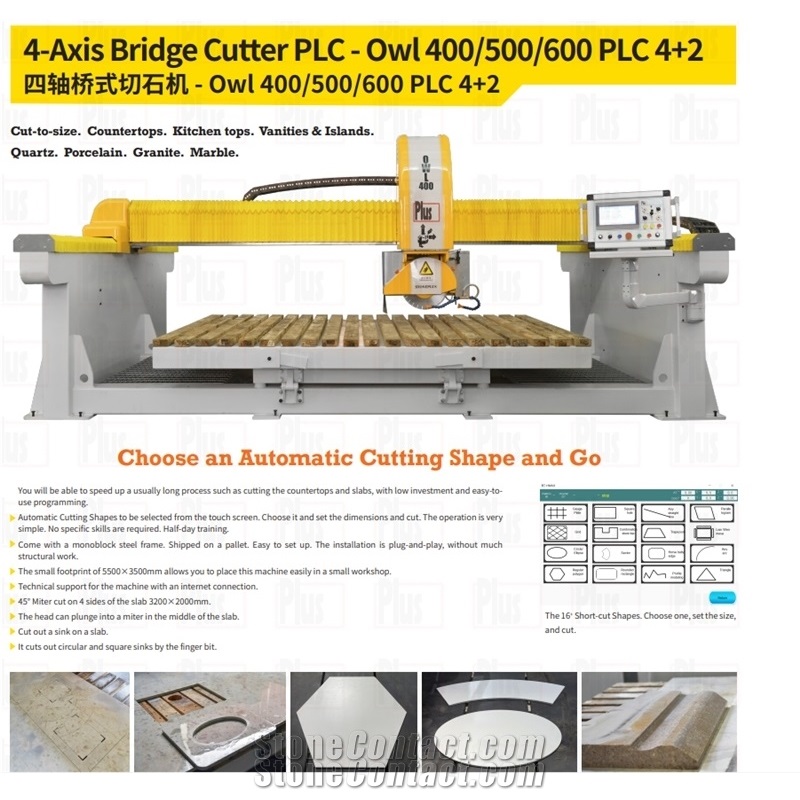

4-Axis Bridge Cutter - Owl 400/500/600

FOB Price:$18000-24000

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 3 weeks
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Eatablished :Aug 15,2007

Main Product:

Bridge Cutter, Multi Head Polishing Line, Mitre Saw, Block Cutter, CNC Working Center, Waterjet Cutter|

Contact supplier

Start Order

  • Overview
  • Components
Machinery Function Features

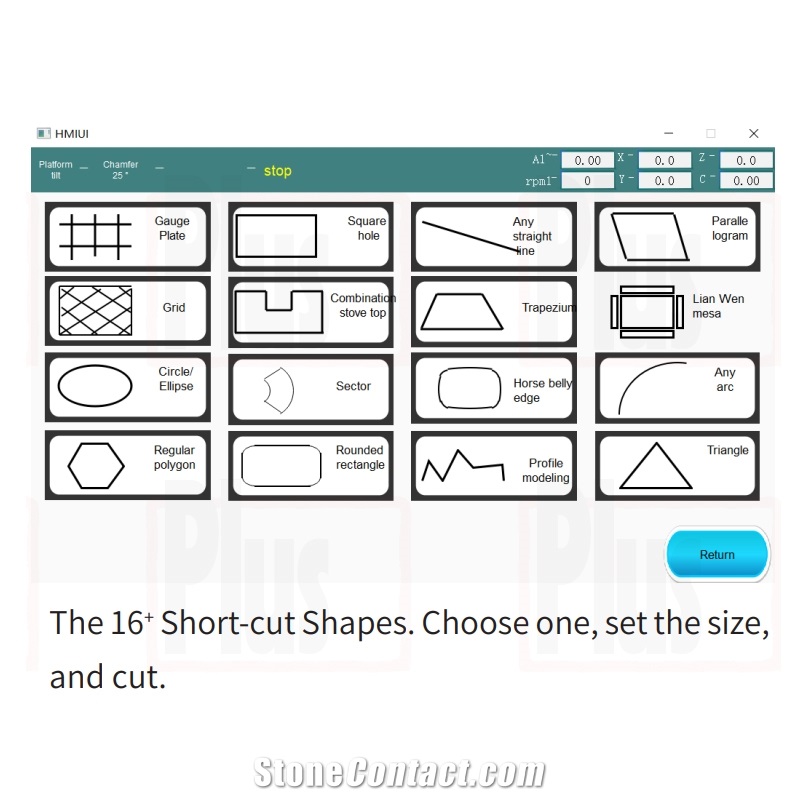

You will be able to speed up a usually long process such as cutting the countertops and slabs, with low investment and easy-to-use programming. Automatic Cutting Shapes to be selected from the touch screen. Choose it and set the dimensions and cut. The operation is very simple. No specific skills are required. Half-day training. Come with a monoblock steel frame. Shipped on a pallet. Easy to set up. The installation is plug-and-play, without much structural work.The small footprint of 5500×3500mm allows you to place this machine easily in a small workshop.Technical support for the machine with an internet connection. 45° Miter cut on 4 sides of the slab 3200×2000mm.The head can plunge into a miter in the middle of the slab.Cut out a sink on a slab. It cuts out circular and square sinks by the finger bit.

Technical Data
Parameters
Unit
OWL 400
Spindle rpm adjusted by inverter
rpm
1800-18000
45° miter cut on 4 sides
mm
3200×2000
Blade rotation (C-axis)
°
0°-361°
Total power
KW
28.0
Electric power required
3Phs 380V 50Hz
Table tilting by hydraulic
°
85°
Footprint of Machine
mm
5800/3500/2260
Table rotating
°
No rotation
Dimensions of table
mm
3200×2000
Weight of machine
KG
4000
Water consumption
m³/h
2.0
Max cutting size
mm
3400×2000×60
Blade for 45° miter
mm
350
Power of the main motor, with inverter
KW
15.0
Recycling water chiller (if with Milling spindle)
On request
Blade rpm adjusted by inverter 15KW
rpm
1000-3000
Blade tilting (A-axis) by hydraulic
°
45°
Blade size
mm
350-400
Processed Stone Photos
  • Processed Stone Photos

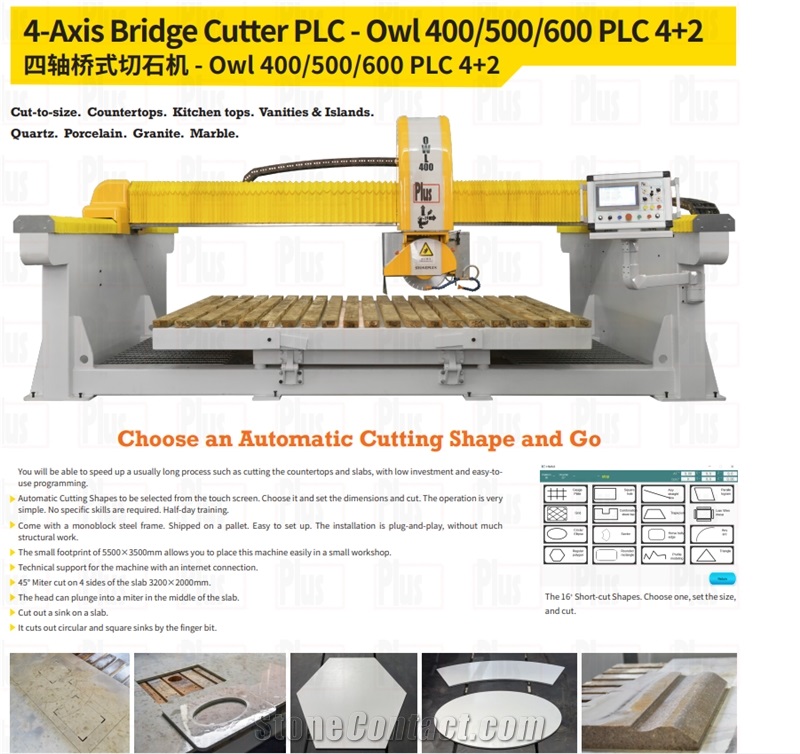

Components
