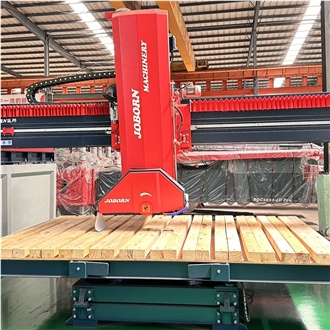

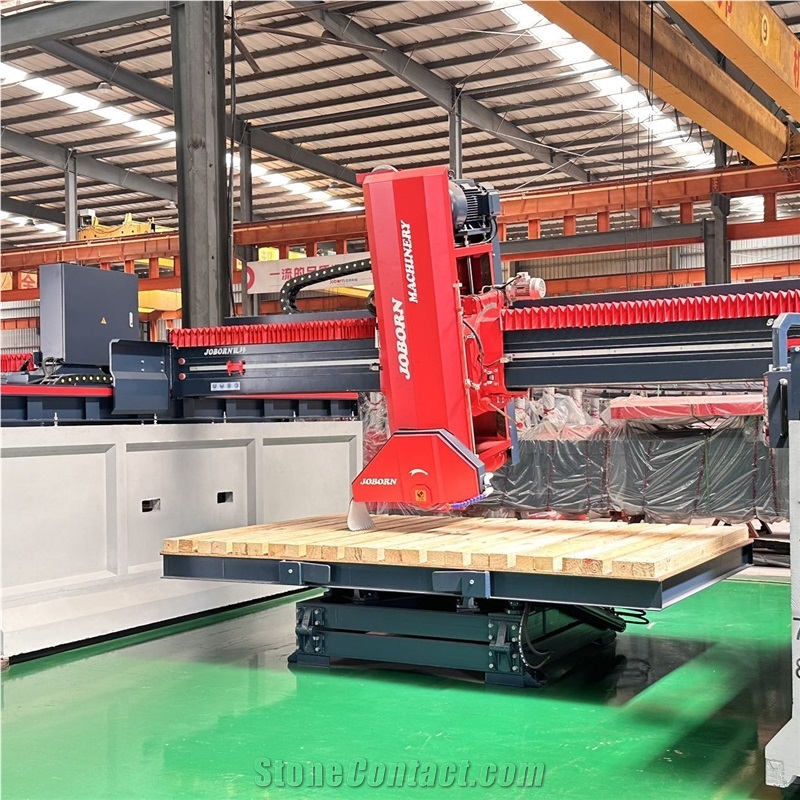

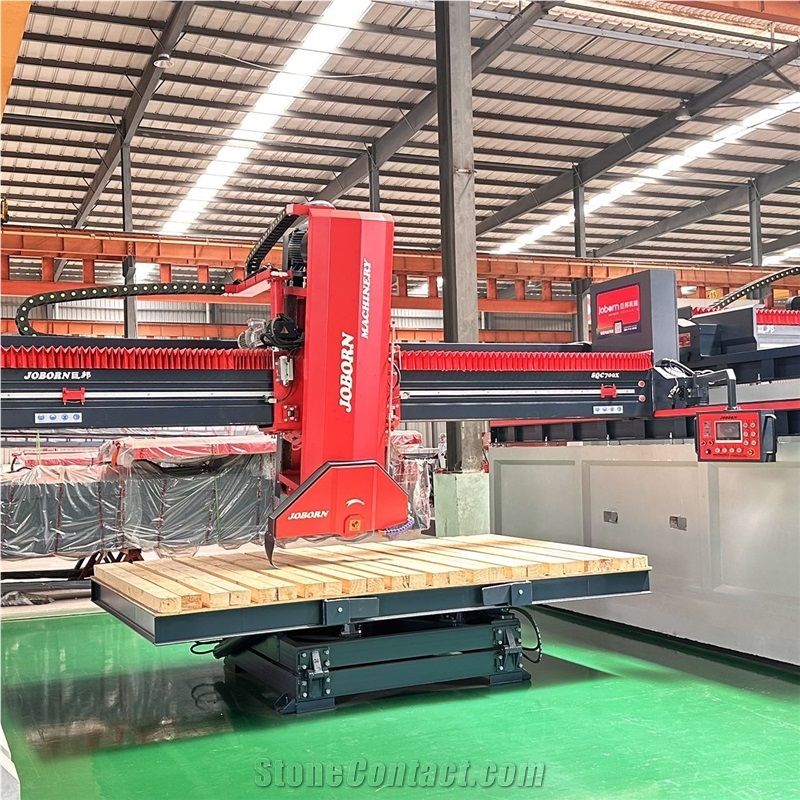

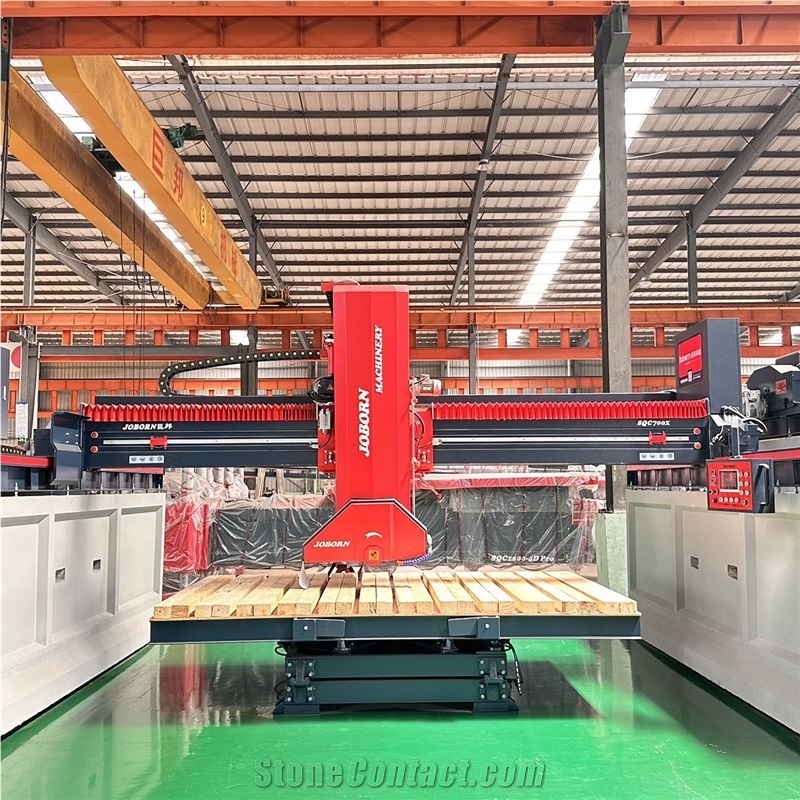

SQC700X Tiltable Bridge Cutting Machine
FOB Price:$21000-23000
Supplier
Eatablished :Jul 28,2015
Main Product:
Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|
SQC700X Tiltable Bridge Cutting Machine.This series machine adopts microcomputer control system and human machine interface, combined with ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system, high lifting efficiency, main motor uses brand energy-efficient motor, reduces the later using cost; worktable use super heavy large size profiles welding together, larger than the table in the market, with more durable. Main parts adopt imported good-quality materials. The head can rotate 0°～50°, applied in a wider range. Thus the whole machine is featured as high cutting efficiency, high cutting precision, high stability, easy–operating to suit specially cutting granite and marble with high value and big size, and special-shaped stone.
Parameters |
Unit |
SQC700X |
Working table rotating angle |
° |
0º,90° 0°~360° |
Total power |
kw |
29 |
Worktable size |
mm |
3200X2000 |
Machine width |
mm |
5600 |
Machine length |
mm |
6000 |
Worktable turn-over degree |
° |
85° |
Machine height |
mm |
3600 |
Blade tilting angle |
° |
0°~50° |
Max.lifting stroke |
mm |
470 |
Main motor power |
kw |
22 |
Water consumption |
m³/h |
3 |
Max.blade diameter |
mm |
700 |
Weight |
kg |
7500 |

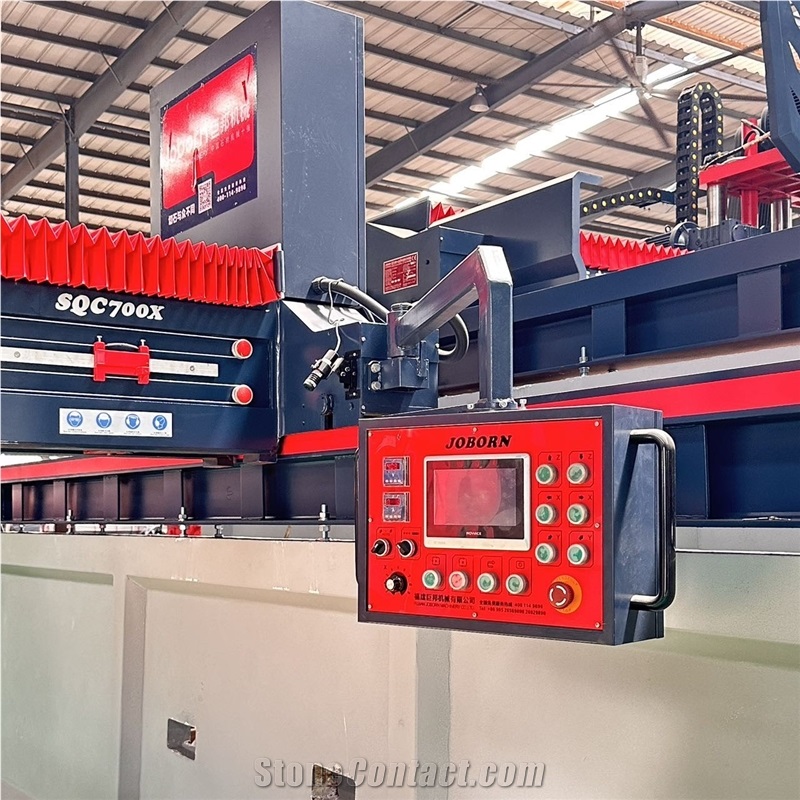

This machine adopts the PLC control system, using Chinese, English, Russian, Arabic, with the best human-computer interaction interface, the operation interface is a combination of touch screen and mechanical button to control the interface, input operating parameters through interface (including cutting size specification, moving speed) Etc., the cutting process is automated and programmed.

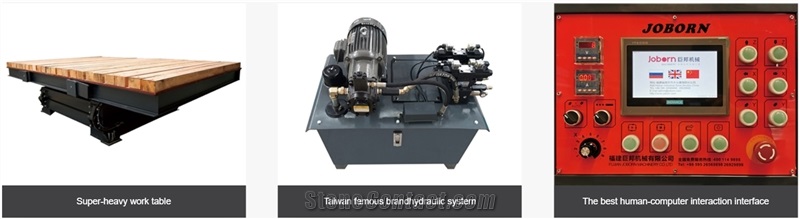

1.Super-heavy type working platform.The platform uses heavy large size profiles welding together,larger than the
table in market,with more durable;
2.Taiwan famous hydraulic system.The hydraulic components from Taiwan first-line brand,react more quickly，works
more stable;
3.Domestic premium brand main motor with high efficiency and more energy saving,make the cutting more
powerful,and saving electricity more;

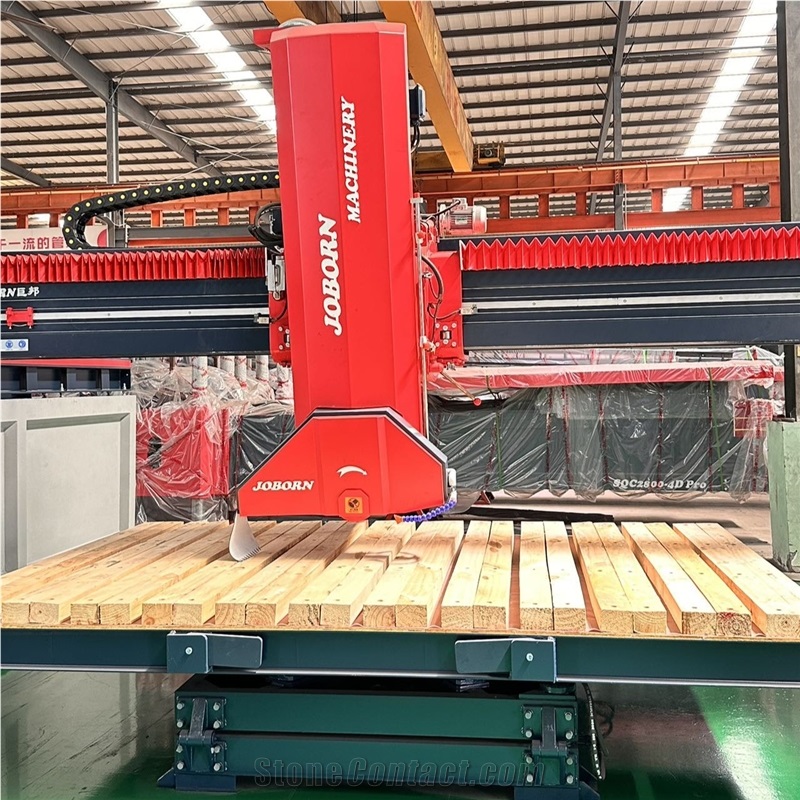

4.The cutting head can rotate 0°~50°, have a wider cutting range , can cutting and chamfering the stone with a
special shape;
5.Humanized human-computer interaction interface.User-friendly interface,with more simple operation,easy to use;

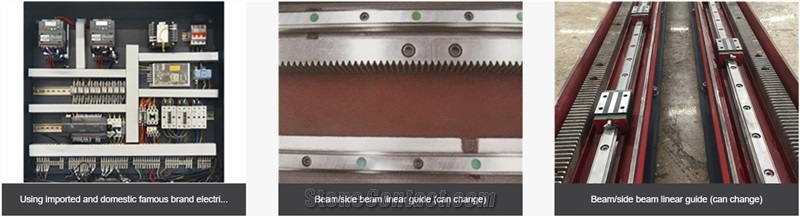

6.Germany Siemens inverter, feeding more stable; imported or domestic famous brand electrical components, with
lower failure rate, help you to worry less and save more labor;
7.High quanlity standard exported laser device, with longer service life and more lasting brightness;

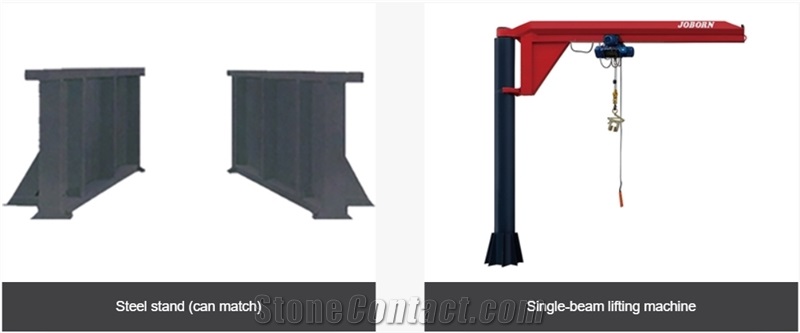

8.Single-Beam lifting machine (Optional);
9.Steel stand (Optional)
