Diamantfil DF TWIN CUT Fast Block-Dressing Machine
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesSingle Wire Block Squaring Machine
Usage:
Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Machinery Function Features

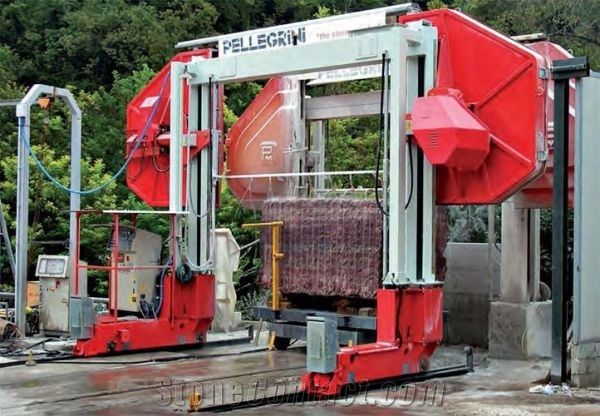

Fast block-dressing system including one fixed Diamantfil machine and one Roller. Also includes a block carraige with a turntable. Allows two cuts at the same time at the required distance.
For fast squaring of blocks the system has two Diamantfil machines, one fixed and one in the mobile Roller version, and operates with a turntable carriage (with optional electric rotation) to position the block under the machines. Two parallel cuts can be made at the same time and with very little need for personnel. The machines can also operate separately, using the block carriage with the fixed machine and placing the blocks on the ground for the Diamantfil Roller. For more information please see the specifications for the DF Roller or DF Top or Plus.
Technical Data
Parameters |
Unit |
DF 2000 PLUS |
DF 2000 TOP |
DF 2500 PLUS |
DF 2500 TOP |
Block max. cutting height |
mm |
2500 |
2500 |
2500 |
2500 |
Main motor power |
kW |
30 |
30 |
30 |
30 |
Machine Width (W) |
mm |
2.850 |
2.850 |
2.850 |
2.850 |
Diamond wire length |
mm |
19.700-21.700 |
19.700-21.700 |
21.300-23.000 |
21.300-23.000 |
Cooling water requirements |
l/min |
15-30 |
15-30 |
15-30 |
15-30 |
Machine height (H) |
mm |
6.800 |
6.800 |
6.800 |
6.800 |
Diamond wire linear speed |
mt/minute |
0-40 |
0-40 |
0-40 |
0-40 |
Machine length (L) |
mm |
15.000 |
15.000 |
15.000 |
15.000 |
Approximative Weight |
kg |
15000 |
15000 |
16000 |
16000 |
