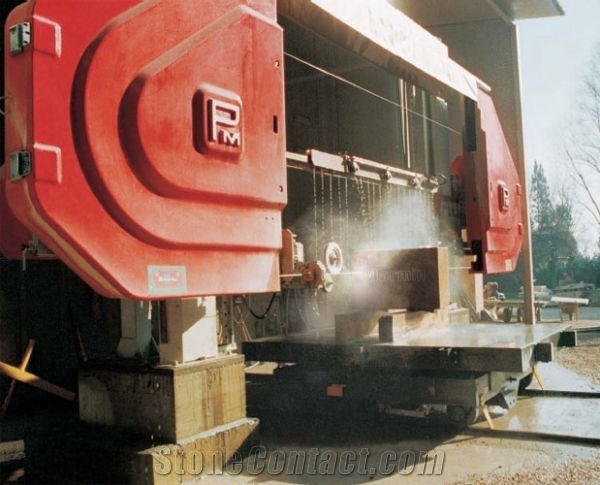

DIAMANTFIL DF JOLLY Single wire saw with 2-axis CNC system
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesSingle Wire Block Squaring Machine
Usage:
Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Supplier
Eatablished :Dec 31,1959
Main Product:
Automatic Loading Table, Slabs, Marble, Brushing Machine, Aging Machine, Continuous Flaming Machine|
Machinery Function Features

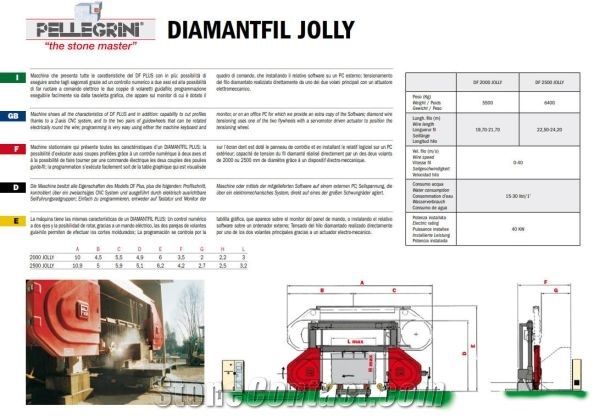

Single wire saw for dressing blocks, but fitted with a 2-axis CNC system that enables cutting of two-dimension profiles as well as slabbing.
Machine shows all the characteristics of DF PLUS and in addition: capability to cut profiles thanks to a 2-axis CNC system, and to the two pairs of guidewheels that can be rotated electrically round the wire; programming is very easy using either the machine keyboard and monitor, or on an office PC for which we provide an extra copy of the Software; diamond wire tensioning uses one of the two flywheels with a servomotor driven actuator to position the tensioning wheel.
Technical Data
Parameters |
Unit |
DF 2000 JOLLY |
DF 2500 JOLLY |
Approximative Weight |
kg |
5500 |
6400 |
Machine height (H) |
mm |
6000 |
6200 |
Machine Width (W) |
mm |
3500 |
4200 |
Block max. cutting width |
mm |
3000 |
3200 |
Block max. cutting height |
mm |
2200 |
2500 |
Cooling water requirements |
l/min |
15-30 |
15-30 |
Machine length (L) |
mm |
10.000 |
10.900 |
Diamond wire length |
mm |
19.700-21.700 |
22.500-24.200 |
Diamond wire linear speed |
mt/minute |
0-40 |
0-40 |
Main motor power |
kW |
40 |
40 |
