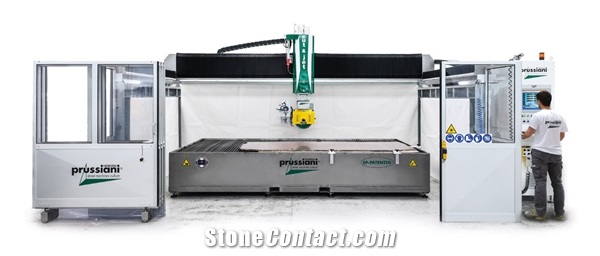

CUT & JET 4 - CNC CUT & JET Combined
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:3 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Supplier
Eatablished :Dec 28,1991
Main Product:
Stone Machinery, CNC Waterjet Machine, Polishing Machine, CNC Bridge Saw, 5 Axes Milling Machines, CNC Working Centers|
Machinery Function Features
Combined CUT&JET machines, equipped with electro-spindle for diamond blades and high pressure waterjet and abrasive, are designed and built to merge the cutting speed of the blade, the versatility of the waterjet and the efficiency of the CUT & MOVE.
Powered by a numerical control interfaced with CAD/CAM systems, they are divided in:
Combined machines CUT&JET 4 axis;
Combined machines CUT&JET 5 axis;
Whether for the production of unique pieces or for serial production combined CUT&JET machines allow endless shapes of cuttings and cut-outs.
automatic centralized greased lubrication. In case of anomalies the machine stops;
watertight IP 55 electric cabinet with safety thermostat;
sound power level: 80 ÷ 90 dB(A).
Technical Data
Parameters |
Unit |
CUT & JET 4 |
Y axis rapid speed |
m/min |
45 |
Machine overall width |
mm |
4300 |
Capacity of abrasive container |
kg |
425 |
X axis rapid speed |
m/min |
45 |
Approx. Weight |
Kg |
6000 |
Number of axes |
nr |
4 |
KMT cutting head |
Active Idee II |
|
Y axis stroke |
mm |
2500 |
A axis rotating (degrees) |
° |
-185° + 185° (370°) |
Max total absorbed power – Saw Machine |
kW |
18 |
Max total absorbed power – Abrasive container |
kW |
0,5 |
Machine overall length |
mm |
6750 |
Approximate total weight of the pump |
kg |
1200 |
Z axis stroke |
mm |
350 |
X axis stroke |
mm |
3800 |
Tool-holder spindle motor torque |
N·m |
72 |
Max total absorbed power – Pump 40HP |
kW |
29 |
Maximum capacity suction cups |
kg |
420 |
Max. diameter of the blade |
mm |
425 |
Tool-holder spindle motor power |
kw |
13,2 |
Minimum width for lifting |
mm |
120 |
Tool-holder spindle rotation speed |
r/min |
0 ÷ 6000 |
Sound pressure level |
dB |
80 ÷ 90 |
Z axis rapid speed |
m/min |
10 |
Machine overall height |
mm |
3220 / 4500(with hp pipe) |
C axis inclination (degrees) |
° |
– -5°÷60° |
Software
Powered by a numerical control interfaced with CAD/CAM systems, they are divided in:
Combined machines CUT&JET 4 axis;
Combined machines CUT&JET 5 axis;
