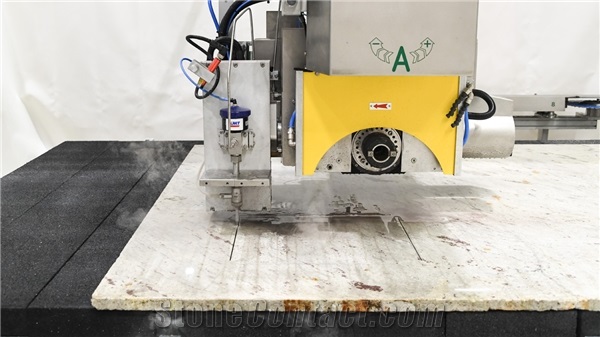

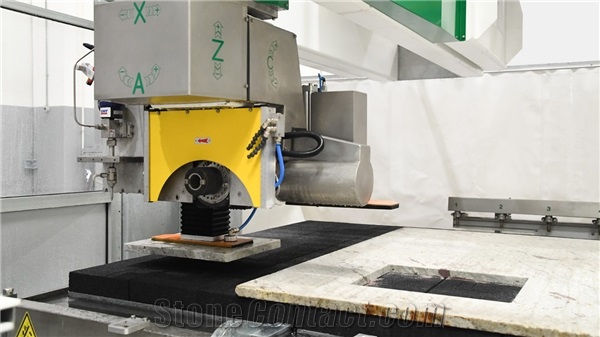

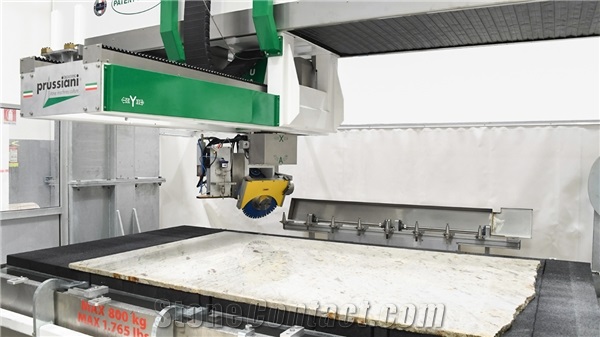

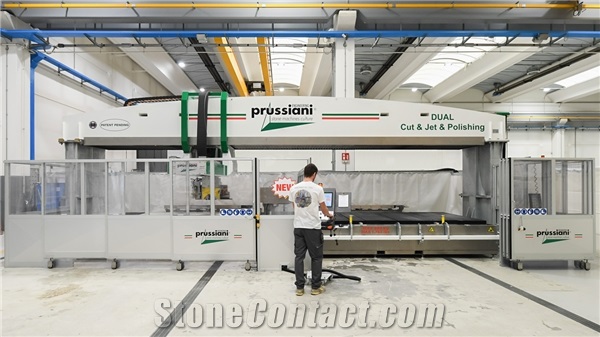

CUT & JET Dual - CNC CUT & JET Combined Machine Working Center
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:3 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Supplier
Eatablished :Dec 28,1991
Main Product:
Stone Machinery, CNC Waterjet Machine, Polishing Machine, CNC Bridge Saw, 5 Axes Milling Machines, CNC Working Centers|
Machinery Function Features
automatic centralized greased lubrication. In case of anomalies the machine stops;
watertight IP 55 electric cabinet with safety thermostat;
sound power level: 80 ÷ 90 dB(A).
Technical Data
Parameters |
Unit |
CUT & JET Dual |
Max. diameter of the blade |
mm |
425 |
Tool-holder spindle rotation speed |
r/min |
0 ÷ 6.000 |
Maximum capacity suction cups |
kg |
420 |
X axis rapid speed |
m/min |
75 |
X axis stroke |
mm |
8100 |
Capacity of abrasive container |
kg |
425 |
Machine overall length |
mm |
12100 |
Approximate weight of the pump |
kg |
1200 |
Sound pressure level |
dB |
80 ÷ 90 |
Tool-holder spindle motor torque |
N·m |
72 |
Z axis rapid speed |
m/min |
10 |
Number of axes |
nr |
5 |
Y axis stroke |
mm |
2000 |
A axis rotating (degrees) |
° |
-185° ÷185° (370°) |
Max total absorbed power – Pump 40HP |
kW |
29 |
Minimum width for lifting |
mm |
120 |
Machine overall width |
mm |
4400 |
Machine overall height |
mm |
3800 |
Approx. Weight |
Kg |
13000 |
Z axis stroke |
mm |
250 |
Max total absorbed power – Abrasive container |
kW |
0.5 |
Tool-holder spindle motor power |
kw |
13,2 |
Max total absorbed power – Saw Machine 18+2 |
kW |
18+2 |
C axis inclination (degrees) |
° |
0° ÷ 60° 0° ÷ 90° |
C2 axis inclination |
° |
– -5° ÷ 60° |
Y axis rapid speed |
m/min |
45 |
Software

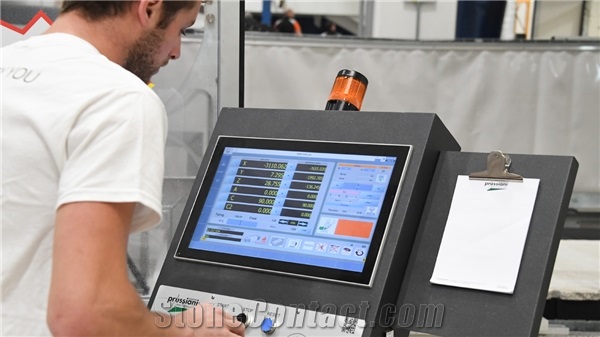

Powered by a numerical control interfaced with CAD/CAM systems, they are divided in:
Combined machines CUT&JET 4 axis;
Combined machines CUT&JET 5 axis;
Whether for the production of unique pieces or for serial production combined CUT&JET machines allow endless shapes of cuttings and cut-outs.
